国土资源遥感  2018, Vol. 30 Issue (1): 144-149    DOI: 10.6046/gtzyyg.2018.01.20
  本期目录 | 过刊浏览 | 高级检索 |
资源一号02C卫星数据在土地整理项目验收核查中的应用
王勇1(), 张寅玲1(), 尤淑撑2, 王忠武2, 魏海2, 李洋1
1.四川省国土勘测规划研究院,成都 610000
2.中国土地勘测规划院,北京 100035
Checkup of land consolidation project using ZY1-02C data
Yong WANG1(), Yinling ZHANG1(), Shucheng YOU2, Zhongwu WANG2, Hai WEI2, Yang LI1
1. Sichuan Institute of Land Planning and Survey, Chengdu 610000, China
2. China Land Surveyingand Planning Institute, Beijing 100035, China
全文: PDF(1339 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

为进一步挖掘资源一号02C卫星(ZY1-02C)数据在土地整理业务中的应用潜能,以内江市威远县界牌镇响罗村土地整理项目为例,以ERDAS,AutoCAD和ArcGIS软件为工具,通过内业核查与外业核查相结合的方式,提出利用ZY1-02C数据进行土地整理项目验收核查的技术路线和操作流程,并对该技术的可行性和准确性进行分析。实际应用表明,利用ZY1-02C影像进行土地整理项目验收核查,能准确解译土地平整工程内的地类情况、灌溉与排水工程中的山平塘情况以及田间道路工程中的田间道整治情况; 但对于囤水田田坎、排水沟、蓄水池以及错车道等工程,难以从ZY1-02C影像上判读; 对于工程施工质量,则无法从ZY1-02C影像判读。根据应用评价结果得出,ZY1-02C数据能为土地整理项目验收核查提供技术支撑,可用于土地整理项目验收核查工作。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
王勇
张寅玲
尤淑撑
王忠武
魏海
李洋
关键词 资源一号02C卫星(ZY1-02C)遥感土地整理验收核查信息提取
Abstract

The purpose of this paper is to study the potential application of ZY1-02C satellite data when they are used in the checkup of land consolidation project. The land consolidation project in Neijiang of Sichuan Province was selected as a case study for this research. Based on the software including ERDAS, AutoCAD and ArcGIS, the authors carried out the indoor verification and the field investigation to put forward the complete technical method and operation procedures by using 02C satellite data for the check up of land consolidation project. The results show that the 02C satellite images could be used to evaluate the cultivation in land leveling project, the shanping pool in irrigation and drainage engineering, and the field road in road project. Nevertheless, the projects, such as the bank of paddy field, field drain, water tank and the passing track, can hardly be checked. The quality of project cannot be evaluated. The conclusion of the paper is that the 02C satellite image can be used in land consolidation project checkup.

Key wordsZY1-02C satellite    remote sensing    land consolidation    checkup    information extraction
收稿日期: 2016-07-04      出版日期: 2018-02-08
:  TP79
基金资助:2014年国土资源部公益性行业科研专项项目“资源一号02C卫星数据土地业务应用产品开发及推广”(编号: 201411119-3)资助
作者简介:

第一作者: 王 勇(1982-),男,硕士,工程师,主要从事土地调查、遥感监测等研究。Email:254267217@qq.com

引用本文:
王勇, 张寅玲, 尤淑撑, 王忠武, 魏海, 李洋. 资源一号02C卫星数据在土地整理项目验收核查中的应用[J]. 国土资源遥感, 2018, 30(1): 144-149.
Yong WANG, Yinling ZHANG, Shucheng YOU, Zhongwu WANG, Hai WEI, Yang LI. Checkup of land consolidation project using ZY1-02C data. Remote Sensing for Land & Resources, 2018, 30(1): 144-149.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2018.01.20      或      https://www.gtzyyg.com/CN/Y2018/V30/I1/144

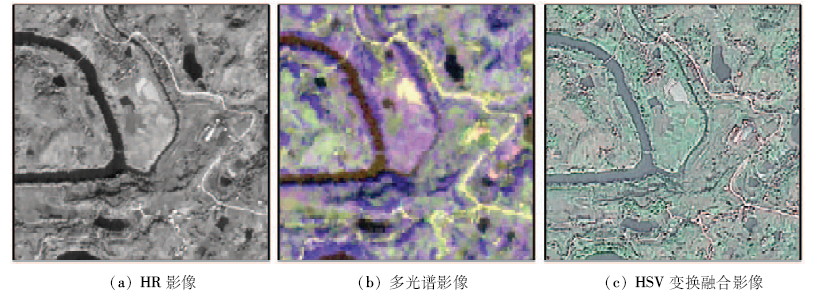

Fig.1  ZY1-02C影像融合前后对比图

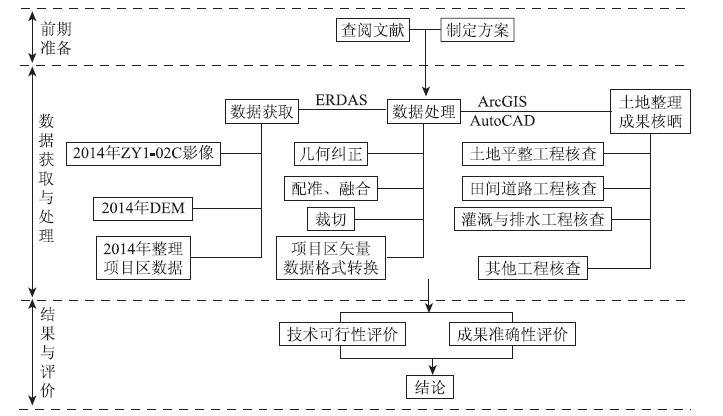

Fig.2  技术路线

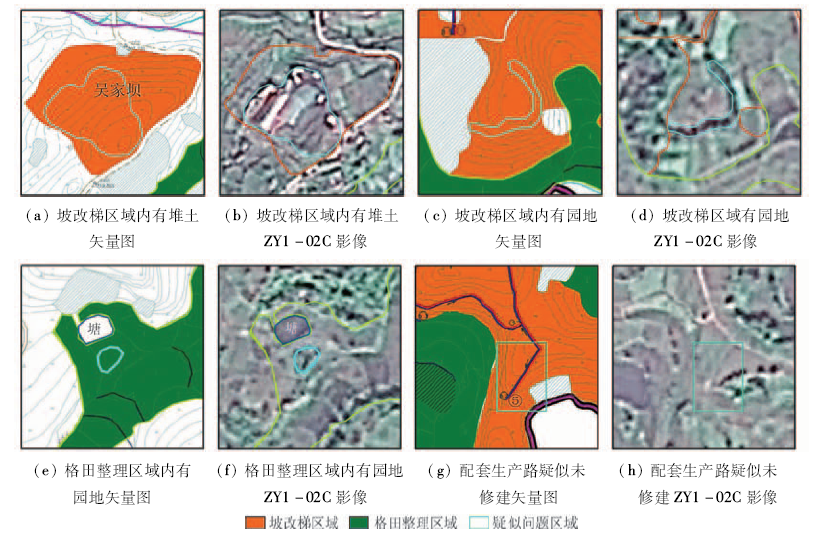

Fig.3  土地平整工程核查

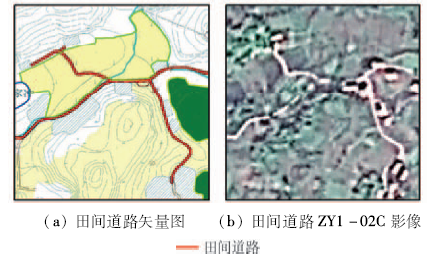

Fig.4  田间道路工程核查

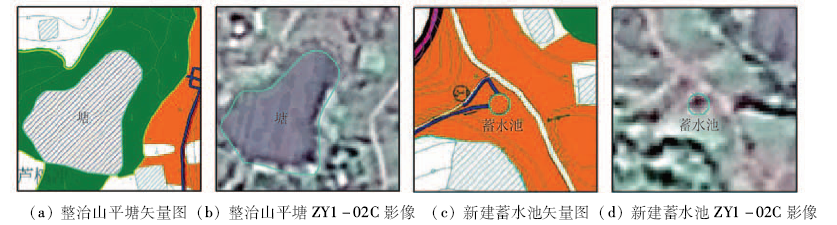

Fig.5  灌溉与排水工程核查
土地整理工程 单体工程 申报竣工情况 内业核查结果 外业核查结果
土地平整工程 旱地坡改梯/m2 446 420.00 426 131.97 部分坡改梯中存在非耕地,面积约为18 937.76 m2
格田整理/m2 1 453 106.67 1 449 939.16 部分格田整理中存在非耕地,面积约为3 167.51 m2
旱地整理/m2 1 042 453.33 1 042 453.33 无问题图斑
水田整理/m2 661 226.67 661 226.67 无问题图斑
囤水田田坎/m 11 845.00 11 845
配套生产路/m 2 036.00 1 495.00 2 036
配套排水沟/m 2 769.00 2 769
田间道路工程 整治田间道/m 10 687.00 10 687.00 10 687
错车道/处 31.00 31
配套田间道涵管/m 150.00 150
弯道加宽/m 900.00 900
限宽墩/处 8.00 8
灌溉与排水工程 整治渠道/m 3 461.00 3 461
整治山平塘/口 18.00 18.00 18
新建蓄水池/口 11.00 11
新建分水口/处 35.00 35
Tab.1  研究区土地整理工程对比表
[1] 胡静,金晓斌,陈原,等.土地整治重大工程项目建设监测管理系统的设计与实现[J].中国土地科学,2012,26(7):44-49.
Hu J,Jin X B,Chen Y,et al.Design and implementation of monitoring and management system for the key land consolidation and readjustment projects[J].China Land Science,2012,26(7):44-49.
[2] 胡振琪,赵艳玲,姜晶,等.土地整理复垦项目验收方案研究[J].农业工程学报,2005,21(6):59-63.
Hu Z Q,Zhao Y L,Jiang J,et al.Scheme and criteria for checkup and acceptance of land consolidation and reclamation projects[J].Transactions of the CSAE,2005,21(6):59-63.
[3] 张述清,杨焰,袁千淇,等.土地整治工程量复核的实践[J].中国土地科学,2012,26(3):63-67.
Zhang S Q,Yang Y,Yuan Q Q,et al.Practice of quantity checkage of land consolidation and readjustment projects[J].China Land Science,2012,26(3):63-67.
[4] 夏权,夏萍,冯东,等.安徽省含山县土地整理耕地质量评价及其变化研究[J].国土资源遥感,2015,27(1):182-186.doi:10.6046/gtzyyg.2015.01.29.
Xia Q,Xia P,Feng D,et al.Evaluation and change research on the quality of cultivated land in land consolidation of Hanshan County,Anhui Province[J].Remote Sensing for Land and Resources,2015,27(1):182-186.doi:10.6046/gtzyyg.2015.01.29.
[5] 彭玉玲,林爱文,王珂,等.资源枯竭型城市的工矿废弃地复垦利用综合效益评价——以黄石市七约山矿区为例[J].国土资源遥感,2015,27(3):161-166.doi:10.6046/gtzyyg.2015.03.25.
Peng Y L,Lin A W,Wang K,et al.Comprehensive benefits evaluation of mining wasteland reclamation and utilization in resource-exhausted cities:A case study of the Qiyueshan mining area,Huangshi City[J].Remote Sensing for Land and Resources,2015,27(3):161-166.doi:10.6046/gtzyyg.2015.03.25.
[6] 孟宪素,李少帅.遥感技术在土地整理复垦开发项目监管工作中的应用实践[J].资源与产业,2009,11(2):66-70.
Meng X S,Li S S.Application of RS in supervision over land consolidation and rehabilitation[J].Resources and Industries,2009,11(2):66-70.
[7] 张兵,崔希民,赵彦博,等.基于High-1卫星影像的土地整治遥感监测方法研究与实践[J].农业工程学报,2015,31(20):225-233.
Zhang B,Cui X M,Zhao Y B,et al.Method and application of remote sensing monitoring in land consolidation based on High-1 satellite image[J].Transactions of the Chinese Society of Agricultural Engineering,2015,31(20):225-233.
[8] 李少帅,陈原,张超,等.基于多时相高分辨率遥感影像的土地整治项目进展评价模型研究[J].中国土地科学,2014,28(3):83-88.
Li S S,Chen Y,Zhang C,et al.Study on evaluation progress model in the implementation of land consolidation projects based on multi-temporal high-resolution remote sensing data[J].China Land Science,2014,28(3):83-88.
[9] 杨清华,李景华,韩旭,等.QuickBird遥感数据在土地整理工作中的应用[J].国土资源遥感,2007,19(4):72-75.doi:10.6046/gtzyyg.2007.04.16.
Yang Q H,Li J H,Han X,et al.The application of QuickBird remote sensing data to land re-organization[J].Remote Sensing for Land and Resources,2007,19(4):72-75.doi:10.6046/gtzyyg.2007.04.16.
[10] 郭云开,陈正阳,彭悦,等.土地复垦工程的遥感评价[J].遥感技术与应用,2008,23(3):249-254.
Guo Y K,Chen Z Y,Peng Y,et al.Evaluation of land reclamation based on RS[J].Remote Sensing Technology and Application,2008,23(3):249-254.
[11] 安志宏,聂洪峰,王昊,等.ZY-1 ZY1-02C数据在矿山遥感监测中的应用研究与分析[J].国土资源遥感,2015,27(2):174-182.doi:10.6046/gtzyyg.2015.02.27.
An Z H,Nie H F,Wang H,et al.Study and analysis of application of ZY-1 02C satellite data to remote sensing monitoring technology for exploration of mineral resources[J].Remote Sensing for Land and Resources,2015,27(2):174-182.doi:10.6046/gtzyyg.2015.02.27.
[12] 何宇华,柳陈胜,史良树,等.基于资源一号02C卫星数据的土地执法监察应用研究——以浙江长兴县为例[J].测绘与空间地理信息,2013,36(9):84-86.
He Y H,Liu C S,Shi L S,et al.Law enforcement to monitor applications based on ZY1-02 C satellite data:A case study of Changxing,Zhejiang[J].Geomatics & Spatial Information Technology,2013,36(9):84-86.
[13] 李慎鹏,雷帆,彭笃明.资源一号02C卫星在土地利用动态监测中的应用[J].测绘科学,2014,39(9):91-93,129.
Li S P,Lei F,Peng D M.Application of ZY1-02C satellite in land-use dynamic monitoring[J].Science of Surveying and Mapping,2014,39(9):91-93,129.
[14] 马利刚,张乐平,邓劲松,等.资源一号“02C”遥感影像土地利用分类[J].浙江大学学报(工学版),2013,47(8):1508-1516.
Ma L G,Zhang L P,Deng J S,et al.Land use classification using ZY1-“02C” remote sensing images[J].Journal of Zhejiang University(Enginerring Science),2013,47(8):1508-1516.
[15] 张微,陈玲,佟晶,等.资源一号ZY-1 02C卫星图像在区域地质调查中的应用前景[J].遥感信息,2015,30(3):93-98.
Zhang W,Chen L,Tong J,et al.Prospect analysis of regional geological survey with use of ZY-1 02C satellite imagery[J].Remote Sensing Information,2015,30(3):93-98.
[16] 林楠,姜琦刚,杨佳佳,等.基于资源一号02C高分辨率数据的农业区土地利用分类[J].农业机械学报,2015,46(1):278-284.
Lin N,Jiang Q G,Yang J J,et al.Classifications of agricultural land use based on high-spatial resolution ZY1-02C remote sensing images[J].Transactions of the Chinese Society for Agricultural Machinery,2015,46(1):278-284.
[17] 李延成,李军,刘慧霞,等.基于最小二乘法的区域整体最优匹配选取控制点的方法[J].测绘科学,2012,37(6):94-97.
Li Y C,Li J,Liu H X,et al.Method of selecting control point based on least squares of regional integral optimal matching[J].Science of Surveying and Mapping,2012,37(6):94-97.
[18] 高媛赟,温小荣,林国忠,等.中国资源一号02C卫星数据的融合评价及应用[J]. 林业资源管理, 2015(1):101-105.
Gao Y Y,Wen X R,Lin G Z,et al.Evaluation and application of fusion methods with ZY1-02C data[J]. Forest Resources Management, 2015(1):101-105.
