高标准粮田区鹤壁市土地利用情景模拟预测研究
田洁玫1(), 陈杰2()
1.郑州大学公共管理学院,郑州 450001
2.郑州大学水利与环境学院,郑州 450001
Simulation and prediction of land use in the High Standard Grain Area of Hebi City
Jiemei TIAN1(), Jie CHEN2()
1. School of Public Administration, Zhengzhou University, Zhengzhou 450001, China
2. School of Water Conservancy and Environment, Zhengzhou University, Zhengzhou 450001, China
全文: PDF(990 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

作为河南省高标准粮田建设试点,鹤壁市肩负着保证粮食安全的重担,对其未来土地利用模拟预测方法进行研究具有现实意义。基于元胞自动机-马尔科夫(Cellular Automata Markov,CA-Markov)模型方法,结合河南省三化协调发展的历史进程,在分析过去20 a间鹤壁市土地利用特征的基础上,将预测分为2种情景进行。结果发现: 鹤壁市2013年预测图的Kappa指数为0.898,说明CA-Markov模型的预测结果能达到模拟效果; 基于数量、空间及景观指数的比较结果显示,情景Ⅱ模式更符合中原经济区建设及工业化发展的要求,符合高标准粮田建设“绿色化”发展的生态环境保护立场,符合鹤壁市城市总体规划,其斑块形状规则、集聚度高且内部连续性强、景观破碎度较低、分布均匀且优势性明显。因此,未来按照情景Ⅱ模式发展,将有利于高标准粮田区的土地可持续利用。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
田洁玫
陈杰
关键词 高标准粮田区土地利用CA-Markov模拟预测鹤壁市
Abstract

In the period of “13th Five-Year Plan”, the national planning attaches great importance to the implementation of construction of the high standard grain area. As one of the high standard grain areas in Henan Province, Hebi City shoulders the burden of ensuring food security. That is why it is of practical significance to study the simulation and prediction of land use in Hebi City in the future. With the use of CA-Markov model and on the basis of the historical process of the coordinated development of urbanization, industrialization and agricultural modernization of Henan Province, the prediction can be divided into two scenarios for the simulation and prediction of land use according to the analysis of the characteristics of land use in Hebi city in the past 20 years. The results can show that the Kappa index of Hebi City in 2013 was about 0.898, which means that the fitting effect is the best, and that the prediction results of CA-Markov model can achieve good fitting effect. Based on comparative analysis of the quantity, the space and the landscape index of Hebi City, it is held that the scenario II can be more in line with the demand of the Central Plains Economic Area and the industrial development as well as with the “green development” in the High Standard Grain Area’s ecological and environmental protection grounds. What’s more, it is in accordance with the planning of Hebi City, the patch shape is more regular, the plaque agglomeration degree is high, the internal continuity is strong, landscape fragmentation degree is low, and the landscape distribution is uniform, thus exhibiting obvious advantages. The authors hold that, in the future, the government should adhere to scenario II model for the development of the construction of the High Standard Grain Area so that the land can realize sustainable development.

Key wordshigh standard grain area    land use    CA-Markov    simulation and prediction    Hebi City
收稿日期: 2016-09-09      出版日期: 2018-02-08
:  TP79
基金资助:国家自然科学基金项目“基于分类距离—环境协变量回归模型的土壤数字化制图研究”(编号: 40971128)和科技部“十二五”农村领域国家科技计划课题项目“砂质潮土中低产田改良研究与示范”(编号: 2012BAD05B02-7)共同资助
作者简介:

第一作者: 田洁玫(1988-),女,博士研究生,主要研究方向为土地可持续利用与信息化管理。 Email:tjm6688@163.com

引用本文:
田洁玫, 陈杰. 高标准粮田区鹤壁市土地利用情景模拟预测研究[J]. 国土资源遥感, 2018, 30(1): 150-156.
Jiemei TIAN, Jie CHEN. Simulation and prediction of land use in the High Standard Grain Area of Hebi City. Remote Sensing for Land & Resources, 2018, 30(1): 150-156.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2018.01.21      或      https://www.gtzyyg.com/CN/Y2018/V30/I1/150

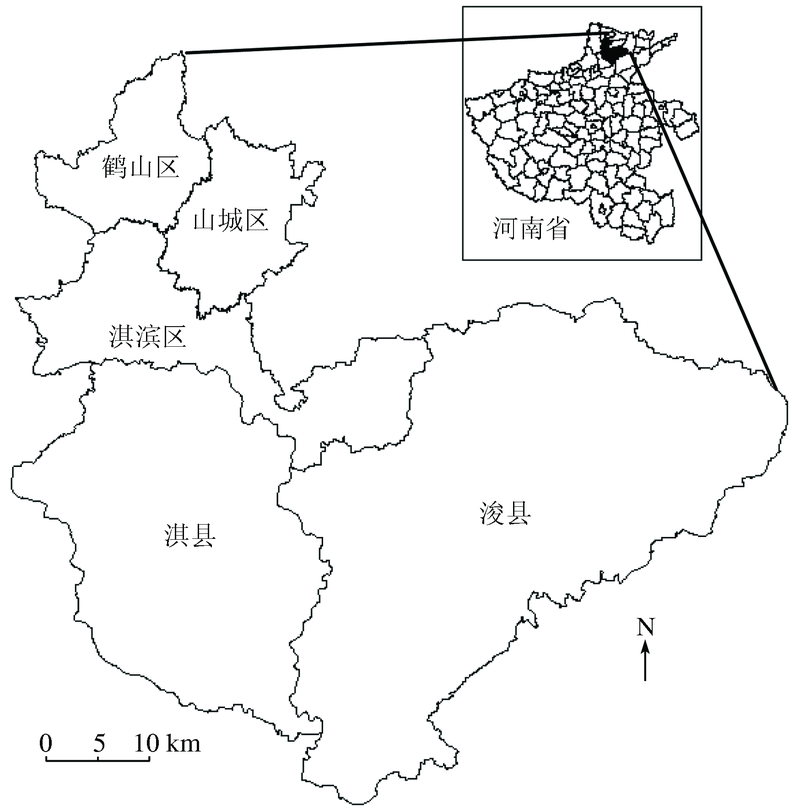

Fig.1  鹤壁市位置示意图
类型 1993年 2003年 2013年
耕地 1 333.548 1 347.785 1 315.787
建设用地 256.803 308.189 368.901
林地 218.135 216.971 225.528
水域 47.652 46.946 55.961
未利用地 286.036 222.284 175.994
合计 2 142.174 2 142.175 2 142.171
Tab.1  鹤壁市3期土地利用类型面积
指标 1993—2003年 2003—2013年
建设用地净变化量/km2 51.386 60.712
建设用地扩张速度/(km2·a-1) 5.139 6.071
建设用地扩张强度 0.240 0.283
耕地净变化量/km2 14.237 -31.998
耕地扩张速度/(km2·a-1) 1.424 -3.200
耕地扩张动态度/% 0.110 -0.240
Tab.2  鹤壁市2个阶段土地利用变化对比表
土地利用类型 相交栅
格数/个
模拟结果
栅格数/个
数量精度
/%
Kappa
指数
耕地 118 235 135 404 87.320 0.826
林地 19 314 23 595 81.093 0.810
建设用地 29 432 34 851 84.451 0.829
水域 3 414 4 868 70.131 0.699
未利用地 14 947 15 931 93.823 0.935
合计 457 610 457 610 100.000 0.898
Tab.3  鹤壁市2013年预测结果模拟精度

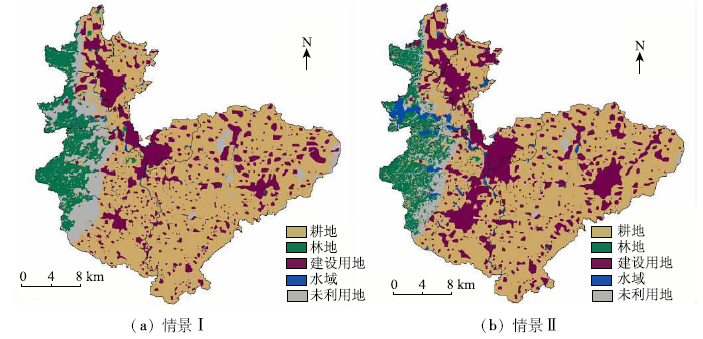

Fig.2  两种发展情景下模拟的2023年鹤壁市土地利用图
土地利用类型 2023年(情景Ⅰ) 2023年(情景Ⅱ)
面积/km2 比例/% 面积/km2 比例/%
耕地 1 247.181 58.268 1 193.000 55.737
林地 204.821 9.569 218.854 10.225
建设用地 417.619 19.511 526.308 24.589
水域 30.873 1.442 76.917 3.594
未利用地 239.937 11.210 125.332 5.855
合计 2 140.431 100.000 2 140.411 100.000
Tab.4  鹤壁市2023年土地利用类型面积及比例汇总表

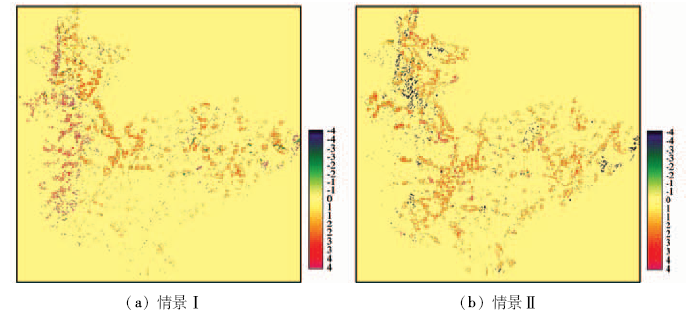

Fig.3  2023年鹤壁市土地利用空间发展比较图
景观格局指数 2023年(情景Ⅰ) 2023年(情景Ⅱ)
AWMSI 7.78 6.68
SHDI 1.24 1.25
SHEI 0.69 0.70
MPS 150.23 155.28
NUMP 3 046.00 2 947.00
Tab.5  鹤壁市2023年土地利用类型景观指数表
