基于对象的地裂缝分步提取方法研究与应用

doi:10.6046/gtzyyg.2019.01.12

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(4819 KB)

HTML
输出: BibTeX | EndNote (RIS)

摘要

基于遥感影像的区域尺度地裂缝自动提取技术存在光谱范围不确定和几何特征多样导致提取精度低的问题,对此提出了一种基于对象的地裂缝分步提取方法。首先,对影像进行分割,根据分割对象的光谱和几何特征,掩模去除与地裂缝区别较大的地表干扰要素; 然后,提取影像中的线性对象,去除不具有线性特征的地表要素; 最后,计算线性对象的分形特征,进一步区分地裂缝和其他线性地表要素,实现地裂缝的精确提取。以鄂尔多斯东北部某煤矿开采区为研究区进行实验,结果表明,该方法能够有效地提取地裂缝,正确率达到85.7%,高于传统监督分类精度(57.1%)和知识模型提取精度(71.4%)。在提取结果的基础上,研究了典型研究区的地裂缝分布特点,分析其与采空区位置以及地形的空间关系,结果显示该研究区的地裂缝个数与采空区距离呈现负相关关系,而与地形没有明显的相关性。研究可为区域性地质环境保护和矿区煤炭资源合理开发提供必要的技术支撑。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	张兴航
	朱琳
	王威
	孟利山
	李小娟
	任应超

关键词 ： GeoEye影像, 地裂缝, 分步提取, 特征提取

Abstract：

The automatic extraction technology of regional scale ground fissures based on remote sensing images has the problem of low spectral range and low geometric feature, which leads to low extraction precision. Therefore, the sequential step extraction method for ground fissures based on objects is proposed. Firstly, the image is segmented. According to the spectral and geometric characteristics of segmentation object, surface interference factors which are different from the ground fissures are removed by mask. On such a basis, the linear objects are extracted and the surface factors without linear features are removed ultimately. Finally, the fractal characteristics of linear objects are calculated to differentiate between the ground fissures and other linear surface factors and complete the automatic extraction of ground fissures. The method was applied to the extraction of ground fissures in a coal-mining region of northeastern Ordos. The results show that the method is effective in extracting the ground fissures. Its accuracy reaches 85.7%, which is better than the precision of traditional supervised classification method (57.1%) and the precision of knowledge model extraction method (71.4%) . On the basis of extraction results, this paper discusses the distribution characteristics of ground fissures. The respective relations between ground fissures and the location of goafs as well as topography are analyzed. The results show that the number of ground fissures is negatively correlated to the distance of goafs and is not clearly correlated to the topography. The research can provide the necessary technical support for the regional geological environment protection and the rational exploitation of coal resources in the mining area.

Key words： GeoEye image ground fissures sequential extraction feature extraction

收稿日期: 2017-09-30 出版日期: 2019-03-15

TP79

基金资助:中国地质调查局地质调查项目“华北地区煤铀资源开发放射性地质环境调查”(DD20160130);国家高分专项项目联合资助(02-Y30B19-9001-15/17)

通讯作者: 朱琳

作者简介: 张兴航(1992-),女,硕士研究生,研究方向为信息水文地质。Email: jhj580724@163.com。

引用本文:

张兴航, 朱琳, 王威, 孟利山, 李小娟, 任应超. 基于对象的地裂缝分步提取方法研究与应用[J]. 国土资源遥感, 2019, 31(1): 87-94.
Xinghang ZHANG, Lin ZHU, Wei WANG, Lishan MENG, Xiaojuan LI, Yingchao REN. Study and application of sequential extraction method of ground fissures based on object. Remote Sensing for Land & Resources, 2019, 31(1): 87-94.

链接本文:

https://www.gtzyyg.com/CN/10.6046/gtzyyg.2019.01.12 或 https://www.gtzyyg.com/CN/Y2019/V31/I1/87

Fig.1 研究区位置图

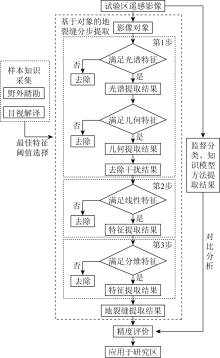

Fig.2 技术流程图

Fig.3 不同分割尺度结果对比

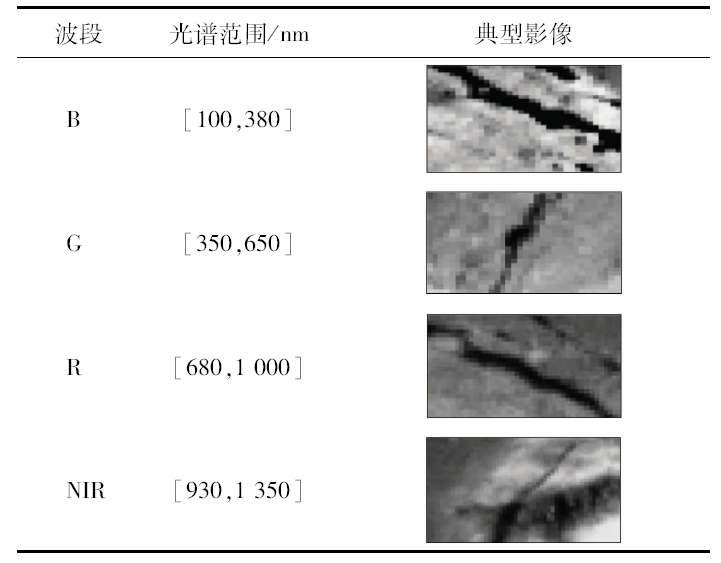

Tab.1 地裂缝光谱范围

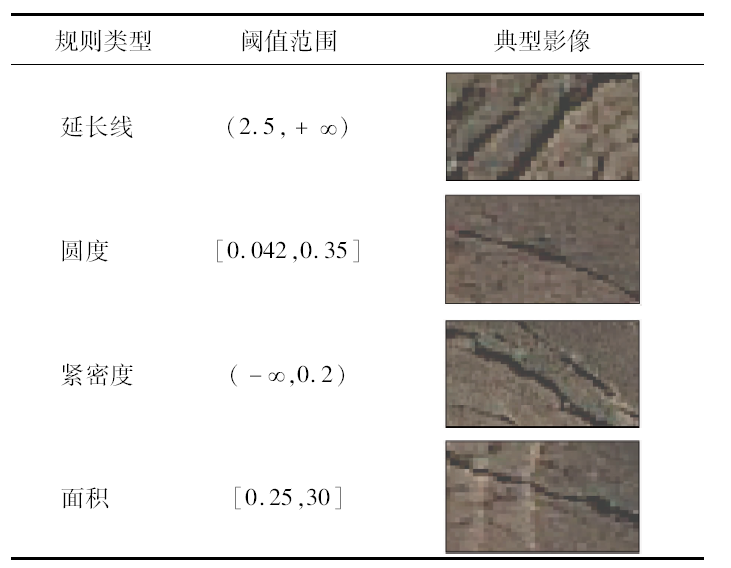

Tab.2 地裂缝几何特征阈值范围
