基于GIS的路网应急疏散脆弱性研究
姜文1,2,3, 秦其明1,2,3()
1.北京大学地球与空间科学学院遥感与地理信息系统研究所,北京 100871
2.空间信息集成与3S工程应用北京市重点实验室,北京 100871
3.地理信息基础软件与应用国家测绘地理信息局工程技术研究中心,北京 100871
Research on emergency evacuation vulnerability of the traffic network model based on GIS
Wen JIANG1,2,3, Qiming QIN1,2,3()
1.Institute of Remote Sensing and Geographic Information System, School of Earth and Space Sciences, Peking University, Beijing 100871, China
2.Beijing Key Lab of Spatial Information Integration and 3S Application, Peking University, Beijing 100871, China
3.Mapping and Geo-information for Geographic Information Basic Software and Applications, Engineering Research Center of National Administration of Surveying, Beijing 100871, China
全文: PDF(4483 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

针对交通路网对城市应急疏散过程的影响,使用空间分析技术对路网的脆弱性与应急疏散模型进行研究。使用最小费用最大流(minimal cost maximal flow,MCMF)算法寻找GIS路网数据中的脆弱点,以北京某实地区域数据进行算法验证,并与同类软件的提取效果进行比较。结果表明,基于GIS平台集成的模型算法可以准确提取路网脆弱点,可提高在应急疏散中路网的利用效率,加快疏散速度。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
姜文
秦其明
关键词 GIS路网模型应急疏散脆弱性MCMF
Abstract

In order to analyze the influence of traffic network on urban emergency evacuation, the authors studied the vulnerabilities of traffic network and the model of emergency evacuation by GIS spatial analysis. Searching for vulnerable points in road network was conducted by minimal cost maximal flow (MCMF) algorithm. Then the algorithm was evaluated using the road network data in Beijing. Compared with existing software, the proposed method based on GIS platform extracts the road network vulnerabilities more accurately, and it also increases the utilization of the road network in the emergency evacuation and speed up the evacuation.

Key wordsGIS    traffic network model    emergency evacuation    vulnerability    MCMF
收稿日期: 2017-11-28      出版日期: 2019-03-14
:  P208
基金资助:国家重点研发计划资助项目"黄准海地区小麦生长卫星遥感监测预测"(2016YFD0300603-2);国家自然科学基金国际(地区)合作与交流项目"作物生长与健康遥感监测与评价技术研究"(61661136006)
通讯作者: 秦其明
作者简介: 姜文(1983-),男,硕士研究生,主要从事地理信息系统建模与应用方面的研究。Email:1501210206@pku.edu.cn。
引用本文:
姜文, 秦其明. 基于GIS的路网应急疏散脆弱性研究[J]. 国土资源遥感, 2019, 31(1): 277-282.
Wen JIANG, Qiming QIN. Research on emergency evacuation vulnerability of the traffic network model based on GIS. Remote Sensing for Land & Resources, 2019, 31(1): 277-282.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2019.01.36      或      https://www.gtzyyg.com/CN/Y2019/V31/I1/277

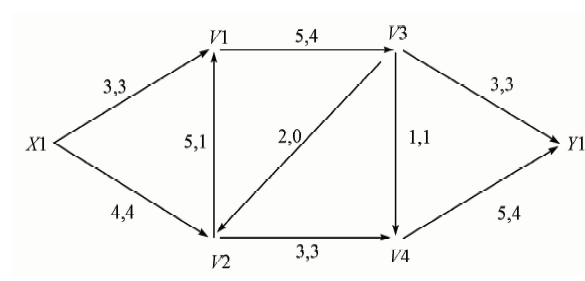

Fig.1  单源单汇网络图

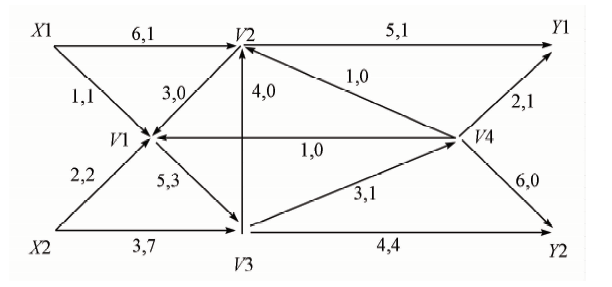

Fig.2  多源多汇网络图

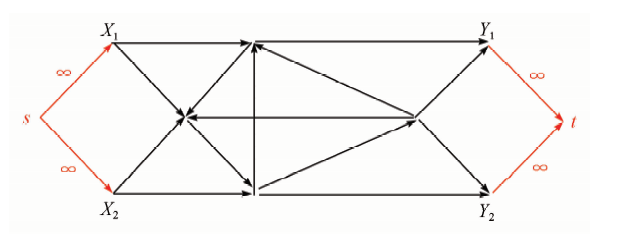

Fig.3  多源多汇网络的转化

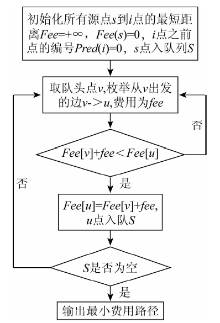

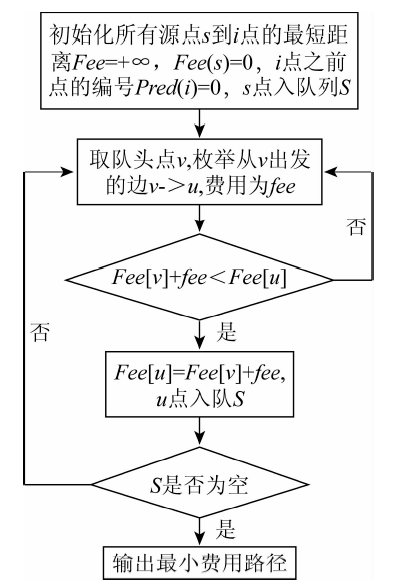

Fig.4  SPFA算法流程
Fig.5  北京市某区域及其周围路网分布

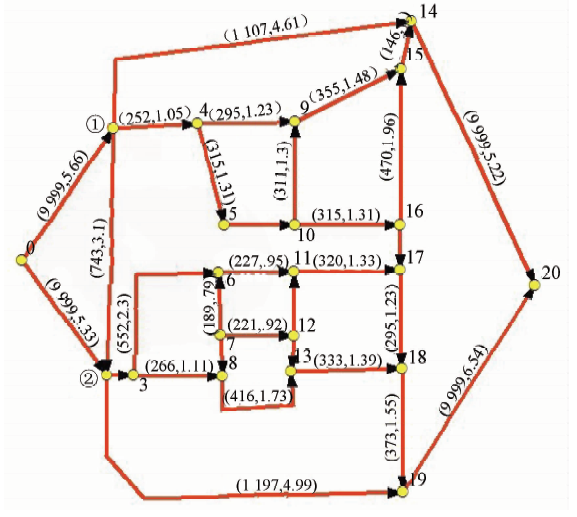

Fig.6  应急疏散路网模型

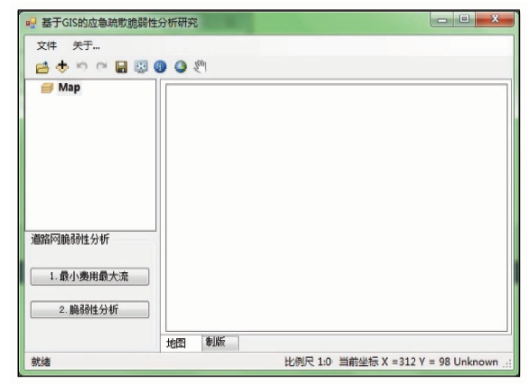

Fig.7  系统界面设计图

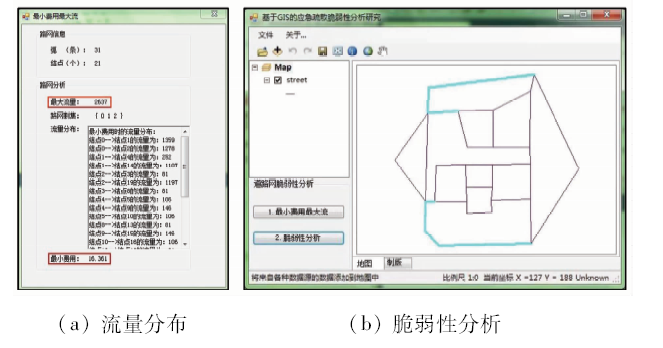

Fig.8  流量分布与脆弱性分析

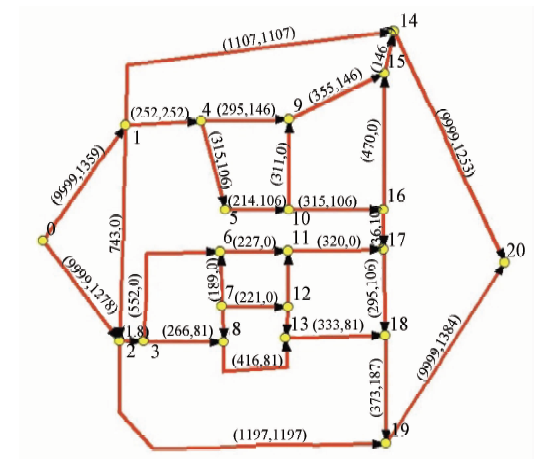

Fig.9  MCMF下的流量分布
类别 扩容前 扩容后
最大流/(个/min) 2 637 5 052
最小费用/min 16.361 16.337
Tab.1  道路网扩容前后情况对比
