卷积神经网络特征在遥感图像配准中的应用
叶发茂,罗威,苏燕飞,赵旭青,肖慧,闵卫东()
南昌大学信息工程学院,南昌 330031
Application of convolutional neural network feature to remote sensing image registration
Famao YE,Wei LUO,Yanfei SU,Xuqing ZHAO,Hui XIAO,Weidong MIN()
School of Information Engineering, Nanchang University, Nanchang, 330031, China
全文: PDF(5628 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

遥感图像配准是许多遥感应用的重要步骤之一。卷积神经网络(convolutional neural network, CNN)提取的图像高层特征在图像分类和检索问题上表现优异,能够克服低层配准特征的表达能力有限、容易受到干扰等问题。因此对利用CNN特征进行遥感图像配准开展研究。首先,针对遥感图像配准问题,对CNN中的全连接层特征和不同聚合大小的卷积层特征进行了研究; 然后,对利用CNN特征进行图像配准的方法进行了分析; 最后,将CNN特征与尺度不变特征变换(scale-invariant feature transform, SIFT)特征在图像的旋转角度、缩放倍数和亮度依次变换时的配准性能进行了对比分析。实验结果表明,在匹配精度和正确对应点的数量方面,CNN特征比SIFT方法具有更好的匹配性能; 对变换后的图像而言,微调后的CNN特征比SIFT特征具有更强的鲁棒性。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
叶发茂
罗威
苏燕飞
赵旭青
肖慧
闵卫东
关键词 卷积神经网络遥感图像配准聚合卷积特征尺度不变特征变换(SIFT)
Abstract

Successful remote sensing image registration is one of the foundations of many remote sensing applications. Image high-lever features extracted by convolutional neural network (CNN) have achieved excellent performance in image classification and retrieval, and can be used to solve some problems of low-lever image registration features, such as the limitation of expression capability and easily being interfered. Hence, in this paper, the authors investigated the problem as to how to use CNN feature for remote sensing image registration. First, the authors investigated different CNN features from fully connected layers and aggregating convolutional features with different sizes from convolutional layer to register remote sensing image. Then the authors introduced the procedure by using CNN feature for image registration. Finally, the authors compared the registration performances of CNN features and scale-invariant feature transform (SIFT) features after the transformation of the image’s perspective, brightness and scale, respectively. The experimental results show that the CNN feature has better matching performance than the SIFT method in terms of matching accuracy and correct number of corresponding points. The finely tuned CNN feature has stronger robustness to the transformed image than the SIFT feature.

Key wordsconvolutional neural network    remote sensing image registration    aggregating convolutional features    scale-invariant feature transform (SIFT)
收稿日期: 2018-03-21      出版日期: 2019-05-23
ZTFLH:  TP79
基金资助:国家自然科学基金项目“基于人工禁忌免疫原理的多源遥感图像自动配准研究”(41261091);“基于多变量自然场景统计和局部均值估计的无参考立体图像质量评价”(61662044);“单摄像机在复杂背景下基于行为特征模型的摔倒检测研究”(61762061);江西省自然科学基金项目“在复杂背景下基于单摄像机的摔倒检测的关键技术研究”共同资助(20161ACB20004)
通讯作者: 闵卫东     E-mail: minweidong@ncu.edu.cn
作者简介: 叶发茂(1978-),男,副教授,主要从事遥感图像处理和人工智能方面研究。Email: yefamao@ncu.edu.cn。
引用本文:
叶发茂,罗威,苏燕飞,赵旭青,肖慧,闵卫东. 卷积神经网络特征在遥感图像配准中的应用[J]. 国土资源遥感, 2019, 31(2): 32-37.
Famao YE,Wei LUO,Yanfei SU,Xuqing ZHAO,Hui XIAO,Weidong MIN. Application of convolutional neural network feature to remote sensing image registration. Remote Sensing for Land & Resources, 2019, 31(2): 32-37.
链接本文:
http://www.gtzyyg.com/CN/10.6046/gtzyyg.2019.02.05      或      http://www.gtzyyg.com/CN/Y2019/V31/I2/32
Fig.1  AlexNet模型架构

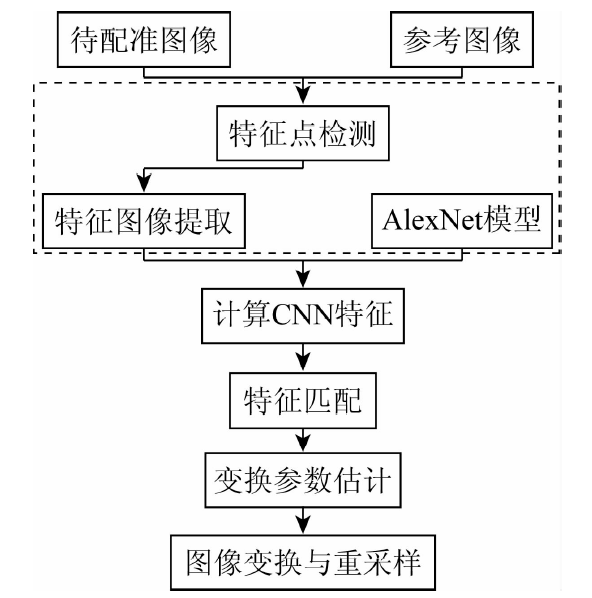

Fig.2  基于CNN特征的图像配准流程

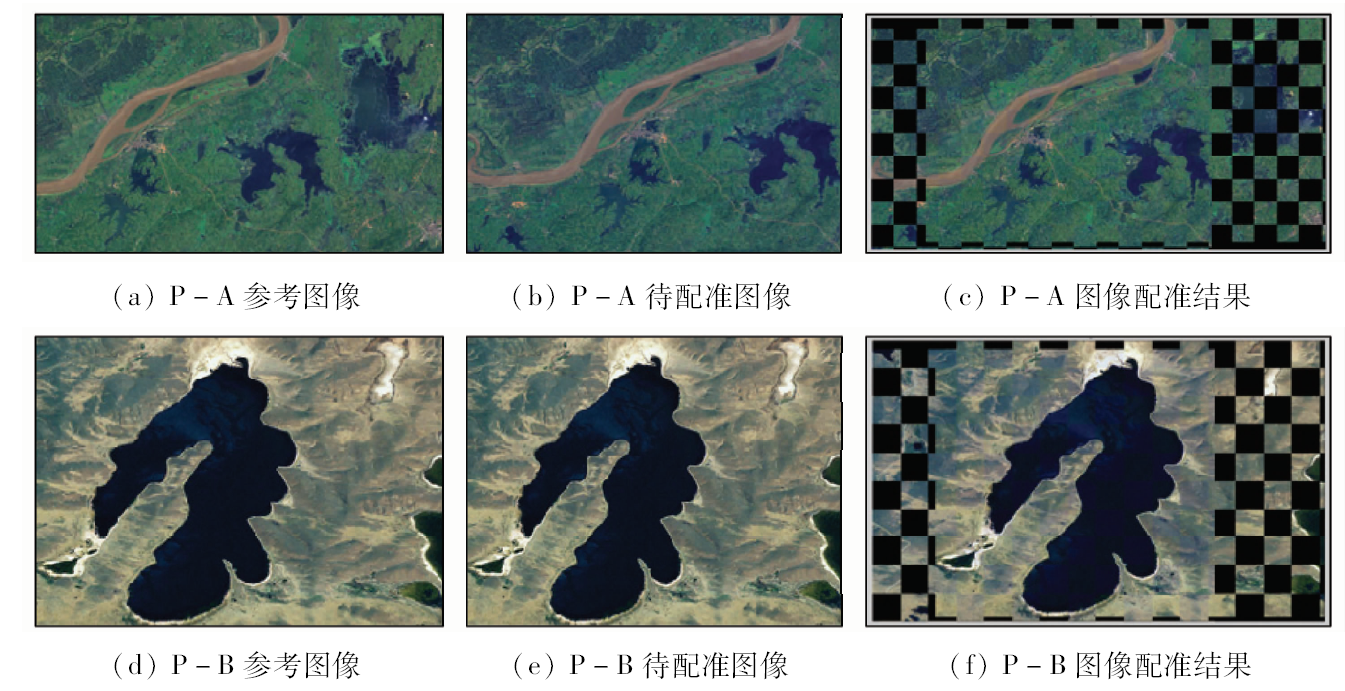

Fig.3  多波段合成彩色遥感图像对

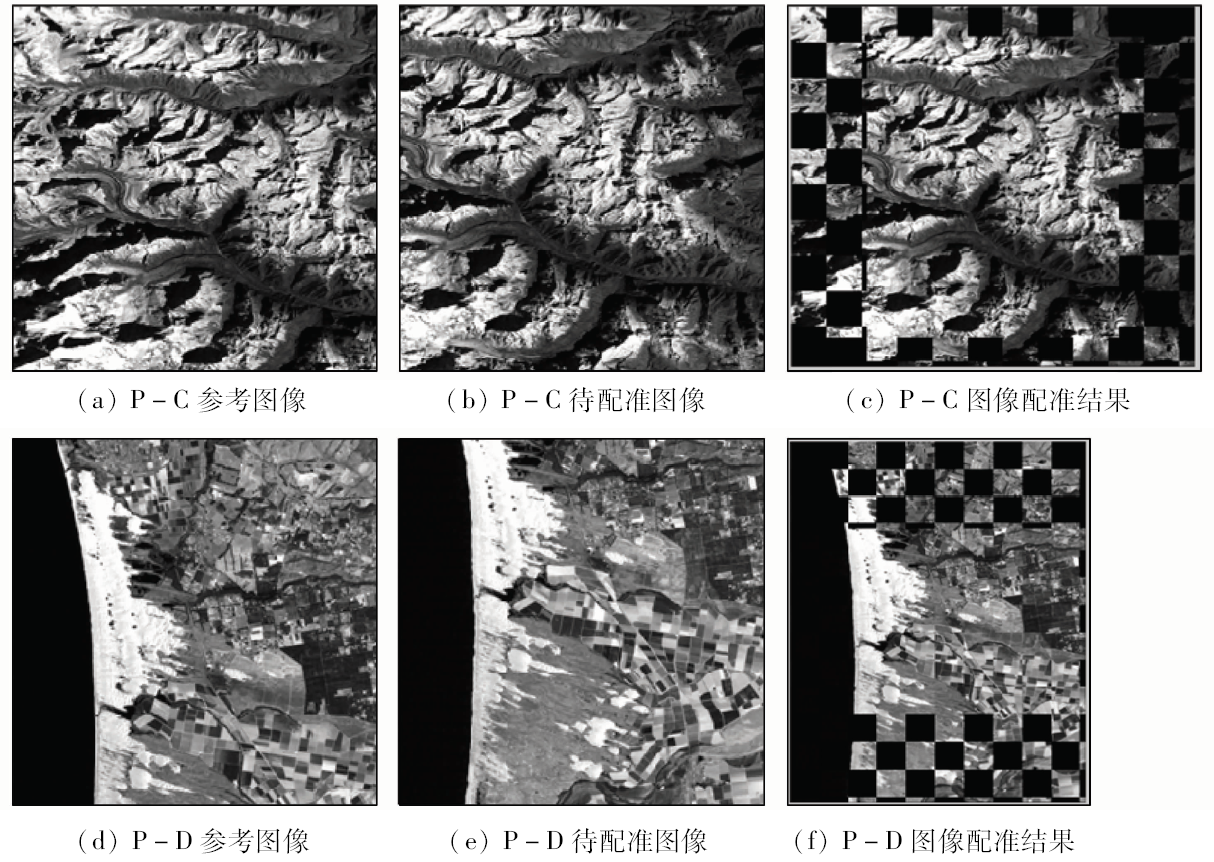

Fig.4  Landsat TM单波段图像对
特征 P-A图像 P-B图像 P-C图像 P-D图像
RMSall RMSLOO Nred RMSall RMSLOO Nred RMSall RMSLOO Nred RMSall RMSLOO Nred
SIFT 0.040 8 0.040 9 64 0.092 1 0.094 1 24 0.070 5 0.070 6 42 0.913 4 1.015 0 7
FC7fine-tuning 0.034 2 0.034 2 72 0.079 6 0.081 3 27 0.038 1 0.039 0 49 0.800 2 0.820 2 8
FC6fine-tuning 0.034 2 0.034 2 72 0.079 6 0.081 3 27 0.036 2 0.037 1 50 0.662 2 0.839 8 11
Agg1fine-tuning 0.034 2 0.034 2 72 0.079 6 0.081 3 27 0.036 2 0.037 1 50 0.698 7 1.077 3 10
Agg2fine-tuning 0.034 2 0.034 2 72 0.079 6 0.081 3 27 0.036 2 0.037 1 50 0.670 0 0.714 4 10
Agg3fine-tuning 0.034 2 0.034 2 72 0.079 6 0.081 3 27 0.038 1 0.039 0 49 0.737 1 0.758 8 7
Agg4fine-tuning 0.043 1 0.043 3 56 0.109 8 0.111 5 22 0.038 1 0.039 0 49 2.656 5 3.116 7 3
FC7pre-trained 0.038 0 0.038 1 65 0.094 6 0.097 3 25 0.043 3 0.044 4 43 1.893 5 3.635 3 4
FC6pre-trained 0.037 7 0.037 8 71 0.079 6 0.081 3 27 0.042 8 0.043 8 46 1.286 7 1.311 3 5
Agg1pre-trained 0.034 2 0.034 2 72 0.079 6 0.081 3 27 0.038 1 0.039 0 49 0.800 2 0.820 2 8
Agg2pre-trained 0.034 2 0.034 2 72 0.079 6 0.081 3 27 0.040 6 0.041 5 48 1.044 4 1.339 5 7
Agg3pre-trained 0.037 9 0.038 0 70 0.079 6 0.081 3 27 0.040 6 0.041 5 48 0.732 0 0.762 7 8
Agg4pre-trained 0.063 8 0.065 6 18 0.263 2 0.261 3 9 0.040 7 0.041 6 46 9.711 4 11.32 4 3
Tab.1  不同特征的图像配准精度

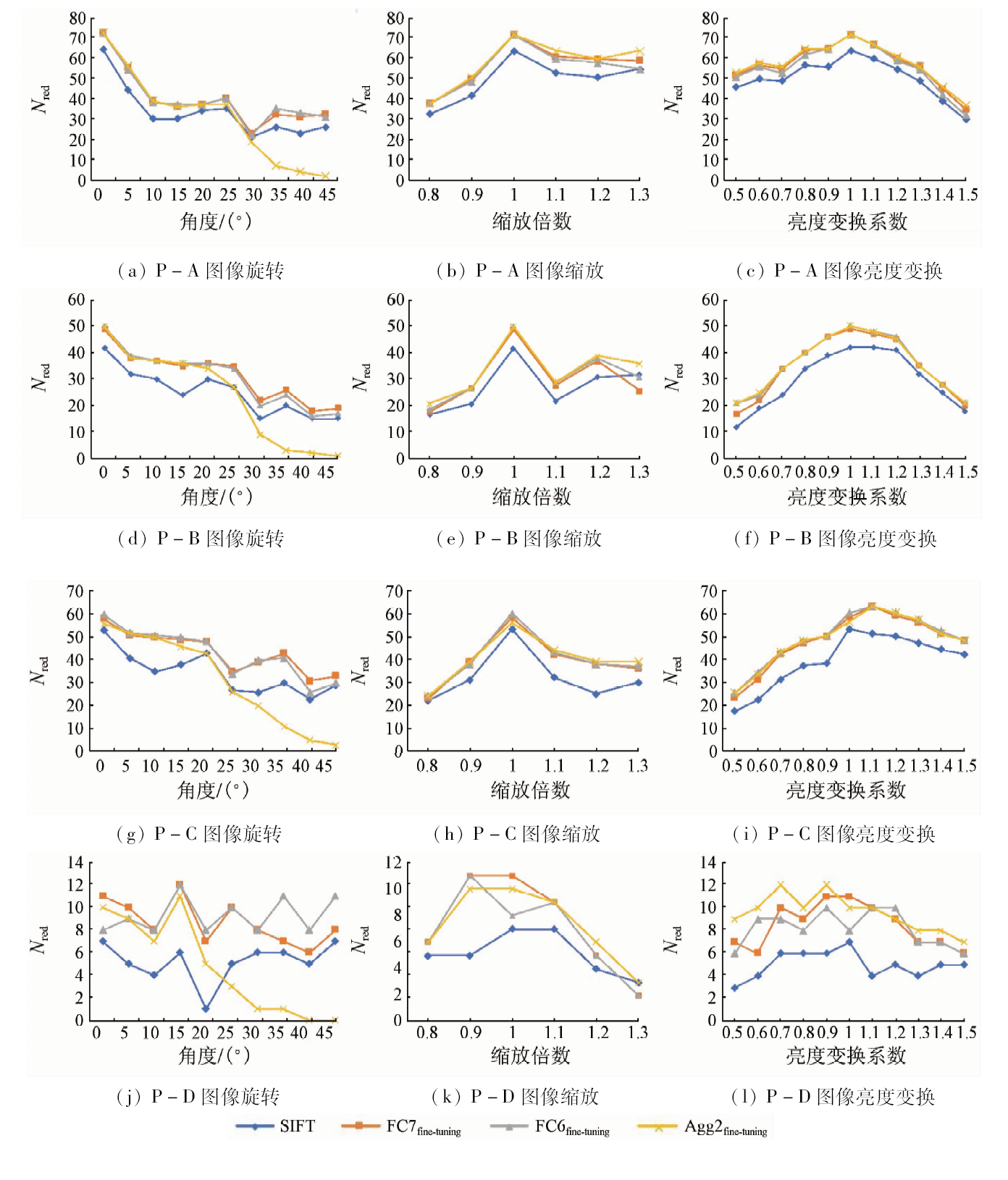

Fig.5  4幅图像不同变换下的Nred
