Extraction of geological structural and alteration information and the prediction of metallogenic favorable locations in northeastern Jeddah, Saudi Arabia
Honglin MA1,2, Weijie JIA1,3, Changliang FU1, Wei LI1
1. China Aero Geophysical Survey and Remote Sensing Center for Natural Resources, Beijing 100083, China
2. School of Earth Sciences and Resources, China University of Geosciences(Beijing), Beijing 100083,China
3. University of Chinese Academy of Sciences, Beijing 100049, China
全文: PDF(5941 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

沙特阿拉伯吉达东北部地区位于非洲—阿拉伯成矿区,矿产丰富,地质构造情况复杂,岩浆热液活动明显,多金属成矿作用极为发育,成矿潜力巨大。为进一步寻找该地区多金属矿床的成矿部位,圈定找矿远景区,利用Landsat8影像对该区进行线性-环形构造解译,运用“主成分分析-最优密度分割”方法提取铁化等矿化蚀变遥感异常信息; 综合分析区内7个铁化蚀变区遥感影像的地质特征并筛选有利于成矿的线性-环形构造,基于上述特征对沙特吉达东北部地区成矿有利部位进行预测,圈定出3个找矿远景区; 最后通过高分二号(GF-2)和Google Earth等高空间分辨率遥感影像对所圈定的找矿远景区进行了验证,进一步证明岩浆侵入的环形构造区及断裂交汇处是该区成矿的有利场所。研究成果可为该地区进一步找矿预测提供参考依据。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
马鸿霖
贾伟洁
付长亮
李伟
关键词 线性-环形构造蚀变异常最优密度分割找矿预测吉达东北部
Abstract

Northeastern Jeddah area of Saudi Arabia is located in Africa-Arab metallogenic area, which is characterized by rich mineral resources, complex geological structure and magmatic hydrothermal activities, thus having well-developed polymetallic mineralization and tremendous metallogenic potential. For the purpose of further prospecting for polymetallic areas and delineating favorable targets, the authors used the Landsat8 images to interpret linear-ring structures in the whole study area, and employed the “principal component analysis-optimal density segmentation” method by using iron mineralization alteration anomaly to extract polymetallic deposits. Based on the comprehensive analysis, the authors studied the remote sensing image geological characteristics of 7 iron mineralization alteration zones in the study area and selected favorable metallogenic linear-ring structures to predict the favorable location of prospecting in the northeastern Jeddah area of Saudi Arabia. Three iron prospective areas were delineated. GF-2 and Google Earth images were used to verify the prediction of metallogenic favorable sites in northeastern Jeddah of Saudi Arabia. The results obtained further prove that the magmatic intrusion in the annular tectonic zone and the fracture junction are favorable places for metallogenesis in the study area. The results obtained by the authors could provide the reference for the further prospecting prediction in this region.

Key wordslinear-ring structure    alteration anomaly    optimal density segmentation    prospecting prediction    northeastern Jeddah
收稿日期: 2018-06-07      出版日期: 2019-08-30
:  TP79
基金资助:中国地质调查局地质调查项目“‘一带一路’资源环境卫星遥感解译与应用”(DD2016117);国家重点研发计划项目“基于国产遥感卫星的典型要素提取技术”共同资助(2016YFB0501404)
作者简介: 马鸿霖(1993-),男,硕士研究生,主要从事地球化学及地质遥感解译方向的研究。Email: 932866230@qq.com.。
引用本文:
马鸿霖, 贾伟洁, 付长亮, 李伟. 沙特阿拉伯吉达东北部地质构造与蚀变信息提取及找矿有利部位预测[J]. 国土资源遥感, 2019, 31(3): 174-182.
Honglin MA, Weijie JIA, Changliang FU, Wei LI. Extraction of geological structural and alteration information and the prediction of metallogenic favorable locations in northeastern Jeddah, Saudi Arabia. Remote Sensing for Land & Resources, 2019, 31(3): 174-182.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2019.03.22      或      https://www.gtzyyg.com/CN/Y2019/V31/I3/174

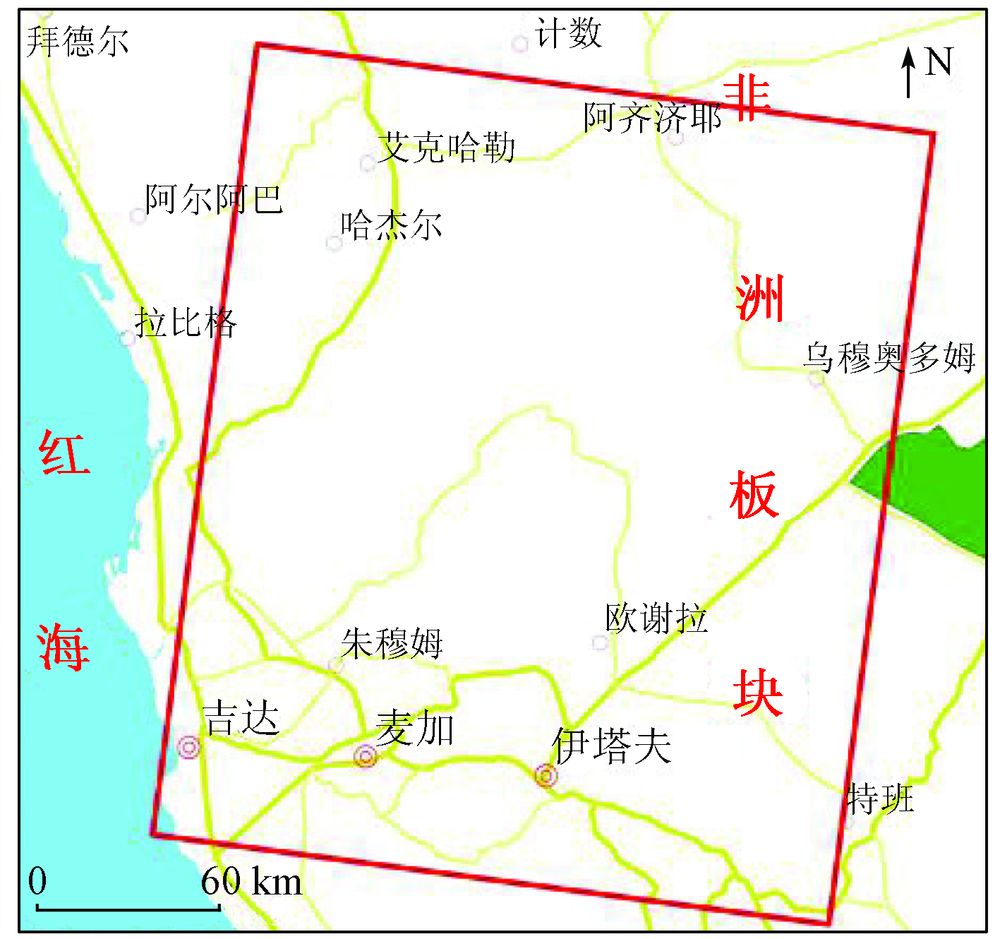

Fig.1  沙特阿拉伯吉达东北部研究区范围示意图
Fig.2  线性构造遥感解译图
(Landsat8 B7(R),B5(G),B2(B)假彩色合成)
Fig.3  研究区典型环形构造
主成分分量 B2 B3 B5 B7
PC1 0.351 475 0.496 715 0.746 868 0.268 192
PC2 0.696 600 0.426 016 -0.524 727 -0.240 667
PC3 -0.075 104 0.152 420 -0.390 867 0.904 627
PC4 0.620 945 -0.740 644 0.118 631 0.227 600
Tab.1  Landsat8波段主成分分析特征向量
Fig.4  吉达东北部地区东南部矿区铁化蚀变信息提取结果
(GF-2 B3(R),B2(G),B1(B)彩色合成)

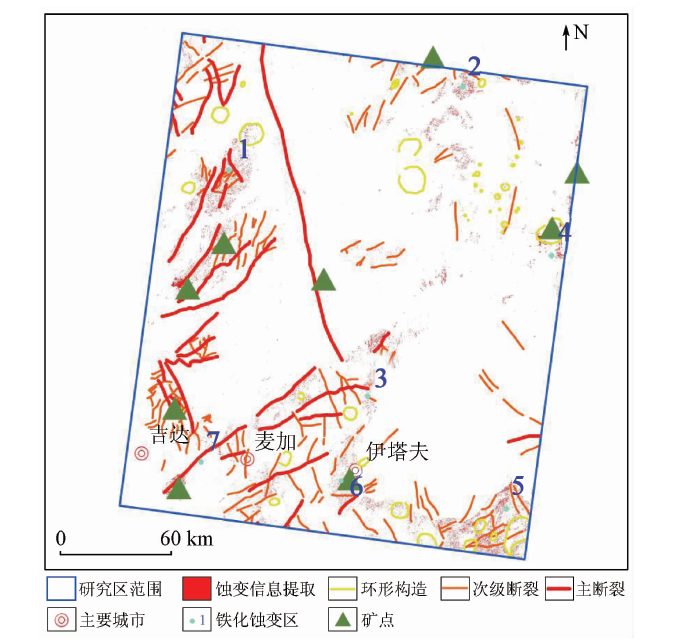

Fig.5  研究区内解译的断裂构造、提取的蚀变信息与已知矿点分布
Fig.6  研究区找矿远景预测
(Landsat8 B7(R),B5(G),B2(B)假彩色合成)
Fig.7  找矿远景区验证(Google Earth影像)

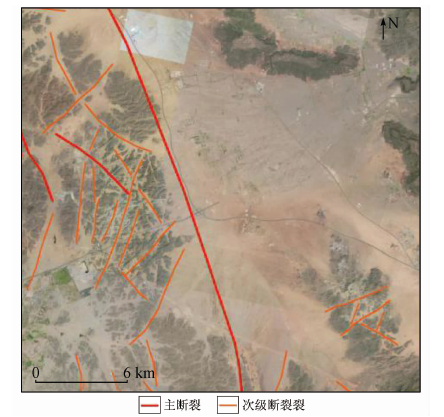

Fig.8  吉达东南部地区构造分布
