Geological disaster hazard assessment in Yanchi County based on AHP
Xiaodong ZHANG1,2, Xiangnan LIU1(), Zhipeng ZHAO2, Dan WU3,4, Wenzhong WU2, Xiaodong CHU2
1. School of Information Engineering, China University of Geosciences(Beijing), Beijing 100083, China
2. Ningxia Geological Survey Institute, Yinchuan 750021, China
3. College of Resources and Environmental Science, Ningxia University, Yinchuan 750021, China
4. Ningxia Institute of Remote Sensing Survey and Mapping(Ningxia Remote Sensing Center), Yinchuan 750021, China
全文: PDF(6993 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

为探讨区域地质灾害危险性评价方法,在充分研究盐池县地质灾害孕灾环境的基础上,以多源遥感数据和基础地质数据为数据源,选择地层、岩组、土壤、土地利用类型、坡度、坡向、地形湿度指数、径流强度指数、距河流距离、距道路距离、归一化植被指数以及降水量等12个因子,利用GIS提取因子信息,采用层次分析法(analytic hierarchy process, AHP)建立评价因子及其类型的判断矩阵,构建地质灾害危险性评价指数,对盐池县地质灾害危险性进行评价和分区,划分出极低、低、中、高和极高危险区5类分区并完成精度检验。结果表明: ①极低、低危险区的面积分别占全县面积的34%和28%,主要分布在盐池县中北部的丘陵区,中危险区面积约占全县的25%,主要分布在南部麻黄山、王乐井以西以及道路周边地区,高和极高危险区分别占总面积的12%和1%,主要集中分布在河流两侧以及麻黄山地区; ②成功率曲线和受试者工作特征(receiver operating characteristics, ROC)曲线与横轴围成的面积(area under curve, AUC)分别为0.77和0.89,检验结果精度较好,同时,灾害点密度从极低危险区到极高危险区呈增加趋势且极高危险区的灾害点密度最大,达到了1.076个/km 2; ③AHP方法适用于盐池县地质灾害危险性评价,评价结果可为盐池县地质灾害的防范与治理提供一定的参考依据。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
张晓东
刘湘南
赵志鹏
武丹
吴文忠
褚小东
关键词 地质灾害危险性评价层次分析法(AHP)盐池县
Abstract

In order to discuss the regional hazard assessment method of geological disaster, the authors, based on the comprehensive study of hazard-formative environments of Yanchi County, extracted twelve conditioning factors, i.e., strata, lithology, soil, land use type, slope, aspect, topographic wetness index (TWI), stream power index (SPI), distance to river, distance to road, normalized difference vegetation index (NDVI) and precipitation in the evaluation and information of factors by employing GIS with remote sensing data and geological data. Then the judgment matrix of conditioning factors and factor classes were constructed by analytic hierarchy process (AHP) method, and geological disaster hazard index (GDHI) was built. Finally the geological disaster hazard of Yanchi County was assessed and the resulted hazard map was classified into five classes, including very low, low, moderate, high and very high hazard. Meanwhile validation of the hazard map was performed using success rate curve and receiver operating characteristics (ROC) technique. The results are as follows: ①The area percentage of very low and low class accounts for 34% and 28% respectively, mainly distributed among the middle and north of hill region; the area percentage of moderate class accounts for 25%, mainly distributed in the area of Mahuang Mountain, western Wanglejing and two sides of the main roads; the area percentage of high and very high class accounts for 12% and 1% respectively, mainly distributed in the area on two sides of rivers and Mahuang Mountain. ②The area under curve (AUC) value of success rate curve and ROC is 0.77 and 0.89 respectively, which shows a reasonable validation accuracy of hazard assessment. At the same time, disaster density shows the characteristics of a continuing increase in the density values from the very low class to the very high class, and the density of the very high hazard class has maximum value with 1.076/km 2. ③AHP method was successfully used to assess the geological disaster hazard of Yanchi County and AHP is suitable for hazard mapping in this region. The evaluation results could provide a reference for the prevention and control of geological disasters in Yanchi County.

Key wordsgeological hazard    hazard assessment    analytic hierarchy process(AHP)    Yanchi County
收稿日期: 2018-05-16      出版日期: 2019-08-30
ZTFLH:  TP753
基金资助:宁夏回族自治区国土资源厅项目“宁夏盐池县地质灾害详细调查”(XC(2012)-05);水环创新团队后补助资金研究项目共同资助(2017—水环团队04)
通讯作者: 刘湘南     E-mail: liuxn@cugb.edu.cn
作者简介: 张晓东(1980-),男,博士研究生,主要从事遥感地质灾害研究工作。Email: 33131692@qq.com.。
引用本文:
张晓东, 刘湘南, 赵志鹏, 武丹, 吴文忠, 褚小东. 基于层次分析法的盐池县地质灾害危险性评价[J]. 国土资源遥感, 2019, 31(3): 183-192.
Xiaodong ZHANG, Xiangnan LIU, Zhipeng ZHAO, Dan WU, Wenzhong WU, Xiaodong CHU. Geological disaster hazard assessment in Yanchi County based on AHP. Remote Sensing for Land & Resources, 2019, 31(3): 183-192.
链接本文:
http://www.gtzyyg.com/CN/10.6046/gtzyyg.2019.03.23      或      http://www.gtzyyg.com/CN/Y2019/V31/I3/183

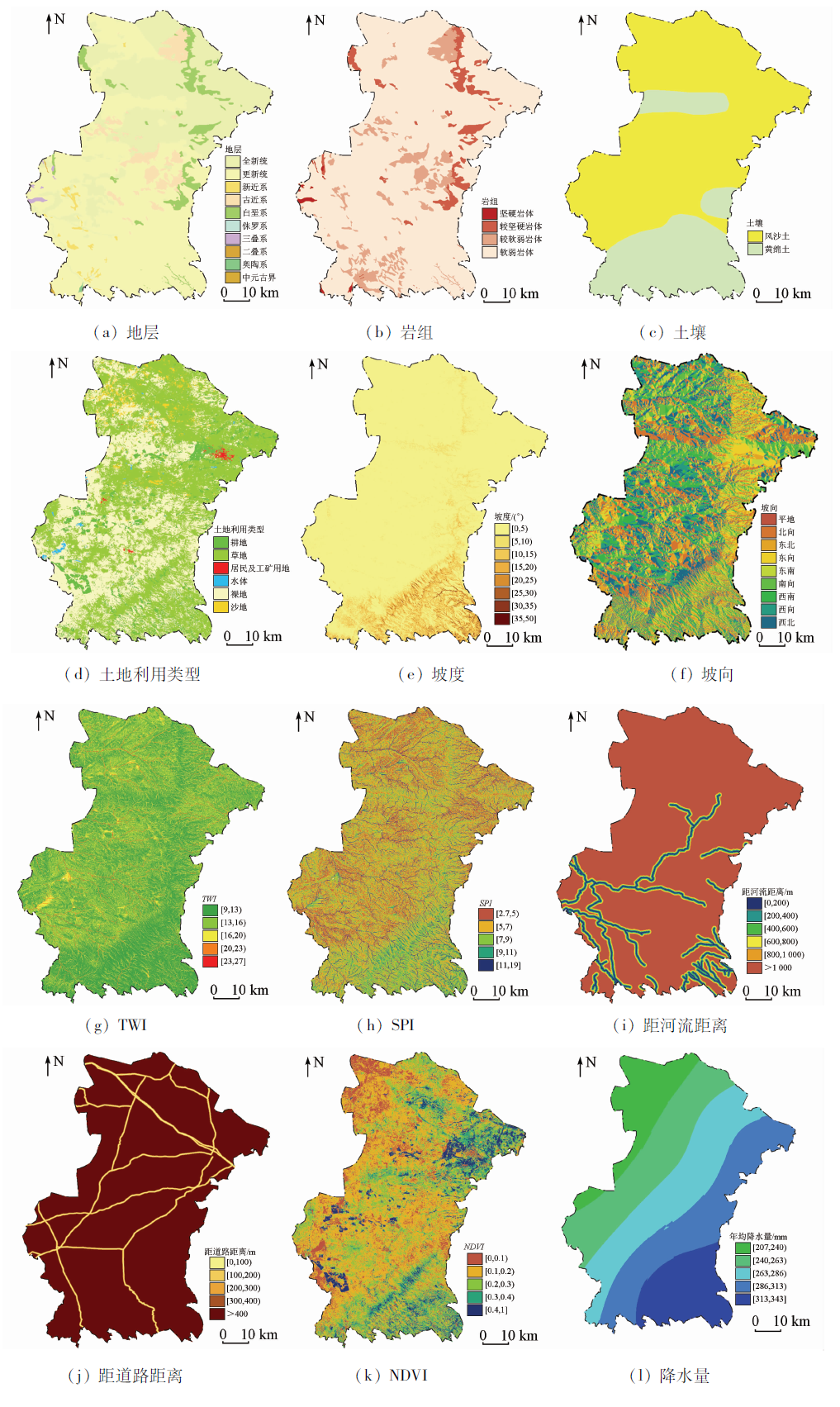

Fig.1  地质灾害危险性评价因子

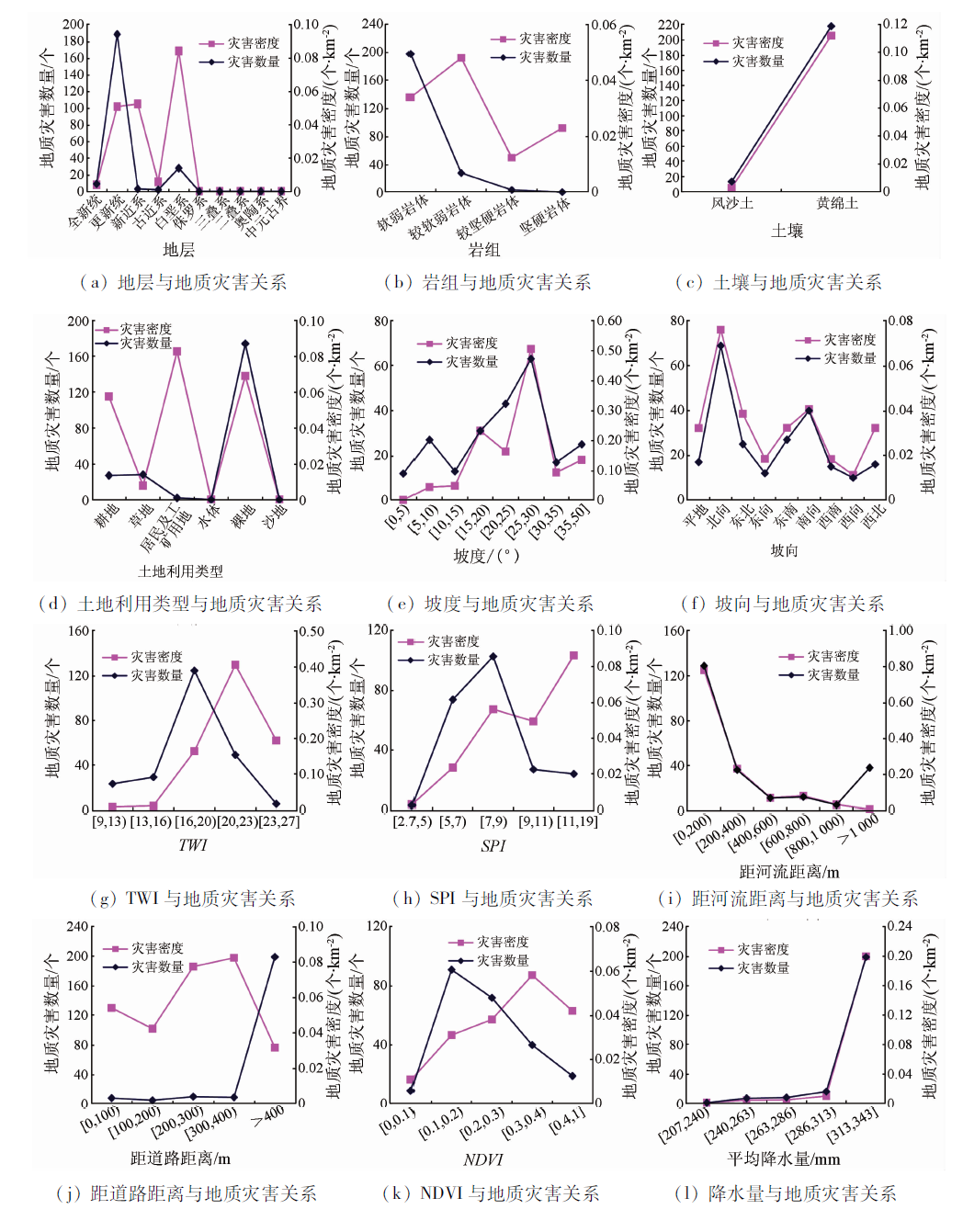

Fig.2  地质灾害危险性评价因子与地质灾害关系
N RI N RI N RI
1 0 6 1.24 11 1.51
2 0 7 1.32 12 1.53
3 0.58 8 1.41 13 1.56
4 0.90 9 1.45 14 1.57
5 1.12 10 1.49 15 1.59
Tab.1  平均随机一致性指标
评价因子 地层 土壤 岩组 土地利
用类型
降水量 坡度 坡向 TWI SPI 距河流
距离
距道路
距离
NDVI 权重 CR λmax
地层 1 0.093 3 0.086 4 13.45
土壤 1/4 1 0.041 7
岩组 1/2 2 1 0.065 8
土地利用类型 1/2 2 1/3 1 0.077 0
降水量 1/2 1 1 1/2 1 0.096 3
坡度 4 4 5 3 1 1 0.160 7
坡向 1/4 1 1/3 1/3 1/4 1/2 1 0.030 2
TWI 1/2 1 2 1/3 1/4 1/4 2 1 0.050 6
SPI 1/3 1/2 1/2 1/4 1/5 1/5 2 1/3 1 0.028 3
距河流距离 4 4 5 4 3 3 5 5 5 1 0.232 9
距道路距离 3 3 3 2 1/2 1/2 3 2 3 1/3 1 0.104 1
NDVI 1/4 1/3 1/4 1/5 1/5 1/6 1/2 1/4 1/2 1/5 1/3 1 0.019 1
Tab.2  评价因子AHP判断矩阵、权重、CRλmax
因子 因子类型 权重 CR λmax 因子 因子类型 权重 CR λmax
地层 全新统 0.108 0.031 10.415 岩组 坚硬岩组 0.089 0.053 4.144
更新统 0.296 较坚硬岩组 0.126
新近系 0.091 较软弱岩组 0.262
古近系 0.091 软弱岩组 0.523
白垩系 0.234 TWI [9,13) 0.060 0.028 5.127
侏罗系 0.036 [13,16) 0.095
三叠系 0.036 [16,20) 0.155
二叠系 0.036 [20,23) 0.239
奥陶系 0.036 [23,27] 0.451
中元古界 0.036 SPI [2.7,5) 0.062 0.015 5.068
土壤 风沙土 0.250 0.000 2.000 [5,7) 0.097
黄绵土 0.750 [7,9) 0.160
土地利用
类型
耕地 0.161 0.046 6.286 [9,11) 0.263
草地 0.076 [11,19] 0.418
居民及工矿用地 0.166 距河流距离/m [0,200) 0.383 0.020 6.123
水体 0.082 [200,400) 0.250
裸地 0.404 [400,600) 0.160
沙地 0.111 [600,800) 0.101
坡度/(°) [0,5) 0.047 0.020 8.201 [800,1 000) 0.064
[5,10) 0.055 >1 000 0.042
[10,15) 0.067 距道路距离/m [0,100) 0.470 0.070 5.314
[15,20) 0.090 [100,200) 0.262
[20,25) 0.113 [200,300) 0.144
[25,30) 0.149 [300,400) 0.079
[30,35) 0.168 >400 0.045
[35,50] 0.311 NDVI [0,0.1) 0.062 0.018 5.079
坡向 平地 0.028 0.060 9.691 [0.1,0.2) 0.348
北向 0.271 [0.2,0.3) 0.319
东北 0.118 [0.3,0.4) 0.188
东向 0.063 [0.4,1] 0.083
东南 0.072 降水量 [207,240) 0.075 0.029 5.129
南向 0.199 [240,263) 0.112
西南 0.083 [263,286) 0.119
西向 0.083 [286,313) 0.231
西北 0.083 [313,343] 0.463
Tab.3  评价因子类型权重、CRλmax

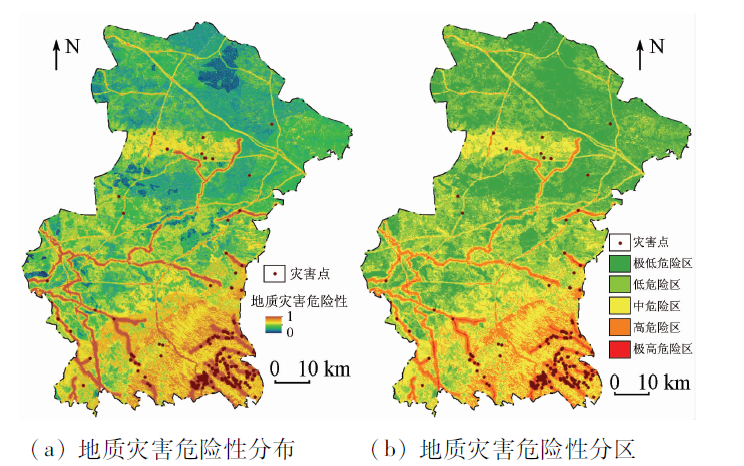

Fig.3  盐池县地质灾害危险性评价分区
Fig.4  评价结果精度检验
危险区分级 灾害点数量/个 面积/km2 密度/(个·km-2)
极低危险区 2 2 241.42 0.001
低危险区 6 1 925.18 0.003
中危险区 39 1 675.31 0.023
高危险区 105 842.26 0.125
极高危险区 79 73.45 1.076
Tab.4  危险区分区灾害点密度统计

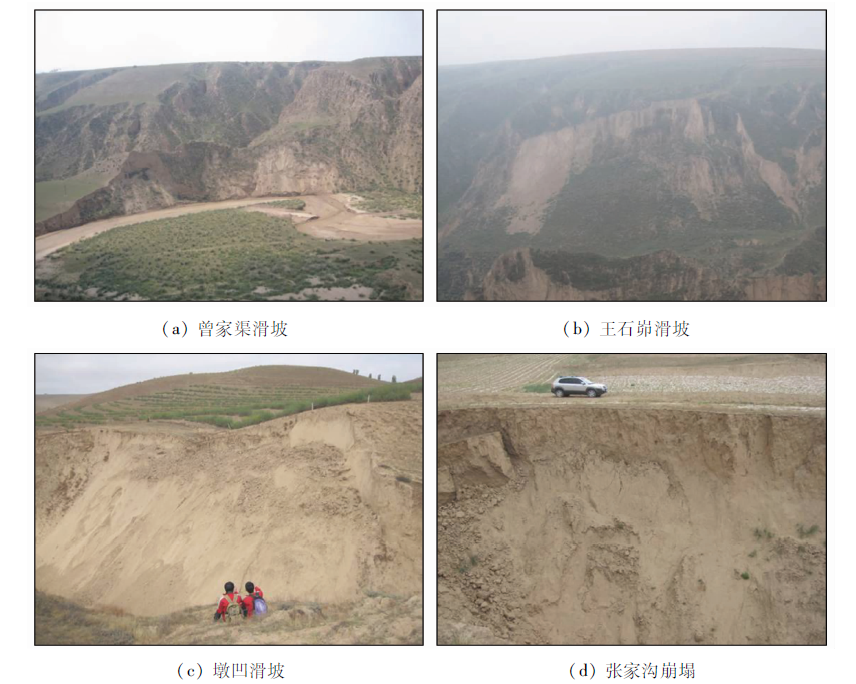

Fig.5  盐池县地质灾害高和极高危险区典型地质灾害照片
