国土资源遥感  2019, Vol. 31 Issue (4): 26-31    DOI: 10.6046/gtzyyg.2019.04.04
  技术方法 本期目录 | 过刊浏览 | 高级检索 |
基于FLAASH模型的Worldview3大气校正
陈玲, 陈理, 李伟, 刘建宇
中国自然资源航空物探遥感中心,北京 100083
Atmospheric correction of Worldview3 image based on FLAASH model
Ling CHEN, Li CHEN, Wei LI, Jianyu LIU
China Aero Geophysical Survey and Remote Sensing Center for Natural Resources, Beijing 100083, China
全文: PDF(3294 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

随着遥感技术的发展,遥感应用已由定性发展至定量阶段,而大气校正是定量遥感研究中不可或缺的重要环节。Worldview3是全球最高空间分辨率的商业多光谱遥感卫星,相较于传统的多光谱遥感数据,该数据在定量遥感方面具有更大的潜力。利用ENVI软件的FLAASH模块对Worldview3进行大气校正,并以新疆罗布泊无人区为例,利用该地区典型地物盐碱地和闪长岩的ASD实测光谱数据对Worldview3大气校正前后的数据进行了评价。首先,将Worldview3的DN值转化为辐射亮度和表观反射率,并利用FLAASH模块对其进行大气校正; 然后,计算了研究区典型地物(盐碱地、闪长岩)的辐射亮度、表观反射率值,并把实测的盐碱地和闪长岩的波谱数据重采样到Worldview3相应波段; 最后对结果进行了定性分析和定量比较。研究表明,采用FLAASH模块对Worldview3数据进行大气校正方法切实可行、有效,典型地物——盐碱地、闪长岩的实测波谱和大气校正后获得反射波谱吻合程度较高,相关系数最高达到0.80。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
陈玲
陈理
李伟
刘建宇
关键词 Worldview3影像FLAASH模块大气校正
Abstract

With the development of remote sensing technology, the remote sensing has been developed from qualitative application to quantitative application,and atmospheric correction is an important part of quantitative remote sensing research. In this study, the authors used the FLAASH model of ENVI software to conduct atmospheric correction for Worldview3, a satellite image with high spatial resolution and high spectral resolution, and then evaluated the method. Worldview3 data and ASD measurement spectral data of typical ground objects(saline-alkali land and diorite)in Lop Nur were obtained. Firstly, the DN value of Worldview3 was converted into radiation brightness and apparent reflectance, and the atmosphere correction of Worldview3 image was carried out by using FLAASH model. The radiation brightness, apparent reflectance and FLAASH atmospheric corrected reflectance of two typical ground objects (saline-alkali land and diorite) in the study area were comparatively studied, and the measured reflection spectra of saline-alkali and diorite by ASD were also compared after resampling to the response band of Worldview3 by Gaussian filtering function. The results show that it is effective to apply FLAASH model to atmospheric correction of Worldview3 data, and the two methods can obtain high coincidence degree of reflection spectrum, with the correlation coefficient reaching 0.8.

Key wordsWorldview3 image    FLAASH model    atmospheric correction
收稿日期: 2019-05-08      出版日期: 2019-12-03
:  TP79
基金资助:中国地质调查局地质调查项目“全国矿山开发状况遥感地质调查与监测”(DD20190511);“天山—北山重要成矿区带遥感调查”共同资助(DD20160068)
作者简介: 陈 玲(1982-),女,博士,高级工程师,主要从事遥感地质、矿产等理论和应用研究。Email: chenling010@126.com。
引用本文:
陈玲, 陈理, 李伟, 刘建宇. 基于FLAASH模型的Worldview3大气校正[J]. 国土资源遥感, 2019, 31(4): 26-31.
Ling CHEN, Li CHEN, Wei LI, Jianyu LIU. Atmospheric correction of Worldview3 image based on FLAASH model. Remote Sensing for Land & Resources, 2019, 31(4): 26-31.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2019.04.04      或      https://www.gtzyyg.com/CN/Y2019/V31/I4/26
波段号 波段名 光谱范
围/nm
空间分
辨率/m
位数/bit
全色 Panchromatic 450~800 0.5 11
1 Coast Blue 400~450 1.2
2 Blue 450~510 1.2
3 Green 510~580 1.2
4 Yellow 585~625 1.2
5 Red 630~690 1.2
6 Red Edge 705~745 1.2
7 NIR1 770~895 1.2
8 NIR2 860~1 040 1.2
9 SWIR1 1 195~1 225 7.5
10 SWIR2 1 550~1 590 7.5
11 SWIR3 1 640~1 680 7.5
12 SWIR4 1 710~1 750 7.5
13 SWIR5 2 145~2 185 7.5
14 SWIR6 2 185~2 225 7.5
15 SWIR7 2 235~2 285 7.5
16 SWIR8 2 295~2 365 7.5
Tab.1  本研究中所用遥感数据参数一览表
Fig.1  研究区WV3 B8(R),B4(G),B3(B)假彩色合成影像
序号 波段名 增益 偏差 中心波
长/nm
波段宽
度/nm
1 Coast Blue 0.298 559 38 -7.07 425.00 50
2 Blue 0.305 176 06 -4.253 480.00 60
3 Green 0.199 247 59 -2.633 545.00 70
4 Yellow 0.172 458 2 -2.074 605.00 40
5 Red 0.241 242 09 -1.807 660.00 60
6 Red Edge 0.164 408 7 -2.633 725.00 40
7 NIR1 0.165 111 91 -3.406 832.50 125
8 NIR2 0.122 808 61 -2.258 950.00 180
9 SWIR1 0.012 376 451 -3.295 1 210.00 30
10 SWIR2 0.006 776 925 -1.496 1 570.00 40
11 SWIR3 0.006 506 7 -1.385 1 660.00 40
12 SWIR4 0.005 493 318 -1.009 1 730.00 40
13 SWIR5 0.002 801 196 -0.356 2 165.00 40
14 SWIR6 0.002 815 416 -0.353 2 205.00 40
15 SWIR7 0.002 442 118 -0.252 2 260.00 50
16 SWIR8 0.001 791 85 -0.167 2 330.00 70
Tab.2  WV3影像数据辐射定标相关参数

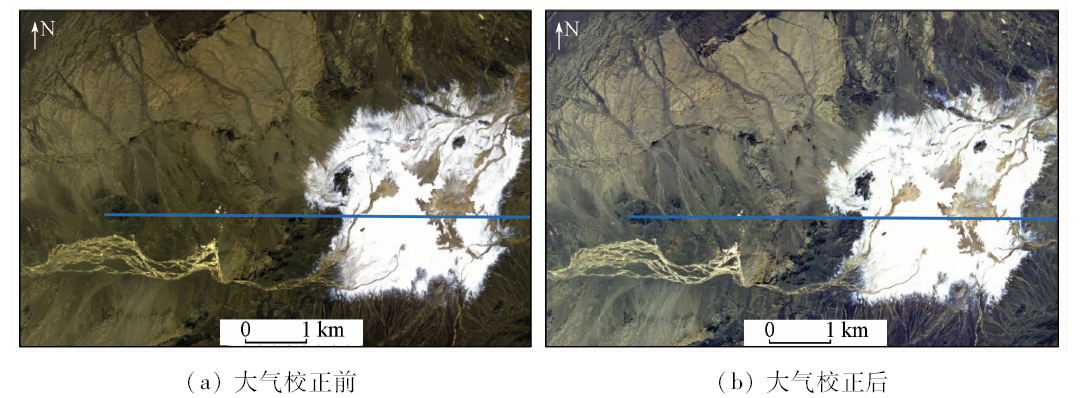

Fig.2  FLAASH大气校正前后对比

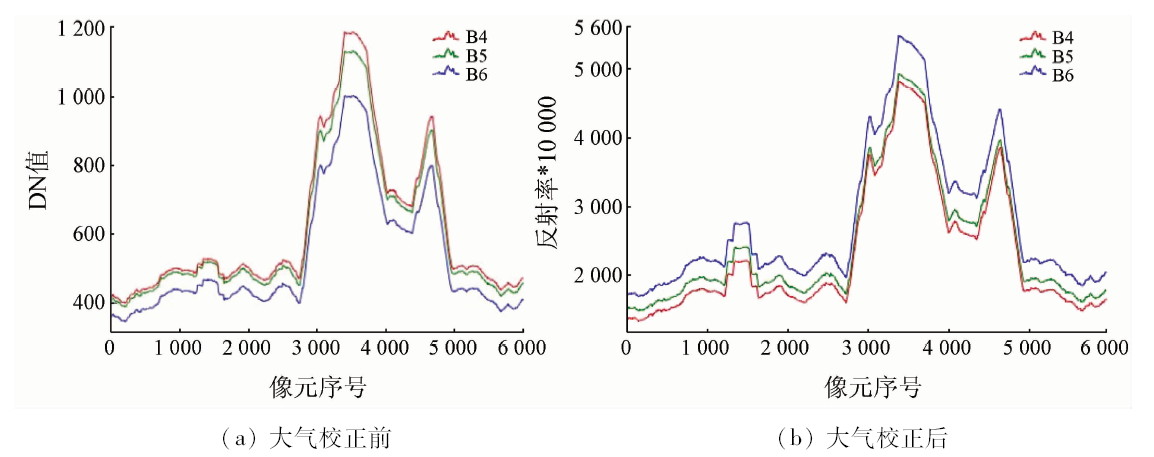

Fig.3  FLAASH大气校正前后影像横切剖面光谱对比

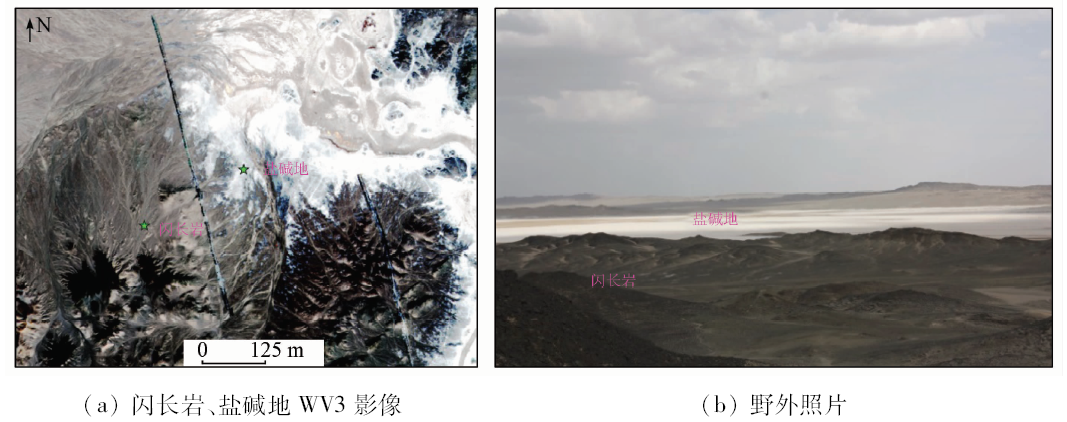

Fig.4  研究区闪长岩、盐碱地WV3高分影像和野外照片

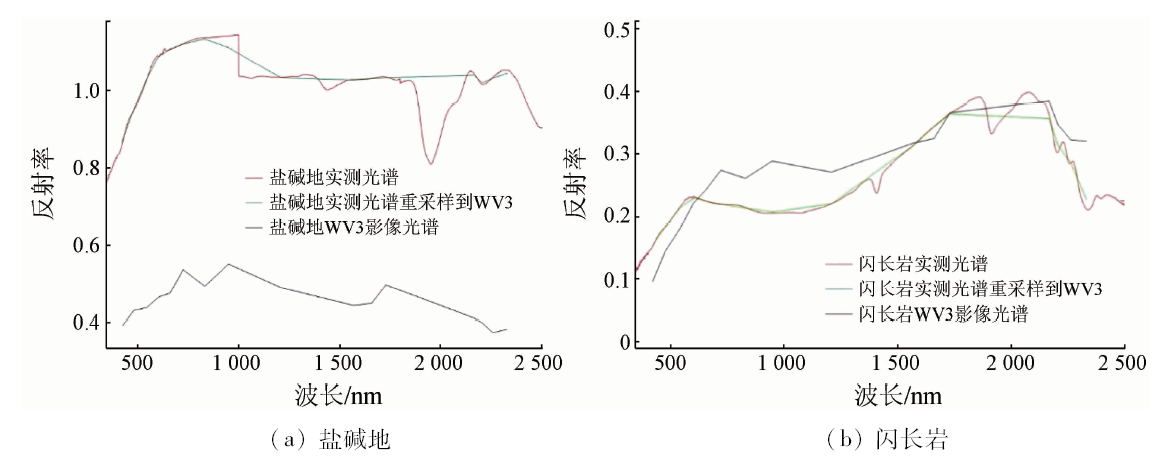

Fig.5  盐碱地和闪长岩ASD光谱曲线与WV3大气校正后光谱曲线对比
[1] 刘伟刚, 郭铌, 李耀辉 , 等. 基于FLAASH模型的FY-3A/MERSI数据大气校正研究[J]. 高原气象, 2013,32(4):1140-1147.
doi: 10.7522/j.issn.1000-0534.2012.00107
Liu W G, Guo N, Li Y H , et al. Variation of FY-3A/MERSI data after atmospheric correction based on flash model[J]. Plateau Meteorology, 2013,32(4):1140-1147.
[2] 曾群, 赵越, 田礼乔 , 等. HJ-1A/1B卫星CCD影像水环境遥感大气校正方法评价研究——以鄱阳湖为例[J]. 光谱学与光谱分析, 2013,33(5):1320-1326.
Zeng Q, Zhao Y, Tian L Q , et al. Evaluation on the atmospheric correction methods for water color remote sensing by using HJ-1A/1B CCD image:Taking Poyang Lake in China as a case[J]. Spectroscopy and Spectral Analysis, 2013,33(5):1320-1326.
[3] Lantzanakis G, Mitraka Z, Chrysoulakis N. Comparison of Physically and Image Based Atmospheric Correction Methods for Sentinel-2 Satellite Imagery[C].Switzerland: Springer International Publishing, 2017: 255-261.
[4] 亓雪勇, 田庆久 . 光学遥感大气校正进展[J]. 国土资源遥感, 2005,17(4):1-6.doi: 10.6046/gtzyyg.2005.04.01.
doi: 10.6046/gtzyyg.2005.04.01
Qi X Y, Tian Q J . The advances in the study of atmospheric correction for optical remote sensing[J]. Remote Sensing for Land and Resources, 2005,17(4):1-6.doi: 10.6046/gtzyyg.2005.04.01.
[5] 赵英时 . 遥感应用分析原理与方法[M]. 北京: 科学出版社, 2003.
Zhao Y S. The Principle and Method of Analysis of Remote Sensing Application[M]. Beijing: Science Press, 2003.
[6] Wang Z, Xia J, Wang L , et al. Atmospheric correction methods for GF-1 WFV1 data in hazy weather[J]. Journal of the Indian Society of Remote Sensing, 2018,46(3):355-366.
[7] Sun Y Q, Tian S F, Di B G . Extracting mineral alteration information using WorldView-3 data[J]. Geoscience Frontiers, 2017,8(5):1051-1062.
[8] 张川, 刘少峰, 刘衍宏 , 等. 基于辐射传输模型的Hyperion光谱重建应用评价[J]. 国土资源遥感, 2010,22(2):30-34.doi: 10.6046/gtzyyg.2010.02.07.
doi: 10.6046/gtzyyg.2010.02.07
Zhang C, Liu S F, Liu Y H , et al. The application and evaluation of spectral reconstruction of Hyperion based on radiative transfer model[J]. Remote Sensing for Land and Resources, 2010,22(2):30-34.doi: 10.6046/gtzyyg.2010.02.07.
[9] 陈建珍, 何超, 岳彩荣 . 基于FLAASH模块的高级陆地成像仪图像的大气校正[J]. 浙江农林大学学报, 2011,28(4):590-596.
Chen J Z, He C, Yue C R . Atmospheric correction of an advance land imager(ALI) image based on the FLAASH module[J]. Journal of Zhejiang A&F University, 2011,28(4):590-596.
[10] 陈析璆 . 基于多源遥感数据的蚀变信息提取与应用——以内蒙古狼山西段为例[D].北京:中国地质大学( 北京), 2009.
Chen X Q . Application of Alteration Based on Multi-Source Remote Sensing Imagery-Take the Western Langshan Area,Inner Mongolia for Example[D].Beijing: China University of Geosciences ( Beijing), 2009.
[11] 童庆禧, 张兵, 张立福 . 中国高光谱遥感的前沿进展[J]. 遥感学报, 2016,20(5):689-707.
Tong Q X, Zhang B, Zhang L F . Current progress of hyperspectral remote sensing in China[J]. Journal of Remote Sensing, 2016,20(5):689-707.
[12] Asadzadeh S, De Souza Filho C R .Investigating the capability of WorldView-3 superspectral data for direct hydrocarbon detection[J]. Remote Sensing of Environment, 2016,173:162-173.
[13] 祝晓坤 . 基于深度学习的WorldView-3城市目标分类应用研究[J].测绘通报,2017(s2):40-43.
Zhu X K . Research on Deep Learning Algorithm Application in Urban Classification with WorldView-3 Remote Sensing Images[J].Bulletin of Surveying and Mapping,2017(s2):40-43.
[14] 王楠, 汪桂生, 张震 . 高分遥感影像下的大通废弃煤矿区生态修复林淹水胁迫灾情信息提取[J].测绘通报,2018(7):13-17,47.
Wang N, Wang G S, Zhang Z . Monitoring of waterlogging stress disaster of ecological restoration forest using high resolution remote sensing data in the Datong abandoned coal mine[J].Bulletin of Surveying and Mapping,2018(7):13-17,47.
[15] Ye B, Tian S F, Ge J , et al. Assessment of WorldView-3 data for lithological mapping[J]. Remote Sensing, 2017,9(11):1132.
[16] Adler-golden S M, Matthew M W, Lernstein L S. Atmospheric correction for short-wave spectral imagery based on MODTRAN4 [C].SPIE Proceeding,Imaging Spectrometry V, 1999,3753.
[17] 陈圣波, 于亚凤, 杨金中 , 等. 基于实测光谱指数法的ASTER遥感数据岩性信息提取[J]. 吉林大学学报(地球科学版), 2016,46(3):938-944.
Chen S B, Yu Y F, Yang J Z , et al. Lithologic information extraction from ASTER remote sensing data based on spectral ratio method[J]. Journal of Jilin University (Earth Science Edition), 2016,46(3):938-944.
