国土资源遥感  2020, Vol. 32 Issue (1): 209-215    DOI: 10.6046/gtzyyg.2020.01.28
     技术应用 本期目录 | 过刊浏览 | 高级检索 |
基于InSAR形变的辽河油田曙光采油厂储层参数反演
杨崇1, 刘国祥1,2(), 于冰3, 张波1, 张瑞1,2, 王晓文1
1. 西南交通大学地球科学与环境工程学院,成都 610031
2. 高速铁路运营安全空间信息技术国家地方联合工程实验室,成都 610031
3. 西南石油大学土木工程与建筑学院,成都 610500
Inversion of reservoir parameters in Shuguang Oil Production Plant of the Liaohe Oilfield based on InSAR deformation
Chong YANG1, Guoxiang LIU1,2(), Bing YU3, Bo ZHANG1, Rui ZHANG1,2, Xiaowen WANG1
1. Faculty of Geosciences and Environmental Engineering, Southwest Jiaotong University, Chengdu 610031, China
2. State-Province Joint Engineering Laboratory of Spatial Information Technology of High-Speed Railway Safety, Chengdu 610031, China
3. School of Civil Engineering and Architecture, Southwest Petroleum University, Chengdu 610500, China
全文: PDF(4352 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

对油田储层参数及开采量进行反演,可以及时掌握油田的储层状态及开采量变化,有效监控储层的健康和安全。目前国内对于油田储层参数反演的研究较少。以辽河油田最大的采油厂——曙光采油厂为研究对象,采用2007年1月—2010年9月的21景L波段ALOS/PALSAR数据,使用StaMPS (stanford method for persistent scatterers)技术提取该区域的形变结果,并以此为观测量,分别使用Mogi模型和椭球模型对储层参数进行反演和分析,并与经典的Okada模型的反演结果进行对比。结果表明: ①曙光采油厂沉降显著,监测周期内最大沉降速率高达-189.6 mm/a,最大累积沉降量约为750 mm,沉降面积约为28 km 2; ②与Okada模型和Mogi模型相比,椭球模型反演的储层深度精度最高,且模拟的形变结果与观测形变结果最吻合,说明椭球模型的反演结果更可靠,更适用于该油田储层参数的反演。本研究可为InSAR油田沉降监测及储层参数反演提供科学参考。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
杨崇
刘国祥
于冰
张波
张瑞
王晓文
关键词 油田沉降StaMPS技术Mogi模型椭球模型储层参数反演
Abstract

The inversion of reservoir parameters and production for the oil field can grasp reservoir status and production changes in time and effectively monitor reservoir health and safety. At present, the study of reservoir parameter inversion is very insufficient in China. The authors chose Shuguang Oil Production Plant, the largest oil production plant in the Liaohe Oilfield, as the research object. Using 21 L-band ALOS/PALSAR data obtained from January 2007 to September 2010, the authors employed StaMPS to extract deformation results. Based on these deformation results, the authors used Mogi model and Finite Prolate Spheroidal model to invert and analyze reservoir parameters respectively, with the inversion results compared with those of Okada model. The results are as follows: ① The subsidence of Shuguang Oil Production Plant is remarkable. The maximum subsidence rate is -189.6 mm/year, the maximum cumulative subsidence is about 750 mm, and the subsidence area is about 28 km 2. ② Compared with Okada model and Mogi model, Finite Prolate Spheroidal model has the highest accuracy of reservoir depth inversion, and the simulated deformation results are in the best agreement with the observed deformation results, which shows that the inversion results of Finite Prolate Spheroidal model are more reliable and more suitable for the inversion of reservoir parameters in this oilfield. This study can provide scientific reference for InSAR subsidence monitoring and reservoir parameter inversion in the oilfield.

Key wordsoilfield subsidence    StaMPS    Mogi model    Finite Prolate Spheroidal model    inversion of reservoir parameters
收稿日期: 2019-03-01      出版日期: 2020-03-14
:  TP79
基金资助:国家自然科学基金青年科学基金项目“基于卫星升降轨时序DInSAR的塔里木油田沉降监测及储层状态参数反演”(编号: 41801399);测绘遥感信息工程国家重点实验室资助课题“基于星载SAR干涉的克拉玛依油田时序二维形变监测及储层参数反演”(编号: 18E01);油气藏地质及开发工程国家重点实验室(西南石油大学)资助项目“多卫星平台MT-DInSAR克拉玛依油田沉降监测及储层地质力学参数动态反演”(编号: PLN201815);国家重点研发计划项目“星载新体制SAR综合环境监测技术”(编号: 2017YFB0502700);国家自然科学基金面上项目“基于卫星升降轨X/C/L波段SAR影像监测贡嘎山冰川分布及其动态演变”(编号: 41771402);国家自然科学基金青年科学基金项目“基于GBInSAR与GNSS的特大型滑坡监测与反演方法”(编号: 41601503);四川省科技支撑计划应用基础面上项目“基于卫星—地基SAR遥感的四川省山区滑坡隐患调查与高危滑坡监测预警”(编号: 2018JY0564);“星载多平台升降轨时序差分雷达干涉滑坡三维形变监测及预测”(编号: 2018JY0138)
通讯作者: 刘国祥
作者简介: 杨 崇(1993-),男,硕士,主要从事InSAR及油田储层参数反演研究。Email: swjtu_yc@163.com。
引用本文:
杨崇, 刘国祥, 于冰, 张波, 张瑞, 王晓文. 基于InSAR形变的辽河油田曙光采油厂储层参数反演[J]. 国土资源遥感, 2020, 32(1): 209-215.
Chong YANG, Guoxiang LIU, Bing YU, Bo ZHANG, Rui ZHANG, Xiaowen WANG. Inversion of reservoir parameters in Shuguang Oil Production Plant of the Liaohe Oilfield based on InSAR deformation. Remote Sensing for Land & Resources, 2020, 32(1): 209-215.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2020.01.28      或      https://www.gtzyyg.com/CN/Y2020/V32/I1/209

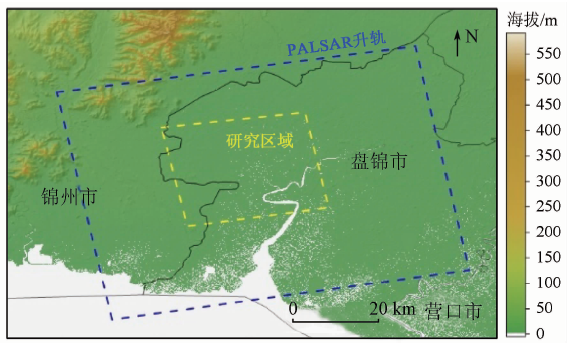

Fig.1  研究区域范围
序号 成像时间 格式 序号 成像时间 格式
1 2007-01-31 FBS 12 2009-02-05 FBS
2 2007-06-18 FBD 13 2009-05-08 FBS
3 2007-08-03 FBD 14 2009-08-08 FBD
4 2007-09-18 FBD 15 2009-09-23 FBD
5 2007-11-03 FBS 16 2009-12-24 FBS
6 2007-12-19 FBS 17 2010-02-08 FBS
7 2008-02-03 FBS 18 2010-03-26 FBS
8 2008-03-20 FBS 19 2010-05-11 FBD
9 2008-05-05 FBD 20 2010-06-26 FBD
10 2008-06-20 FBD 21 2010-09-26 FBD
11 2008-12-21 FBS
Tab.1  PALSAR影像参数

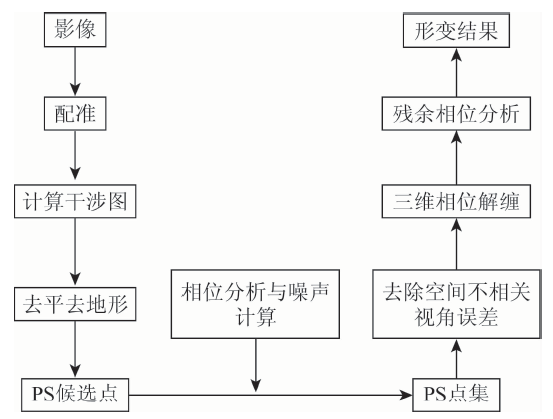

Fig.2  StaMPS数据处理流程

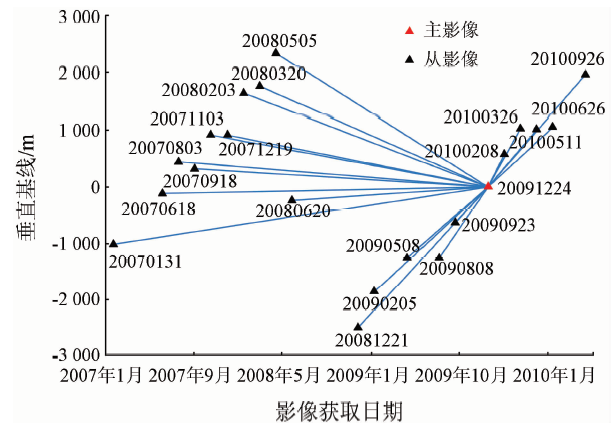

Fig.3  干涉时空基线分布

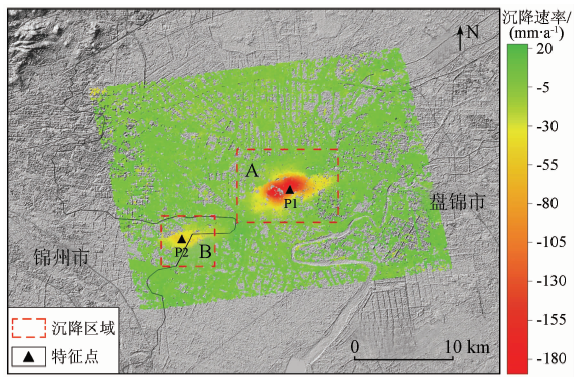

Fig.4  研究区沉降速率

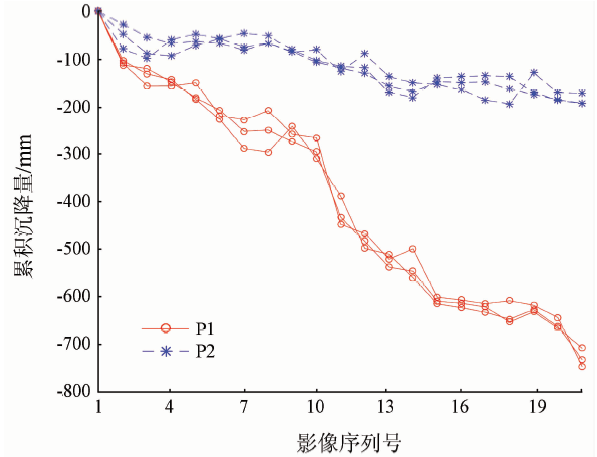

Fig.5  时间序列累积沉降

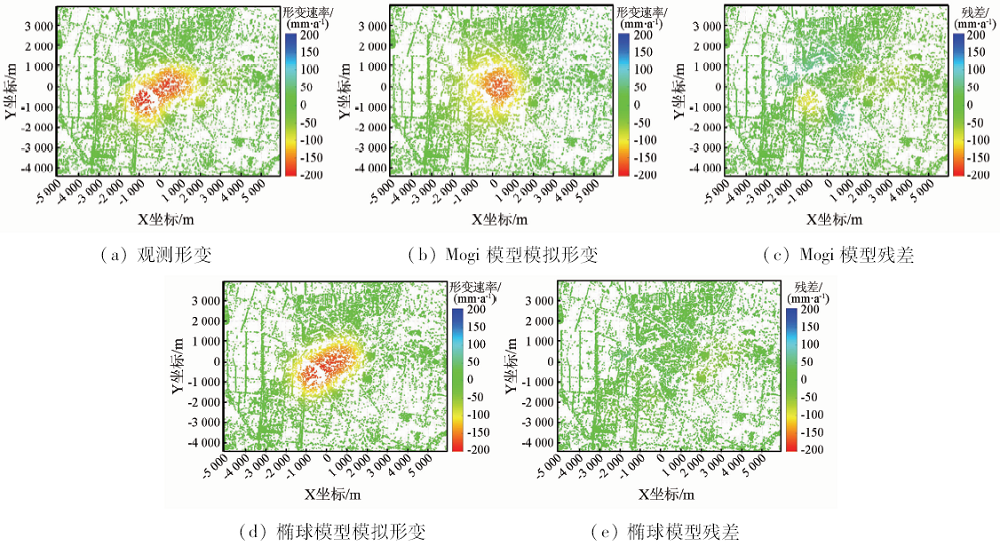

Fig.6  观测形变、模拟形变和残差结果对比

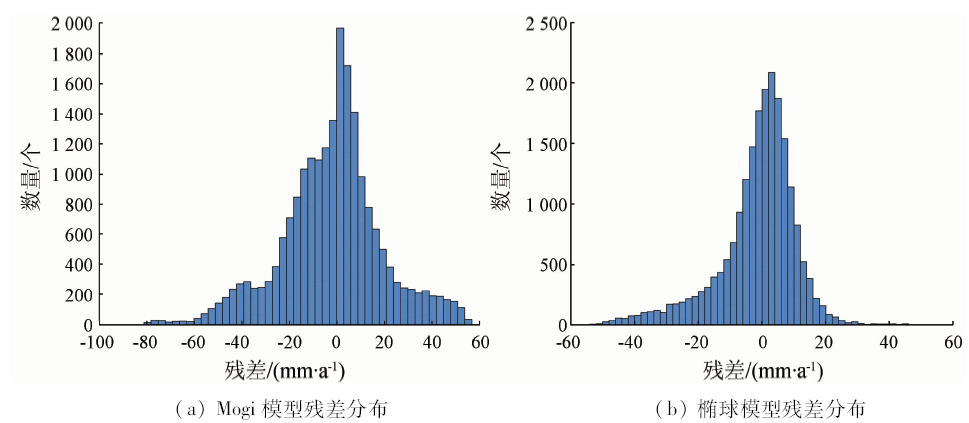

Fig.7  残差分布直方图
[1] 许德禹 . 储层和裂缝预测技术及在辽河油田开发的应用[D]. 大庆:东北石油大学, 2014.
Xu D Y . Reservoir and Fracture Prediction Technology and Its Application in Liaohe Oilfield[D]. Daqing:Northeast Petroleum University, 2014.
[2] 鞠飞 . 辽河油田曙光采油厂高程引测的必要性[J]. 地下水, 2014,36(4):201-202.
Ju F . Necessity of height guidance in Shuguang Oil Production of Liaohe Oilfield[J]. Ground Water, 2014,36(4):201-202.
[3] 孙赫, 张勤, 杨成生 , 等. PS-InSAR技术监测分析辽宁盘锦地区地面沉降[J]. 上海国土资源, 2014(4):68-71.
Sun H, Zhang Q, Yang C S , et al. PS-InSAR monitoring of land subsidence in the Panjin region of Liaoning Province[J]. Shanghai Land and Resources, 2014(4):68-71.
[4] Kooij M . Land subsidence measurements at the Belridge Oil Fields from ERS InSAR data[C]// Proceedings of the Third ERS Symposium,Florence: 1997, 1853-1858.
[5] Fielding E J, Blom R G, Goldstein R M . Rapid subsidence over oil fields measured by SAR interferometry[J]. Geophysical Research Letters, 1998,25(17):3215-3218.
[6] 李德仁 . InSAR技术进步与地面沉降监测应用[J]. 上海国土资源, 2013,34(4):1-6.
Li D R . InSAR Technological progress and its application to land subsidence monitoring[J]. Shanghai Land and Resources, 2013,34(4):1-6.
[7] 母景琴, 姚国清 . 干涉雷达时间序列分析方法在地面沉降监测中的应用[J]. 国土资源遥感, 2007,19(3):28-30.doi: 10.6046/gtzyyg.2007.03.06.
Mu J Q, Yao G Q . Time series Radar interferometry method for surface deformation monitoring[J]. Remote Sensing for Land and Resources, 2007,19(3):28-30.doi: 10.6046/gtzyyg.2007.03.06.
[8] 葛大庆, 王艳, 范景辉 , 等. 地表形变D-InSAR监测方法及关键问题分析[J]. 国土资源遥感, 2007,19(4):14-22.doi: 10.6046/gtzyyg.2007.04.04.
Ge D Q, Wang Y, Fan J H , et al. A study of surface deformation monitoring using differential SAR interferometry technique and an analysis of its key problems[J]. Remote Sensing for Land and Resources, 2007,19(4):14-22.doi: 10.6046/gtzyyg.2007.04.04.
[9] Zebker H A, Rosen P A, Hensley S . Atmospheric effects in interferometric synthetic aperture Radar surface deformation and topographic maps[J]. Journal of Geophysical Research, 1997,102(B4):7547-7563.
[10] Ferretti A, Prati C, Rocca F . Non-linear subsidence rate estimation using permanent scatterers in differential SAR interferometry[J]. IEEE Transactions on Geoscience and Remote Sensing, 2000,38(5):2202-2212
[11] 刘国祥, 张瑞, 李陶 , 等. 基于多卫星平台永久散射体雷达干涉提取三维地表形变速度场[J]. 地球物理学报, 2012,55(8):2598-2610.
Liu G X, Zhang R, Li T , et al. Extracting 3D ground deformation velocity field by multi-platform persistent scatter SAR interferometry[J]. Chinese Journal of Geophysics, 2012,55(8):2598-2610.
[12] 唐嘉, 刘国祥, 宋云帆 , 等. PALSAR和ASAR PSI显著地表沉降探测与分析[J]. 遥感学报, 2015,19(6):1019-1029.
Tang J, Liu G X, Song Y F , et al. Significant subsidence detection and analysis by PALSAR and ASAR PSI[J]. Journal of Remote Sensing, 2015,19(6):1019-1029.
[13] Hooper A, Zebker H, Segall P , et al. A new method for measuring deformation on volcanoes and other natural terrains using InSAR persistent scatterers[J]. Geophysical Research Letters. 2004,31(23):L23611.
[14] Hooper A . Persistent Scatterer Radar Interferometry for Crustal Deformation Studies and Modeling of Volcanic Deformation[D]. San Francisco:Stanford University, 2006.
[15] Vasco D W, Ferretti A, Novali F . Estimating permeability from quasi-static deformation:Temporal variations and arrival-time inversion[J]. Geophysics, 2008,73(6):O37-O52.
[16] Vasco D W, Ferretti A, Novali F . Reservoir monitoring and characterization using satellite geodetic data:Interferometric synthetic aperture Radar observations from the Krechba field,Algeria[J]. Geophysics, 2008, 76(6:WA113-WA122.
[17] Klemm H, Quseimi I, Novali F , et al. Monitoring horizontal and vertical surface deformation over a hydrocarbon reservoir by PSInSAR[J]. First Break, 2010,28(5):29-37.
[18] Khakim M Y N, Tsuji T, Matsuoka T . Geomechanical modeling for InSAR-derived surface deformation at steam-injection oil sand fields[J]. Journal of Petroleum Science and Engineering, 2012, 96-97:152-161.
[19] Ji L Y, Zhang Y, Wang Q L , et al. Detecting land uplift associated with enhanced oil recovery using InSAR in the Karamay oil field,Xinjiang,China[J]. International Journal of Remote Sensing, 2016,37(7):1527-1540.
[20] 刘一霖 . 黄河三角洲地面沉降时序InSAR技术监测与地下流体开采相关性分析[D]. 青岛:中国科学院海洋研究所, 2016.
Liu Y L . Land Subsidence Monitoring and Correlation Analysis with Ground Fluid Exploitation Using Time Series InSAR Technique over the Yellow River Delta (China) [D]. Qingdao:Institute of Oceanography,Chinese Academy of Sciences, 2016.
[21] Sun H, Zhang Q, Zhao C Y , et al. Monitoring land subsidence in the southern part of the lower Liaohe plain,China with a multi-track PS-InSAR technique[J]. Remote Sensing of Environment, 2017,188:73-84.
[22] Carnec C, Fabriol H . Monitoring and modeling land subsidence at the Cerro Prieto Geothermal Field,Baja California, Mexico,using SAR interferometry[J]. Geophysical Research Letters, 1999,26(9):1211-1214.
[23] Zhong L, Timothy M . Interferometric synthetic aperture Radar study of Okmok volcano,Alaska,1992—2003:Magma supply dynamics and postemplacement lava flow deformation[J]. Journal of Geophysical Research, 2005,110(B2):B02403.
[24] Mogi K . Relations between the eruptions of various volcanoes and the deformations of the ground surfaces around them[J]. Bulletin of the Earthquake Research Institute,University of Tokyo, 1958,36:99-134.
[25] Davis P M . Surface deformation due to inflation of an arbitrarily oriented triaxial ellipsoidal cavity in an elastic half-space,with reference to Kilauea volcano,Hawaii[J]. Journal of Geophysical Research:Solid Earth, 1986,91(B7):7429-7438.
[26] Yang X M, Davis P M, Dieterich J H . Deformation from inflation of a dipping finite prolate spheroid in an elastic half-space as a model for volcanic stressing[J]. Journal of Geophysical Research:Solid Earth, 1988,93(B5):4249-4257.
[27] Press W H, Flannery B P, Teukolsky S A , et al. Numerical Recipes in C:the Art of Scientific Computing[M]. Cambridge: Cambridge University Press 1992: 176-177.
[28] 沈阳地质矿产研究所. 东北平原地面沉降调查[R]. 沈阳:沈阳地质矿产研究所, 2009.
Shenyang Institute of Geology and Mineral Resources. The Land Subsidence Investigation of Northeast Plain[R]. Shenyang:Shenyang Institute of Geology and Mineral Resources, 2009.
