Remote sensing monitoring of mine geological environment in Zhejiang Province based on RS and GIS
Jie WANG1,Yaqiu YIN1,Hang YU1,Cunhao JIANG1,Yu WAN2
1. China Aero Geophysical Survey and Remote Sensing Center for Natural Resources, Beijing 100083, China 2. School of the Earth Sciences and Resources, China University of Geosciences(Beijing), Beijing 100083, China

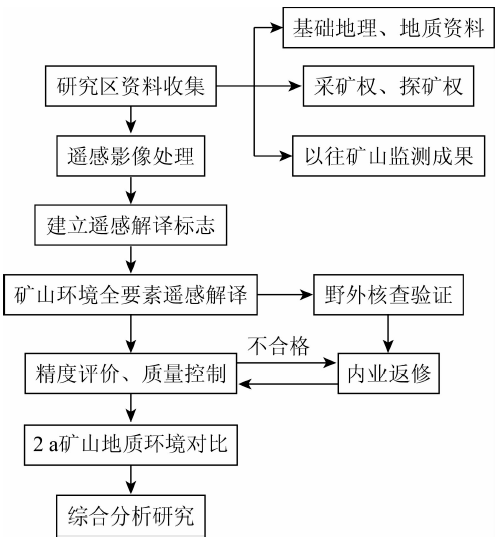

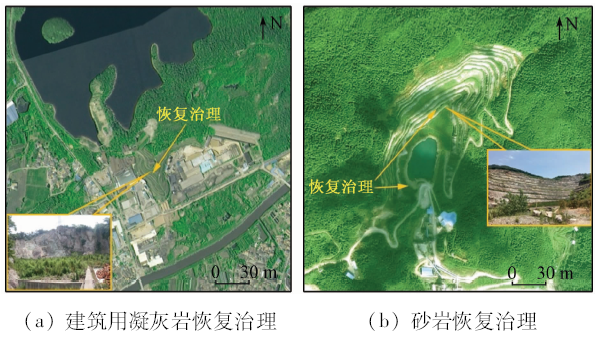

Taking the two-year high-resolution satellite image data obtained in 2016 and 2017 as the information source, the authors processed the data of two-year remote sensing image, established the mine remote sensing interpretation mark according to the image features, and verified some map-spots in the field of Zhejiang Province. Remote sensing investigation and dynamic monitoring of the geological environment and restoration of mines in Zhejiang Province were carried out in the natural environment and topography. Through the application research, the status and the changing trend of the mine geological environment in the mining area have been clarified, which can provide a scientific basis for the government departments to formulate the decision for the next step of mine geological environment restoration and management as well as the rational development and utilization of mineral resources.
汪洁,殷亚秋,于航,蒋存浩,万语. 基于RS和GIS的浙江省矿山地质环境遥感监测[J]. 国土资源遥感, 2020, 32(1): 232-236.
Jie WANG,Yaqiu YIN,Hang YU,Cunhao JIANG,Yu WAN. Remote sensing monitoring of mine geological environment in Zhejiang Province based on RS and GIS. Remote Sensing for Land & Resources, 2020, 32(1): 232-236.
Yang J Z, Nie H F, Jing Q Q . Preliminary analysis of mine geo-environment status and existing problems in China[J]. Remote Sensing for Land and Resources, 2017,29(2):1-7.doi: 10.6046/gtzyyg.2017.02.01.
Liu Q, Nie H F, Lyu J T , et al. The application of GIS to the remote sensing dynamic monitoring of mine exploitation[J]. Remote Sensing for Land and Resources, 2005,17(1):61-65.doi: 10.6046/gtzyyg.2005.01.15.
Lu Y G, Liu C, Wang J . Integrated solutions for mine remote sensing monitoring based on domestic satellite images:A case study of Tibet[J]. Remote Sensing for Land and Resources, 2014,26(4):85-90.doi: 10.6046/gtzyyg.2014.04.14.
MA S B, Li S H, An P , et al. Remote sensing monitoring and quality evaluation for the mine geological environment of the Juhugeng coal mining area in Qinghai Province[J]. Remote Sensing for Land and Resources, 2015,27(2):139-145.doi: 10.6046/gtzyyg.2015.02.22.
Wang X H, Nie H F, Yang Q H , et al. The different monitoring effects of QuickBird and SPOT-5 data in mine exploitation[J]. Remote Sensing for Land and Resources, 2004,16(1):15-18.doi: 10.6046/gtzyyg.2004.01.04.
Zhang K, Ma S B, Liu L P . Study of remote sensing monitoring concerning geological environment of major metallogenic belt and mining concentrations in the northern Qinghai Province[J] Northwestern Geology, 2012,45(1):283-292.
