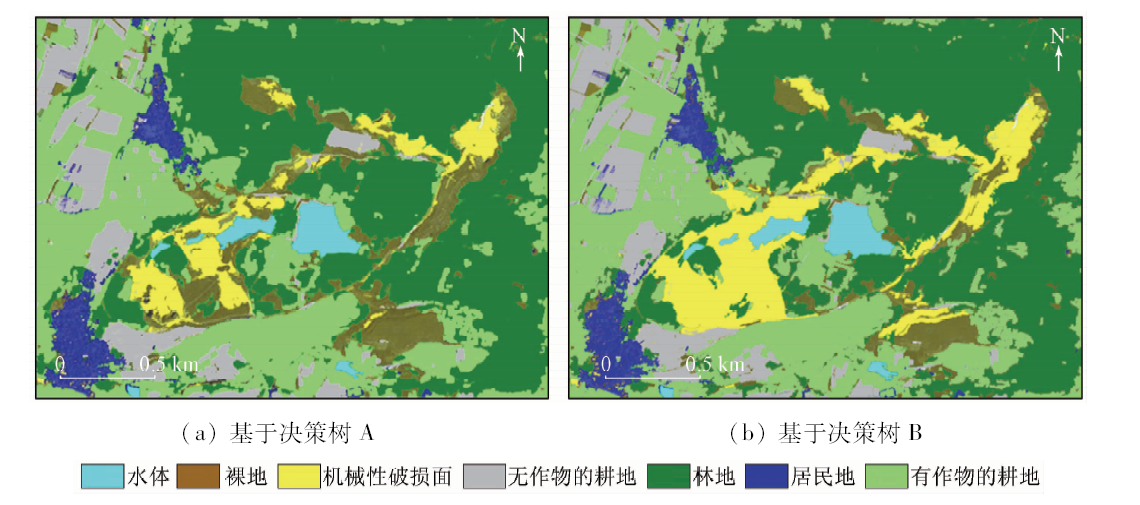

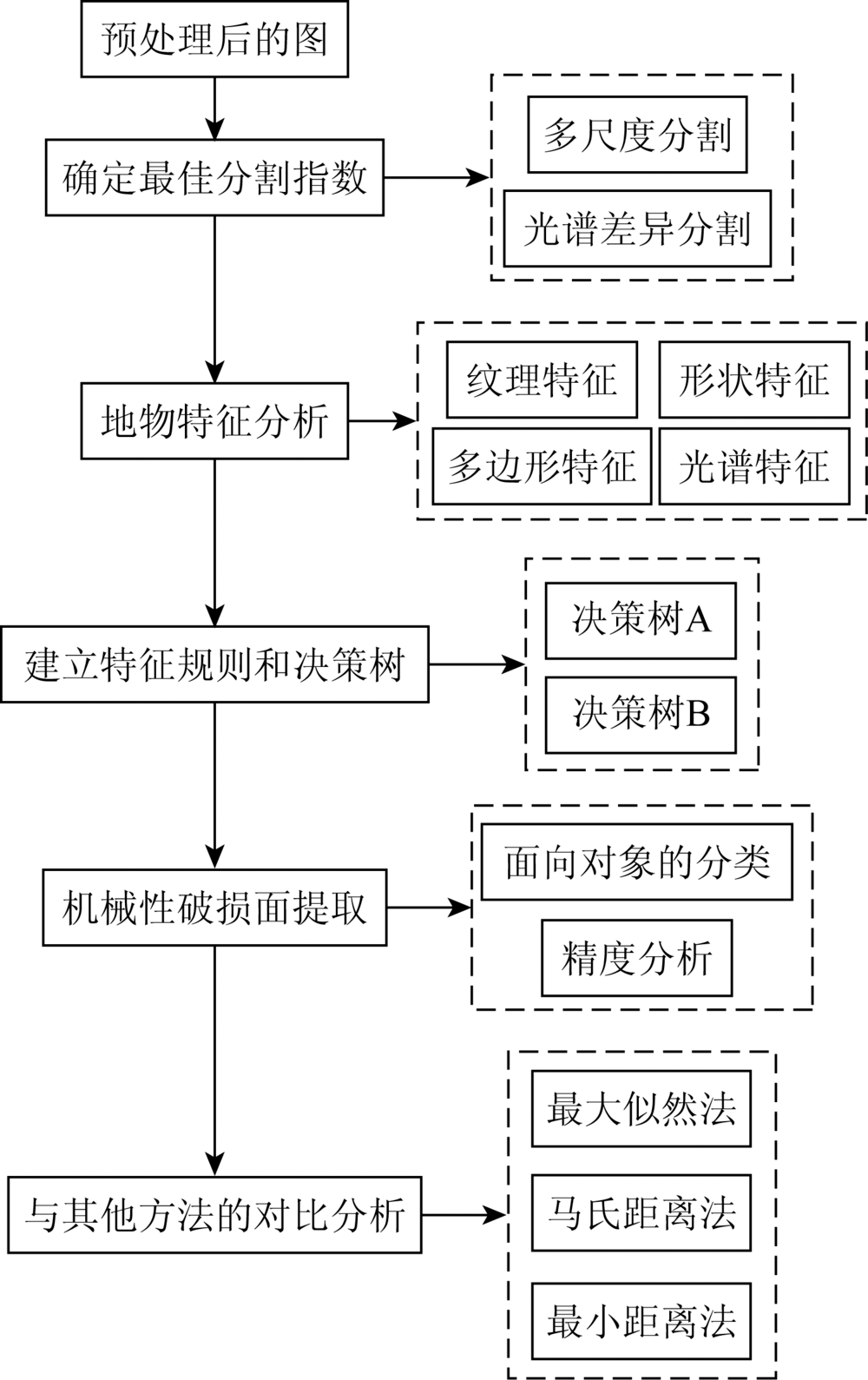

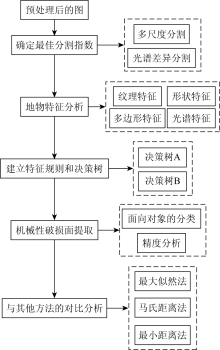

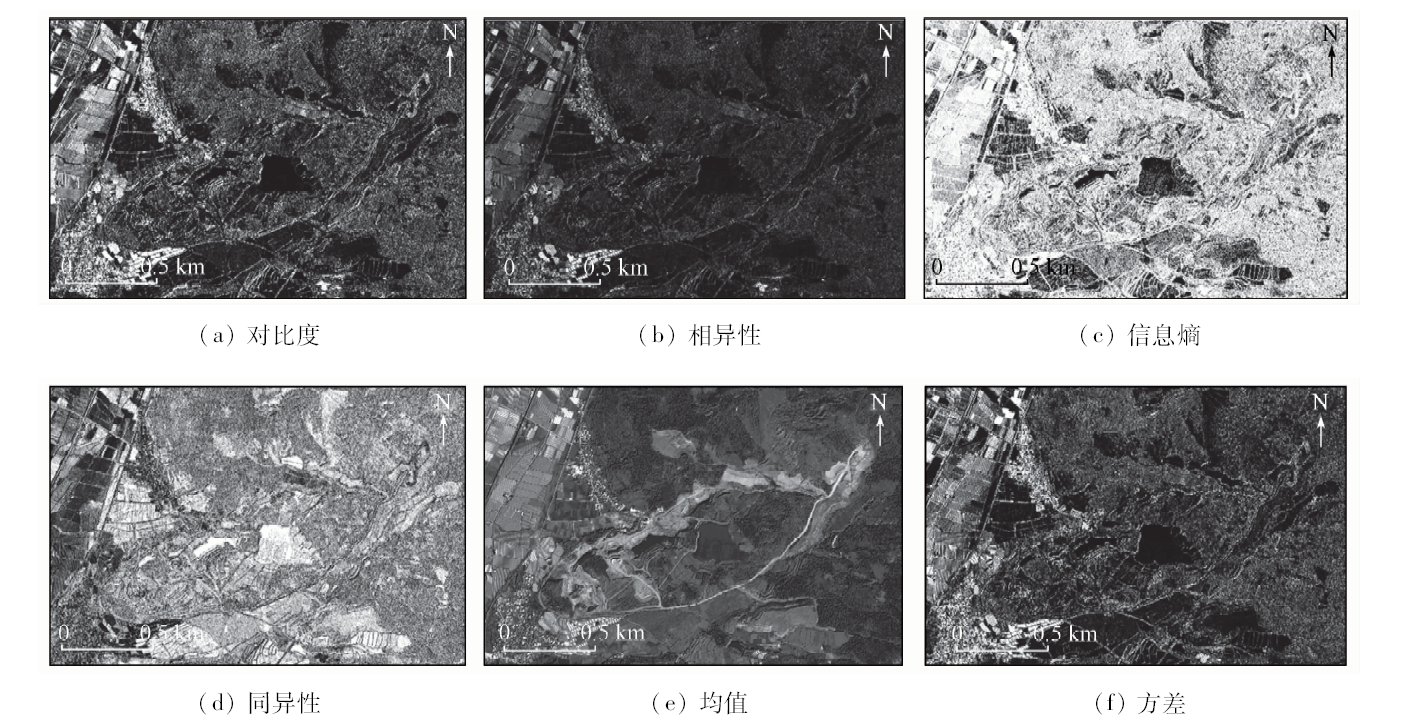

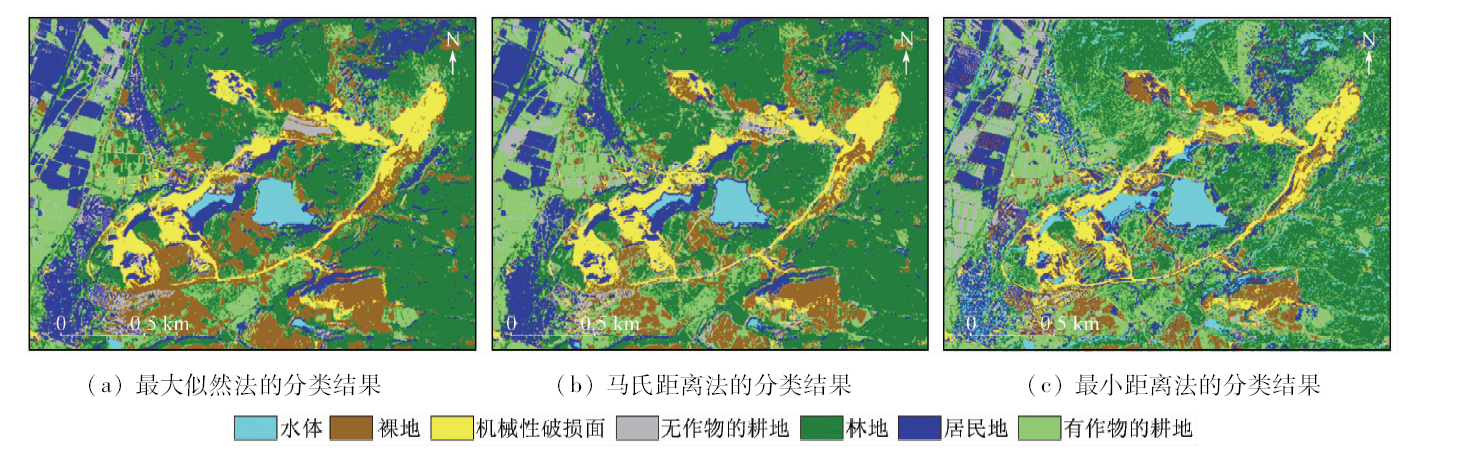

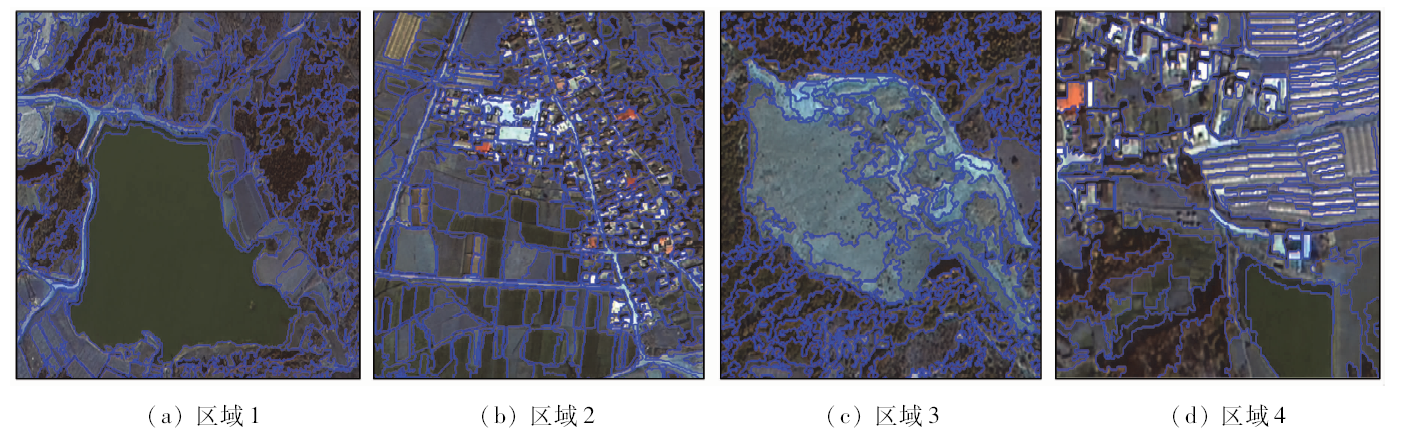

Mechanical damaged surface tends to cause soil erosion, secondary geological hazards and other ecological environment problems, but there is still a lack of effective extraction methods based on remote sensing images. Based on the GF-2 remote sensing image, the authors studied the object-oriented extraction method based on texture features in Tanglangchuan watershed with densely distributed mechanical damage surface. According to the seven types of features, the classification rules were established. On the basis of the optimal scale segmentation, the decision tree A based on spectral features and the decision tree B based on "spectral + texture" features are classified in object-oriented way. Precision evaluation and analysis show that, compared with the traditional supervised classification method and the spectral-based object-oriented classification method, the classification method improves the Kappa coefficient and the total accuracy to 0.82 and 86.25%, respectively, and also effectively improves the extraction accuracy of mechanical damage surface.
Wang L, Yang W, Ren J T, et al. Object-oriented typical urban area object extraction method for GF-2 image[J].Surveying and Mapping Bulletin, 2018(1):138-142.
Ouyang H L, Shen J W, Zhou T G. Application of object-oriented classification method to typhoon disaster information extraction[J]. Journal of Natural Disasters, 2016,25(6):9-17.
Xu F N, Qi Y, Wang J H, et al. Riparian forest vegetation coverage information classification based on object-oriented method in Heihe River[J]. Remote Sensing Technology and Application, 2015. 30(5):996-1005.
Zhang J Y, Yao G H, Lin L, et al. Combined with active learning and word bag model,automatic classification of high-score remotesensing image No.2[J]. Surveying and Mapping Bulletin, 2019,20(2):103-107.
Su T F, Zhang S W, Li H Y. High resolution remote sensing image segmentation algorithm based on texture features and regional growth[J]. Land and Resources Remote Sensing, 2017,29(2):72-81.doi: 10.6046/gtzyyg.2017.02.11.
张东梅. 基于多尺度分割的土地利用分类研究[D]. 南昌:东华理工大学, 2017, 7-53.
Zhang D M. Land use classification based on multi-scale segmentation[D]. Nanchang:East China University of Technology, 2017, 7-53.
Wang E L, Li C J, Zhou J P, et al. Tree species classification of plantations in Beijing plain based on multi-temporal remote sensing images[J]. Journal of Beijing University of Technology, 2017,43(5):710-718.
Moya L, Zakeri H, Yamazaki F, et al. 3D gray level co-occurrence matrix and its application to identifying collapsed buildings[J].Journal of Photogrammetry and Remote Sensing, 2019(149):14-28.
Huang X, Liu X B, Zhang L P. A Multichannel gray level co-occurrence matrix for multi/hyperspectral image texture representation[J]. Remote Sensing. 2014,6(9):8424-8445.
