国土资源遥感  2020, Vol. 32 Issue (2): 73-80    DOI: 10.6046/gtzyyg.2020.02.10
  技术方法 本期目录 | 过刊浏览 | 高级检索 |
基于分布函数的对象级森林变化快速检测
冯林艳1,2, 谭炳香1,2(), 王晓慧1,2, 陈新云3, 曾伟生3, 戚曌1,2
1.中国林业科学研究资源信息研究所,北京 100091
2.国家林业和草原局林业遥感与信息技术重点实验室,北京 100091
3.国家林业和草原局调查规划设计院,北京 100714
Object-oriented rapid forest change detection based on distribution function
Linyan FENG1,2, Bingxiang TAN1,2(), Xiaohui WANG1,2, Xinyun CHEN3, Weisheng ZENG3, Zhao QI1,2
1. Research Institute of Forest Resources Information Techniques, Chinese Academy of Forestry, Beijing 100091, China
2. Key Laboratory of Forestry Remote Sensing and Information System, NFGA, Beijing 100091, China
3. Academy of Forest and Grassland Inventory and Planning, Beijing 100714, China
全文: PDF(4518 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

南方人工林生长迅速,轮伐期短。为探讨一种有效更新森林资源数据库的森林变化检测方法,快速检测短时期内森林采伐与更新的动态变化。以变化频繁快速,变化图斑多且小的广西人工林作为研究区,以2个时相的高分二号(GF-2)影像为数据源,利用多尺度分割和光谱差异分割2种方法对2期影像进行分割,通过对象的归一化差值植被指数(normalized difference vegetation index,NDVI)差值并基于分布函数确定阈值来提取变化区域与变化类型,实现森林变化快速检测。基于像元采用同样的方法进行处理,与面向对象NDVI差值法进行比较。结果表明面向对象NDVI差值法的总体精度达89.76%,Kappa系数为0.81,精度和提取效果优于基于像元NDVI差值法,更能刻画变化图斑的形状和边界,也能较准确地检测出微小变化的面积。该方法能适应南方人工林的变化特点,在实现快速检测变化的目的下,可用于森林资源数据库的更新。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
冯林艳
谭炳香
王晓慧
陈新云
曾伟生
戚曌
关键词 GF-2变化检测NDVI面向对象分布函数
Abstract

Plantation in southern China is growing rapidly, and rotation cutting period is short. To explore the forest change detection method used to update the forest resource database effectively and to monitor the dynamic changes in forest harvesting and renewal in a short period, the authors chose the plantation area of Shangsi County in Guangxi as the study area, where the plantation area changes frequently and rapidly and the change patterns are numerous and small. The GF-2 remote sensing images of two phases were used as data sources. Multi-scale segmentation and spectral difference segmentation were used to segment the two-phase images. The change areas and change types were extracted from the NDVI difference of the objects and the threshold value was determined based on the distribution function, so as to realize the rapid detection of forest change. In addition, the same method was adopted for pixel-based processing in comparison with object-oriented NDVI difference method. The results show that the overall accuracy of the object-oriented NDVI difference method is 87.12%, and the Kappa coefficient is 0.81. The accuracy and extraction effect are better than those of the pixel-based NDVI difference method, indicating that the object-oriented NDVI difference method can better depict the shape and boundary of the change spots and can also more accurately detect the small change area. This method can be adapted to detect the changing characteristics of plantation in south China and can also be used to update the forest resource database for the purpose of rapid change detection.

Key wordsGF-2    change detection    NDVI    object-oriented    distribution function
收稿日期: 2019-06-06      出版日期: 2020-06-18
:  TP79
基金资助:中央级公益性科研院所基本科研业务费专项资金项目“高分辨率影像对象级的森林资源变化检测”(CAFYBB2017MB012);高分辨率对地观测系统重大专项(民用部分)子课题“面向林地类型精细识别的GF-6卫星最优数据选择研究”(21-Y20A06-9001-17/18-1)
通讯作者: 谭炳香
作者简介: 冯林艳(1995-),女,硕士研究生,主要研究方向为森林资源遥感监测。Email: 1040857742@qq.com。
引用本文:
冯林艳, 谭炳香, 王晓慧, 陈新云, 曾伟生, 戚曌. 基于分布函数的对象级森林变化快速检测[J]. 国土资源遥感, 2020, 32(2): 73-80.
Linyan FENG, Bingxiang TAN, Xiaohui WANG, Xinyun CHEN, Weisheng ZENG, Zhao QI. Object-oriented rapid forest change detection based on distribution function. Remote Sensing for Land & Resources, 2020, 32(2): 73-80.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2020.02.10      或      https://www.gtzyyg.com/CN/Y2020/V32/I2/73
Fig.1  研究区影像及地理位置示意图
(GF-2 B4(R),B3(G),B2(B)假彩色合成)

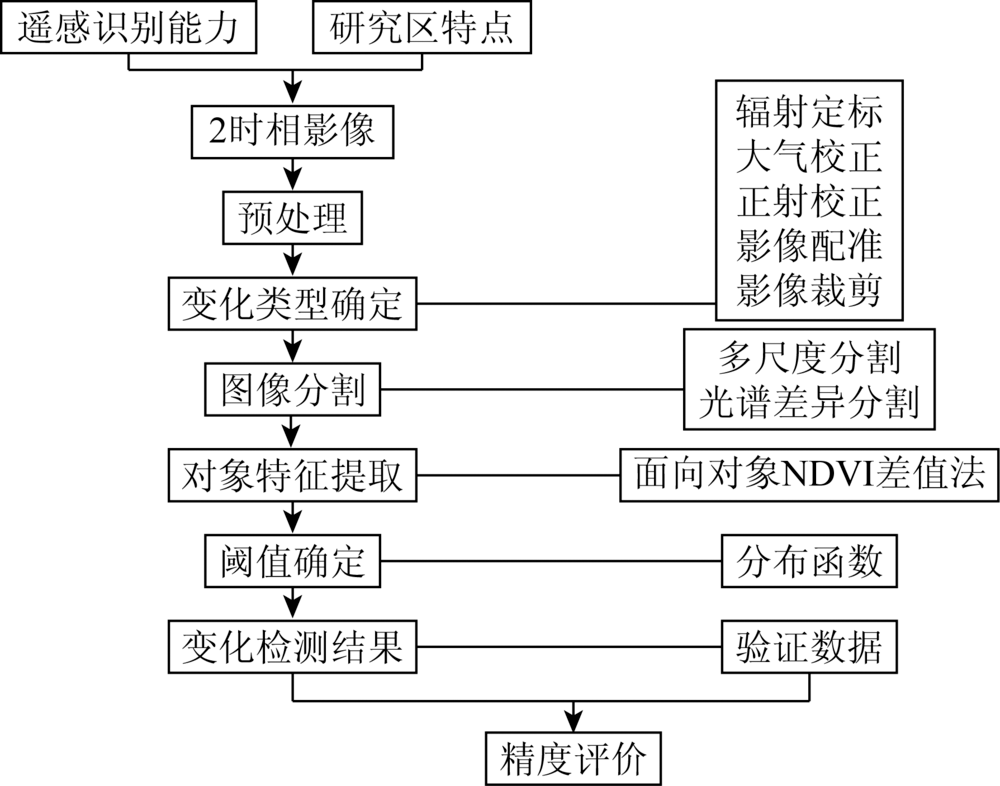

Fig.2  技术路线
空间分辨率/m 最小可检测面积/hm2
250~1 000 6~100
10~30 0.05~0.30
0.5~5 0.01
Tab.1  传感器空间分辨率与最小可检测面积的关系
图层 分割方法 分割对象 分割尺度 形状参数 紧致度参数 对象数量/个
1 多尺度分割 全部像元 70 0.1 0.5 73 328
2 光谱差异分割 图层1 50 69 134
Tab.2  图像分割参数

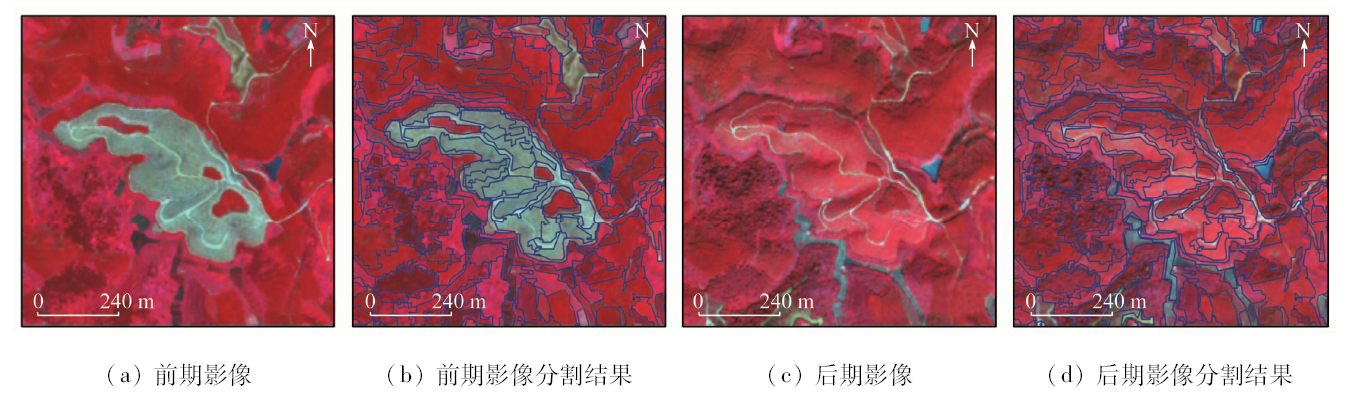

Fig.3  影像局部地区分割结果

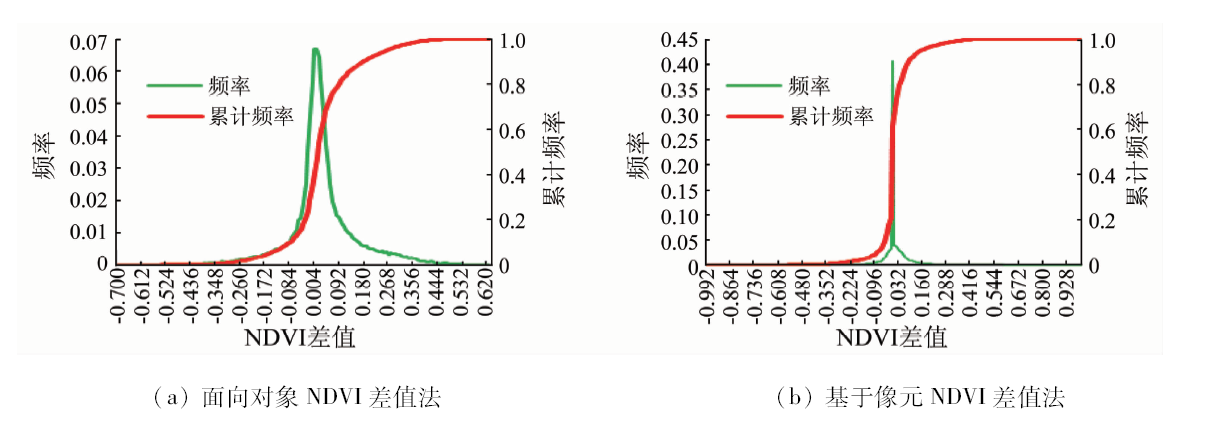

Fig.4  2种方法的NDVI差值影像统计
变化类型 面向对象判定条件 基于像元判定条件
植被变裸地 Mi≤-0.085 Mi≤-0.098
裸地变植被 Mi≥0.18 Mi≥0.148
未变化 -0.085<△Mi<0.18 -0.098<△Mi<0.148
Tab.3  各变化类型的判定条件

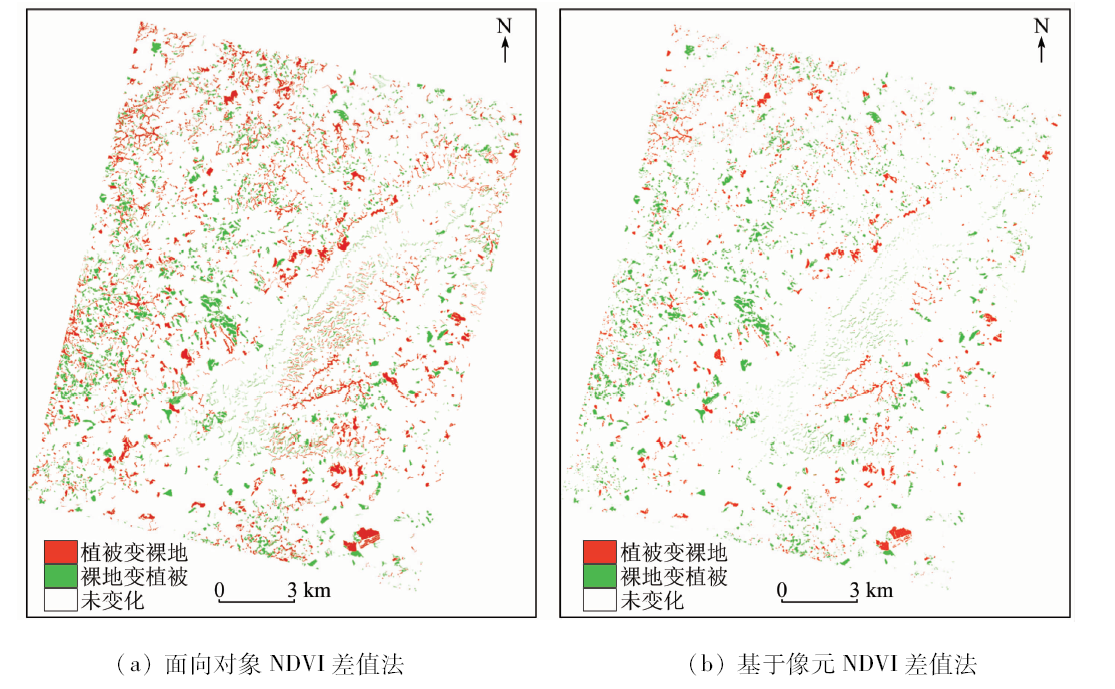

Fig.5  2种方法的变化检测结果
检测
方法
检测变化
类型
实际变化类型 合计 漏分
误差/%
错分
误差/%
总体
精度/%
Kappa系数
植被变裸地 裸地变植被 未变化
面向对象NDVI差值法 植被变裸地 19 121 755 1 465 21 341 9.80 10.40
裸地变植被 0 12 589 5 082 17 671 10.91 28.76 89.76 0.81
未变化 2 078 787 57 314 60 179 10.25 4.76
基于像元NDVI差值法 植被变裸地 17 590 596 1 363 19 549 17.02 10.02
裸地变植被 0 12 813 6 484 19 297 9.33 33.60 87.12 0.76
未变化 3 609 722 56 014 60 345 12.29 7.18
合计 21 199 14 131 63 861 99 191
Tab.4  变化检测结果混淆矩阵

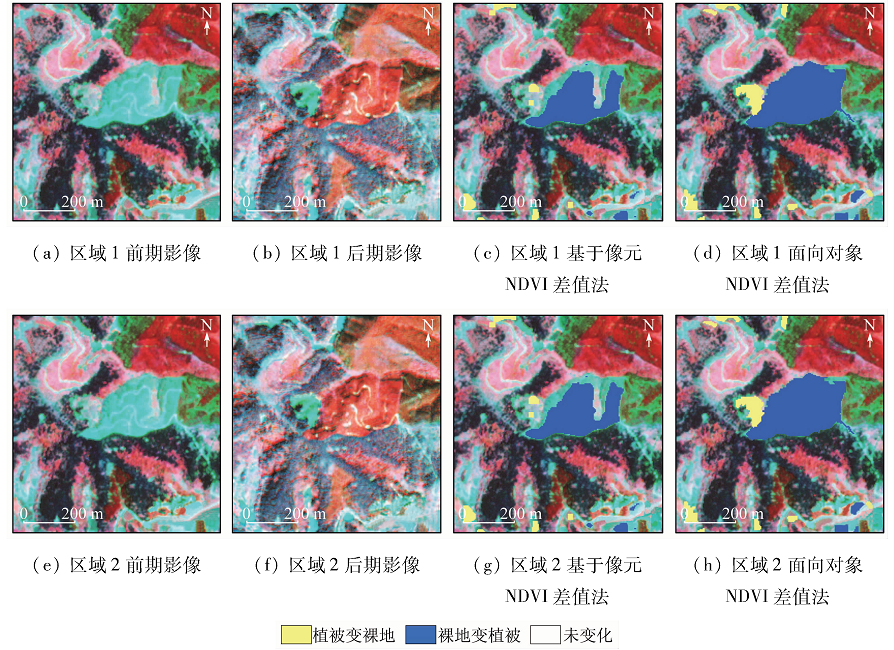

Fig.6  局部变化检测结果
