Quality evaluation of forest cover products over China
WEN Yanan1,2(), CHE Yahui1,2, GUANG Jie1(), ZHANG Xiaomei1, LI Zhengqiang1
1. Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100101, China 2. College of Resources and Environment, University of Chinese Academy of Sciences, Beijing 100049, China

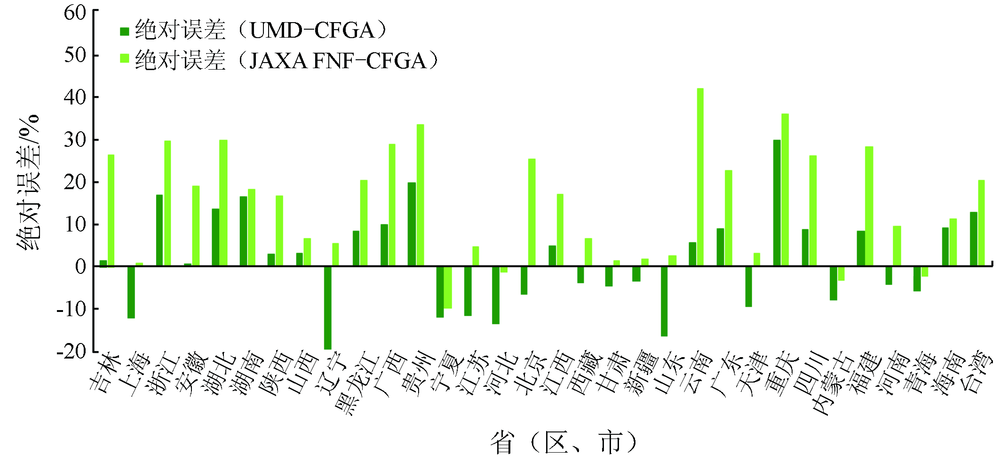

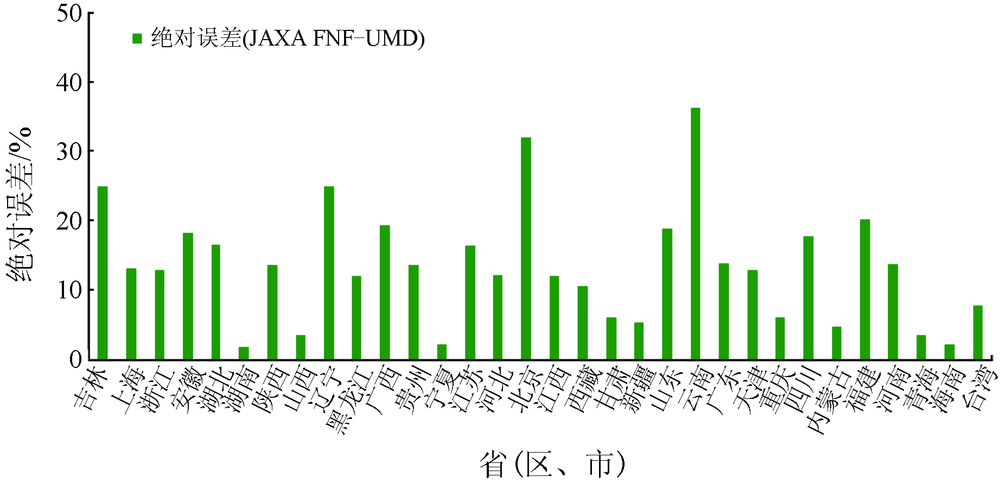

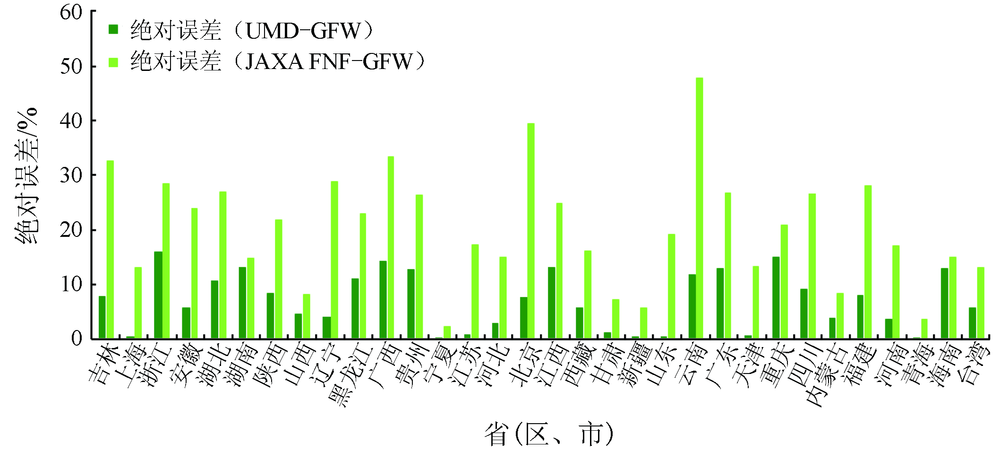

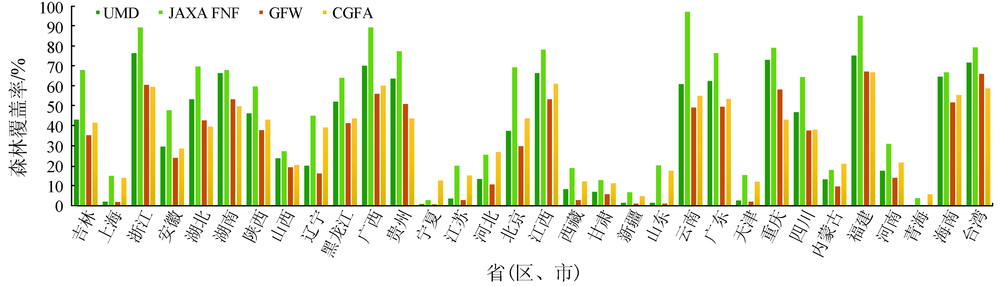

Forest coverage is a common variable in forest management, monitoring and planning. It is also an important reference for biodiversity impact assessment and carbon storage quantification. Due to its objective, fast and macroscopic advantages, remote sensing technology has gradually been widely used in forest resources monitoring. In order to get better application of forest cover products based on remote sensing technology, validation and quality evaluation are particularly important. Two widely used forest cover products (UMD and JAXA FNF) were selected in this paper. UMD (University of Maryland) forest cover product was derived by EDENext Data Management Team from original datasets produced by UMD et al. 2013/UMD/Google/USGS/NASA. The forest/non-forest (FNF) product from ALSO/PALSAR data in 2015 was available on the Earth Observation Research Center, Japan Aerospace Exploration Agency (JAXA). Validation and quality evaluation were carried out by comparison between products and ground-based survey data. UMD and JAXA FNF forest cover products were compared through qualitative analysis and statistical analysis. The results show that the forest coverage rate of JAXA FNF in western, southern and central eastern China is significantly higher than that of UMD. In southeastern provinces of China, the consistency of UMD and JAXA FNF is better, but both of them are higher than ground-based data. In general, the accuracy of UMD is higher than that of JAXA FNF. Although the forest coverage data of UMD and JAXA FNF and GFW and CFGA are different in all provinces, the difference of JAXA FNF is larger, and the average absolute error of JAXA FNF is about 3 times of UMD.
Nagendra H, Lucas R, Honrado J P, et al. Remote sensing for conservation monitoring:Assessing protected areas,habitat extent,habitat condition,species diversity,and threats[J]. Ecological Indicators, 2013,33:45-59.
doi: 10.1016/j.ecolind.2012.09.014
[2]
Saatchi S S, Harris N L, Brown S, et al. Benchmark map of forest carbon stocks in tropical regions across three continents[J]. Proceedings of the National Academy of Sciences, 2011,108(24):9899-9904.
[3]
Lei L, Hao T, Chi T. Evaluation on China’s forestry resources efficiency based on big data[J]. Journal of Cleaner Production, 2017,142:513-523.
doi: 10.1016/j.jclepro.2016.02.078
Fang X W, Jiang Z R. The review of remote sensing application to investigate forest resources[J]. Journal of Gansu Agricultural University, 2003,3(38):267-273.
Zhang T, Zhang X L, Liu H W, et al. Application of remote sensing technology in monitoring forest diseases and pests[J]. Journal of Anhui Agricultural Science, 2010,38(21):11604-11607.
[6]
Mellor A, Haywood A, Stone C, et al. The performance of random forests in an operational setting for large area sclerophyll forest classification[J]. Remote Sensing, 2013,5(6):2838-2856.
[7]
韦希勤. 森林覆盖率有关问题的探讨[J]. 世界林业研究, 2011,24(2):76-80.
Wei X Q. Discussion on issues related to forest cover rate[J]. World Forestry Research, 2011,24(2):76-80.
Qin Y W, Dong J W, Xiao X M. Difference and uncertainty of forest coverage estimation in China[J]. Biodiversity Science, 2015,23(6):830-834.
doi: 10.17520/biods.2015329
[9]
Hansen M C, Potapov P V, Moore R, et al. High-resolution global maps of 21st-century forest cover change[J]. Science, 2013,342:850-853.
doi: 10.1126/science.1244693
[10]
Soto-Berelov M, Jones S D, Haywood A. Assessing large area forest cover products derived from the same imaging source across Victoria,Australia[J]. Ecological Management & Restoration, 2018,19(1):66-75.
[11]
Shimada M, Itoh T, Motooka T, et al. New global forest/non-forest maps from ALOS PALSAR data (2007—2010)[J]. Remote Sensing of Environment, 2014,155:13-31.
doi: 10.1016/j.rse.2014.04.014
Wang H, Lyu Z, Gu L, et al. Observations of China’s forest change (2000—2013) based on Global Forest Watch dataset[J]. Biodiversity Science, 2015,23(5):575-582.
doi: 10.17520/biods.2015122
State Forestry Administration. Notice of the State Forestry Administration on the publication of the ninth national forest resources inventory and the results of the main inventories of seven provinces (cities) such as Jilin[EB/OL].(2015-04-28)[2019-10-09]. http://www.forestry.gov.cn/main/447/content-761376.html.
Zeng W S, Yan H W. The 9th forest resources inventory of 2015 years[M] //The state forestry administration.China forestry yearbook. Beijing: China Forestry Publishing House, 2016: 291-292.
Zeng W S, Yan H W. The state forestry administration released the national forest resources inventory data of 6 provinces (cities) such as Beijing[M] //The state forestry administration.China forestry yearbook.Beijing: China Forestry Publishing House, 2017: 283-284.
Zeng W S, Yan H W. The state forestry administration released the national forest resources inventory data of 6 provinces (cities) such as Tianjin[M] //The state forestry administration.China forestry yearbook.Beijing: China Forestry Publishing House, 2018: 162.
State Forestry Administration.Notice of the office of the state forestry administration on launching the 9th national forest resources inventory in 2018[EB/OL].(2018-03-22)[2019-10-09]. http://www.forestry.gov.cn/portal/main/s/4461/content-1086582.html.
[18]
徐济德. 我国第八次森林资源清查结果及分析[J].林业经济, 2014(3):6-8.
Xu J D. The 8th forest resources inventory results and analysis in China[J].Forestry Economics 2014(3):6-8.
[19]
Mcgrath R E. Kappa coefficient[M]. Corsini Encyclopedia of Psychology. 1983: 352-354.
State Forestry Administration.How is forest coverage surveyed?[EB/OL].(2019-06-17)[2019-10-09]. http://www.forestry.gov.cn/main/4045/20190617/160420891885179.html.
