融合Unet网络和IR-MAD的建筑物变化检测方法
徐锐1(), 余小于1, 张驰1, 杨瑨1, 黄宇2, 潘俊1()
1.武汉大学测绘遥感信息工程国家重点实验室,武汉 430079
2.武大吉奥信息技术有限公司,武汉 430223
Building change detection method combining Unet and IR-MAD
XU Rui1(), YU Xiaoyu1, ZHANG Chi1, YANG Jin1, HUANG Yu2, PAN Jun1()
1. State Key Laboratory of Information Engineering in Surveying, Mapping and Remote Sensing, Wuhan University, Wuhan 430079, China
2. Wuda Geoinformatics Company Limited, Wuhan 430223, China
全文: PDF(2287 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

通过遥感影像对城市建筑物进行变化检测,可以全面掌握城市建筑物的规划实施情况,辅助城市管理部门及时发现并依法查处各类违章建筑。提出了一种融合Unet网络和IR-MAD的城市建筑物变化检测方法,首先,分别使用加权小型Unet网络和IR-MAD检测遥感影像中的疑似变化像素; 然后,基于投票的方式融合疑似变化像素检测结果,确定变化像素; 接着通过形态学操作去除斑点噪声、填充变化区域内部孔洞等来优化变化像素区域; 最后,基于建筑物阴影特性去除非建筑物的变化区域,从而得到建筑物变化检测结果。实验表明,该方法比仅使用Unet网络或IR-MAD可更准确地检测出遥感影像中的建筑物变化。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
徐锐
余小于
张驰
杨瑨
黄宇
潘俊
关键词 卷积神经分割网络迭代加权多元变化检测变化检测
Abstract

The change detection of urban buildings through remote sensing images can help researchers grasp the planning and implementation of urban buildings comprehensively, and assist urban managers to find and investigate illegal buildings. This paper proposes a method for urban building change detection that combines Unet with IR-MAD. This method first uses weighted small Unet and IR-MAD to detect suspected change pixels in remote sensing images, and then fuses the suspected change pixels detection results based on voting to find out change pixels. For optimizing the change pixel areas, morphological operations are performed to remove speckle noise and fill holes in the changed pixel area. Finally, non-building change areas are removed based on the shadow characteristics of the building to obtain building change detection results. Experiments show that this method can detect building changes in remote sensing images more accurately than using only Unet or IR-MAD.

Key wordsconvolutional neural segmentation network    iteratively weighted multivariate change detection    change detection
收稿日期: 2020-01-15      出版日期: 2020-12-23
:  TP79
基金资助:国家自然科学基金项目“基于临近空间平台的天地一体化信息网络关键技术集成与综合验证”(91738301)
通讯作者: 潘俊
作者简介: 徐 锐(1996-),女,硕士研究生,主要研究方向为遥感影像变化检测、质量改善。Email:sherryxu@whu.edu.cn
引用本文:
徐锐, 余小于, 张驰, 杨瑨, 黄宇, 潘俊. 融合Unet网络和IR-MAD的建筑物变化检测方法[J]. 国土资源遥感, 2020, 32(4): 90-96.
XU Rui, YU Xiaoyu, ZHANG Chi, YANG Jin, HUANG Yu, PAN Jun. Building change detection method combining Unet and IR-MAD. Remote Sensing for Land & Resources, 2020, 32(4): 90-96.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2020.04.13      或      https://www.gtzyyg.com/CN/Y2020/V32/I4/90

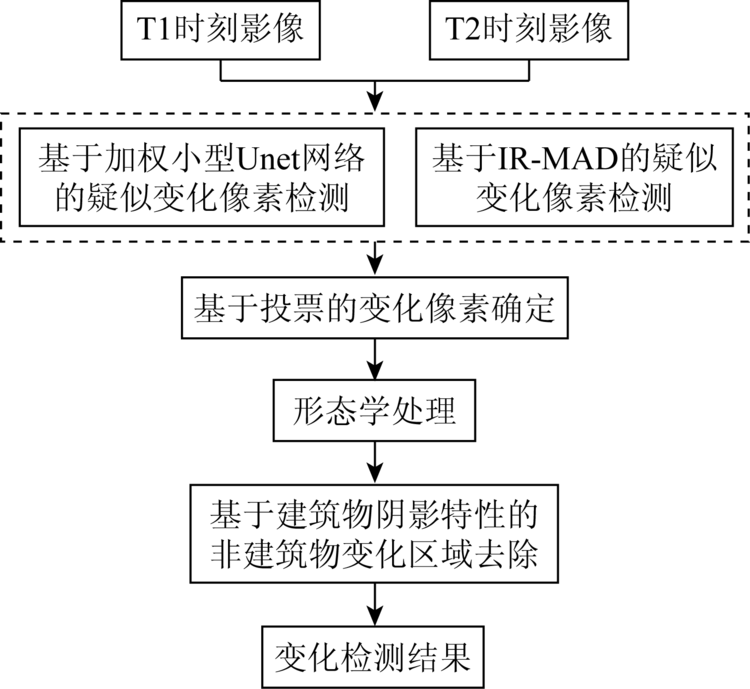

Fig.1  融合Unet网络和IR-MAD的建筑物变化检测方法流程

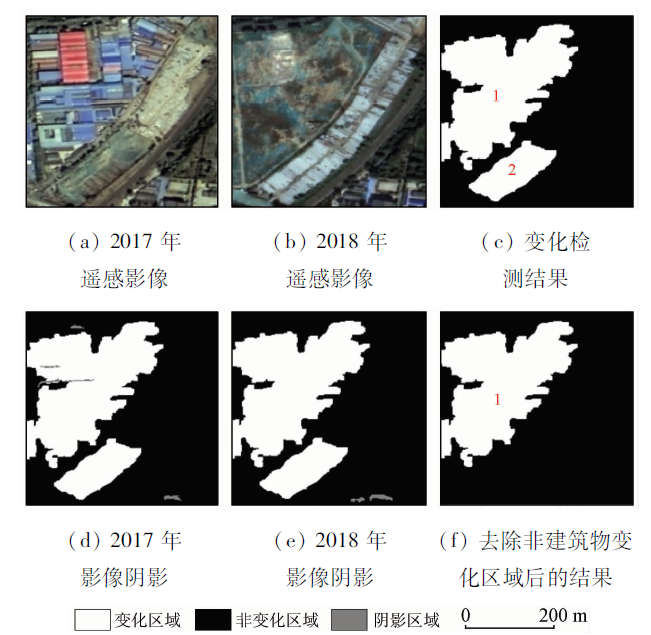

Fig.2  非建筑物变化区域去除实例

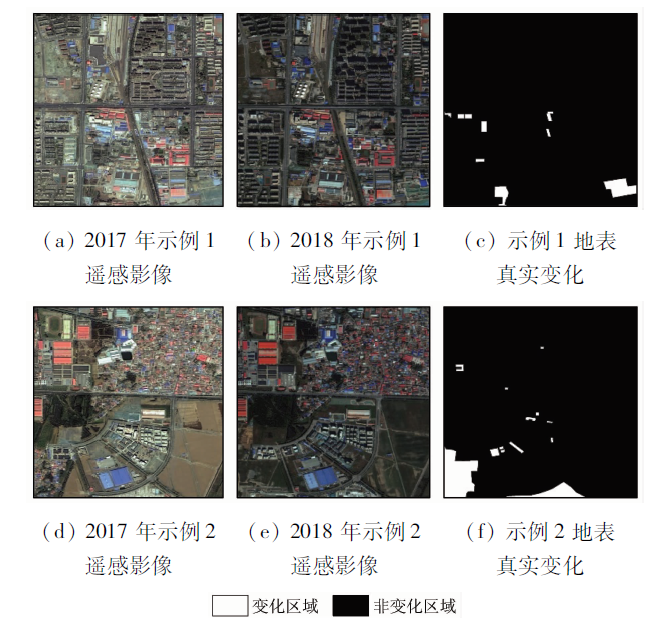

Fig.3  变化检测样本示例

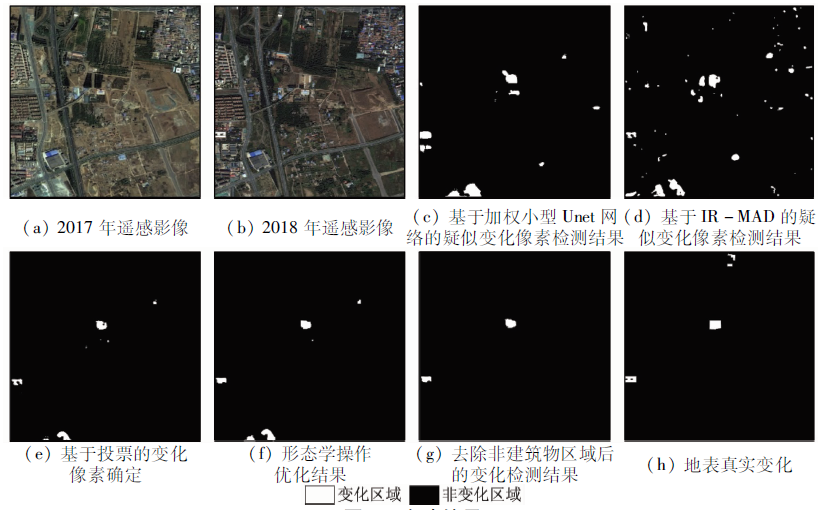

Fig.4  实验结果
处理步骤 p r F1得分
基于加权小型Unet网络的变化检测结果 0.208 0.620 0.312
基于IR-MAD的变化检测结果 0.246 0.418 0.310
投票融合后的变化检测结果 0.485 0.308 0.376
经过形态学操作优化后的变化检测结果 0.345 0.510 0.412
基于建筑物阴影特性去除非建筑变化区域后的变化检测结果 0.390 0.510 0.442
Tab.1  实验结果
