国土资源遥感  2020, Vol. 32 Issue (4): 172-181    DOI: 10.6046/gtzyyg.2020.04.22
  技术应用 本期目录 | 过刊浏览 | 高级检索 |
基于DMSP/OLS数据的长株潭城市群建成区演变特征研究
郑伯红1(), 王志远1,2(), 汪华1
1.中南大学建筑与艺术学院,长沙 410075
2.南华大学建筑学院,衡阳 421001
A study of the evolution characteristics of built-up areas in Chang-Zhu-Tan urban agglomeration based on DMSP/OLS data
ZHENG Bohong1(), WANG Zhiyuan1,2(), WANG Hua1
1. School of Architecture and Art, Central South University, Changsha 410075, China
2. School of Architecture, University of South China, Hengyang 421001, China
全文: PDF(5040 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

长株潭城市群是长江中游经济带重要组成部分,研究利用DMSP/OLS夜间灯光数据提取长株潭城市群1993—2013年建成区空间分布,采用空间扩张分析、标准差椭圆法、重心变动、景观格局指数、空间自相关等方法,定量分析20 a间长株潭城市群建成区空间演变时空特征,以期为长株潭城市群未来城镇空间发展提供决策依据。结果表明: 1993—2013年间长株潭城市群灯光总量呈现出长株潭3市相对密集,而周边5市相对稀疏的核心—边缘结构; 城市群各城市中心城区以面状发展模式为主,不规则圈层向外扩张。长株潭城市群向心力表现为“离散—向心”增强的趋势,建成区重心由长沙市岳麓区转移至望城区。长株潭城市群建成区分布不断集中,一体化程度不断提升; 建成区斑块数量减少,形状复杂程度降低,建成区由“斑块数量增长”到“斑块规模扩张”。长株潭城市群建成区空间分布呈现集聚特征,空间集聚热点区主要集中在长株潭3市市辖区以及外围的长沙县、望城县、湘潭县、韶山市、醴陵市、宁乡市、湘阴市和汨罗市,而冷点区为沅江市、南县。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
郑伯红
王志远
汪华
关键词 DMSP/OLS数据建成区演变特征长株潭城市群
Abstract

Chang-Zhu-Tan urban agglomeration is an important part of the economic belt in the middle reaches of the Yangtze River. The DMSP/OLS night light data was used to extract the space of the built-up area of Chang-Zhu-Tan urban agglomeration from 1993 to 2013. The spatial expansion analysis, standard deviation ellipsoid method, center of gravity change, landscape pattern index, and spatial autocorrelation method were used to quantitatively analyze the space-time characteristics of the spatial evolution of the built-up area of Chang-Zhu-Tan urban agglomeration in the past 20 years. The result can provide decision-making basis for the future urban spatial development of Chang-Zhu-Tan urban agglomeration. The results are as follows: ① From 1993 to 2013, the total amount of lights in the Chang-Zhu-Tan urban agglomeration showed a relatively dense core edge structure, the three cities of Changsha, Zhuzhou and Xiangtan were relatively dense, while the surrounding five cities were relatively sparse. The central urban areas of urban agglomerations were dominated by the planar development mode, showing irregular circular expansion outwards. ② The centripetal force of the Chang-Zhu-Tan urban agglomeration showed an increasing trend of “discrete-centripetal”. The center of gravity of the built-up area shifted from Yuelu District of Changsha City to Wangcheng District. ③ There existed the continuous concentration of the built-up areas and the continuous improvement of the degree of integration in the Chang-Zhu-Tan urban agglomeration. The number of patches in the built-up area decreased and the complexity of the shape also decreased. The built-up area grew from “patch quantity increase” to “patch scale expansion”. ④ The spatial distribution of the built-up area of the Chang-Zhu-Tan urban agglomeration presented cluster features. The hot spots of spatial agglomeration were mainly concentrated in the districts of the three cities of Changsha, Zhuzhou, Xiangtan and the surrounding counties of Changsha, Wangcheng, Xiangtan, Shaoshan, Liling, Ningxiang, Xiangyin and Miluo, while the cold spot areas were Yuanjiang and Nanxian.

Key wordsDMSP/OLS data    built-up area    evolution characteristics    Chang-Zhu-Tan urban agglomeration
收稿日期: 2020-01-15      出版日期: 2020-12-23
:  TU984
基金资助:国家自然科学基金项目“基于碳流情景模拟的低碳新城空间规划研究”(51478470);湖南省社会科学基金项目“基于生态优先的洞庭湖地区城镇空间规划管控研究”(18YBQ106);湖南省教育厅科学研究优秀青年项目“长株潭都市区城市空间增长模拟及管控研究”(19B480)
通讯作者: 王志远
作者简介: 郑伯红(1966-),男,博士,教授,博士生导师,主要研究方向为国土空间规划。Email:zhengbohong@csu.edu.cn
引用本文:
郑伯红, 王志远, 汪华. 基于DMSP/OLS数据的长株潭城市群建成区演变特征研究[J]. 国土资源遥感, 2020, 32(4): 172-181.
ZHENG Bohong, WANG Zhiyuan, WANG Hua. A study of the evolution characteristics of built-up areas in Chang-Zhu-Tan urban agglomeration based on DMSP/OLS data. Remote Sensing for Land & Resources, 2020, 32(4): 172-181.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2020.04.22      或      https://www.gtzyyg.com/CN/Y2020/V32/I4/172

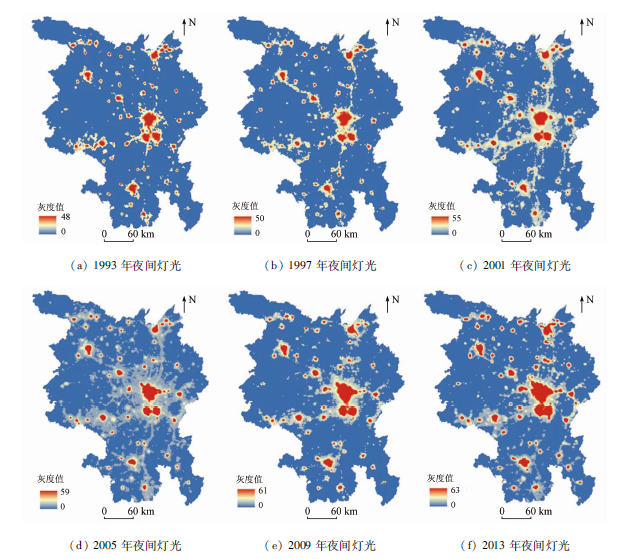

Fig.1  长株潭城市群1993—2013年夜间灯光变化
Fig.2  长株潭城市群建成区空间扩张演变(1993—2013年)
Fig.3  长株潭城市群建成区扩张分析(1993—2013年)

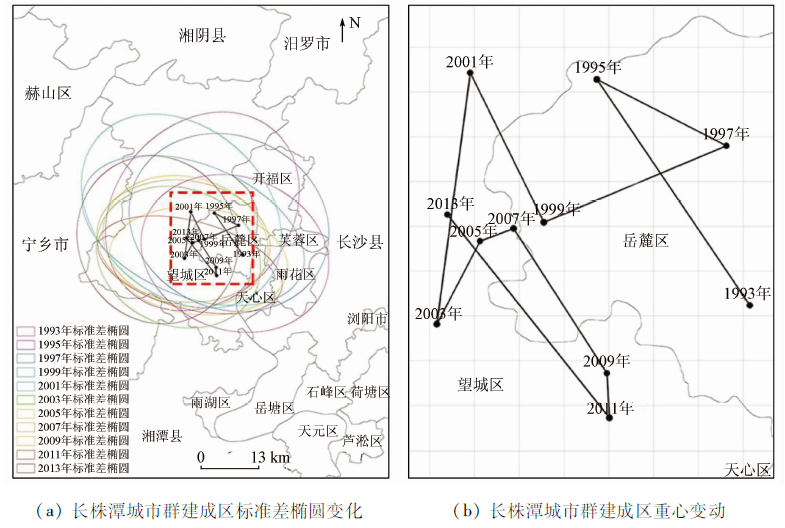

Fig.4  长株潭城市群建成区扩张标准差椭圆及重心变动(1993—2013年)
年份 偏移距离/m 偏移速度/
(m·a-1)
偏移角度/(°)
1993—1995年 10 864.82 5 432.41 121.81
1995—1997年 5 458.41 2 729.20 -29.17
1997—1999年 7 373.87 3 686.94 -153.75
1999—2001年 6 723.05 3 361.53 114.45
2001—2003年 10 438.88 5 219.44 -95.83
2003—2005年 3 772.90 1 886.45 66.13
2005—2007年 1 332.19 666.10 24.04
2007—2009年 6 873.97 3 436.99 -59.40
2009—2011年 1 847.86 923.93 -86.29
2011—2013年 10 265.13 5 132.56 126.09
Tab.1  1993—2013年长株潭城市群建成区重心偏移轨迹
年份 TA/
km2
COHESION AI PD/
(个·km-2)
LPI NP LSI SHDI ED/
(m·km-2)
CONTAG/
%
PAFRAC
1993年 832.59 23.35 12.35 0.26 0.29 49.80 16.86 3.30 17.24 19.05 1.62
1995年 927.15 21.24 10.90 0.28 0.28 52.00 16.90 3.43 17.68 16.86 1.63
1997年 1 068.35 25.31 14.78 0.33 0.29 50.20 16.97 3.31 16.94 20.36 1.57
1999年 1 199.94 23.42 12.49 0.35 0.28 49.00 16.42 3.52 17.45 16.29 1.61
2001年 1 323.62 25.41 14.44 0.36 0.28 71.33 19.86 3.47 17.08 18.68 1.56
2003年 1 501.43 24.71 12.70 0.44 0.28 96.33 22.97 3.59 17.49 17.13 1.59
2005年 1 636.49 26.81 13.96 0.45 0.31 113.73 24.79 3.62 17.38 17.62 1.57
2007年 1 860.59 35.71 18.39 0.43 0.35 102.87 23.65 3.46 16.60 16.28 1.57
2009年 2 024.76 37.92 19.38 0.44 0.35 99.87 21.08 3.34 16.76 20.37 1.61
2011年 2 198.97 42.37 21.09 0.45 0.35 95.87 23.65 3.31 16.19 18.94 1.59
2013年 2 361.23 57.71 30.98 0.52 0.34 90.40 23.06 2.96 13.73 18.29 1.55
Tab.2  1993—2013年长株潭城市群建成区景观格局指标

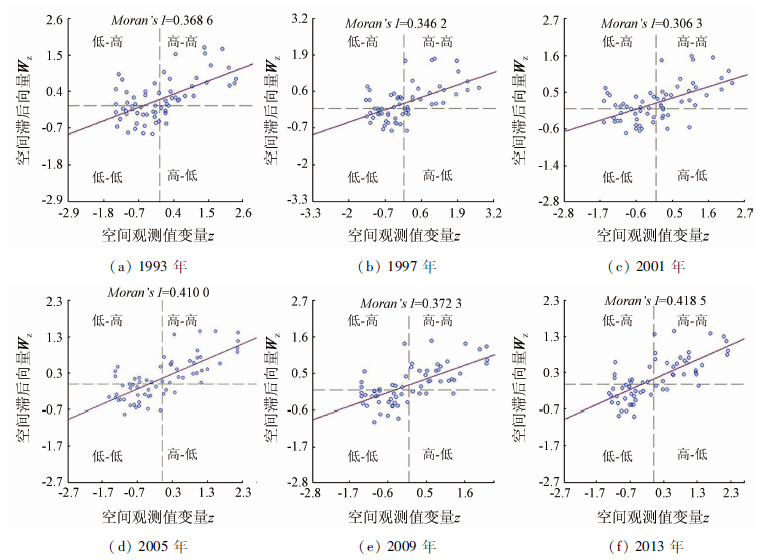

Fig.5  长株潭城市群建成区Moran’s I指数和散点图(1993—2013年间)

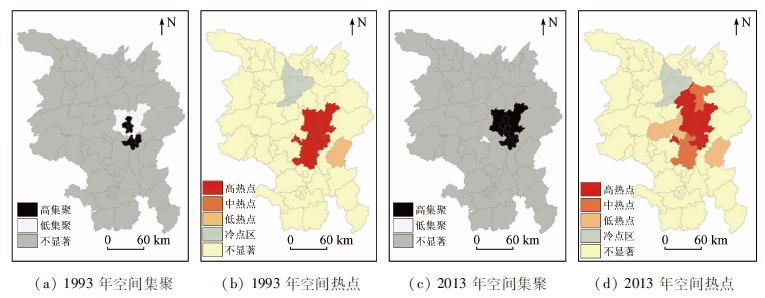

Fig.6  1993年、2013年长株潭城市群建成区空间集聚和热点图
[1] 周国华, 唐承丽, 朱翔, 等. 长株潭城镇群体空间结构优化研究[J]. 热带地理, 2002,22(4):330-334.
Zhou G H, Tang C L, Zhu X, et al. A study on optimization of the spatial structure of urban agglomeration in Changsha-Zhuzhou-Xiangtan[J]. Tropical Geography, 2002,22(4):330-334.
[2] 王良健, 周克刚, 许抄军, 等. 基于分形理论的长株潭城市群空间结构特征研究[J]. 地理与地理信息科学, 2005,21(6):78-103.
Wang L J, Zhou K G, Xu C J, et al. Study on spatial structure of Changsha-Zhuzhou-Xiangtan urban agglomeration based on fractal theory[J]. Geography and Geo-Information Science, 2005,21(6):78-103.
[3] 汤放华, 陈立立, 曾志伟, 等. 城市群空间结构演化趋势与空间重构——以长株潭城市群为例[J]. 城市发展研究, 2010,17(3):65-69.
Tang F H, Chen L L, Zeng Z W, et al. Evolution tends and restructuring of spatial structure about urban agglomeration:By the case of Chang-Zhu-Tan agglomeration[J]. Urban Studies, 2010,17(3):65-69.
[4] 刘盛和, 吴传钧, 沈洪泉. 基于GIS的北京城市土地利用扩展模式[J]. 地理学报, 2000,55(4):407-416.
Liu S H, Wu C J, Shen H Q. A GIS based model of urban land use growth in Beijing[J]. Acta Geographica Sinica, 2000,55(4):407-416.
[5] 刘盛和. 城市土地利用扩展的空间模式与动力机制[J]. 地理科学进展, 2002,21(1):43-50.
doi: 10.11820/dlkxjz.2002.01.005
Liu S H. Spatial patterns and dynamic mechanisms of urban land use growth[J]. Progress in Geography, 2002,21(1):43-50.
doi: 10.11820/dlkxjz.2002.01.005
[6] 李晓文, 方精云, 朴世龙. 上海城市用地扩展强度、模式及其空间分异特征[J]. 自然资源学报, 2003,18(4):412-422.
doi: 10.11849/zrzyxb.2003.04.004
Li X W, Fang J Y, Piao S L. The intensity and modes of urban landuse growth in Shanghai[J]. Journal of Natural Resources, 2003,18(4):412-422.
doi: 10.11849/zrzyxb.2003.04.004
[7] 王海军, 张彬, 刘耀林, 等. 基于重心-GTWR模型的京津冀城市群城镇扩展格局与驱动力多维解析[J]. 地理学报, 2018,73(6):1076-1092.
doi: 10.11821/dlxb201806007
Wang H J, Zhang B, Liu Y L, et al. Multi-dimensional analysis of urban expansion patterns and their driving forces based on the center of gravity-GTWR model:A case study of the Beijing-Tianjin-Hebei urban agglomeration[J]. Acta Geographica Sinica, 2018,73(6):1076-1092.
doi: 10.11821/dlxb201806007
[8] 谈明洪, 李秀彬, 吕昌河. 我国城市用地扩张的驱动力分析[J]. 经济地理, 2003,23(5):635-639.
Tan M H, Li X B, Lyu C H. An analysis of driving forces of urban land expansion in China[J]. Economic Geography, 2003,23(5):635-639.
[9] 陈本清, 徐涵秋. 城市扩展及其驱动力遥感分析——以厦门市为例[J]. 经济地理, 2005,25(1):79-83.
Chen B Q, Xu H Q. Urban expansion and its driving force analysis using remote sensed data:A case of Xiamen City[J]. Economic Geography, 2005,25(1):79-83.
[10] 王海军, 刘艺明, 张彬, 等. 基于Logistic-GTWR模型的武汉城市圈城镇用地扩展驱动力分析[J]. 农业工程学报, 2018,34(19):248-257.
Wang H J, Liu Y M, Zhang B, et al. Analysis of driving forces of urban land expansion in Wuhan metropolitan area based on Logistic-GTWR model[J]. Transactions of the Chinese Society of Agricultural Engineering, 2018,34(19):248-257.
[11] 李加林, 许继琴, 李伟芳, 等. 长江三角洲地区城市用地增长的时空特征分析[J]. 地理学报, 2007,62(4):437-447.
Li J L, Xu J Q, Li W F, et al. Spatio-temporal characteristics of urbanization area growth in the Yangtze River Delta[J]. Acta Geographica Sinica, 2007,62(4):437-447.
[12] 马晓冬, 朱传耿, 马荣华, 等. 苏州地区城镇扩展的空间格局及其演化分析[J]. 地理学报, 2008,63(4):405-416.
Ma X D, Zhu C G, Ma R H, et al. Urban spatial growth pattern and its evolution in Suzhou,Jiangsu Province,China[J]. Acta Geographica Sinica, 2008,63(4):405-416.
[13] 车前进, 段学军, 郭垚, 等. 长江三角洲地区城镇空间扩展特征及机制[J]. 地理学报, 2011,66(4):446-456.
Che Q J, Duan X J, Guo Y, et al. Urban spatial expansion process,pattern and mechanism in Yangtze River Delta[J]. Acta Geographica Sinica, 2011,66(4):446-456.
[14] Croft T A. Burning waste gas in oil fields[J]. Nature, 1973,245:375-376.
doi: 10.1038/245375a0
[15] Imhoff M L, Lawrence W T, Stutzer D C, et al. A technique for using composite DMSP/OLS city lights satellite data to accurately map urban areas[J]. Remote Sensing of Environment, 1997,61(3):361-370.
doi: 10.1016/S0034-4257(97)00046-1
[16] 舒松, 余柏蒗, 吴健平, 等. 基于夜间灯光数据的城市建成区提取方法评价与应用[J]. 遥感技术与应用, 2011,26(2):169-176.
Shu S, Yu B L, Wu J P, et al. Methods for deriving urban built-up area using night-light data:Assessment and application[J]. Remote Sensing Technology and Application, 2011,26(2):169-176.
[17] 杨洋, 何春阳, 赵媛媛, 等. 利用DMSP/OLS稳定夜间灯光数据提取城镇用地信息的分层阈值法研究[J]. 中国图象图形报, 2011,16(4):666-673.
Yang Y, He C Y, Zhao Y Y, et al. Research on the layered thresho-ld method for extracting urban land using the DMSP/OLS stable night time light data[J]. Journal of Image and Graphics, 2011,16(4):666-673.
doi: 10.11834/jig.20110426
[18] 米晓楠, 白林燕, 谭雪航, 等. 基于DMSP/OLS数据的城市中心城区提取新方法[J]. 地球信息科学学报, 2013,15(2):255-261.
Mi X N, Bai L Y, Tan X H, et al. A new method of extracing areas of center city regions based on DMSP/OLS data[J]. Journal of Geo-Information Science, 2013,15(2):255-261.
[19] 王晓慧, 肖鹏峰, 冯学智, 等. 基于DMSP/OLS数据的中国大尺度城镇用地信息提取[J]. 国土资源遥感, 2013,25(3):159-164.doi: 10.6046/gtzyyg.2013.03.26.
Wang X H, Xiao P F, Feng X Z, et al. Extraction of large-scale urban area information in China using DMSP/OLS nighttime light data[J]. Remote Sensing for Land and Resources, 2013,25(3):159-164.doi: 10.6046/gtzyyg.2013.03.26.
[20] 卓莉, 李强, 史培军, 等. 基于夜间灯光数据的中国城市用地扩展类型[J]. 地理学报, 2006,61(2):169-178.
Zhuo L, Li Q, Shi P J, et al. Identification and characteristics analysis of urban land expansion types in China in the 1990s using DMSP/OLS data[J]. Acta Geographica Sinica, 2006,61(2):169-178.
[21] 刘沁萍, 杨永春, 付冬暇, 等. 基于DMSP/OLS灯光数据的1992—2010年中国城市空间扩张研究[J]. 地理科学, 2014,34(2):129-136.
Liu Q P, Yang Y C, Fu D X, et al. Urban spatial expansion based on DMSP/OLS nighttime light data in China in 1992—2010[J]. Scinentia Geographica Sinica, 2014,34(2):129-136.
[22] Huang X, Schneider A, Friedl M A. Mapping sub-pixel urban expansion in China using MODIS and DMSP/OLS nighttime lights[J]. Remote Sensing of Environment, 2016,175(15):92-108.
[23] 杨洋, 黄庆旭, 章立玲. 基于DMSP/OLS夜间灯光数据的土地城镇化水平时空测度研究——以环渤海地区为例[J]. 经济地理, 2015,35(2):141-149.
Yang Y, Huang Q X, Zhang L L. Study on temporal and spatial measurement of land urbanization based on DMSP/OLS night light data:A case study of the Bohai rim region[J]. Economic Geography, 2015,35(2):141-149.
[24] 刘春霞, 朱康文, 李月臣. 成渝经济区近20年城市扩展研究——基于DMSP/OLS夜间灯光数据[J]. 重庆师范大学学报(自然科学版), 2017,34(6):117-126.
Liu C X, Zhu K W, Li Y C. Research on the urban expansion in Chengdu-Chongqing Economic Zone based on DMSP/OLS nighttime light data in recent 20 years[J]. Journal of Chongqing Normal University(Natural Science), 2017,34(6):117-126.
[25] 钟洋, 林爱文, 胡碧松, 等. 基于DMSP-OLS夜间灯光数据的长江经济带城镇体系空间格局演变(1992—2013)[J]. 长江流域资源与环境, 2018,27(10):2162-2171.
Zhong Y, Lin A W, Hu B S, et al. Spatial pattern evolution of urban system in Yangtze River economic belt based on DMSP-OLS night light data(1992—2013)[J]. Resources and Environment in the Yangtze Basin, 2018,27(10):2162-2171.
[26] 路春燕, 许燕婷, 林晓晴, 等. 基于DMSP/OLS夜间灯光数据的环渤海城市群时空演变研究[J]. 国土资源遥感, 2019,31(4):218-226.doi: 10.6046/gtzyyg.2019.04.28.
Lu C Y, Xu Y T, Lin X Q, et al. Study of spatio-temporal evolution of the circum-Bohai urban agglomeration based on DMSP/OLS night-time light data[J]. Remote Sensing for Land and Resources, 2019,31(4):218-226.doi: 10.6046/gtzyyg.2019.04.28.
[27] 王跃云, 徐旳, 朱喜钢. 江苏省城镇建设用地扩展时空格局演化——基于1993、1998、2003年度夜间灯光数据的分析[J]. 现代城市研究, 2010,19(2):67-73.
Wang Y Y, Xu D, Zhu X G. The spatio-temporal characteristics of the urban and town construction land expansion in Jiangsu Province from DMSP-OLS nighttime images[J]. Modern Urban Research, 2010,19(2):67-73.
[28] 陈征, 胡德勇, 曾文华, 等. 基于TM图像和夜间灯光数据的区域城镇扩张监测——以浙江省为例[J]. 国土资源遥感, 2014,26(1):83-89.doi: 10.6046/gtzyyg.2014.01.15.
doi: 10.6046/gtzyyg.2014.01.15
Chen Z, Hu D Y, Zeng W H, et al. TM image and nighttime light data to monitoring regional urban expansion:A case study of Zhejiang Province[J]. Remote Sensing for Land and Resources, 2014,26(1):83-89.doi: 10.6046/gtzyyg.2014.01.15.
[29] 万意, 陈云浩, 李京. 基于DMSP/OLS数据的河南省城市空间格局及动态扩张分析[J]. 地理与地理信息科学, 2019,35(1):89-94.
Wan Y, Chen Y H, Li J. Urban spatial pattern and dynamic expansion in Henan Province based on DMSP/OLS data[J]. Geography and Geo-Information Science, 2019,35(1):89-94.
[30] 王钊, 杨山, 刘帅宾. 基于DMSP/OLS数据的江苏省城镇人口空间分异研究[J]. 长江流域资源与环境, 2015,24(12):2021-2029.
Wang Z, Yang S, Liu S B. Study on spatial differentiation of urban population in Jiangsu Province based on DMSP/OLS data[J]. Resources and Environment in the Yangtze Basin, 2015,24(12):2021-2029.
doi: 10.11870/cjlyzyyhj201512004
[31] Zhou Y, Smith S J, Elvidge C D, et al. A cluster-based method to map urban area from DMSP/OLS nightlights[J]. Remote Sensing of Environment, 2014,147(18):173-185.
[32] 王鹤饶, 郑新奇, 袁涛. DMSP/OLS数据应用研究综述[J]. 地理科学进展, 2012,31(1):11-19.
Wang H R, Zheng X Q, Yuan T. Overview of researches based on DMSP/OLS nighttime light data[J]. Progress in Geography, 2012,31(1):11-19.
[33] Gangopadhyay K, Basu B. City size distributions for India and China[J]. Physica A Statistical Mechanics and Its Applications, 2010,388(13):2682-2688.
doi: 10.1016/j.physa.2009.03.019
