基于天宫二号及Landsat8城镇生态环境现状评价
木哈代思·艾日肯1,2(), 张飞1,2,3(), 刘康4, 阿依努尔·玉山江1,2
1.新疆大学资源与环境科学学院智慧城市与环境建模普通高校重点实验室,乌鲁木齐 830046
2.新疆大学绿洲生态教育部重点实验室,乌鲁木齐 830046
3.中亚地理信息开发利用国家测绘地理信息局工程技术研究中心,乌鲁木齐 830002
4.中国科学院空间应用工程与技术中心,中国科学院太空应用重点实验室,北京 100094
Urban ecological environment evaluation based on Tiangong-2 and Landsat8 data
MUHADAISI Ariken1,2(), ZHANG Fei1,2,3(), LIU Kang4, AYINUER Yushanjiang1,2
1. Key Laboratory of Wisdom City and Environment Modeling of Higher Education Institute, College of Resources and Environmental Science, Xinjiang University, Urumqi 830046, China
2. Key Laboratory of Oasis Ecology, Xinjiang University, Urumqi 830046, China
3. Engineering Research Center of Central Asia Geoinformation Development and Utilization, National Administration of Surveying, Mapping and Geoinformation, Urumqi 830002, China
4. Technology and Engineering Center for Space Utilization, Key Laboratory of Space Utilization, Chinese Academy of Sciences, Beijing 100094, China
全文: PDF(4680 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

城镇化进程引发一系列环境问题,对区域可持续发展有一定制约作用,利用多源遥感技术能以快速、准确、客观定量的优势揭示区域生态环境质量的现状,对监测区域生态环境质量有非常重要的意义。基于天宫二号宽波段成像仪及Landsat8 OLI-TIR数据,采用主成分分析法,构建遥感生态指数(remote sensing based ecological index,RSEI)用于监测与评价我国西北干旱绿洲城镇生态环境现状,并探讨天宫二号宽波段成像仪数据在生态环境监测中的应用。结果表明: 在当地生态环境起正向作用的指标是湿度(WET)、绿度(normalized difference vegetation index,NDVI),负向作用的是干度(normalized difference built-up index,NDBI)及热度(land surfce temperatune,LST),其中绿度(NDVI)对生态环境影响较大。2018年博湖县RSEI差等级[0,0.2)主要分布在城镇用地及北部未利用地; 较差等级[0.2,0.4)主要分布在山体及沙地,受到平均气温较高,蒸发量较大,日照时较长等自然因素影响; 湿地、耕地生态环境在良[0.6,0.8)和优等级[0.8,1.0]之间,说明该区域生态环境质量较好。根据生态环境质量空间分异特征,2018年研究区生态环境质量具有一定的内在联系,趋于集群的现象。该研究可为当地生态环境保护提供一定的科学依据。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
木哈代思·艾日肯
张飞
刘康
阿依努尔·玉山江
关键词 天宫二号宽波段成像仪主成分分析RSEI城镇化
Abstract

At present, China has entered into the rapid development stage of urbanization, and urbanization is exerting its positive effect. Such a situation inevitably brings negative effects, but remote sensing technique can quickly, accurately, objectively and quantitatively reveal the present situation of the regional ecological environment quality. Bohu County is one of the most typical areas in arid oasis in Northwest China. Based on Tiangong-2 wide-band images spectrometer and Landsat8 images, the authors constructed a multi-factor comprehensive index RSEI evaluation model in combination with principal components, which was established to evaluate the ecological environment of Bohu County. Additionally, the authors explored the application of Tiangong-2 wide-band images to ecological environment monitoring. The result shows that the greenness (NDVI) and wetness (WET) have positive effects on promoting the ecological environment quality, while the heat (LST) and dryness (NDBI) have restraining effects on ecological environment quality. Greenness (NDVI) has a greater impact on the ecological environment than the other three indicators. In 2018, the RSEI poor grade (0 ~ 0.2) in Bohu County was mainly distributed over urban land and unused land in the north;the fair grade (0.2 ~ 0.4) was mainly distributed among mountains and sandy land. Quantitative and qualitative analysis shows that the driving factors included urban economic development, higher average temperature, greater evaporation, longer sunshine and other natural factors. The ecological environment of wetland and cultivated land was between good (0.6 ~ 0.8) and excellent (0.8 ~ 1.0), indicating that the ecological environment quality of this region was good. According to the spatial differentiation characteristics of ecological and environmental quality, the ecological and environmental quality of the research area in 2018 had a strong positive correlation and certain internal relations, and tended to cluster. This study offers important results and information for planning of regional ecological environment protection and development.

Key wordsTiangong-2 WIS    principal component analysis    RSEI    urbanization
收稿日期: 2020-01-02      出版日期: 2020-12-23
:  TP79
基金资助:中国科学院战略性先导科技专项项目“泛第三极环境变化与绿色丝绸之路建设”(XDA20040400)
通讯作者: 张飞
作者简介: 木哈代思·艾日肯(1995-),女,硕士研究生,主要从事干旱区资源环境遥感研究。Email:18240988292@163.com
引用本文:
木哈代思·艾日肯, 张飞, 刘康, 阿依努尔·玉山江. 基于天宫二号及Landsat8城镇生态环境现状评价[J]. 国土资源遥感, 2020, 32(4): 209-218.
MUHADAISI Ariken, ZHANG Fei, LIU Kang, AYINUER Yushanjiang. Urban ecological environment evaluation based on Tiangong-2 and Landsat8 data. Remote Sensing for Land & Resources, 2020, 32(4): 209-218.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2020.04.26      或      https://www.gtzyyg.com/CN/Y2020/V32/I4/209
Fig.1  研究区示意图
波段 可见近红外谱段 短波红
外谱段
热红外
谱段
通道范围/μm V1: 0.970~0.990 V8: 0.655~0.675 S1: 1.230~
1.250
T1: 8.125~
8.825
V2: 0.930~0.950 V9: 0.610~0.630 S2: 1.630~
1.650
T2: 8.925~
9.275
V3: 0.895~0.915 V10: 0.555~0.575
V4: 0.845~0.885 V11: 0.510~0.530
V5: 0.810~0.830 V12: 0.480~0.500
V6: 0.740~0.760 V13: 0.433~0.453
V7: 0.6775~0.6875 V14: 0.403~0.423
空间分辨率/m 100 200 400
Tab.1  天宫二号宽波段成像仪数据指标

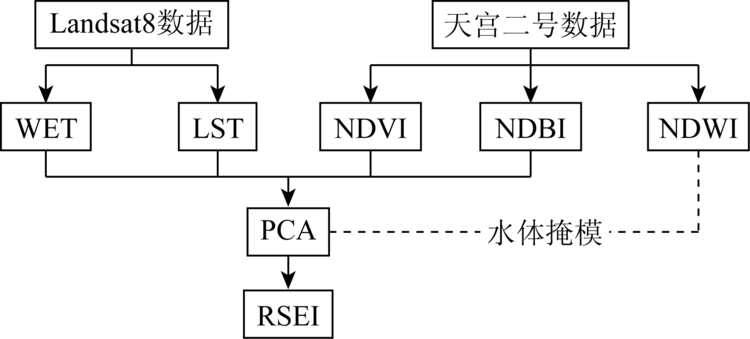

Fig.2  RSEI计算过程
年份 指标 PC1 PC2 PC3 PC4
2018年 绿度(NDVI) 0.936 0.174 0.025 0.306
干度(NDBI) -0.828 0.218 0.503 0.117
湿度(WET) 0.737 0.608 0.216 -0.200
热度(LST) -0.642 0.671 -0.365 -0.064
特征值 2.517 0.898 0.434 0.151
贡献率/% 62.922 22.455 10.839 3.785
Tab.2  PCA结果
指标 绿度
(NDVI)
湿度
(WET)
干度
(NDBI)
热度
(LST)
RSEI
绿度
(NDVI)
1.000 0.783**① -0.723** -0.669** 0.935**
湿度
(WET)
0.783** 1.000 -0.747** -0.667** 0.842**
干度
(NDBI)
-0.723** -0.747** 1.000 0.52** -0.858**
热度
(LST)
-0.669** -0.667** 0.52** 1.000 -0.683**
RSEI 0.935** 0.842** -0.858** -0.683** 1.000
Tab.3  RSEI和各指标的相关性统计
指标 均值 标准差
绿度(NDVI) 0.574 0.148
干度(NDBI) 0.365 0.117
湿度(WET) 0.423 0.028
热度(LST) 0.779 0.084
RSEI 0.393 0.291
Tab.4  各指数及RSEI统计值
RSEI等级 划分依据 面积/km2 比例/%
[0,0.2) 1 012.80 38.83
较差 [0.2,0.4) 616.22 23.62
[0.4,0.6) 158.19 6.06
[0.6,0.8) 415.36 15.92
[0.8,1.0] 405.79 15.56
Tab.5  博湖县生态环境等级面积与比例

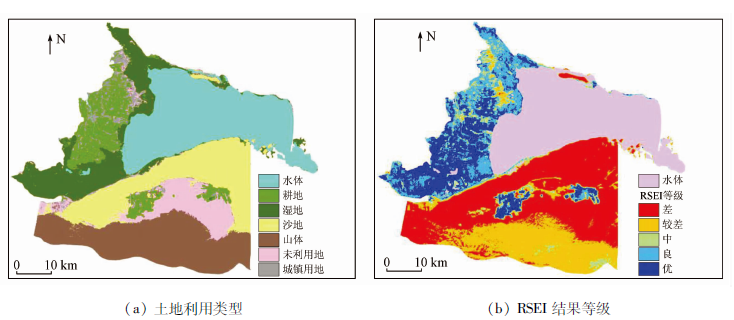

Fig.3  2018博湖县土地利用类型分类及RSEI结果等级

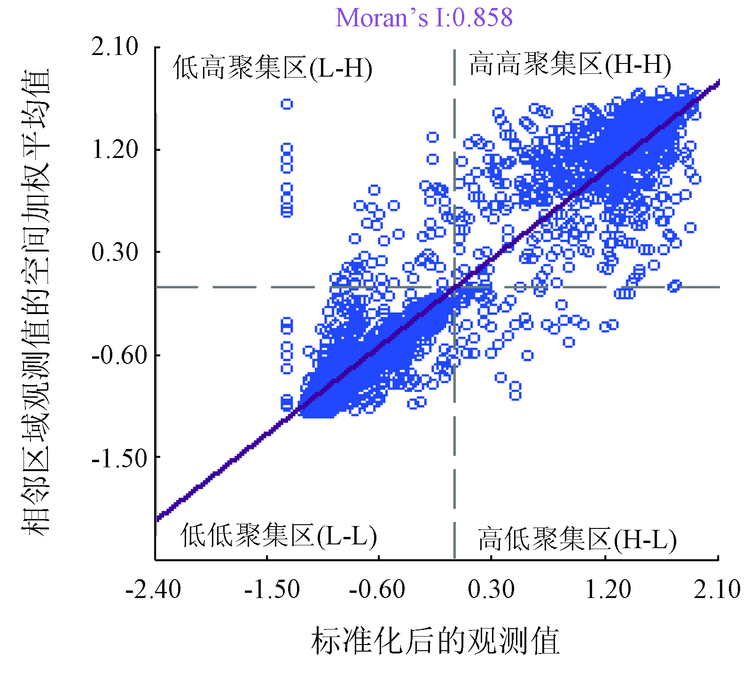

Fig.4  2018年博湖县RSEI Moran散点图

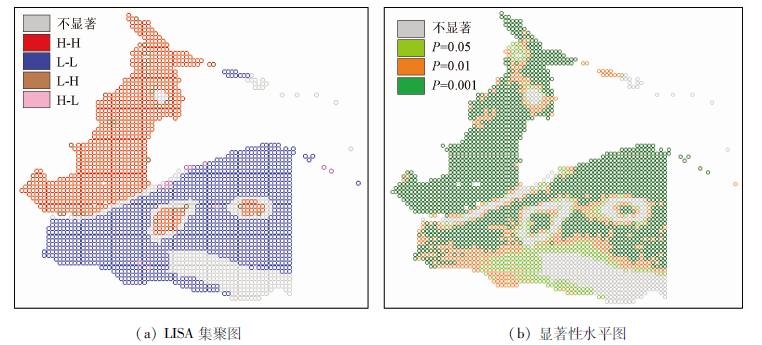

Fig.5  LISA集聚图和显著性水平图

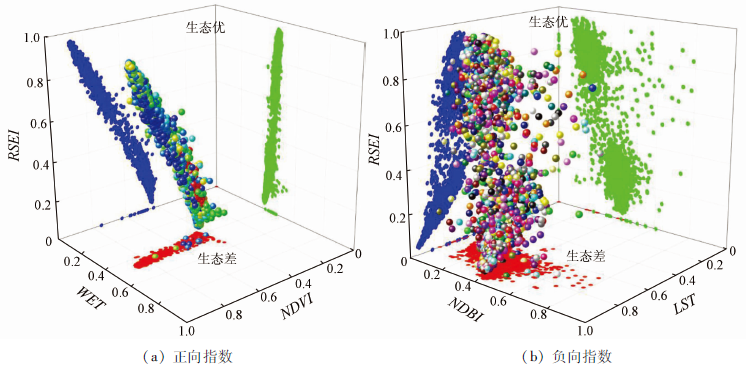

Fig.6  三维散点特征图
气象指标 1月 2月 3月 4月 5月 6月 7月 8月 9月 10月 11月 12月 合计 年平均
平均气温/℃ -10.7 -5.3 8.3 14.1 18.2 22.9 23.9 22.9 16.3 8.8 0.1 -10.2 109.3 9.11
平均相对湿度/% 68 62 50 34 40 46 49 56 52 55 67 65 644 53.67
降水量/mm 0.8 0.1 5.6 0 25.2 4.7 1 15.4 1.9 14.3 0.2 0 69.2 5.77
蒸发量/mm 17.6 39.2 146 3 276.6 3 276.6 3 276.6 3 276.6 3 276.6 3 276.6 3 276.6 44.9 19.4 23 203.3 1 933.61
平均风速/(m.s-1) 1.4 1.5 2.2 2.8 3 2.4 2.3 2.1 2.1 1.8 1.7 1.6 24.9 2.08
日照时数/h 201 201.3 245.9 273.3 301.6 266.6 290.5 296.7 309.8 275.7 199.3 195.3 3057 254.75
Tab.6  2018年博湖县气候特征值

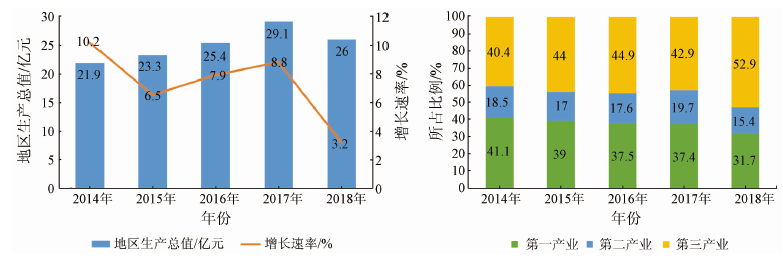

Fig.7  2014—2018年博湖县社会经济发展情况
