The detection and determination of the working state of cooling tower in the thermal power plant based on Faster R-CNN
AN Jianjian1,2(), MENG Qingyan2,3,4(), HU Die2,3, HU Xinli2,3, YANG Jian2,3, YANG Tianliang3,4
1. Faculty of Land Resources Engineering, Kunming University of Science and Technology, Kunming 650093, China 2. Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100094, China 3. Sanya Institute of Remote Sensing, Sanya 572029, China 4. Hainan Research Institute, Aerospace Information Research Institute, Chinese Academy of Sciences, Sanya 572029, China

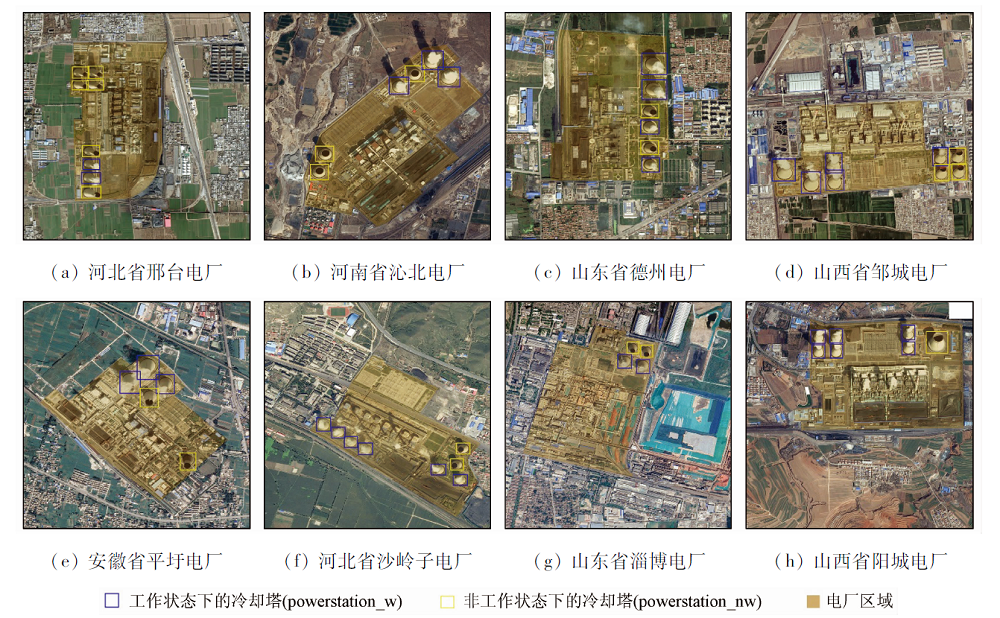

Pollutants from thermal power plants are discharged into the air, posing a great threat to urban ecological environments and resident health. However, currently, there is no effective method for power plant detection and working state determination. This paper proposes a thermal power plant cooling tower detection method with cooling towers as the key target and then further captures the production state information from water vapor discharge from the top of cooling towers based on the Faster R-CNN deep learning network. 8 typical thermal power plants are provided to verify the proposed method. The ideal results have been achieved in these test scenarios, which implies that this method can be effectively applied to the working state detection of thermal power plants. In addition, the applicability of this method can be broadened to similar industrial targets, such as steel mills and nuclear power plants. Creatively applying a deep learning network to determining the target working state is the authors' theoretical contribution that develops an innovative orientation, and this method could provide practical guidance for the governance of urban industrial gas emissions.
安健健, 孟庆岩, 胡蝶, 胡新礼, 杨健, 杨天梁. 基于Faster R-CNN的火电厂冷却塔检测及工作状态判定[J]. 国土资源遥感, 2021, 33(2): 93-99.
AN Jianjian, MENG Qingyan, HU Die, HU Xinli, YANG Jian, YANG Tianliang. The detection and determination of the working state of cooling tower in the thermal power plant based on Faster R-CNN. Remote Sensing for Land & Resources, 2021, 33(2): 93-99.
Huang M. The importance of thermal power plant in Smart Grid[J]. Public Communication of Science Technology, 2016, 8(9):138,141.
[2]
Zeiler M D, Fergus R. Visualizing and understanding convolutional networks[C]// European Conference on Computer Vision, 2014:818-833.
[3]
Cai Z, Fan Q, Feris R S, et al. A unified multi-scale deep convolutional neural network for fast object detection[C]// European Conference on Computer Vision, 2016:354-370.
[4]
Uijlings J, Sande K E, Gevers T, et al. Selective search for object recognition[J]. International Journal of Computer Vision, 2013, 104(2):154-171.
doi: 10.1007/s11263-013-0620-5
[5]
Girshick R, Donahue J, Darrell T, et al. Rich feature hierarchies for accurate object detection and semantic segmentation[C]// Computer Vision and Pattern Recognition, 2014:580-587.
[6]
Ren S, He K, Girshick R, et al. Faster R-CNN:Towards real-time object detection with region proposal networks[C]// Neural Information Processing Systems, 2015:91-99.
[7]
Lei W T, Hou F F, Xi J C, et al. Automatic hyperbola detection and fitting in GPR B-scan image[J]. Automation in Construction, 2019, 106:102839.
doi: 10.1016/j.autcon.2019.102839
[8]
Zhong Z, Sun L, Huo Q, et al. Improved localization accuracy by LocNet for Faster R-CNN based text detection[C]// International Conference on Document Analysis and Recognition, 2017:923-928.
[9]
Zhang Q, Wan C, Han W, et al. A modified faster region-based convolutional neural network approach for improved vehicle detection performance[J]. Multimedia Tools and Applications, 2019, 78(20):29431-29446.
doi: 10.1007/s11042-018-6769-8
[10]
Zhong Z, Sun L, Huo Q, et al. An anchor-free region proposal network for Faster R-CNN-based text detection approaches[J]. International Journal on Document Analysis and Recognition, 2019, 22(3):315-327.
doi: 10.1007/s10032-019-00335-y
[11]
Zou Z, Shi Z. Ship detection in spaceborne optical image with SVD networks[J]. IEEE Transactions on Geoscience and Remote Sensing, 2016, 54(10):5832-5845.
doi: 10.1109/TGRS.2016.2572736
[12]
Redmon J, Divvala S K, Girshick R, et al. You only look once:Unified,real-time object detection[C]// Computer Vision and Pattern Recognition, 2016:779-788.
[13]
Krizhevsky A, Sutskever I, Hinton G E, et al. ImageNet classification with deep convolutional neural networks[C]// Neural Information Processing Systems, 2012:1097-1105.
[14]
Shelhamer E, Long J, Darrell T, et al. Fully convolutional networks for semantic segmentation[J]. IEEE Transactions on Pattern Analysis and Machine Intelligence, 2017, 39(4):640-651.
doi: 10.1109/TPAMI.2016.2572683
pmid: 27244717
[15]
Xu F, Liu J, Sun M, et al. A hierarchical maritime target detection method for optical remote sensing imagery[J]. Remote Sensing, 2017, 9(3):280.
doi: 10.3390/rs9030280
[16]
Yao Y, Jiang Z, Zhang H. Oil tank detection based on salient region and geometric features[C]// Optoelectronic Imaging and Multimedia Technology III.International Society for Optics and Photonics, 2014, 9273:92731G.
[17]
Zhang F, Du B, Zhang L, et al. Weakly supervised learning based on coupled convolutional neural networks for aircraft detection[J]. IEEE Transactions on Geoscience and Remote Sensing, 2016, 54(9):5553-5563.
doi: 10.1109/TGRS.2016.2569141
[18]
Zhang L, Zhang Y, Zhang Z, et al. Real-time water surface object detection based on improved Faster R-CNN[J]. Sensors, 2019, 19(16):3523.
doi: 10.3390/s19163523
[19]
Yao Y, Jiang Z, Zhang H, et al. Chimney and condensing tower detection based on faster R-CNN in high resolution remote sensing images[C]// International Geoscience and Remote Sensing Symposium, 2017:3329-3332.
[20]
Girshick R. Fast R-CNN[C]// International Conference on Computer Vision, 2015:1440-1448.
[21]
Cheng G, Han J, Lu X. Remote sensing image scene classification:Benchmark and state of the art[J]. Proceedings of the IEEE, 2017, 105(10):1865-1883.
doi: 10.1109/JPROC.2017.2675998
