Spatio-temporal variation of land surface temperature and land cover responses in different seasons in Shengjin Lake wetland during 2000—2019 based on Google Earth Engine
YE Wantong1(), CHEN Yihong1, LU Yinhao1,2, Wu Penghai1,2,3()
1. School of Resources and Environmental Engineering, Anhui University, Hefei 230601, China 2. Key Laboratory of Ecological Protection and Restoration of Wetland in Anhui Province, Anhui University, Hefei 230601, China 3. Institute of Physical Science and Information Technology, Anhui University, Hefei 230601, China

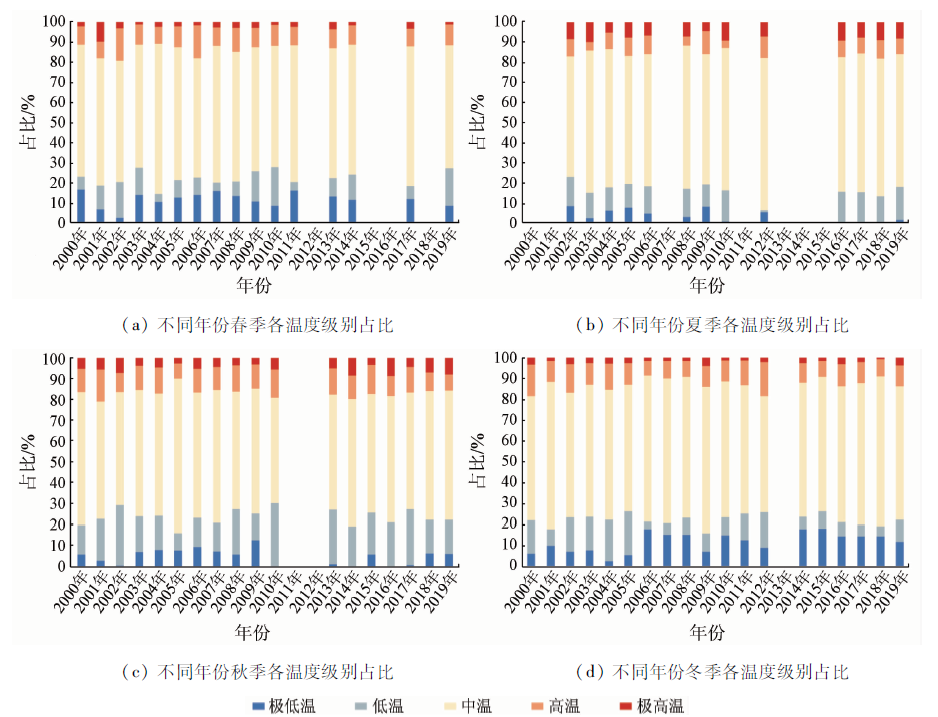

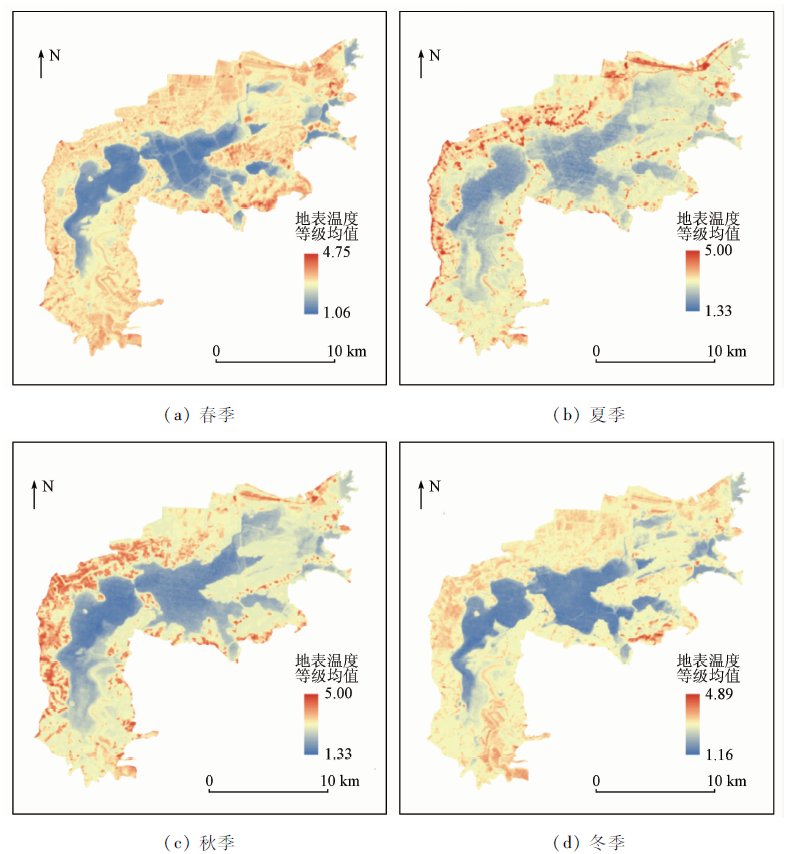

In order to better carry out the ecological protection and restoration of the wetland in the lower reaches of the Yangtze River, the authors selected the Landsat images of Shengjin Lake in different seasons from 2000 to 2019 as the research data with the support of Google Earth Engine (GEE) cloud platform. The land surface temperature (LST) was retrieved by a batch program using radiative transfer equation method. The spatio-temporal variation of LST and its responses to land cover in Shengjin Lake during the past 20 years were comprehensively analyzed. The results are as follows: ① From the perspective of space, the spatial distribution of different temperature grades has shown obvious differences with the seasonal changes. The high-temperature region is dispersed in spring, generally located in the northwest in summer and autumn, and mostly in the south in winter. The area of the lake varies with the seasons, but its temperature belongs to very low or low temperature grade at all seasons. ② From the perspective of time, in the past 20 years, affected by forest and water, the Shengjin Lake wetland has always been dominated by the medium and low temperature grades that account for a large proportion of 70%-85% or so. The area proportion of temperature grades varies with the time trend such as seasons and years. ③ There exist seasonal differences in the responses of LST to land cover. It is basically presented in the form of a descending order of artificial surface> cultivated land> forest and mudflat> water. ④ Non-urbanization factors have a certain impact on the surface temperature of natural wetland. The research results are certainly significant for the reasonable development of Shengjin Lake.
叶婉桐, 陈一鸿, 陆胤昊, 吴鹏海. 基于GEE的2000—2019年间升金湖湿地不同季节地表温度时空变化及地表类型响应[J]. 国土资源遥感, 2021, 33(2): 228-236.
YE Wantong, CHEN Yihong, LU Yinhao, Wu Penghai. Spatio-temporal variation of land surface temperature and land cover responses in different seasons in Shengjin Lake wetland during 2000—2019 based on Google Earth Engine. Remote Sensing for Land & Resources, 2021, 33(2): 228-236.
Wang Y H, Xiao Y. A temporal-spatial variation analysis of land surface temperature in Beijing[J]. Remote Sensing for Land and Resources, 2014, 26(3):146-152.doi: 10.6046/gtzyyg.2014.03.24.
doi: 10.6046/gtzyyg.2014.03.24
Liang B P, Li X N. The effects of urban LUCC spatio-temporal structure on land surface temperatures:A case study in Liuzhou City[J]. China Land Sciences, 2016, 30(11):41-49,2.
[7]
Firozjaei M K, Kiavarz M, Alavipanah S K, et al. Monitoring and forecasting heat island intensity through multi-temporal image analysis and cellular automata-Markov chain modelling:A case of Babol City,Iran[J]. Ecological Indicators, 2018, 91:155-170.
doi: 10.1016/j.ecolind.2018.03.052
[8]
Chaudhuri G, Mishra N B. Spatio-temporal dynamics of land cover and land surface temperature in Ganges-Brahmaputra delta:A comparative analysis between India and Bangladesh[J]. Applied Geography, 2016, 68:68-83.
doi: 10.1016/j.apgeog.2016.01.002
Du J, Zhang B, Song K S, et al. A comparative study on estimated surface temperature based on Landsat-5 TM in the Honghe wetland[J]. Remote Sensing Technology and Application, 2009, 24(3):312-319,252.
Zou X, Li Y L, Jiang J G. Analysis of the relationship between land surface temperature characteristics and land cover of Xixi wetland in winter and summer in Hangzhou[J]. Construction Science and Technology, 2013(2):76-80.
Du P J, Chen Y, Tan K. The remote sensing monitoring of land use/cover change and land surface temperature responses over the coastal wetland in Jiangsu[J]. Remote Sensing for Land and Resources, 2014, 26(2):112-120.doi: 10.6046/gtzyyg.2014.02.19.
doi: 10.6046/gtzyyg.2014.02.19
Zhen H Z, Chen Y H, Pan W B. Land surface temperature fluctuation characteristics and key influencing factors in estuarine wetland[J]. Chinese Journal of Ecology, 2018, 37(8):2463-2473.
Li X, Dong B, Sun L, et al. Study on ecological risk assessment of Shengjing Lake wetland land use based on TM image pixels[J]. Research of Soil and Water Conservation, 2014, 21(4):114-118,321.
Chen L N, Dong B, Peng W J, et al. Study on the change of landscape pattern on habitat environment of winter cranes in Shengjin Lake nature wetland[J]. Resources and Environment in the Yangtze Basin, 2018, 27(3):556-563.
Song Y W, Zhou L Z. Effects of habitat changes on spatio-temporal pattern of the wintering waterbrid community at Shengjin Lake[J]. Journal of Anhui Agricultural University, 2019, 46(4):610-617.
Zhang S S, Dong B, Yang F, et al. Influence of landscape pattern change of Shengjin Lake wetland on the geographical distribution of overwintering cranes[J]. Resources and Environment in the Yangtze Basin, 2019, 28(10):2461-2470.
Gao Y, Liang Z Y, Wang B, et al. UAV and satellite remote sensing images based aboveground biomass inversion in the meadows of Lake Shengjin[J]. Journal of Lake Sciences, 2019, 31(2):517-528.
Wang H H, Wang J, Cui Y H. Remote sensing monitoring on spatial differentiation of suspended sediment concentration in a river-lake system based on Sentinel-2 MSI imaging:A case for Shengjin Lake and connected Yangtze River section in Anhui Province[J]. Environmental Science, 2020, 41(3):1207-1216.
[20]
Pereira O J R, Merino E R, Montes C R, et al. Estimating water pH using cloud-based Landsat images for a new classification of the Nhecolândia lakes (Brazilian Pantanal)[J]. Remote Sensing, 2020, 12(7):1090.
doi: 10.3390/rs12071090
[21]
Adeola F O, Gbenga A E, Oludapo O A, et al. Land use/land cover change and land surface temperature of Ibadan and environs,Nigeria[J]. Environmental Monitoring and Assessment, 2020, 192(2):109.
doi: 10.1007/s10661-019-8054-3
[22]
Sengupta D, Chen R S, Meadows M E, et al. Mapping trajectories of coastal land reclamation in nine deltaic megacities using Google Earth Engine[J]. Remote Sensing, 2019, 11(22):2621.
doi: 10.3390/rs11222621
Song J C. Preliminary discussion on wetland protection and restoration plan of Shengjin Lake national nature reserve in Anhui province[J]. East China Forest Management, 2008(1):61-64.
Xu H Z Y, Liu C, Wang J B, et al. Study on extraction of citrus orchard in Gannan region based on Google Earth Engine platform[J]. Journal of Geo-Information Science, 2018, 20(3):396-404.
Zhu X F, Lu Y T, Wu P H, et al. Spatial-temporal analysis of landscape ecological risk in different seasons during the past 30 years in Lake Shengjin wetland,lower reaches of the Yangtze River[J]. Journal of Lake Sciences, 2020, 32(3):813-825.
Zhao G H, Zhang Y N, Kang J F. A dataset of high-resolution land surface temperature inversion for the China-Pakistan Economic Corridor(2013-2018)[J/OL]. China Scientific Data, 2018.( 2018- 10- 22). http://www.cnki.com.cn/Article/CJFDTotal-KXGZ201903007.htm
[27]
Duan S B, Li Z L, Li H, et al. Validation of Collection 6 MODIS land surface temperature product using in situ measurements[J]. Remote Sensing of Environment, 2019, 225:16-29.
doi: 10.1016/j.rse.2019.02.020
[28]
Sekertekin A, Bonafoni S. Land surface temperature retrieval from Landsat 5,7,and 8 over rural areas:Assessment of different retrieval algorithms and emissivity models and toolbox implementation[J]. Remote Sensing, 2020, 12(2):294.
doi: 10.3390/rs12020294
Xu H Q. Retrieval of the reflectance and land surface temperature of the newly-launched Landsat 8 satellite[J]. Chinese Journal of Geophysics, 2015, 58(3):741-747.
Bai J, Liu S M, Hu G. Inversion and verification of land surface temperature with remote sensing TM/ETM+ data[J]. Transactions of the Chinese Society of Agricultural Engineering, 2008(9):148-154,2.
Shi X, Zhou M C, Liu Z H, et al. Comparative analysis on three land surface temperature inversion algorithm based on Landsat 8 data over Sanheba basin[J]. Remote Sensing Technology and Application, 2018, 33(3):465-475.
[32]
Ottle C, Stoll M. Effect of atmospheric absorption and surface emissivity on the determination of land surface temperature from infrared satellite data[J]. International Journal of Remote Sensing, 1993, 14(10):2025-2037.
doi: 10.1080/01431169308954018
[33]
Barsi J A, Schott J R, Palluconi F D, et al. Validation of a web-based atmospheric correction tool for single thermal band instruments[J]. Proceedings of Spie the International Society for Optical Engineering, 2005, 5882.
Qiao Z, Tian G J. Spatiotemporal diversity and regionalization of the urban thermal environment in Beijing[J]. Journal of Remote Sensing, 2014, 18(3):715-734.
Kang X M, Cui L J, Zhao X S, et al. Analysis of alleviation of urban heat island effect by wetlands in Beijing[J]. Chinese Agricultural Science Bulletin, 2015, 31(22):199-205.
