基于VCI指数的青藏地区春旱时空动态变化分析
季民1(), 张超1, 赵建伟1, 严娟2, 梁亮2
1.山东科技大学测绘科学与工程学院,青岛 266590
2.江苏师范大学地理测绘与城乡规划学院,徐州 221116
Temporal and spatial dynamics of spring drought in Qinghai-Tibet region based on VCI index
JI Min1(), ZHANG Chao1, ZHAO Jianwei1, YAN Juan2, LIANG Liang2
1. College of Geomatics,Shandong University of Science and Technology, Qingdao 266590, China
2. School of Geography, Geomatics and Planning, Jiangsu Normal University, Xuzhou 221116, China
全文: PDF(3794 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

有关春旱的时空特征信息对于许多农业应用和决策都至关重要。本研究利用NOAA/AVHRR的植被状态指数(vegetation condition index,VCI)产品,对1995—2010年间青藏地区的植被干旱情况进行了全面的时空分析。针对VCI作为干旱指标的特点,采用了多种方法,其中包括干旱的频率分析、趋势分析和Mann-Kendall实验。研究表明青藏地区受季风影响较小,横断山脉和祁连山地区干旱发生的频率比较低,且多为轻中旱。根据分析表明,该地区干旱的趋势并不是单向变化的,可以将其分为2个阶段: 2000年以前VCI指数较高,且波动相对较大; 2000年之后VCI指数相对较低,且相对稳定。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
季民
张超
赵建伟
严娟
梁亮
关键词 春旱植被状态指数Mann-Kendall实验
Abstract

The spatial-temporal characteristics of spring drought are very important for decision-making and many agricultural applications. In this study, the spatial-temporal analysis of vegetation drought in Qinghai-Tibet region from 1995 to 2010 was carried out by using the vegetation state index of NOAA. According to the characteristics of VCI as a drought index, a variety of methods were used, which included frequency analysis, trend analysis and man Kendall experiment. The results show that the Qinghai-Tibet Region is less affected by monsoon, the frequency of drought in Hengduan Mountain and Qilian Mountain is relatively low, and most of the droughts are light and medium drought. According to the analysis, the trend of drought in this area is not unidirectional and can be divided into two stages. Before 2000, the VCI index was relatively high, and the volatility was relatively large; after 2000, the VCI index was relatively low, and relatively stable.

Key wordsspring drought    VCI    Mann-Kendall experiment
收稿日期: 2020-07-24      出版日期: 2021-03-18
ZTFLH:  P237
基金资助:山东省重大科技创新工程项目“省级自然资源监测监管大数据应用服务平台建设”(2019JZZY020103);徐州市重点研发计划“城市植被碳汇遥感估算关键技术研究”共同资助(KC19134)
作者简介: 季 民(1970-),男,博士,教授,主要从事空间数据组织和GIS系统集成研究。Email: jamesjimin@126.com
引用本文:
季民, 张超, 赵建伟, 严娟, 梁亮. 基于VCI指数的青藏地区春旱时空动态变化分析[J]. 国土资源遥感, 2021, 33(1): 152-157.
JI Min, ZHANG Chao, ZHAO Jianwei, YAN Juan, LIANG Liang. Temporal and spatial dynamics of spring drought in Qinghai-Tibet region based on VCI index. Remote Sensing for Land & Resources, 2021, 33(1): 152-157.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2020228      或      https://www.gtzyyg.com/CN/Y2021/V33/I1/152
通道
序号
波长/μm 对应波段 空间分
辨率/km
主要用途
1 0.55~0.68 红绿波段 1.09 植被海洋污染
2 0.725~1.10 近红外 1.09 叶绿素高反射
3 3.55~3.93 热红外 1.09 森林火灾
4 10.50~11.30 热红外 1.09 昼夜图像
5 11.50~12.50 热红外 1.09 昼夜图像
Tab.1  AVHRR各通道的波谱范围及应用领域

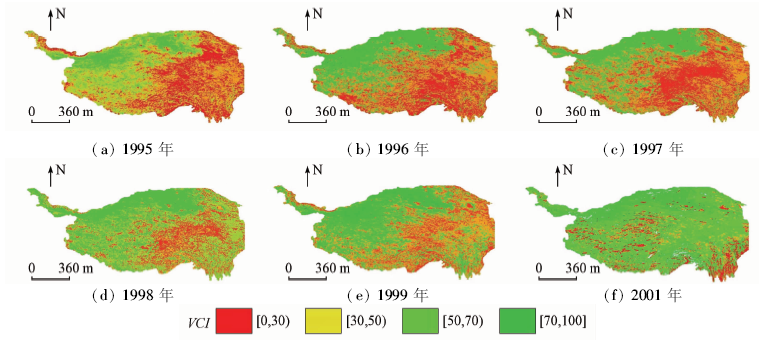

Fig.1-1  1995—2010年青藏地区VCI分布

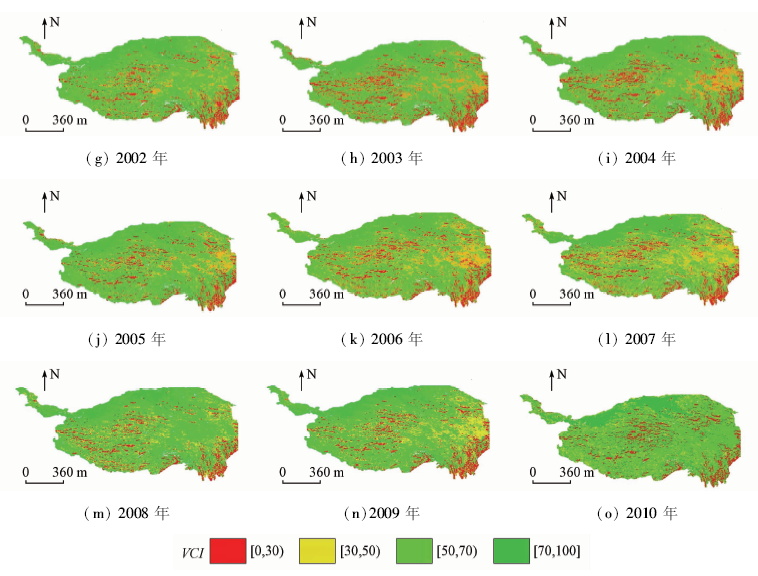

Fig.1-2  1995—2010年青藏地区VCI分布
Fig.2  1995—2010年季VCI均值的变化趋势

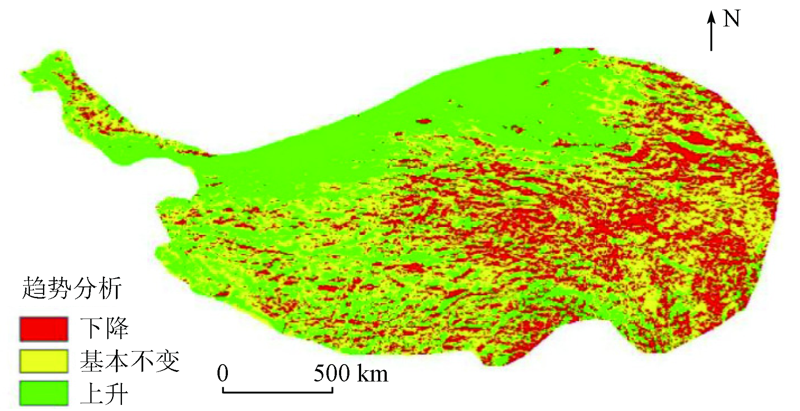

Fig.3  1995 —2010 年青藏地区趋势分析

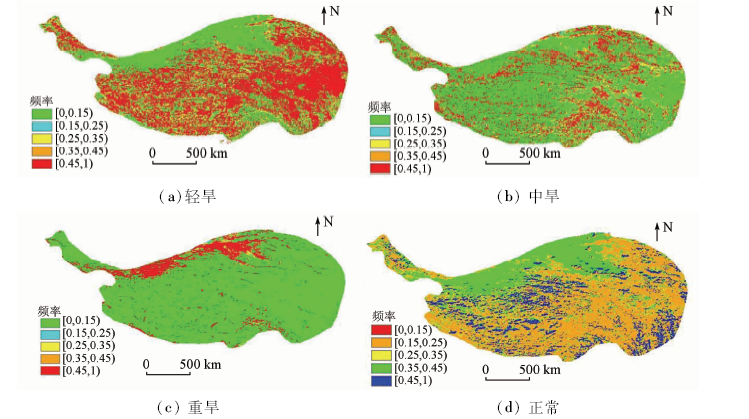

Fig.4  青藏地区不同等级干旱发生频率分析

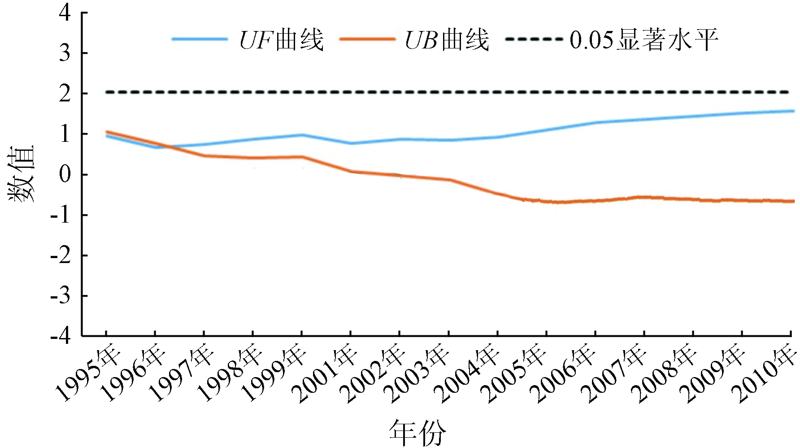

Fig.5  青藏地区Mann-Kendall检验曲线
[1] 唐侥, 孙睿. 基于气象和遥感数据的河南省干旱特征分析[J]. 自然资源学报, 2013,28(4):646-655.
doi: 10.11849/zrzyxb.2013.04.011
Tang Y, Sun R. Drought characteristics in Henan Province with meteorological and remote sensing data[J]. Journal of Natural Resources, 2013,28(4):646-655.
doi: 10.11849/zrzyxb.2013.04.011
[2] 孙丽, 陈焕伟, 赵立军, 等. 遥感监测旱情的研究进展[J]. 农业环境科学学报, 2004,23(1):202-206.
Sun L, Chen H W, Zhao L J, et al. The advances of drought monitoring by remote sensing[J]. Journal of Agro-Environment Science, 2004,23(1):202-206.
[3] 杨波, 马苏, 王彬武, 等. 基于MODIS的湖南省农业干旱监测模型[J]. 自然资源学报, 2012,27(10):1788-1796.
Yang B, Ma S, Wang B W, et al. Agricultural drought monitoring model based on MODIS data in Hunan Province[J]. Journal of Natural Resources, 2012,27(10):1788-1796.
[4] Yilmaz M T, Hunt E R, Jackson T J. Remote sensing of vegetation water content from equivalent water thickness using satellite imagery[J]. Remote Sensing of Environment, 2008,112(5):2514-2522.
doi: 10.1016/j.rse.2007.11.014
[5] Kogan F N. Droughts of the late 1980s in the United States as derived from NOAA polar-orbiting satellite data[J]. Bulletin of the American Meteorological Society, 1995,76(5):655-668.
doi: 10.1175/1520-0477(1995)076<0655:DOTLIT>2.0.CO;2
[6] Sahoo A K, Sheffield J, Pan M, et al. Evaluation of the tropical rainfall measuring mission multi-satellite precipitation analysis (TMPA) for assessment of large-scale meteorological drought[J]. Remote Sensing of Environment, 2015,159:181-193.
doi: 10.1016/j.rse.2014.11.032
[7] Di L P, Rundquist D C, Han L H. Modeling relationships between NDVI and precipitation during vegetative growth cycles[J]. International Journal of Remote Sensing, 1994,15(10):2121-2136.
doi: 10.1080/01431169408954231
[8] Kogan F, Sullivan J. Development of global drought- watch system using NOAA/AVHRR data[J]. Advances in Space Research, 1993,13(5):219-222.
[9] Gitelson A A, Kogan F N, Zakarin E, et al. Using AVHRR data for quantitative estimationof vegetation conditions:Calibration and validation[J]. Advance in Space Research, 1998,22:673-676.
[10] Burgan R E, Hartford R A. Monitoring vegetation greenness with satellite data[R]. United States Department of Agriculture,Forest Service,Intermountain Research Station, 1993.
[11] Kogan F N. Operational space technology for global vegetation assessment[J]. Bulletin of the American Meteorological Society, 2001,82(9):1949-1964.
[12] 孙亲. 基于VCI指数的中国1981—2015年干旱时空变化特征研究[D]. 徐州:江苏师范大学, 2017.
Sun Q. Study on spatial-temporal characteristics of drought in China during 1981—2015 based on VCI[D]. Xuzhou:Jiangsu Normal University, 2017.
[13] 吕潇然, 尹晓天, 宫阿都, 等. 基于植被状态指数的云南省干旱状况时空分析[J]. 地球科学信息学报, 2016,18(12):1634-1644.
Lyu X R, Yin X T, Gong E D, et al. Temporal and spatial analysis of agricultural drought in Yunnan Province based on vegetation condition index[J]. Journal of Geoinformation Science, 2016,18(12):1634-1644.
[14] 李新尧, 杨联安, 聂红梅, 等. 基于植被状态指数的陕西省农业干旱时空动态[J]. 生态学杂志, 2018,37(4):1172-1180.
Li X Y, Yang L A, Nie H M, et al. Assessment of temporal and spatial dynamics of agricultural drought in Shaanxi Province based on vegetation condition index[J]. Chinese Journal of Ecology, 2018,37(4):1172-1180.
