基于注意力增强全卷积神经网络的高分卫星影像建筑物提取
郭文1(), 张荞2()
1.自然资源部第三航测遥感院,成都 610100
2.西南石油大学地球科学与技术学院,成都 610500
Building extraction using high-resolution satellite imagery based on an attention enhanced full convolution neural network
GUO Wen1(), ZHANG Qiao2()
1. The Third Institute of Photogrammetry and Remote Sensing, Ministry of Natural Resources, Chengdu 610100, China
2. School of Geoscience and Technology, Southwest Petroleum University, Chengdu 610500, China
全文: PDF(8342 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

从卫星遥感影像中自动提取建筑物在国民经济社会发展中具有广泛的应用价值,由于卫星遥感影像存在地物遮挡、光照、背景环境等因素的影响,传统方法难以实现高精度建筑物提取。采用一种基于注意力增强的特征金字塔神经网络方法(FPN-SENet),利用多源高分辨率卫星影像和矢量成果数据快速构建大规模的像素级建筑物数据集(SCRS数据集),实现多源卫星影像的建筑物自动提取,并与常用的全卷积神经网络进行对比。研究结果表明: SCRS数据集的提取精度接近国际领先的卫星影像开源数据集,且假彩色数据精度高于真彩色数据; FPN-SENet的建筑物提取精度优于其他常用的全卷积神经网络; 采用交叉熵和dice系数之和为损失函数能够提升建筑物提取精度,最好的分类模型在测试数据上的分类总体精度为95.2%,Kappa系数为79.0%,F1分值和IoU分别达到了81.7%和69.1%。该研究可为高分辨率卫星影像建筑物自动提取提供参考。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
郭文
张荞
关键词 国产高分卫星影像建筑物语义分割注意力增强
Abstract

Automatic extraction of buildings from satellite remote sensing images has a wide range of applications in the development of economy and society. Due to the influence of mutual occlusion, illumination, background environment and other factors in satellite remote sensing images, it is difficult for traditional methods to achieve high-precision building extraction. This paper proposes an attention enhanced feature pyramid network (FPN-SENet) and constructs a large-scale pixel-wise building dataset (SCRS dataset) by using multi-source high-resolution satellite images and vector data to realize the automatic extraction of buildings from multi-source satellite images, and compares it with the other full convolution neural networks. The results show that the accuracy of building extracted from SCRS dataset is close to the world’s leading open source satellite image dataset, and the accuracy of Pseudo color data is higher than that of true color data The accuracy of FPN-SENet is better than that of other full convolution neural networks. The extraction of building can also be improved by using the sum of cross entropy and Dice coefficient as the loss function. The overall accuracy of the best classification model is 95.2%, Kappa coefficient is 79.0%, and F1-score and IoU are 81.7% and 69.1% respectively. This study can provide a reference for building automatic extraction from high-resolution satellite images.

Key wordsChinese high-resolution satellite imagery    buildings    semantic segmentation    attention enhancement
收稿日期: 2020-07-21      出版日期: 2021-07-21
ZTFLH:  TP751P237
基金资助:四川省自然资源科研项目“基于深度注意网络的多云多雨地区土地利用精准提取方法”(KJ-2020-4);国家基础测绘科技与标准计划“信息化测绘基地建设方案设计与论证”(2018KJ0304)
通讯作者: 张荞
作者简介: 郭 文(1964-),男,高级工程师,主要从事摄影测量与遥感研究。Email: 451362006@qq.com
引用本文:
郭文, 张荞. 基于注意力增强全卷积神经网络的高分卫星影像建筑物提取[J]. 国土资源遥感, 2021, 33(2): 100-107.
GUO Wen, ZHANG Qiao. Building extraction using high-resolution satellite imagery based on an attention enhanced full convolution neural network. Remote Sensing for Land & Resources, 2021, 33(2): 100-107.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2020230      或      https://www.gtzyyg.com/CN/Y2021/V33/I2/100

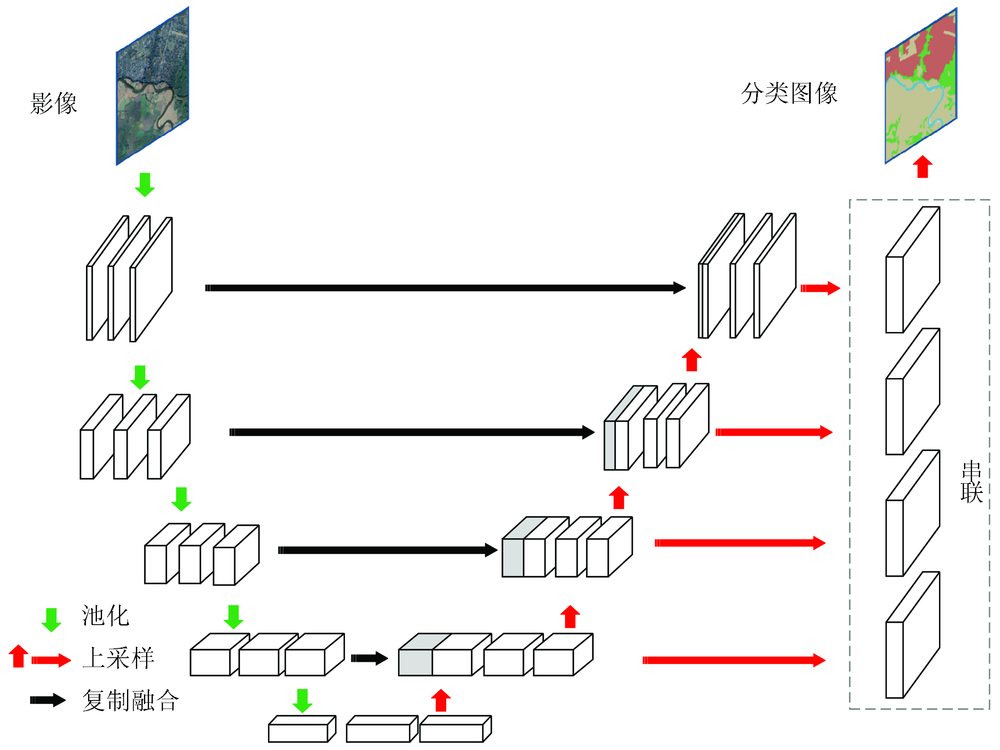

Fig.1  FPN-SENet网络框架

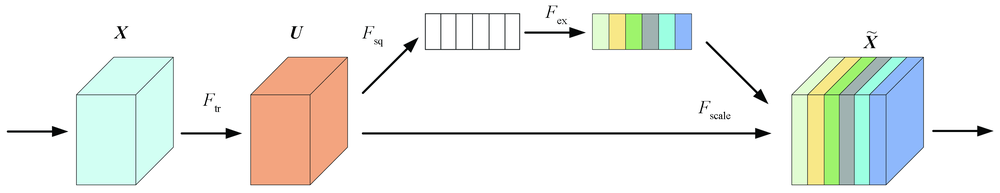

Fig.2  SE模块单元
Fig.3  二次样条窗函数

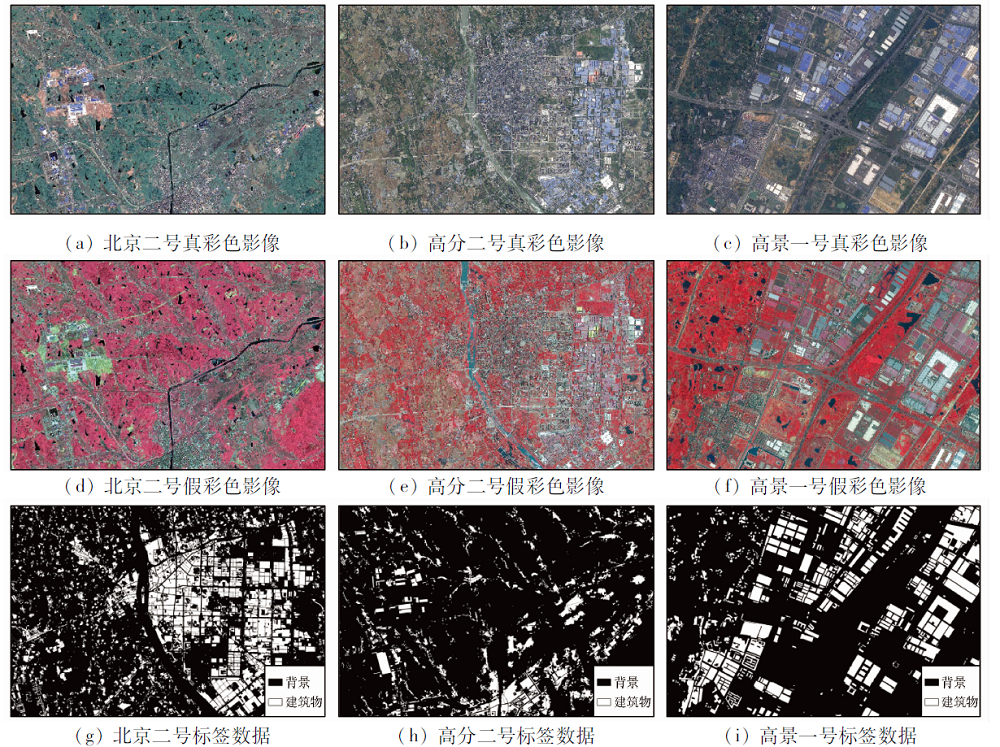

Fig.4  卫星遥感影像建筑物样本

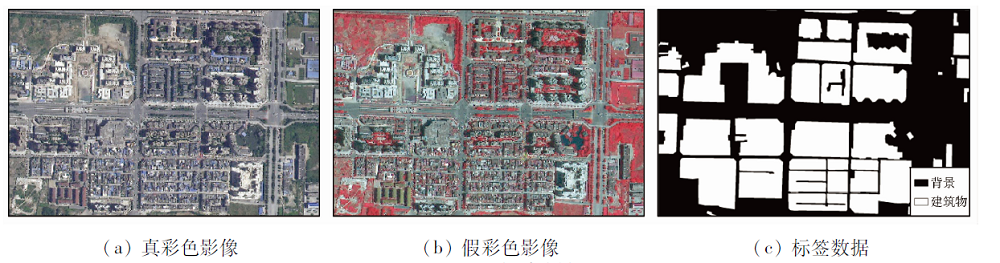

Fig.5  图斑综合样例

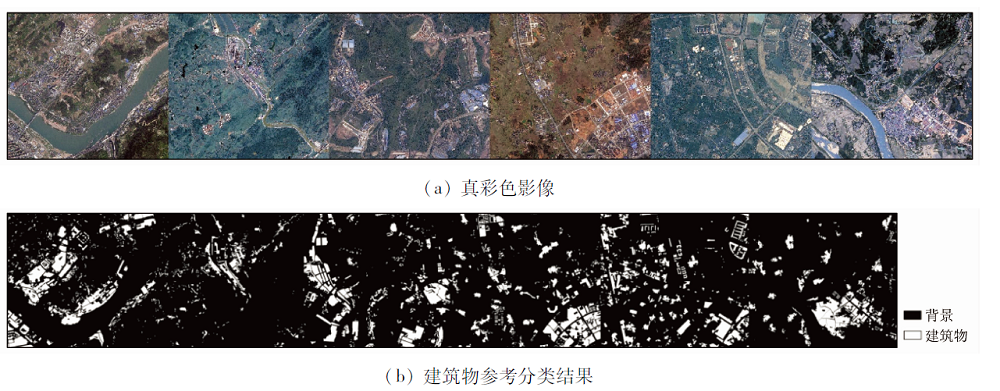

Fig.6  建筑物测试数据
数据集 OA Kappa recall precision F1/% IoU/
%
WHU 0.995 0.804 0.772 0.845 80.7 67.6
SCRS(真彩色) 0.946 0.751 0.742 0.827 78.2 64.2
SCRS(假彩色) 0.952 0.784 0.778 0.847 81.1 68.2
Tab.1  SCRS数据集与WHU数据集的比较
方法 OA Kappa recall precision F1/% IoU/
%
FCN-8s 0.932 0.672 0.639 0.800 71.0 55.1
Segnet 0.934 0.681 0.645 0.809 71.8 56.0
U-net 0.941 0.735 0.707 0.818 75.8 61.1
PSPNet 0.936 0.689 0.645 0.827 72.5 56.8
FPN-
SENet
0.946 0.751 0.742 0.827 78.2 64.2
Tab.2  不同网络模型的比较
损失函数 OA Kappa recall precision F1/% IoU/
%
L_bce 0.952 0.784 0.778 0.847 81.1 68.2
L_dice 0.948 0.779 0.833 0.786 80.9 67.9
L_bce-dice 0.952 0.790 0.82 0.814 81.7 69.1
Tab.3  不同损失函数的比较

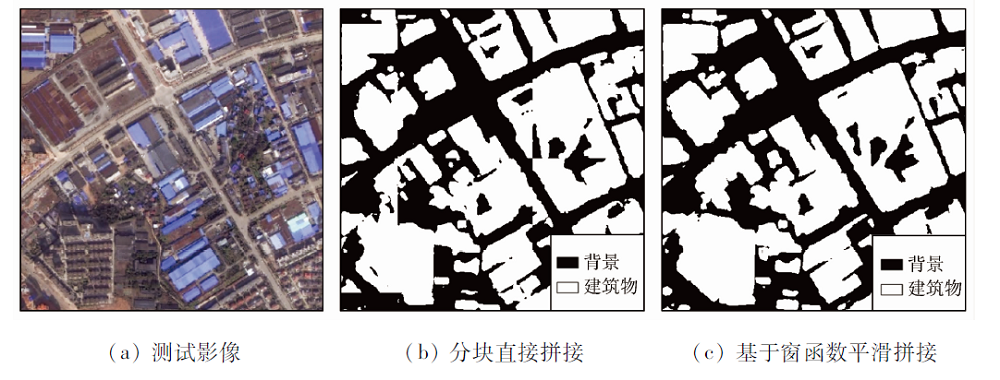

Fig.7  平滑预测的效果

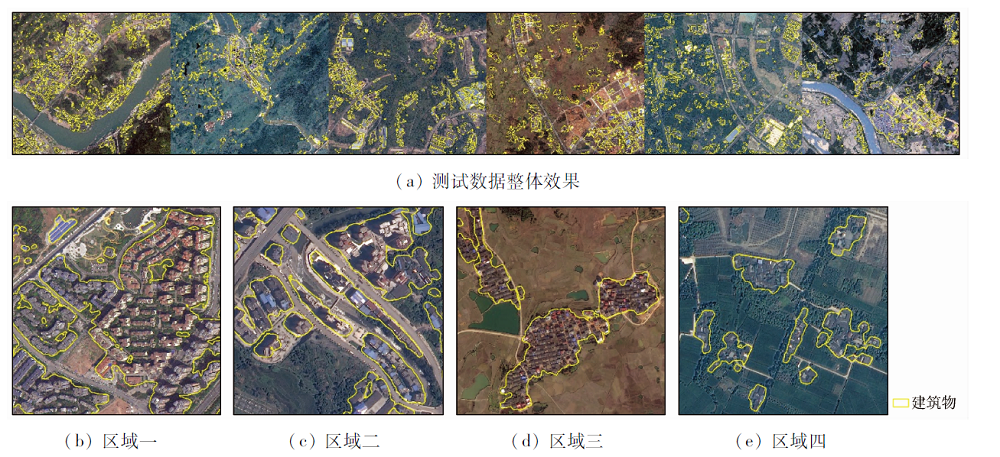

Fig.8  测试数据提取效果
