Hyperspectral estimation of black soil organic matter content based on wavelet transform and successive projections algorithm
XIAO Yan1(), XIN Hongbo1, WANG Bin2, CUI Li1, JIANG Qigang3
1. College of Exploration and Surveying Engineering, Changchun Insititute of Technology, Changchun 130012, China
2. Changchun Institute of Surveying and Mapping, Changchun 130021, China
3. College of Geo-Exploration Science and Technology, Jilin University, Changchun 130026, China
全文: PDF(2686 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

为实现黑土有机质含量更准确的估测,提出了基于小波变换和连续投影算法的高光谱估测方法。以典型黑土区采集的土壤样品为研究对象、分析光谱设备(analytical spectral devices,ASD)光谱仪获取的可见光—近红外区间光谱数据和经化学分析得到的土壤有机质含量为数据源,首先采用小波变换提取1~7层小波低频系数,然后利用连续投影算法分别对土壤全谱和1~7层小波低频系数进行变量筛选,最后分别基于土壤全谱、1~7层小波低频系数、连续投影算法选择的变量,利用偏最小二乘和支持向量机两种方法建立估测模型。结果表明: 经小波变换和连续投影算法处理后,不仅变量数目得到了大幅降低,而且模型精度也进一步得到了提高,采用偏最小二乘法时,R2由土壤全谱的0.79提高至第6层小波低频系数的0.93,RMSE由6.06 g·kg-1降低至3.48 g·kg-1; 采用支持向量机方法时,R2由土壤全谱的0.75提高至第3层小波低频系数的0.91,RMSE由7.46 g·kg-1降低至4.12 g·kg-1,说明提出的方法能有效用于黑土有机质含量高光谱估测。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
肖艳
辛洪波
王斌
崔利
姜琦刚
关键词 有机质高光谱小波变换连续投影算法
Abstract

Black soil is a valuable land resource, and the content of organic matter is an important index reflecting soil fertility, state and degradation degree. In order to estimate black soil organic matter content more accurately, this paper proposes a hyperspectral estimation method based on wavelet transform and successive projections algorithm. In this paper,the soil samples collected in the typical black soil region were used as the research object,and the Vis-NIR spectral data of the soil obtained from analytical spectral deviees (ASD) spectrometer and the organic matter content through chemical analysis were used as the data sources.Firstly, wavelet transform was used to extract the wavelet coefficients of 1 to 7 levels, and then successive projections algorithm was used to select the variables from soil original spectrum and the wavelet coefficients of 1 to 7 levels respectively. Finally, based on the soil original spectrum, the wavelet coefficients of 1 to 7 levels and the selected variables based on successive projections algorithm respectively, partial least squares and support vector machine were used to build the estimation models. The results show that, by using wavelet transform and successive projections algorithm, not only the number of variables is reduced greatly, but also the accuracies of the models are improved. When using partial least squares method,R2 increases from 0.79 of the soil original spectrum to 0.93 of the wavelet coefficient of the sixth level, and RMSE decreases from 6.06 g·kg-1 to 3.48 g·kg-1. When support vector machine method is used, R2 increases from 0.75 of the soil original spectrum to 0.91 of the wavelet coefficient of the third level, and RMSE decreases from 7.46 g·kg-1 to 4.12 g·kg-1. The results indicate that the proposed method can be effectively used for the hyperspectral estimation of black soil organic matter content.

Key wordsorganic matter    hyperspectral    wavelet transform    successive projections algorithm
收稿日期: 2020-09-23      出版日期: 2021-07-21
ZTFLH:  TP79
基金资助:吉林省教育厅项目“基于3S技术的吉林省西部土地荒漠化演化趋势研究——以通榆县为例”(JJKH20191267KJ);长春工程学院大学生创新创业训练计划资助项目“多光谱和PolSAR影像协同分类研究”(202011437036)
作者简介: 肖 艳(1988-),女,博士,讲师,主要从事遥感影像分类和高光谱数据反演方面的研究。Email: 459389436@qq.com
引用本文:
肖艳, 辛洪波, 王斌, 崔利, 姜琦刚. 基于小波变换和连续投影算法的黑土有机质含量高光谱估测[J]. 国土资源遥感, 2021, 33(2): 33-39.
XIAO Yan, XIN Hongbo, WANG Bin, CUI Li, JIANG Qigang. Hyperspectral estimation of black soil organic matter content based on wavelet transform and successive projections algorithm. Remote Sensing for Land & Resources, 2021, 33(2): 33-39.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2020299      或      https://www.gtzyyg.com/CN/Y2021/V33/I2/33
Fig.1  采样点分布图
类别 数量/个 最大值/
(g·kg-1)
最小值/
(g·kg-1)
平均值/
(g·kg-1)
标准差/
(g·kg-1)
建模样本 46 71.94 19.03 46.41 13.88
验证样本 15 66.78 20.72 45.41 13.38
Tab.1  土壤样本有机质含量描述性统计

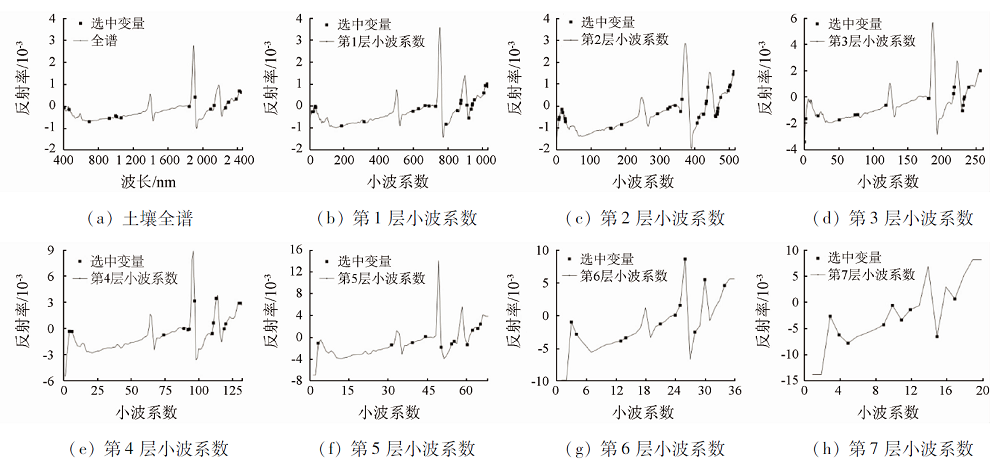

Fig.2  SPA算法筛选得到变量的分布情况
级别 PLS SVM 变量数
量/个
R2 RMSE/
(g·kg-1)
R2 RMSE/
(g·kg-1)
土壤全谱 0.79 6.06 0.75 7.46 2 051
第1层 0.77 6.37 0.73 7.37 1 028
第2层 0.73 7.01 0.73 7.20 516
第3层 0.73 6.96 0.74 7.12 260
第4层 0.86 5.08 0.84 5.50 132
第5层 0.88 4.56 0.87 4.96 68
第6层 0.86 5.02 0.79 6.37 36
第7层 0.72 7.12 0.72 7.18 20
Tab.2  土壤全谱和1~7层小波低频系数的估测模型评价结果
级别 PLS SVM 变量数
量/个
R2 RMSE/
(g·kg-1)
R2 RMSE/
(g·kg-1)
土壤全谱 0.77 6.38 0.85 5.80 18
第1层 0.33 10.93 0.77 6.51 26
第2层 0.86 4.94 0.79 6.46 33
第3层 0.77 6.41 0.91 4.12 18
第4层 0.91 4.00 0.87 4.96 14
第5层 0.92 3.84 0.85 5.39 11
第6层 0.93 3.48 0.80 6.18 11
第7层 0.82 5.70 0.72 7.15 9
Tab.3  SPA算法筛选后的土壤全谱和1~7层小波低频系数的估测模型评价结果

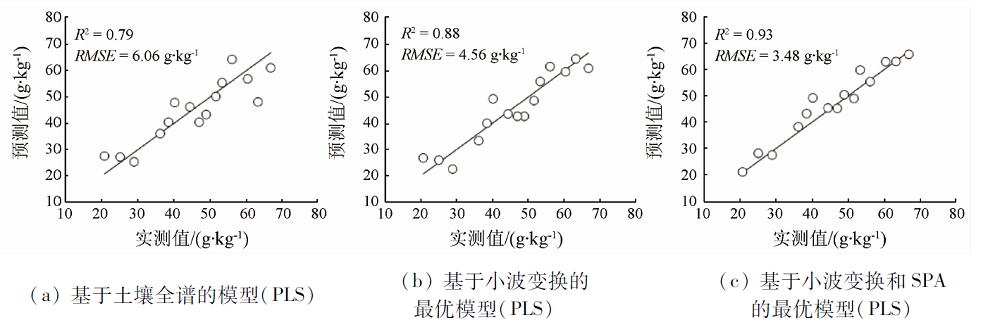

Fig.3-1  黑土有机质实测值与预测值散点图

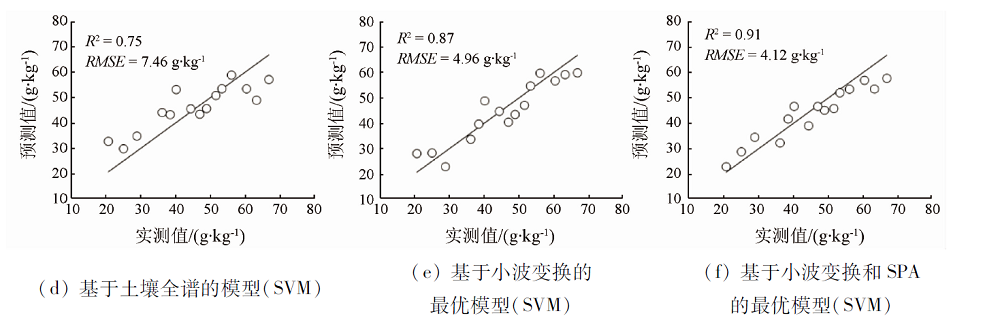

Fig.3-2  黑土有机质实测值与预测值散点图
