国土资源遥感  2018, Vol. 30 Issue (1): 187-195    DOI: 10.6046/gtzyyg.2018.01.26
  本期目录 | 过刊浏览 | 高级检索 |
新疆大南湖荒漠区1992—2014年间植被覆盖度遥感研究
张宇婷1(), 张振飞1(), 张志2
1.中国地质大学(武汉)数学地质遥感地质研究所,武汉 430074
2.中国地质大学(武汉)地球科学学院,武汉 430074
Remote sensing study of vegetation coverage during the period 1992—2014 in Dananhu desert area, Xinjiang
Yuting ZHANG1(), Zhenfei ZHANG1(), Zhi ZHANG2
1. Institute of Mathematical Geology and Remote Sensing, China University of Geosciences, Wuhan 430074, China
2. School of Earth Sciences, China University of Geosciences, Wuhan 430074, China
全文: PDF(1099 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

新疆哈密大南湖地区为我国典型的干旱—半干旱地区中的荒漠区,研究该地区天然植被近年来在全球气候变化背景下的发育状况具有重要意义。为此,使用Landsat遥感数据、数字高程模型及当地气象数据,采用像元二分模型提取植被覆盖度; 通过相关分析,研究该地区1992—2014年间天然植被的时空变化特点。结果表明,23 a来该区植被覆盖度有增加的趋势; 植被覆盖度整体上与地形高度呈弱正相关,局部植被密集处往往是地形相对低凹的盐渍土区及干河谷,而戈壁滩中植物稀少; 植被覆盖度与当地日照百分率及潜在蒸散量呈正相关,而与降雨和湿润指数不相关。研究表明,研究区植被生长可能主要与地下水相关,1992―2014年间全球气温升高导致附近冰川消融加快,在一定程度上促进而不是阻滞了天然植被发育。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
张宇婷
张振飞
张志
关键词 新疆哈密大南湖遥感植被覆盖度戈壁荒漠气候变化
Abstract

The Dananhu district in Hami of Xinjiang is a typical gobi desert in Northwest China. In this paper, the authors investigated the temporal-spatial variations of the natural vegetation coverage during 1992―2014 in this region, using correlation analyses and dimidiate pixel model based on the multi-spectral remote sensing data, the local meteorological data, and the digital elevation model. The results show that, from 1992 to 2014, vegetation coverage in the region showed a trend of increase. Generally the vegetation coverage is weakly positively correlated to elevation; locally, however, the plants (mainly juniper tamarisk, haloxylon ammodendron, and reed) are more developed in the relatively depressed localities (saline areas or sandy dry riverbeds) than those in Gobi desert areas. The vegetation coverage is positively correlated to the sunshine duration and evaporation, but unrelated to precipitation and humidity. It is suggested that the natural plants in this regions live on groundwater mainly. The global temperature increasing during 1992-2014 might to some extent promote, instead of retard, the natural vegetation, probably through enhancing the groundwater supply due to glacier melting at nearby mountains.

Key wordsDananhu in Hami    Xinjiang    remote sensing    vegetation coverage    Gobi desert    climate change
收稿日期: 2016-09-19      出版日期: 2018-02-08
:  TP79
基金资助:中国地质调查局地质调查项目“西部艰险复杂地区遥感地质调查应用技术研究”(编号: 12120113099900)资助
作者简介:

第一作者: 张宇婷(1991-),女,硕士研究生,主要研究方向为环境遥感。Email:467157611@qq.com

引用本文:
张宇婷, 张振飞, 张志. 新疆大南湖荒漠区1992—2014年间植被覆盖度遥感研究[J]. 国土资源遥感, 2018, 30(1): 187-195.
Yuting ZHANG, Zhenfei ZHANG, Zhi ZHANG. Remote sensing study of vegetation coverage during the period 1992—2014 in Dananhu desert area, Xinjiang. Remote Sensing for Land & Resources, 2018, 30(1): 187-195.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2018.01.26      或      https://www.gtzyyg.com/CN/Y2018/V30/I1/187
Fig.1  研究区地貌单元遥感解译图
传感器 获取日期 标识ID 条带号/行编号 云量/%
TM 19920730 LT51380311992212BJC01 138/031 0.00
19940720 LT51380311994201ISP00 138/031 0.32
19980715 LT51380311998196ULM00 138/031 15.29
20040816 LT51380312004229BJC00 138/031 1.20
20070708 LT51380312007189IKR00 138/031 0.00
20090729 LT51380312009210IKR00 138/031 1.15
20110820 LT51380312011232IKR00 138/031 8.43
ETM+ 20000813 LE71380312000226SGS00 138/031 0.01
20020702 LE71380312002183SGS01 138/031 0.98
OLI 20140727 LC81380312014208LGN00 138/031 0.04
Tab.1  本文所用遥感数据

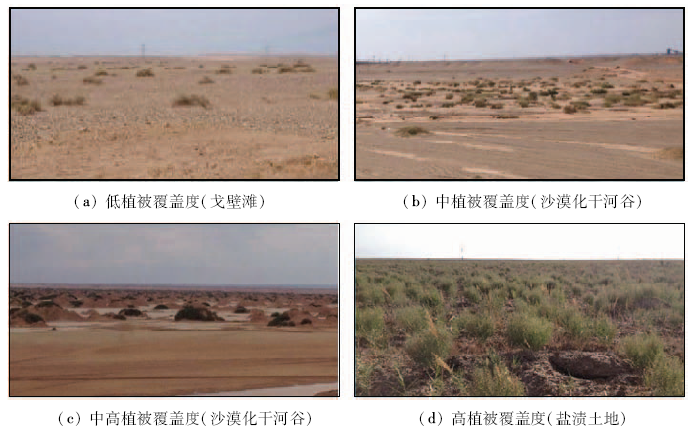

Fig.2  不同植被覆盖度级别的野外景观
Fig.3  1992—2014年平均植被覆盖度空间分布

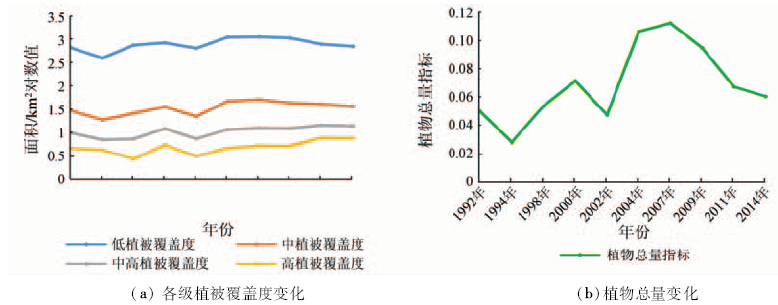

Fig.4  研究区1992—2014年间各级植被覆盖度面积及植物总量变化折线图

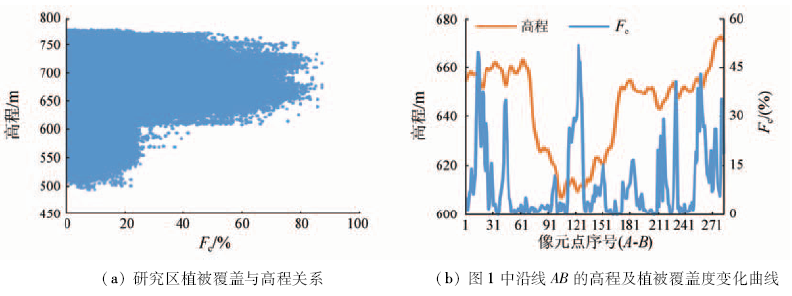

Fig.5  植被覆盖度与地形高度的关系
植被覆盖区面积
及植物总量
日照
百分率/%
潜在
蒸散量/mm
湿润指数 当月降水/mm 前月降水/mm 2个月平均
降水/mm
当月平均
气温/℃
低覆盖度区面积 0.601*① 0.751* -0.455 -0.426 -0.246 -0.424 -0.256
中覆盖度区面积 0.787* 0.803* -0.551 -0.552 -0.062 -0.380 -0.212
中高覆盖度区面积 0.884* 0.620* -0.474 -0.497 0.159 -0.201 -0.010
高覆盖度区面积 0.789* 0.400 -0.406 -0.445 0.295 -0.079 0.161
有植被覆盖区面积 0.622* 0.759* -0.465 -0.438 -0.233 -0.423 -0.253
植物总量指标 0.651* 0.819* -0.508 -0.478 -0.214 -0.436 -0.270
Tab.2  各级植被覆盖度区域面积与气象数据的偏相关系数

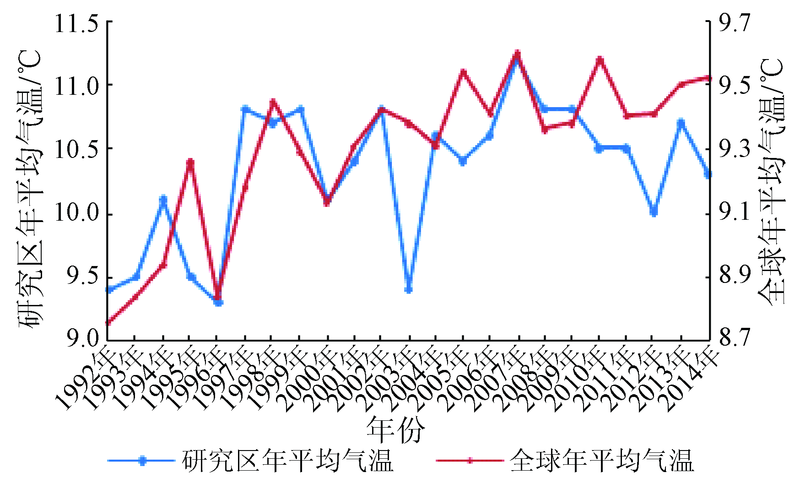

Fig.6  1992—2014年间研究区与全球年均气温变化图
[1] 贾坤,姚云军,魏香琴,等.植被覆盖度遥感估算研究进展[J].地球科学进展,2013,28(7):774-782.
Jia K,Yao Y J,Wei X Q,et al.A review on fractional vegetation cover estimation using remote sensing[J].Advances in Earth Science,2013,28(7):774-782.
[2] Jones C,Lowe J,Liddicoat S,et al.Committed terrestrial ecosystem changes due to climate change[J].Nature Geoscience,2009,2(7):484-487.
[3] Steffen W,Sanderson A,Tyson P D,et al.Global Change and the Earth System:A planet under Pressure[M].Berlin Heidelberg:Springer,2004.
[4] 李向婷,白洁,李光录,等.新疆荒漠稀疏植被覆盖度信息遥感提取方法比较[J].干旱区地理,2013,36(3):502-511.
Li X T,Bai J,Li G L,et al.Comparison of methods based on MODIS for estimating sparse vegetation fraction across desert in Xinjiang[J].Arid Land Geography,2013,36(3):502-511.
[5] 罗新平,江泽平,张大华,等.论干旱区森林可持续经营中的林牧关系[J].世界林业研究,1999,12(3):29-33.
Luo X P,Jiang Z P,Zhang D H,et al.Forest grazing for sustainable forest management in arid zones[J].World Forestry Research,1999,12(3):29-33.
[6] 祝稳. 西北干旱区植被覆盖动态及其对极端气温和降水过程的响应[D].兰州:西北师范大学,2015.
Zhu W.Spatial-Temporal Dynamics of Vegetation Coverage and Its Response to Extreme Temperature and Precipitation Processes Over the Arid Region of Northwest China[D].Lanzhou:Northwest Normal University,2015.
[7] Nemani R R,Keeling C D,Hashimoto H,et al.Climate-driven increases in global terrestrial net primary production from 1982 to 1999[J].Science,2003,300(5625):1560-1563.
[8] 徐浩杰. 亚洲中部干旱区植被变化及其影响因素(2000―2012)[D].兰州:兰州大学,2014.
Xu H J.Variations of Vegetation and Its Influence Factors in the Arid Region of the Central Asia from 2000 to 2012[D].Lanzhou:Lanzhou University,2014.
[9] Purevdorj T S,Tateishi R,Ishiyama T,et al.Relationships between percent vegetation cover and vegetation indices[J].International Journal of Remote Sensing,1998,19(18):3519-3535.
[10] Gitelson A A,Stark R,Grits U,et al.Vegetation and soil lines in visible spectral space:A concept and technique for remote estimation of vegetation fraction[J].International Journal of Remote Sensing,2002,23(13):2537-2562.
[11] 章文波,符素华,刘宝元.目估法测量植被覆盖度的精度分析[J].北京师范大学学报(自然科学版),2001,37(3):402-408.
Zhang W B,Fu S H,Liu B Y.Error assessment of visual estimation plant coverage[J].Journal of Beijing Normal University(Natural Science),2001,37(3):402-408.
[12] 武正丽,贾文雄,刘亚荣,等.近10a来祁连山植被覆盖变化研究[J].干旱区研究,2014,31(1):80-87.
Wu Z L,Jia W X,Liu Y R,et al.Change of vegetation coverage in the Qilian mountains in recent 10 years[J].Arid Zone Research,2014,31(1):80-87.
[13] 陈效逑,王恒.1982―2003年内蒙古植被带和植被覆盖度的时空变化[J].地理学报,2009,64(1):84-94.
Chen X Q,Wang H.Spatial and temporal variations of vegetation belts and vegetation cover degrees in Inner Mongolia from 1982 to 2003[J].Acta Geographica Sinica,2009,64(1):84-94.
[14] 李苗苗,吴炳方,颜长珍,等.密云水库上游植被覆盖度的遥感估算[J].资源科学,2004,26(4):153-159.
Li M M,Wu B F,Yan C Z,et al.Estimation of vegetation fraction in the upper basin of Miyun reservoir by remote sensing[J].Resources Science,2004,26(4):153-159.
[15] Goward S N,Tucker C J,Dye D G.North American vegetation patterns observed with the NOAA-7 advanced very high resolution radiometer[J].Vegetatio,1985,64(1):3-14.
[16] Qi J,Marsett R C,Moran M S,et al.Spatial and temporal dynamics of vegetation in the San Pedro River basin area[J].Agricultural and Forest Meteorology,2000,105(1/3):55-68.
[17] 刘广峰,吴波,范文义,等.基于像元二分模型的沙漠化地区植被覆盖度提取——以毛乌素沙地为例[J].水土保持研究,2007,14(2):268-271.
Liu G F,Wu B,Fan W Y,et al.Extraction of vegetation coverage in desertification regions based on the dimidiate pixel model:A case study in Maowusu sandland[J].Research of Soil and Water Conservation,2007,14(2):268-271.
[18] 李晓松. 干旱地区稀疏植被覆盖度高光谱遥感定量反演研究[D].北京:中国林业科学研究院,2008.
Li X S.Quantitative Retrieval of Sparse Vegetation Cover in Arid Regions Using Hyperspectral Data[D].Beijing:Chinese Academy of Forestry,2008.
[19] 师庆东,王智,贺龙梅,等.基于气候、地貌、生态系统的景观分类体系——以新疆地区为例[J].生态学报,2014,34(12):3359-3367.
Shi Q D,Wang Z,He L M,et al.Landscape classification system based on climate, landform,ecosystem:A case study of Xinjiang area[J].Acta Ecologica Sinica,2014,34(12):3359-3367.
[20] 孙洪波,王让会,张慧芝,等.新疆山地—绿洲—荒漠系统及其气候特征[J].干旱区地理,2005,28(2):199-204.
Sun H B,Wang R H,Zhang H Z,et al.Mountain-oasis-desert system and characteristics of climate in Xinjiang[J].Arid Land Geography,2005,28(2):199-204.
[21] 沈霞. 新疆哈密南湖流域环境变化分析[D].西安:陕西师范大学,2008.
Shen X.The Analysis of Nanhu River Basin Environmental Change in Hami,Xinjiang[D].Xi’an:Shaanxi Normal University,2008.
[22] 穆少杰,李建龙,陈奕兆,等.2001―2010年内蒙古植被覆盖度时空变化特征[J].地理学报,2012,67(9):1255-1268.
Mu S J,Li J L,Chen Y Z,et al.Spatial differences of variations of vegetation coverage in Inner Mongolia during 2001―2010[J].Acta Geographica Sinica,2012,67(9):1255-1268.
[23] 李玉霞. 岷江上游毛儿盖地区生态水信息指标参数遥感量化研究[D].成都:成都理工大学,2007.
Li Y X.Quantitative Study of Eco-Water Information Indices Based on Remote Sensing Images in Maoergai District of Upper Minjiang River[D].Chengdu:Chengdu University of Technology,2007.
[24] 黎良财,邓利,曹颖,等.基于NDVI像元二分模型的矿区植被覆盖动态监测[J].中南林业科技大学学报,2012,32(6):18-23.
Li L C,Deng L,Cao Y,et al.Vegetation dynamic monitoring in mining area based on NDVI serial images and dimidiate pixel model[J].Journal of Central South University of Forestry & Technology,2012,32(6):18-23.
[25] 马宗义. 基于TM影像的沙漠化信息定量提取方法[D].兰州:兰州大学,2013.
Ma Z Y.Quantitative Method for Extracting of Desertification Information Based on TM Image[D].Lanzhou:Lanzhou University,2013.
[26] 田庆久,闵祥军.植被指数研究进展[J].地球科学进展,1998,13(4):327-333.
Tian Q J,Min X J.Advances in study on vegetation indices[J].Advance in Earth Sciences,1998,13(4):327-333.
[27] 龙晓闽,周忠发,张会,等.基于NDVI像元二分模型植被覆盖度反演喀斯特石漠化研究——以贵州毕节鸭池示范区为例[J].安徽农业科学,2010,38(8):4184-4186.
Long X M,Zhou Z F,Zhang H,et al.Study on Karst rock-desertification of extracting vegetation coverage inversion based on NDVI serial images and dimidiate pixel model:A case study of Yachi demonstration area of Guizhou[J].Journal of Anhui Agricultural Sciences,2010,38(8):4184-4186.
[28] 叶娇珑,何政伟,翁中银,等.NDVI像元二分模型在喀斯特地区提取石漠化中的应用[J].地理空间信息,2012,10(4):134-136.
Ye J L,He Z W,Weng Z Y,et al.Application of NDVI pixel binary model in extraction of rocky desertification in Karst areas[J].Geospatial Information,2012,10(4):134-136.
[29] 中国气象局.生态质量气象评价规范(试行)[S].北京:气象出版社,2005.
China Meteorological Administration.Standard for meteorological evaluation of ecological quality[S].Beijing:China Meteorological Press,2005.
[30] 徐建华. 现代地理学中的数学方法[M].北京:高等教育出版社,2002.
Xu J H.Mathematical Methods in Contemporary Geography[M].Beijing:Higher Education Press,2002.
[31] 严丽坤. 相关系数与偏相关系数在相关分析中的应用[J].云南财贸学院学报,2003,19(3):78-80.
Yan L K.Application of correlation coefficient and biased correlation coefficient in related analysis[J].Journal of Yunnan University of Finance and Economics,2003,19(3):78-80.
[32] 吴越. 吐鲁番盆地地表蒸散量估算与植被演化特征研究[D].北京:中国地质大学(北京),2013.
Wu Y.The Evapotranspiration Estimation and Evolution Characteristics of Vegetation in Turpan Basin[D].Beijing:China University of Geosciences(Beijing),2013.
[33] 高建芳,骆光晓.气候变化对新疆哈密地区河川径流的影响分析[J].冰川冻土,2009,31(4):748-758.
Gao J F,Luo G X.Analysis of the impact of climate changes on river’s runoff in Hami prefecture, Xinjiang[J].Journal of Glaciology and Geocryology,2009,31(4):748-758.
[34] Zhao M S,Running S W.Drought-induced reduction in global terrestrial net primary production from 2000 through 2009[J].Science,2010,329(5994):940-943.
