国土资源遥感  2020, Vol. 32 Issue (1): 98-105    DOI: 10.6046/gtzyyg.2020.01.14
     技术应用 本期目录 | 过刊浏览 | 高级检索 |
基于高分遥感数据的西藏荣勒地区控矿信息提取
付丽华, 张策
核工业航测遥感中心,石家庄 050002
Study of ore control information in Rongle area of Tibet based on high resolution remote sensing data
Lihua FU, Ce ZHANG
Airborne Survey and Remote Sensing Center of Nuclear Industry, Shijiazhuang 050002, China
全文: PDF(4193 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

高空间分辨率遥感(以下简称“高分遥感”)数据信息丰富,能较好地用于识别微观岩性、构造等控矿信息。为了开展高分遥感数据在海拔高、基岩裸露的西藏荣勒地区的控矿信息提取研究,首先利用WorldView-2高分遥感数据确定最佳波段组合,在此基础上,对该地区地层、岩性、岩体、构造、接触带等与铜多金属成矿密切相关的控矿信息进行解译; 然后,利用ASTER数据,采用主成分分析法提取与矿化相关的铁染、铝羟基和镁羟基等遥感蚀变异常信息; 最后,综合区域铜矿成矿规律,通过人机交互解译,构建了岩浆热液型铜矿控矿信息遥感找矿模式,圈定出5个找矿靶区并通过野外查证发现了较好的矿化线索,为推进当地找矿进程提供了基础资料和参考依据。研究结果表明,高分遥感数据可以满足我国西部高海拔环境恶劣地区的矿产资源勘查和资源评价需求,彰显了高分遥感快速、高效、可靠的应用优势。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
付丽华
张策
关键词 高分遥感控矿信息找矿应用荣勒地区
Abstract

High-resolution remote sensing data have rich information and hence can be used to better identify micro-lithology, structure and other ore-controlling information. In order to study the extraction of ore-controlling information of high-resolution remote sensing data in Rongle area of Tibet where the elevation is high and the bedrock is exposed, the authors interpreted the ore-controlling information of strata, lithology, rock mass, structure, contact zone and other information closely related to copper polymetallic mineralization in this area on the basis of the best band combination determined by WorldView-2 high-resolution remote sensing data. Using ASTER data, the authors employed principal component analysis (PCA) to extract the mineralization-related remote sensing alteration information of iron stain, aluminum hydroxyl group and magnesium hydroxyl group. Based on comprehensive regional copper mineralization rules, the authors constructed a remote sensing prospecting model for ore-controlling information of magmatic hydrothermal copper deposits through human-computer interaction interpretation. Five prospecting targets were delineated and good mineralization clues were found through field investigation. The results provide basic information and reference basis for promoting local prospecting process. The results show that the high-resolution remote sensing data can meet the needs of mineral resources exploration and resource evaluation in the high-altitude environment hostile areas in Western China and highlight the fast, efficient and reliable application effect of high-resolution remote sensing.

Key wordshigh resolution remote sensing    ore control information    prospecting applications    Rongle area
收稿日期: 2018-12-28      出版日期: 2020-03-14
:  TP79
基金资助:中国地质调查局项目“班公湖—怒江成矿带矿产资源遥感地质调查”(编号: 1212011121299)
作者简介: 付丽华(1968-),女,高级工程师,主要从事遥感应用与技术研究。Email: 1216418992@qq.com。
引用本文:
付丽华, 张策. 基于高分遥感数据的西藏荣勒地区控矿信息提取[J]. 国土资源遥感, 2020, 32(1): 98-105.
Lihua FU, Ce ZHANG. Study of ore control information in Rongle area of Tibet based on high resolution remote sensing data. Remote Sensing for Land & Resources, 2020, 32(1): 98-105.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2020.01.14      或      https://www.gtzyyg.com/CN/Y2020/V32/I1/98

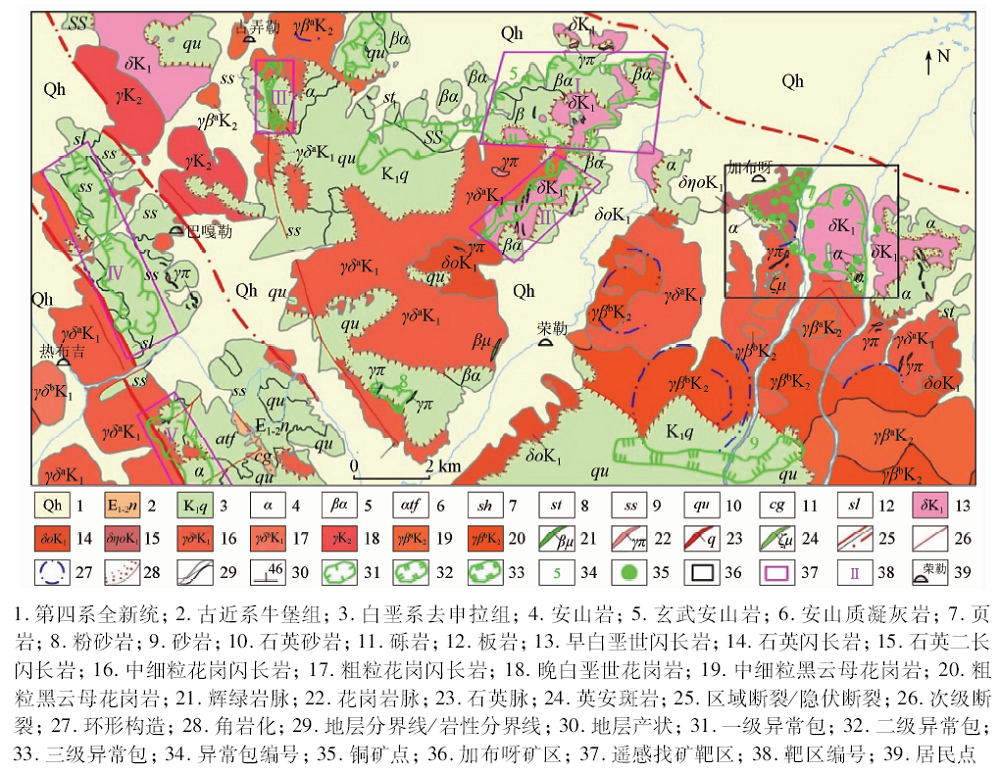

Fig.1  荣勒地区控矿信息遥感解译结果

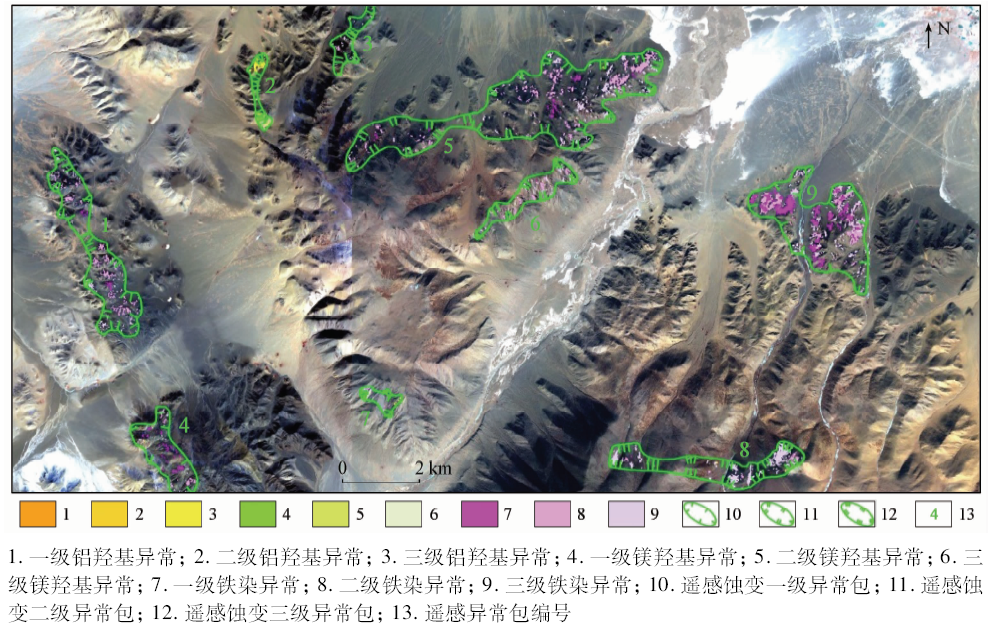

Fig.2  荣勒地区WorldView-2 B8(R),B4(G),B2(B)假彩色合成影像及蚀变异常分布

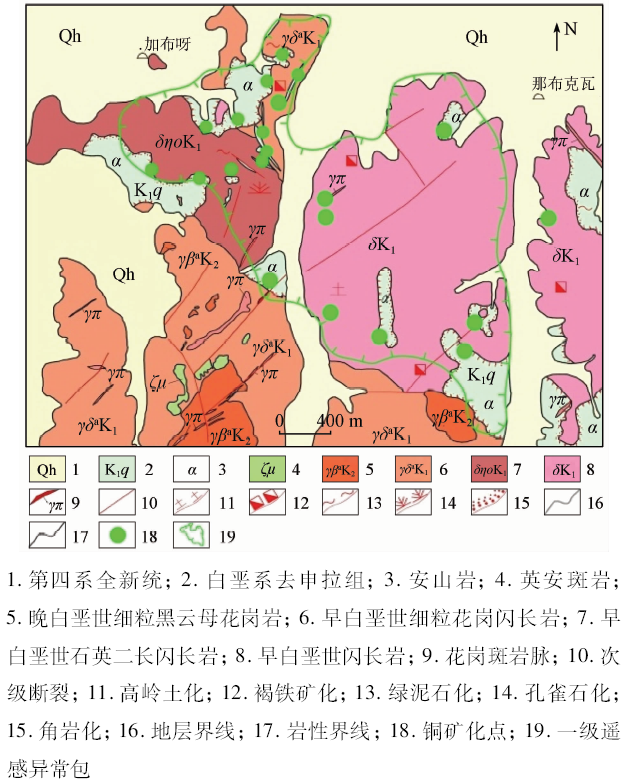

Fig.3  加布呀矿区地质矿化信息
控矿信息要素 地质信息特征 遥感信息特征
大地构造位置 班公湖—怒江结合带西段阿翁错陆缘火山岩浆弧带
导矿、赋矿构造 NW向区域断裂为导矿断裂,次级断裂为赋矿构造 线性色调影纹特征,地貌显示呈直线形的山脊或沟谷
矿化层位、岩性 白垩系去申拉组(K1q)蚀变安山岩、玄武安山岩、砂岩和板岩等 蓝灰色夹黄色条带,斑状、条带状影纹,影纹粗糙,树枝状水系、局部羽状水系,水系密度较大,条状地形、丘陵地貌、山脊浑圆
岩浆活动 燕山晚期中酸性侵入体 灰红色、灰黄色,浑圆状、透镜状,与围岩边界清晰; 圆顶缓坡中低山,放射状水系,环弧状影像清楚
成矿部位 侵入岩与去申拉组(K1q)的接触带 色调、影纹界面,条带状色调异常
蚀变异常 绿泥石化、绿帘石化和绢云母化、高岭石化 主要为铁染(Fe2+和Fe3+)异常,其次为铝羟基(Al-OH)异常
野外找矿线索 黄铜矿化、黄铁矿化和孔雀石化是矿化露头的直接标志
Tab.1  荣勒地区控矿信息遥感找矿模式
Fig.4  靶区Ⅴ野外查证

采样
点号
Au/
(g·t-1)
Ag/
(g·t-1)
Cu/% Pb/% Zn/% Mo/
(g·t-1)
Cr/
(g·t-1)
Ni/
(g·t-1)
Fe/% Ti/
(g·t-1)
As/
(g·t-1)
Sb/
(g·t-1)
1 D1016 7.32 280.00 16.85 84.70 11.90 1.02 11.40 4.20 3.70 249.00 61.00 8.58
2 D1016 0.16 5.09 0.31 27.40 11.50 1.94 12.00 5.50 3.32 105.00 83.00 2.32
3 D1017 0.65 92.60 3.53 44.40 8.40 1.34 9.80 5.50 3.09 50.00 3.50 0.53
4 D1018 11.90 194.00 35.97 180.00 8.90 30.00 8.90 2.50 9.12 196.00 2.40 0.35
5 D2013 6.27 0.82 11.90 69.80 6.51 76.60 21.40 3.91 2880.00 21.00 0.48
6 D2013 0.77 91.30 1.70 10.20 13.70 1.29 7.90 4.40 2.40 129.00 3.40 0.35
Tab.2  靶区铜矿化样品半定量分析结果统计
