Discussion on quality inspection and solution of DEM generated by airborne LiDAR technology
Lei MENG, Chao LIN
Land Resource and Information Center of Guangdong Province, Guangzhou 510075, China
Download: PDF(4723 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

At present, the technology of generating high precision and high current digital elevation model (DEM) based on airborne light detection and ranging (LiDAR) data has been widely used. It is urgent to control the quality of DEM data scientifically and efficiently. In this paper, the authors introduce the three-step inspection method based on practical production experience, which includes human-machine interpretation discriminant inspection, semi-automatic inspection and automatic inspection through python. This method comprehensively covers the quality inspection of DEM generated by airborne LiDAR technology and provides the solution, thus improving the efficiency and accuracy of quality inspection and filling the blank of nonexistence of ready-made software and methods for completing the work.

Keywords airborne LiDAR      digital elevation model      point cloud classification      quality inspection
:  TP79
Issue Date: 14 March 2020
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Lei MENG
Chao LIN
Cite this article:
Lei MENG,Chao LIN. Discussion on quality inspection and solution of DEM generated by airborne LiDAR technology[J]. Remote Sensing for Land & Resources, 2020, 32(1): 7-12.
URL:
https://www.gtzyyg.com/EN/10.6046/gtzyyg.2020.01.02     OR     https://www.gtzyyg.com/EN/Y2020/V32/I1/7
质量元素 检查项
空间参考系 ①坐标系统; ②高程基准; ③投影参数
位置精度 ①高程中误差; ②同名格网高程值; ③点云高程异常处理
逻辑一致性 ①数据归档; ②数据格式; ③数据文件; ④文件命名
栅格质量 ①格网尺寸; ②格网范围
附件质量 ①元数据; ②附属文档
Tab.1  Quality element check items of DEM

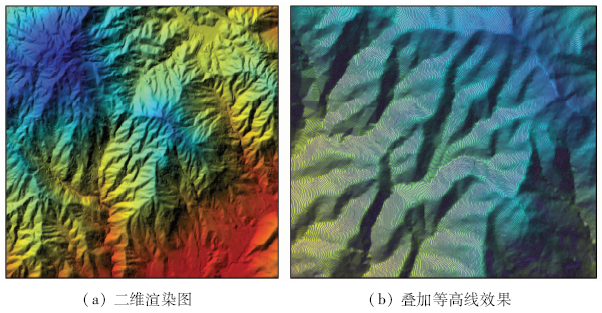

Fig.1  Rendering effect of DEM and superimposed contours
Fig.2  Contours generated by DEM superimposed DOM

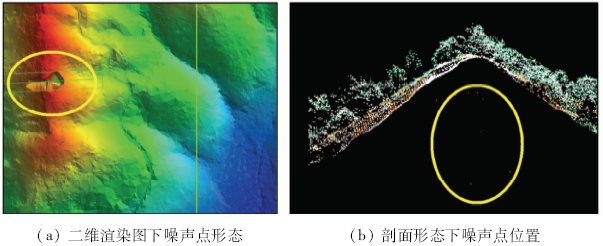

Fig.3  Noise points in point clouds affects the continuity of ground expression
Fig.4  Continuous and smooth surface model of point cloud

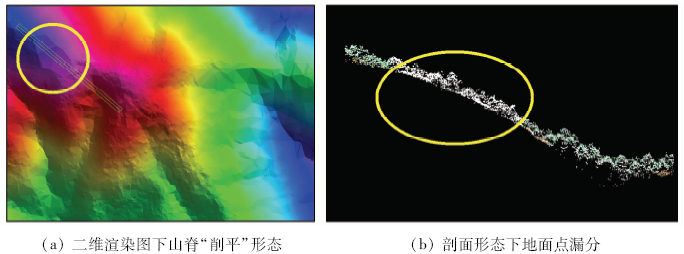

Fig.5  Incorrect classification causes ridge flattening

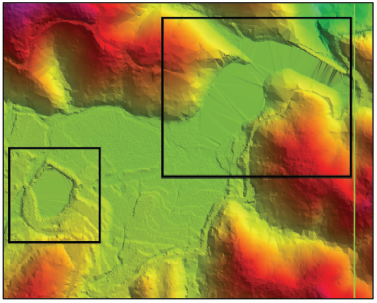

Fig.6  Inconsistent water surface elevation caused by not adding feature lines

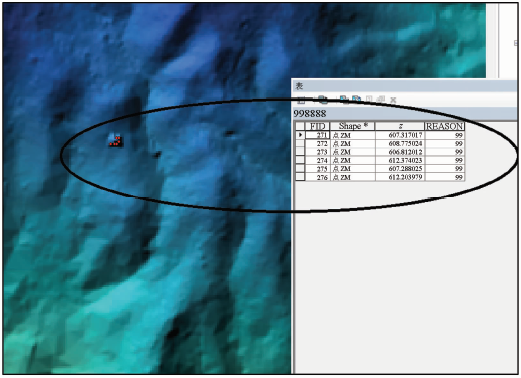

Fig.7  Automatic detection of abnormal points in DEM

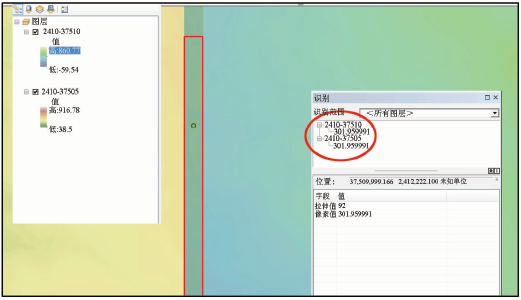

Fig.8  Homonym pixel values of two adjacent DEM
图幅号 坐标系名称 投影椭球名称 格网范围/m 精度类型 格网尺寸/m
2400-37470 CGCS_2000_3Degree_GK_Zone37 DATUM['D_CGCS_2000' 37 469 979,2 399 979,37 475 021,2 405 021 F32 2
2400-37475 CGCS_2000_3Degree_GK_Zone37 DATUM['D_CGCS_2000' 37 474 979,2 399 979,37 480 021,2 405 021 F32 2
2405-37470 CGCS_2000_3Degree_GK_Zone37 DATUM['D_CGCS_2000' 37 469 979,2 404 979,37 475 021,2 410 021 F32 2
2405-37475 CGCS_2000_3Degree_GK_Zone37 DATUM['D_CGCS_2000' 37 474 979,2 404 979,37 480 021,2 410 021 F32 2
………… ………… ………… …… …… ……
Tab.2  Read and check related information in batch

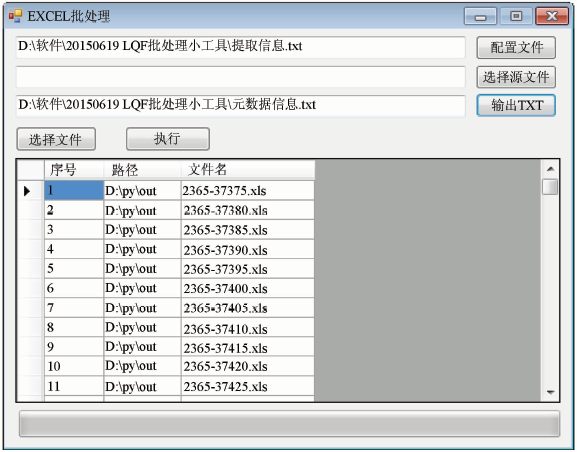

Fig.9  Automatic extraction of DEM metadata information by scripting tools
