渤海海冰时空分布特征和大气环流对渤海海冰的强迫作用

doi:10.6046/zrzyyg.2022441

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(14382 KB)

HTML
输出: BibTeX | EndNote (RIS)

摘要

海冰灾害是渤海冬季的主要海洋灾害,对石油开采、海上运输和海洋渔业造成很大的危害,因此对海冰的生消变化监测和预测尤其重要。利用2001—2020年MODIS数据、再分析格点资料和气象观测站数据,经卫星资料反演得到日尺度渤海海冰面积,统计分析渤海海冰面积的年际变化特征和不同冰情年在初冰期、盛冰期和消融期的变化特征,利用合成分析和相关分析方法探讨了渤海海冰偏重冰年和轻冰年的大气环流差异。结果表明: 20 a间渤海海冰冰情等级越高,平均冰期越长,海冰面积经历了“少-多-少”的变化过程,海冰面积与积温变化趋势相反; 年内海冰生消过程为单峰型和多峰型,多峰型年冰期和大面积冰封时间更长; 渤海海冰初冰期集中分布在辽东湾,偏重冰年比轻冰年海冰面积多一倍,盛冰期3个海湾基本能覆盖到海冰,偏重冰年全部覆盖,消融期海冰仍以辽东湾为主,呈“东北—西南”向分布; 偏重冰年较轻冰年的大气环流形势更有利于海冰生成,贝加尔湖至我国东北一线高空槽后冷空气更强,温度更低。渤海冬季海冰冰情与500 hPa位势高度有较强的负相关性,500 hPa位势高度的强弱决定了渤海海冰的冰情。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	郭玉娣
	王铁
	程善俊
	左涛

关键词 ：渤海海冰, 海冰面积, 冰情, 大气环流

Abstract：

Sea ice disasters, significant marine disasters in the Bohai Sea in winter, severely threaten oil exploitation, marine transportation, and fishery. Hence, it is particularly critical to monitor and predict the formation and melting of sea ice. Based on MODIS data, reanalysis grid data, and meteorological observation data from 2001 to 2020, this study derived the daily sea ice area of the Bohai Sea through the inversion of satellite data. Then, this study conducted a statistical analysis of changes in the sea ice area, including inter-annual variations and the variations during the freezing, severe ice, and melting periods in different years with sea ice disasters. Moreover, this study delved into the differences in the atmospheric circulation of the Bohai Sea between years with severe and mild sea ice disasters. The results show that: ① Over the past 20 years, higher sea ice grades in the Bohai Sea corresponded to longer ice periods, and the sea ice area experienced a decrease-increase-decrease process, which was opposite to the changes in accumulated temperature; ② Intra-annual sea ice formation and melting processes exhibited a single peak or multiple peaks, with the multi-peak type corresponding to a longer ice period and large-scale ice-bound time; ③ During the initial ice formation period, the sea ice in the Bohai Sea was primarily distributed in the Liaodong Bay, with the sea ice area in a year with severe sea ice disasters more than twice that in a year with mild sea ice disasters. During the ice period, the sea ice covered almost all three bays, completely covering the three bays in years with severe sea ice disasters. During the ice melting period, the sea ice still spread primarily in the Liaodong Bay, manifesting an EN-WS-directed distribution; ④ Compared to years with mild sea ice disasters, years with severe sea ice disasters showed more favorable atmospheric circulation for sea ice formation, accompanied by stronger and cooler cold air behind the upper-level trough along the area from Lake Baikal to Northeastern China. Furthermore, there is a strong negative correlation between the sea ice situation in the Bohai Sea and the 500 hPa geopotential height, with the latter determining the former.

Key words： sea ice in Bohai Sea sea ice area sea ice condition atmospheric circulation

收稿日期: 2022-11-17 出版日期: 2024-03-13

ZTFLH:

TP79

基金资助:环渤海区域科技协同创新基金项目“基于多源数据融合的北方海域海冰覆盖网格实况与预报关键技术研究”(QYXM202101)

通讯作者: 王铁(1977-),男,硕士,副研级高级工程师,主要从事生态遥感方面的研究。Email: stin.wang@gmail.com。

作者简介: 郭玉娣(1988-),女,硕士,工程师,主要从事海洋遥感方面的研究。Email: guoyudi.0802@163.com。

引用本文:

郭玉娣, 王铁, 程善俊, 左涛. 渤海海冰时空分布特征和大气环流对渤海海冰的强迫作用[J]. 自然资源遥感, 2024, 36(1): 242-249.
GUO Yudi, WANG Tie, CHENG Shanjun, ZUO Tao. Sea ice in Bohai Sea:Spatio-temporal distribution and the forcing effects of atmospheric circulation. Remote Sensing for Natural Resources, 2024, 36(1): 242-249.

链接本文:

https://www.gtzyyg.com/CN/10.6046/zrzyyg.2022441 或 https://www.gtzyyg.com/CN/Y2024/V36/I1/242

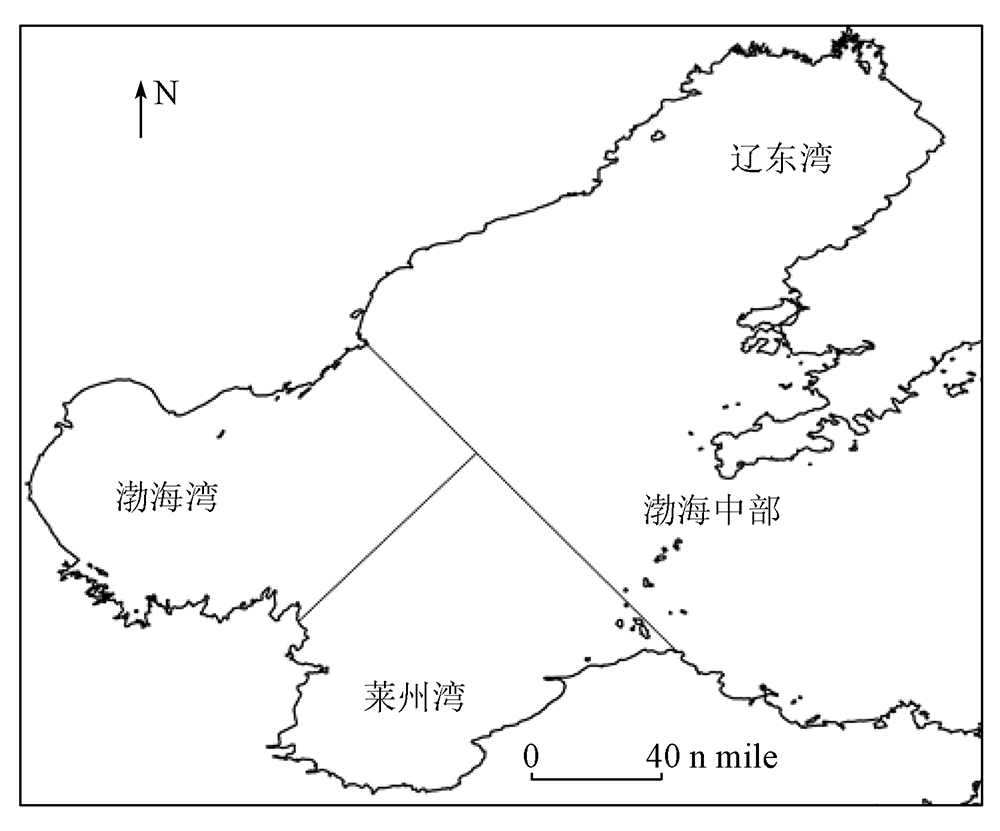

Fig.1 渤海划分示意图

Tab.1 2001—2020年渤海海冰统计表

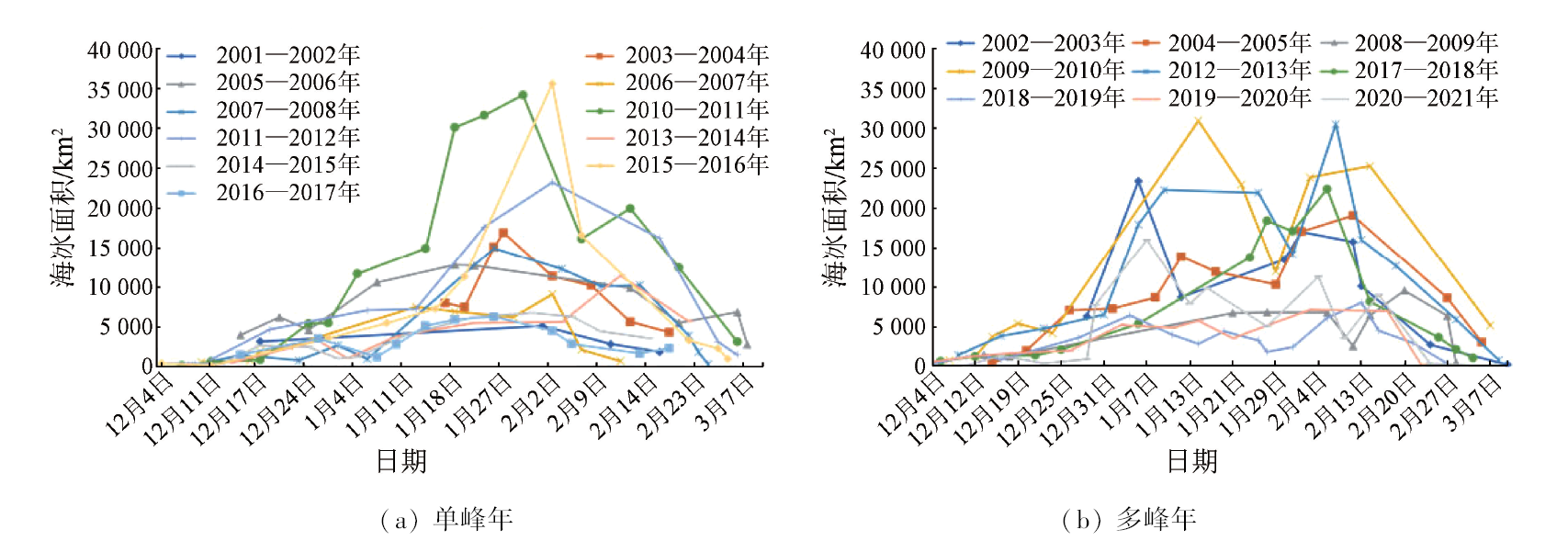

Fig.2 2010—2020年渤海冬季海冰历年变化曲线

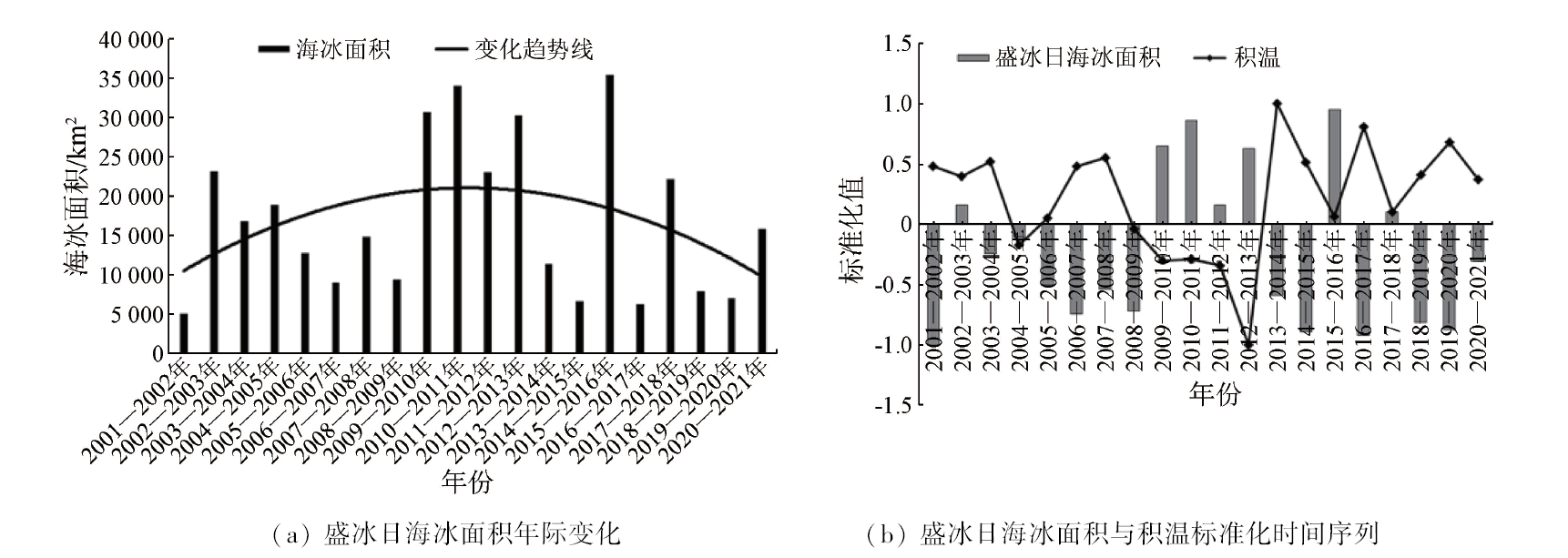

Fig.3 2001—2020年渤海盛冰日海冰面积与积温年际变化

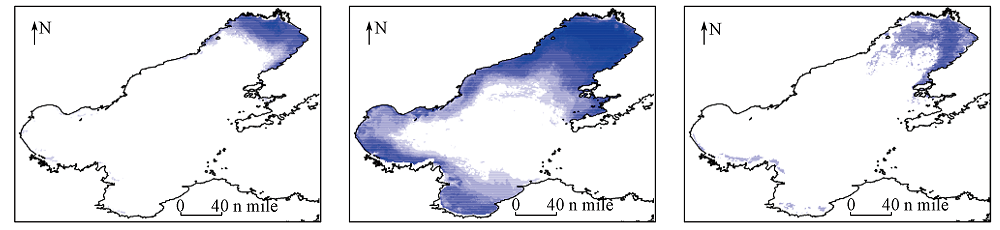

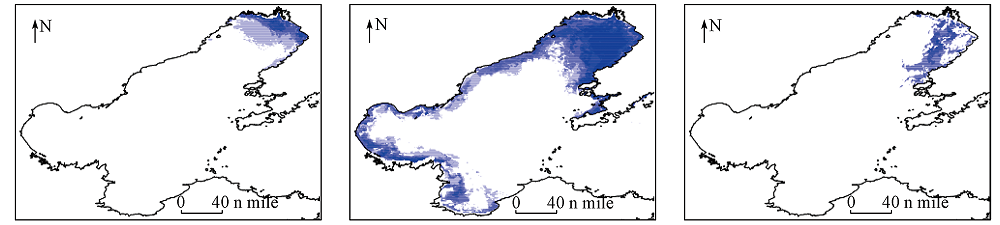

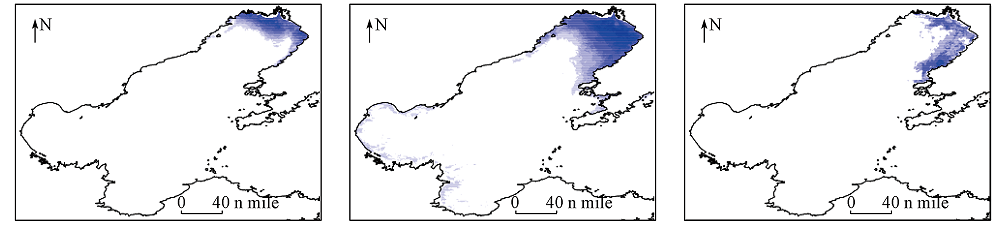

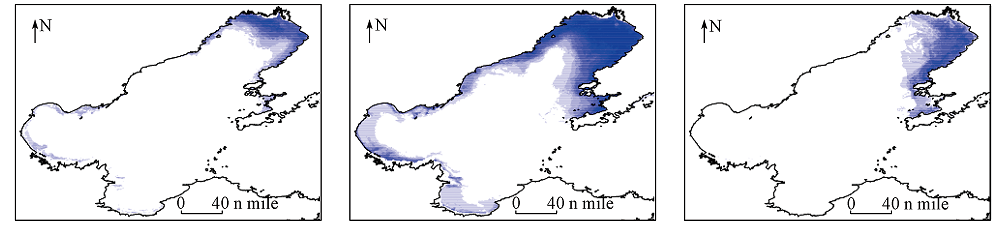

Fig.4 不同冰级年渤海海冰分布

Tab.2 不同冰级年渤海海冰生消变化

Fig.5 500 hPa位势高度场偏重冰年与轻冰年的差值图

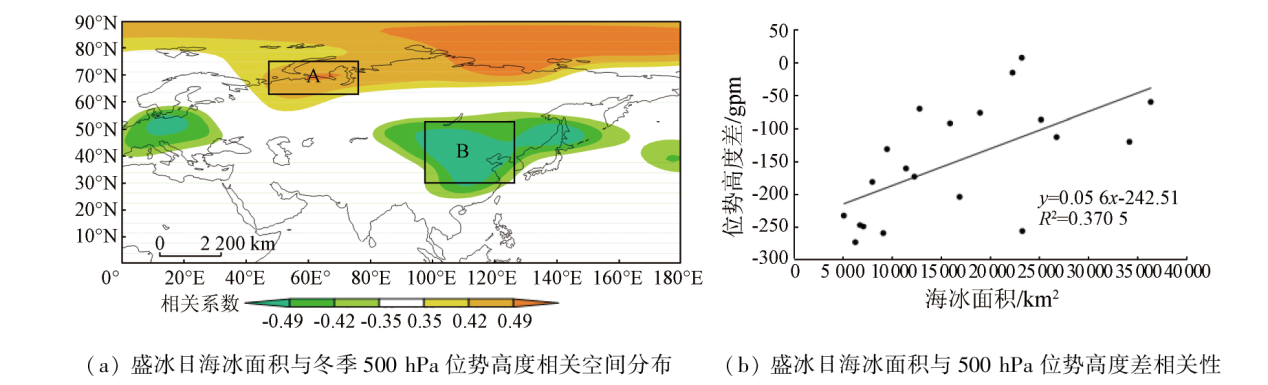

Fig.6 渤海盛冰日海冰面积与冬季500 hPa位势高度相关性分析

Fig.7 偏重冰年与轻冰年温度差沿38°N纬向和120°E径向剖面图

[1]	李剑, 黄嘉佑, 刘钦政. 黄、渤海海冰长期变化特征分析[J]. 海洋预报, 2005, 22(2):22-32.
	Li J, Huang J Y, Liu Q Z. The Long-term variation characteristics of sea ice in the Bohai Sea and the North Huanghai Sea[J]. Marine Forecasts, 2005, 22(2):22-32.
[2]	白珊, 刘钦政, 李海, 等. 渤海的海冰[J]. 海洋预报, 1999, 16(3):1-9.
	Bai S, Liu Q Z, Li H, et al. Sea ice in the Bohai Sea of China[J]. Marine Forecasts, 1999, 16(3):1-9.
[3]	李万标, 朱元竞. 用静止卫星资料反演海冰分布[M]// 大气遥感技术论文集, 北京: 气象出版社, 1997:1-5.
	Li W B, Zhu Y J. Inversion of sea ice distribution from geostationary satellite data[M]// Proceedings of Atmospheric Remote Sensing Technology, Beijing: China Meteorological Press, 1997:1-5.
[4]	郑新江, 邱康睦, 陆风. 定量计算渤海海冰参数的遥感方法[J]. 应用气象学报, 1998, 9(3):359-363.
	Zheng X J, Qiu K M, Lu F. Quantitative calculation of sea ice over the Bohai Sea using NOAA/AVHRR imagery[J]. Quarterly Journal of Applied Meteorology, 1998, 9(3):359-363.
[5]	谢峰. 高时间分辨率遥感影像中渤海海冰信息的提取研究[D]. 北京: 北京师范大学, 2006.
	Xie F. Study on extracting sea ice information from high time resolution remote sensing images in Bohai Sea[D]. Beijing: Beijing Normal University, 2006.
[6]	马龙. NASA MODIS海冰产品评价分析——以辽东湾海冰监测为例[J]. 国土资源遥感, 2011, 23(1):115-117.doi:10.6046/gtzyyg.2011.01.23.
	Ma L, The Evaluation of NASA MODIS sea ice products:A case study of sea ice in Liaodong Bay[J]. Remote Sensing for Land and Resources, 2011, 23(1):115-117.doi:10.6046/gtzyyg.2011.01.23.
[7]	刘惠颖, 郭华东, 张露. 基于HJ-1C SAR数据的辽东湾海冰分类[J]. 国土资源遥感, 2014, 26(3): 125-129.doi:10.6046/gtzyyg.2014.03.20.
	Liu H Y, Guo H D, Zhang L. Approach to the classification of sea ice in Liaodong Bay using HJ - 1C SAR data[J]. Remote Sensing for Land and Resources, 2014, 26(3):125-129.doi: 10.6046/gtzyyg.2014.03.20.
[8]	王萌, 武胜利, 郑伟, 等. 长时间序列卫星遥感渤海海冰时空分布特征及与气温关系分析[J]. 气象, 2016, 42(10): 1237-1244.
	Wang M, Wu S L, Zheng W, et al. Temporal-spatial distribution of Bohai Sea sea-ice in long-time series and its correlation with air temperature[J]. Meteorological Monthly, 2016, 42(10):1237-1244.
[9]	刘成, 曹祥村, 尹朝晖, 等. 2007—2018年黄渤海海冰气候特征及其对气象因子的响应[J]. 海洋通报, 2019, 38(2):173-178.
	Liu C, Cao X C, Yin Z H, et al. Climatic characteristics of sea ice extent and its response to meteorological factors in the Yellow Sea and the Bohai Sea during 2007—2018[J]. Marine Science Bulletin, 2019, 38(2):173-178.
[10]	Gong D Y, Kim S J, Ho C H. Arctic Oscillation and ice severity in the Bohai Sea,East Asia[J]. International Journal of Climatology, 2007, 27(10): 1287-1302. doi: 10.1002/joc.v27:10
[11]	左涛, 郭玉娣, 刘彬贤, 等. 基于MODIS数据的辽东湾海冰面积特征分析及与气温关系的探讨[J]. 海洋预报, 2021, 38(5):47-52.
	Zuo T, Guo Y D, Liu B X, et al. Characteristics analysis of the sea ice area based on MODIS satellite data in Liaodong Bay and its correlation with air temperature[J]. Marine Forecasts, 2021, 38(5):47-52.
[12]	唐茂宁, 洪洁莉, 刘煜, 等. 气候因子对渤海冰情影响的统计分析[J]. 海洋通报, 2015, 34(2):152-157.
	Tang M N, Hong J L, Liu Y, et al. Statistical analysis of climatic factors impacting on the Bohai Sea ice[J]. Marine Science Bulletin, 2015, 34(2):152-157.
[13]	王相玉, 张惠滋, 严素, 等. 渤、黄海北部海冰年代时空变化特征分析[J]. 海洋预报, 2007, 24(2): 26-32.
	Wang X Y, Zhang H Z, Yan S, et al. The characteristic of the spatio-temporal transformation of the sea-ice in northern part of the Bo-hai Sea and the Yellow Sea[J]. Marine Forecast, 2007, 24(2):26-32.
[14]	周须文, 史印山, 车少静, 等. 1960—2013年渤海海冰大气环流异常特征[J]. 气象与环境学报, 2015, 31(6):130-134.
	Zhou X W, Shi Y S, Che S J, et al. Characteristics of anomalous atmospheric circulation for sea ice in Bohai Sea from 1960 to 2013[J]. Journal of Meteorology and Environment, 2015, 31(6):130-134.
[15]	周须文, 何璇, 任妙春, 等. 渤海冰情异常年的典型大气环流概念模型[J]. 气象与环境学报, 2017, 40(4):109-113.
	Zhou X W, He X, Ren M C, et al. Conceptual model of typical atmospheric circulation in Bohai ice anomaly year[J]. Meteorological and Environmental Sciences, 2017, 40(4):109-113.

[1]	燕云鹏, 徐辉, 刘刚, 刘建宇. 2013—2017年班公湖地区冷季湖泊冰情变化分析——中国西部高寒高海拔地区冰冻圈遥感调查(一)[J]. 国土资源遥感, 2019, 31(3): 209-215.
