1.College of Resource and Environment and Tourism, Capital Normal University, Beijing 100048, China 2.Base of the State Key Laboratory of Urban Environmental Process and Digital Modeling,Capital Normal University, Beijing 100048, China

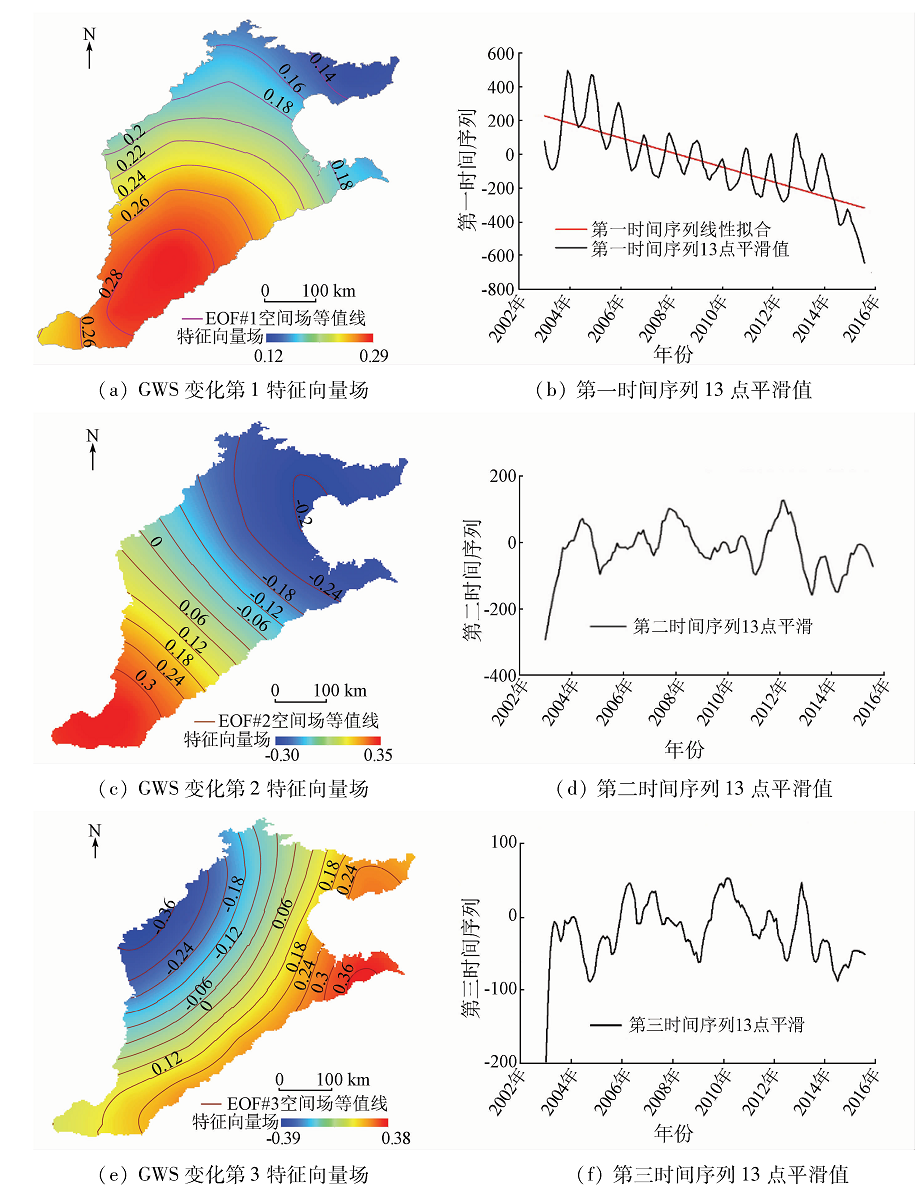

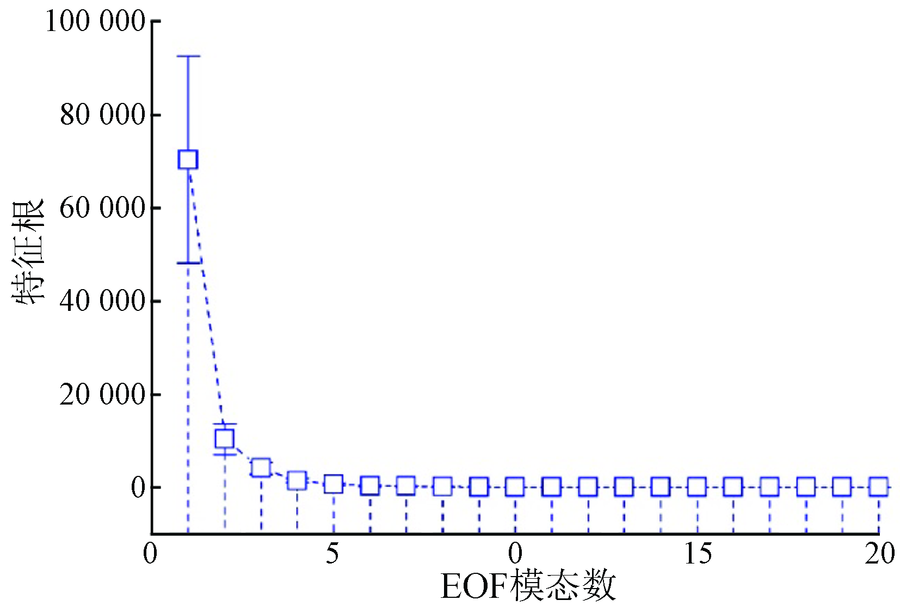

GWSA (groundwater storage anomaly) data of North China Plain from 2003 to 2015 were estimated from terrestrial water storage change (TWSC) data retrieved by monthly GRACE (gravity recovery and climate experiment). The EOF (empirical orthogonal function) method was applied to analyzing the GWSA, and it is shown that cumulative contribution rate of the first three EOF modes reached up to 96.35%. The explanation rate of the total variance of first mode reached about 80%. It is shown that GWSA in the North China Plain behaved consistently descending in the whole region with obvious seasonal fluctuations, caused by groundwater exploitation and precipitation. The second and third mode, with an explanation rate of about 12% and 5%, showed that spatial pattern in northeast-southwest direction and that in northwest-southeast direction were obviously opposite. However, no significant temporal diversification was found, presumably mainly controlled by water cycle under the coastal-inland, piedmont-plain and hydrogeological conditions. This study helps to further understand the spatiotemporal characteristics and drive mechanism of groundwater change in North China Plain.
Zhang L P, Xia J, Hu Z F . Situation and problem analysis of water resource security in China[J]. Resources and Environment in the Yangtze Basin, 2009,18(2):116-120.
Liu C M . Building water-saving society and alleviating groundwater crisis[J].China Water Resources, 2007(15):10-13.
[3]
Yeh P J F, Swenson S C, Famiglietti J S, et al.Famiglietti J S,et al.Remote sensing of groundwater storage changes in Illinois using the gravity recovery and climate experiment (GRACE)[J].Water Resources Research, 2006, 42(12)W 12203: 1-7.doi: 10.1029/2006WR005374.
doi: 10.1029/2006WR005374
[4]
Feng W, Zhong M, Lemoine J M , et al. Evaluation of groundwater depletion in North China using the gravity recovery and climate experiment (GRACE) data and ground-based measurements[J]. Water Resources Research, 2013,49(4):2110-2118.
doi: 10.1002/wrcr.20192
Zhang G H, Fei Y H, Liu C H , et al. Adaptation between irrigation intensity and groundwater carrying capacity in North China Plain[J]. Transactions of the Chinese Society of Agricultural Engineering, 2013,29(1):1-10.
[6]
Awange J L, Gebremichael M, Forootan E , et al. Characterization of Ethiopian mega hydrogeological regimes using GRACE,TRMM and GLDAS datasets[J]. Advances in Water Resources, 2014,74:64-78.
doi: 10.1016/j.advwatres.2014.07.012
[7]
Kang K X, Li H, Peng P , et al.Low-frequency variability of terrestrial water budget in China using GRACE satellite measurements from 2003 to 2010[J]. Geodesy and Geodynamics, 2015,6(6):444-452.
doi: 10.1016/j.geog.2015.12.001
Yan F L, Li S M, Wang S X , et al. Temporal and spatial variations research of GRACE water storage changes over the Yangtze River Bisin[J]. Resources and Environment in the Yangtze Basin, 2015,24(S1):131-137.
Wei F Y . Regional consensus forecast method with dynamic weighting for summer precipitation over China[J]. Quarterly Journal of Applied Meteorlolgy, 1999,10(4):402-409.
Shi N, Zhang A G, Yu J H , Some important problems of the statistics test in meteorology[J]. Scientia Meteorologica Sinica, 2009,29(5):670-673.
[12]
North G R, Bell T L, Cahalan R F , et al. Sampling errors in the estimation of empirical orthogonal functions[J]. Monthly Weather Review, 1982,110(7):699-699.
doi: 10.1175/1520-0493(1982)110<0699:SEITEO>2.0.CO;2
[13]
Huang Z Y, Pan Y, Gong H L , et al. Subregional-scale groundwater depletion detected by GRACE for both shallow and deep aquifers in North China Plain[J]. Geophysical Research Letters, 2015,42(6):1791-1799.
doi: 10.1002/2014GL062498
2018, Vol. 30
), 潘云1,2, 宫辉力1,2, 黄志勇1,2, 郑龙群1,2
