四极梯度测深在智利某铜矿区的应用

doi:10.11720/wtyht.2018.2504

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (3318 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

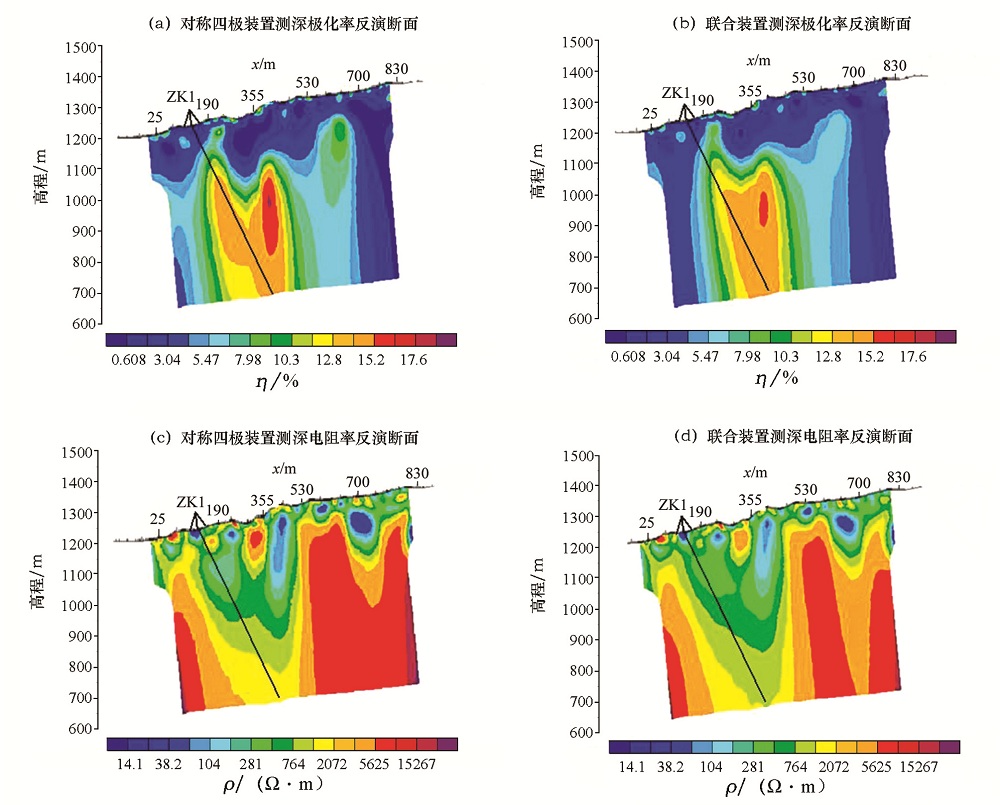

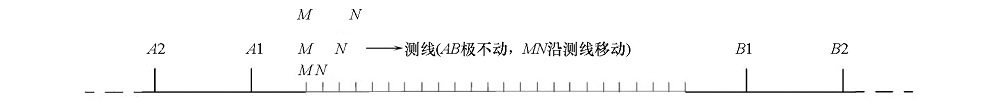

In view of the fact that a certain copper mine in Chile is with great terrain elevation difference, sharp vertical cutting and low efficiency in running way of conventional symmetrical schlumberger units, this paper brings forward the proposal of utilization of complex unit combining symmetrical four-electrode and central gradient, that is to say, small polar distance is provided with symmetrical four-electrode detection device whereas large polar distance is provided with central gradient detection device. In the same sounding profile of the mine, the comparison of the sounding inversion results by symmetrical schlumberger unit and complex unit (symmetrical schlumberger + central gradient) indicated that the inversion results of the complex unit equals to the sounding effects of symmetrical schlumberger unit, but the complex unit is more efficient and more suitable for construction in complicated topography areas.

Key words： IP sounding central gradient method schlumberger complex unit inversion deep prospecting complex topography

Received: 05 January 2017 Published: 24 October 2018

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Guang-Hui QIU
	Xue-Ai YIN
	Qi-Sheng ZHANG
	Hai-Liang ZHANG
	Hui-Jia ZHANG

Cite this article:

Guang-Hui QIU,Xue-Ai YIN,Qi-Sheng ZHANG, et al. The application of quadrupole gradient sounding to a certain copper mine in Chile[J]. Geophysical and Geochemical Exploration, 2018, 42(5): 1059-1063.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2018.2504 OR https://www.wutanyuhuatan.com/EN/Y2018/V42/I5/1059

岩性描述	标本数	$极化率变化范围 %$	$极化率平均值 %$	$电阻率变化范围 Ω · m$	$电阻率平均值 Ω · m$
晶屑凝灰岩	30	1.02~3.29	1.57	274~1835	827
凝灰岩	21	1.02~3.02	1.77	1094~6351	3023
电气石角砾岩	12	1.72~3.82	2.63	729~859	755
安山岩	18	1.92~3.64	2.32	242~8265	1976
花岗闪长岩	19	0.18~1.54	0.41	955~1255	4279
矿化绢云岩	6	5.69~13.21	8.04	253~1624	557
矿化电气石角砾岩	8	7.42~19.27	14.38	145~926	345
矿化角砾凝灰岩	26	8.42~23.43	16.61	162~1384	479
矿化石英二长岩	28	6.54~15.23	9.29	303~2052	662

[1]	张立新, 周佳, 贾长顺 . 智利中北部海岸山脉中生代层控型铜(银)矿床[J]. 矿产勘查, 2010,1(4):393-399.
[2]	葛为中, 吕玉增, 丁云河 . 直流电法梯度测深剖面的研究及应用[C]//中国地球物理.北京: 中国大地出版社, 2008: 200.
[3]	葛为中, 吕玉增, 吴国富 . 直流电法中梯断面成像方法的研究[C]//中国地球物理.北京: 中国科学技术大学出版社, 2009: 260.
[4]	葛为中, 吕玉增, 丁云河 . 梯度电测深剖面法及其应用[J]. 物探与化探, 2011,35(2):206-211.
[5]	高建东 . GDF高密度电法二维正反演软件及模型测深结果[C]//中国地球物理.北京: 地质出版社, 2007.
[6]	吕玉增, 阮百尧 . 高密度电法二维反演软件设计与实现[J]. 桂林工学院学报, 2004,24(4):417-421.
[7]	阮百尧, 村上裕, 徐世浙 . 激发极化数据的最小二乘二维反演方法[J]. 地球科学:中国地质大学学报, 1999,24(6):619-624.
[8]	Loke M H . Rapid least-squares inversion of apparent resistivity pseadosections by a quasi-Newton method[J]. Geophysical prospecting, 1996,44:131-152.
[9]	Loke M H . A comparision of smooth and blocky inversion methods in 2D electrical imaging surveys[J]. Exploration Geophysics, 2003,34:182-187.
[10]	翁爱华, 董瑞春 . 利用归一化总梯度方法实现中梯激电剖面数据的解释[J]. 物探与化探, 2005,29(5):435-437.
[11]	Zhou B, Greenhalgh S A . Rapid 2-D/3-D crosshole resistivity imaging using the analytic sensitivity function[J]. Geophysics, 2002,67(2):755-765.
[12]	王式东 . 中间梯度代替对称四极测深的可行性研究[J]. 硅谷, 2012,01(1):75-76.
[13]	吕玉增, 葛为中, 彭苏萍 . 多极距中梯观测与反演研究[J]. 物探与化探, 2013,37(1):92-97.
[14]	杜利明, 武军杰, 杨金夺 , 等. 梯度电测深方法在沂南金矿勘查中的应用[J]. 物探与化探, 2013,37(2):225-228.
