Remote Sensing for Land & Resources    2019, Vol. 31 Issue (4) : 250-257     DOI: 10.6046/gtzyyg.2019.04.32
|
The implementation of geological environment sub-node of Geological Cloud 1.0
Xiaoxia REN, Fei YANG, Shuyun YANG, Ming YIN, Mengliang YU()
China Institute of Geological Environment Monitoring, Beijing 100081, China
Download: PDF(5578 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

Geological Cloud 1.0 is the first comprehensive integrated application platform for cloud computing in China’s geological survey. As one of its distributed nodes, geological environment sub-node provides data sharing and product socialization services in the geological environment. In order to better serve the construction of Geological Cloud 1.0, this paper describes the specific technical implementation of the Geological Cloud 1.0 geological environment sub-node in four aspects: infrastructure construction, data sharing service, geological information product service and service portal construction. The construction effect of this node is discussed. The results show that geological environment sub-node supplies data and products resources in the geological environment, and provides technical support for the operation and upgrade of Geological Cloud 1.0 in the future.
Keywords Geological Cloud 1.0      geological environment sub-node      data sharing service      product service
:  TP3-05
Corresponding Authors: Mengliang YU     E-mail: yuml@mail.cigem.gov.cn
Issue Date: 03 December 2019
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Xiaoxia REN
Fei YANG
Shuyun YANG
Ming YIN
Mengliang YU
Cite this article:
Xiaoxia REN,Fei YANG,Shuyun YANG, et al. The implementation of geological environment sub-node of Geological Cloud 1.0[J]. Remote Sensing for Land & Resources, 2019, 31(4): 250-257.
URL:
https://www.gtzyyg.com/EN/10.6046/gtzyyg.2019.04.32     OR     https://www.gtzyyg.com/EN/Y2019/V31/I4/250
Fig.1  Architecture for geological environment sub-node of Geological Cloud 1.0
序号 设备 参考型号 描述 数量
1 云平台管理节点 RH2288 V3 2CPU,8×32 GB内存,8通用硬盘-300 GB-SAS,2固态硬盘-480 GB,RAID卡,4xGE电口,以太网卡-10 Gb光口 3
2 计算节点 RH5885 V3 4CPU,16×16 GB内存,2通用硬盘-600 GB-SAS,RAID卡,4xGE电口,以太网卡-10 Gb光口,FC HBA卡-8 Gb 4
3 存储 OceanStor 5600 V3 双控,128 GB缓存,8×8 Gb FC,8×10 Gb光,20×1.2 TB 10K RPM SAS 硬盘单元(2.5"),配置NAS功能 1
4 光纤交换机 OceanStor SNS2124 24端口(24端口激活,含24×8 Gb多模SFP) 2
5 虚拟化软件 FusionSphere CPU FusionSphere云套件标准版许可16套; 网络安全软件—趋势科技防毒墙客户机与服务器版等 1
序号 设备 参考型号 描述 数量
6 防火墙 USG6550 8GE电+4GE光, 满配SFP多模光模块,4 GB内存,2交流电源,支持虚拟防火墙功能、国密功能、内容过滤功能等。 1
7 交换机 CE6851-48S6Q-HI 48个SFP+接口,实配SFP+多模光模块24个,6个40 G QSF接口,实配40 G QSFP多模光模块2个 2
Tab.1  Distributed node device recommendation configuration table

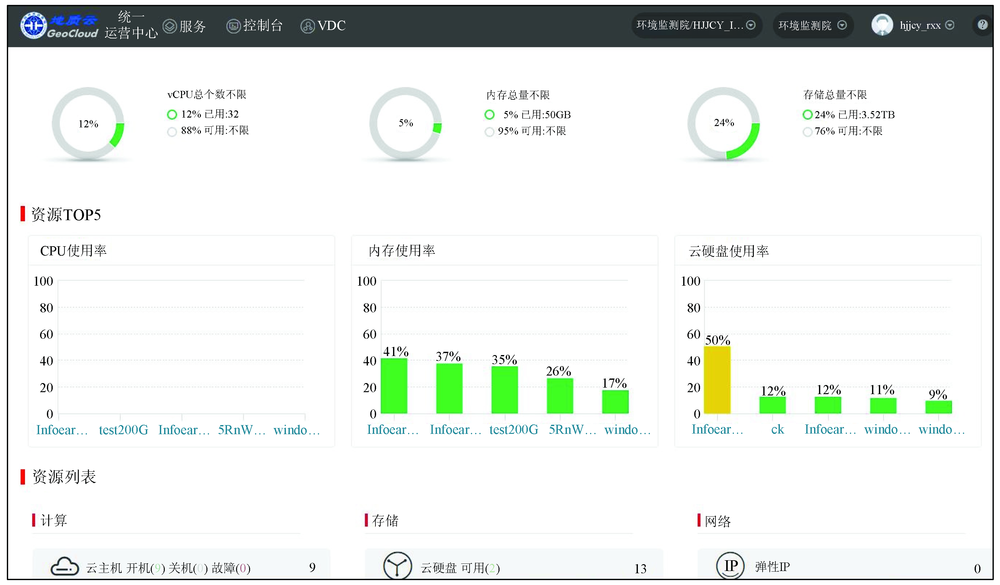

Fig.2  User main interface for geological environment sub-node of Geological Cloud 1.0
序号 数据库名称 所属地质调查数据库目录体系的目录名称 数据格式
1 1:20万水文地质图空间数据库 水工环地质数据库 MapGIS,ArcGIS
2 全国分省 1:50万环境地质空间数据库 水工环地质数据库 MapGIS
3 国家级地下水动态监测数据库 水工环地质数据库 Oracle10g
4 全国地质灾害调查数据库 水工环地质数据库 Oracle10g
5 全国矿山地质环境调查数据库 水工环地质数据库 Oracle10g
6 中国地质遗迹与地质公园数据库 水工环地质数据库 Oracle10g
7 特大型地质灾害数据 水工环地质数据库 ArcGIS
8 水土地质环境监测数据库 水工环地质数据库 ArcGIS
Tab.2  Databases cases for geological environment sub-node of Geological Cloud 1.0

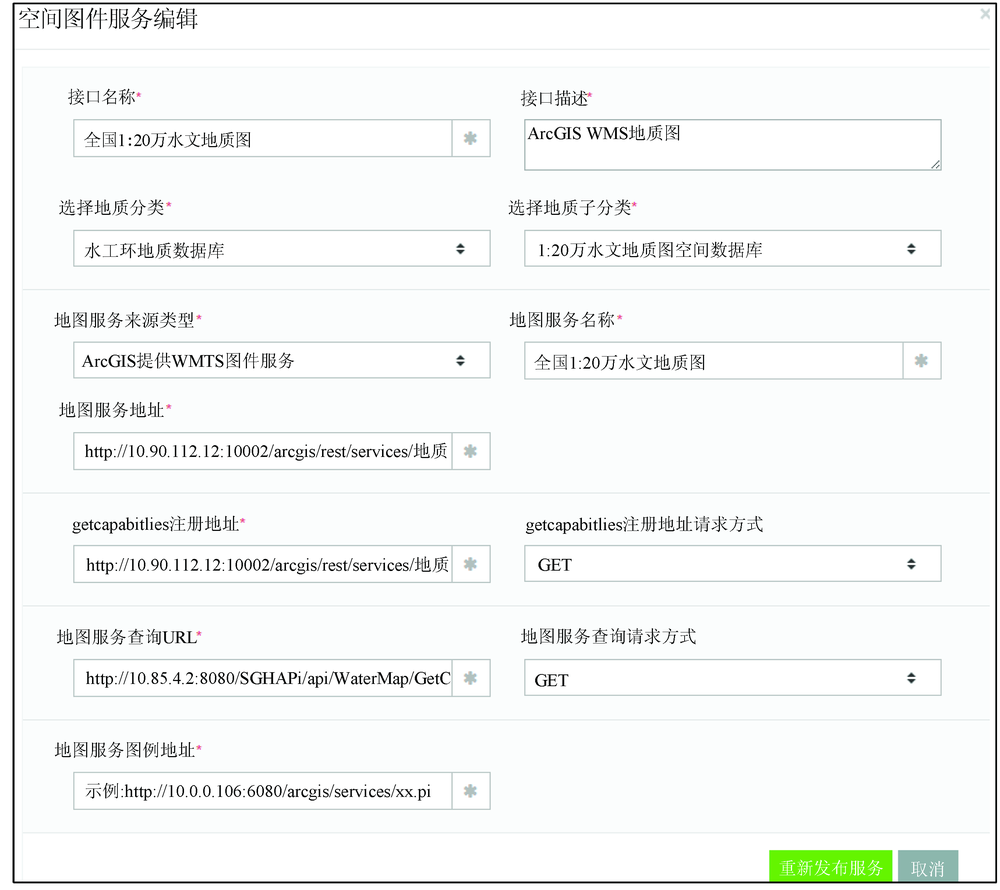

Fig.3  Data sharing service registration interface
序号 推送内容名称 接入分类 内容描述
1 TBL_HAZARDBA-SICINFO 数据库 地质灾害综合表,包含崩塌滑坡等7种类型数据
2 TBL_GW_NBOREHOLEINFO 数据库 国家级地下水监测点信息
3 TBL_GW_
WELLINFO		 数据库 示范区地下水监测点信息
4 TBL_MINE_
BASEINFO		 数据库 矿山基本信息
5 TBL_DZYJ_GEORELICSINFO 数据库 地质遗迹点信息
6 产品URL 图件 推送产品详情URL
Tab.3  Geological information push contents registration form

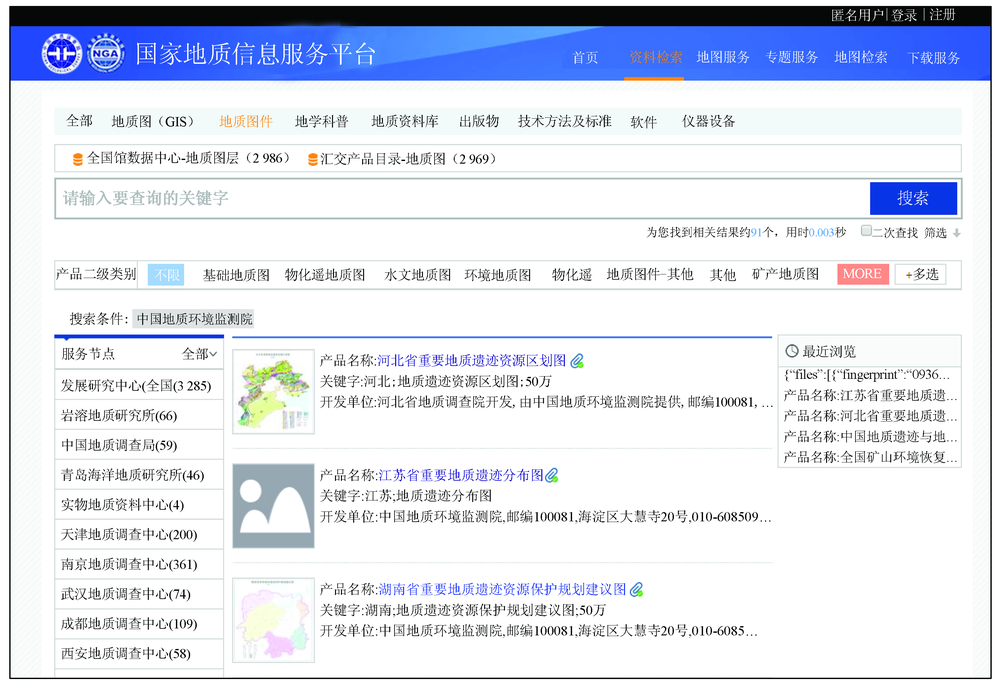

Fig.4  Products browsing interface by national geological information service platform
Fig.5  Service portal interface integration diagram
Fig.6  Construction results of geological environment sub-node
[1] 李超岭, 李健强, 张宏春 , 等. 智能地质调查大数据应用体系架构与关键技术[J]. 地质通报, 2015,34(7):1288-1299.
[1] Li C L, Li J Q, Zhang H C , et al. Big data application architecture and key technologies of intelligent geological survey[J]. Geological Bulletin of China, 2015,4(7):1288-1299.
[2] 李丰丹, 李超岭, 吴亮 , 等. 大数据环境下数字填图数据集成服务技术[J]. 地质通报, 2015,34(7):1300-1308.
[2] Li F D, Li C L, Wu L , et al. Data integration and services of digital geological mapping based on big data[J]. Geological Bulletin of China, 2015,34(7):1300-1308.
[3] 郑啸, 李景超, 王翔 , 等. 大数据背景下的国家地质信息服务系统建设[J]. 地质通报, 2015,34(7):1316-1322.
[3] Zheng X, Li J C, Wang X , et al. Construction of the national geological information service system in the age of big data[J]. Geological Bulletin of China, 2015,34(7):1316-1322.
[4] 张玉清, 王晓菲, 刘雪峰 , 等. 云计算环境安全综述[J]. 软件学报, 2016,27(6):1328-1348.
[4] Zhang Y Q, Wang X F, Liu X F , et al. Survey on cloud computing security[J]. Journal of Software, 2016,27(6):1328-1348.
[5] 林闯, 苏文博, 孟坤 , 等. 云计算安全:架构、机制与模型评价[J]. 计算机学报, 2013,36(9):1765-1784.
[5] Lin C, Su W B, Meng K , et al. Cloud computing security:Architecture, mechanism and modeling[J]. Chinese Journal of Computers, 2013,36(9):1765-1784.
[6] Liu Y C, Ma Y T, Zhang H S , et al. A method for trust management in cloud computing:Data coloring by cloud watermarking[J]. International Journal of Automation and Computing, 2011,8(3):280-285.
[7] 周杰, 李文敬 . 基于云计算的物流区块链共识算法研究[J]. 计算机工程与应用, 2018,54(19):237-242.
[7] Zhou J, Li W J . Research on logistics block chain consensus algorithm based on cloud computing[J]. Computer Engineering and Applications, 2018,54(19):237-242.
[8] 周静, 董守斌, 唐德玉 . 基于入侵肿瘤生长优化的云计算调度算法[J]. 计算机学报, 2018,41(6):1140-1155.
[8] Zhou J, Dong S B, Tang D Y . Task scheduling algorithm in cloud computing based on invasive tumor growth optimization[J]. Chinese Journal of Computers, 2018,41(6):1140-1155.
[9] 陈红松, 王钢, 宋建林 . 基于云计算入侵检测数据集的内网用户异常行为分类算法研究[J]. 信息网络安全, 2018,( 3):1-7.
[9] Chen H S, Wang G, Song J L . Research on anomaly behavior classification algorithm of internal network user based on cloud computing intrusion detection data set[J]. Netinfo Security, 2018,( 3):1-7.
[10] 陈阳 . 国内外云计算产业发展现状对比分析[J]. 北京邮电大学学报(社会科学版), 2014,16(5):77-83.
[10] Chen Y . Comparative study of developing situation of cloud computing industry in China and abroad[J]. Journal of Beijing University of Posts and Telecommunications (Social Sciences Edition), 2014,16(5):77-83.
[11] 顾华奇, 梅承华, 廖明伟 . SuperMap平台下综合地理信息保障云服务系统建设[J]. 测绘通报, 2018,( 5):141-146.
[11] Gu H Q, Mei C H, Liao M W . The construction of integrated geographic information support cloud service system based on SuperMap[J]. Bulletin of Surveying and Mapping, 2018,( 5):141-146.
[12] 范协裕, 邢世和, 杨荔阳 , 等. 基于OGC标准的耕地地理信息共享服务[J]. 国土资源遥感, 2017,29(3):224-230.doi: 10.6046/gtzyyg.2017.03.33.
[12] Fan X Y, Xing S H, Yang L Y , et al. Spatial information service of cultivated land based on OGC standards[J]. Remote Sensing for Land and Resources, 2017,29(3):224-230.doi: 10.6046/gtzyyg.2017.03.33.
