A processing technique of step effect in concentration-area multifractal method
HAN Deng-Hui1(), GAO Shun-Bao2(), ZHENG You-Ye1,2, CHEN Xin1, JIANG Xiao-Jia1, GU Yan-Rong1, YAN Chen-Chen1
1. Faculty of Earth Resource, China University of Geosciences(Wuhan), Wuhan 430074, China 2. Geological Survey, China University of Geosciences(Wuhan), Wuhan 430074, China
In the geochemical stream sediment survey, obvious differences in geochemical backgrounds of different geological bodies will affect the anomaly delineation and even lead to enhancement of anomalies irrelevant to mineralization, which weakens the mineralization-related weak anomalies. In this paper,the influence of step effect data on the fractal distribution form is discussed from the mathematical view based on the superposition law of fractal distribution, and an improved method for eliminating step effects in concentration-area fractal theory is proposed.In this method, the authors divide the study area based on geochemical background and then discuss fractal distribution forms respectively.The result shows that this method can accurately filter irrelevant lithology information and identify weak anomalies caused by mineralization in low-background sub-zone. It is applicable to the extraction of geochemical mineralization-related anomaly in the areas seriously affected by lithology.
Deng-Hui HAN,Shun-Bao GAO,You-Ye ZHENG, et al. A processing technique of step effect in concentration-area multifractal method[J]. Geophysical and Geochemical Exploration,
2020, 44(6): 1420-1428.

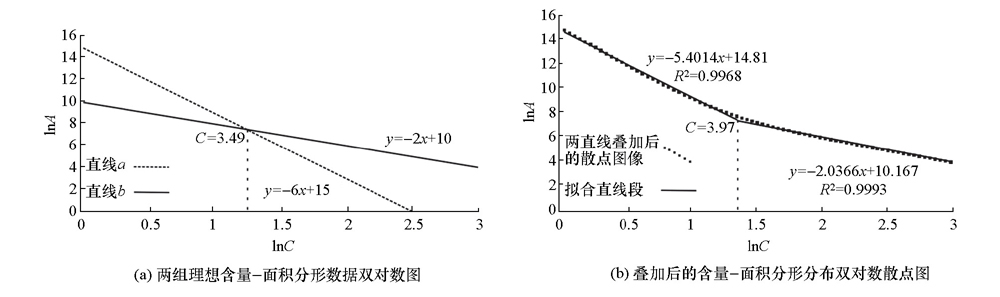

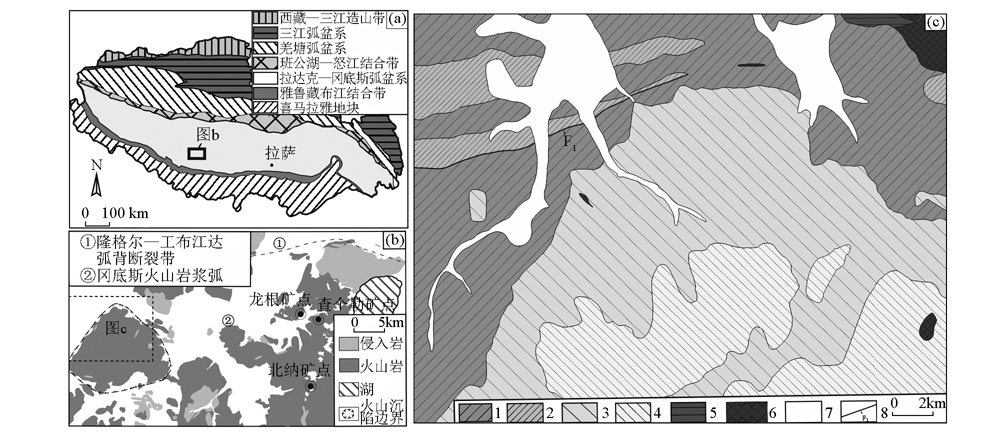

Tectonics and position regional map of Gangdise(a)[27], sketch map of regional mineral resources(b) and geological map(c) in Pujie area 1—upper Carboniferous-lower Permian Laga formation(C2P1l); 2—lower Permian Angjie formation(P1a); 3—Paleocene Dianzhong formation(E1d); 4—Eocene Nianbo formation(E2n); 5—upper Cretaceous Jiangba formation(K2jb); 6—intrusions; 7—Quaternary sediments(Q); 8—Duijiala reverse fault
参数
Au
Ag
Cu
Pb
Zn
Cd
W
Sn
Mo
Bi
As
Sb
Hg
P
Mn
B
平均值
0.85
0.10
13.57
55.21
77.90
0.19
3.45
5.79
0.89
0.60
36.77
1.91
0.03
400.26
628.07
54.30
标准差
2.63
0.77
14.17
148.16
84.91
0.38
5.44
16.75
1.17
1.49
367.71
3.59
0.01
229.32
478.59
30.56
富集系数
0.99
1.73
0.8
2.91
1.15
2.34
3.56
2.76
1.44
3.33
8.36
5.63
0.55
0.73
1.08
2.59
变异系数
3.11
7.45
1.04
2.68
1.09
2.02
1.58
2.89
1.31
2.49
10
1.88
0.42
0.57
0.76
0.56
地层
衬值
Au
Ag
Cu
Pb
Zn
Cd
W
Sn
Mo
Bi
As
Sb
Hg
P
Mn
B
第四系
1.32
1.33
1.27
1.15
1.16
1.17
1.02
1.55
0.98
1.12
1.52
1.18
1.03
1.19
1.11
1.07
昂杰组
1.6
1.17
1.72
1.04
1.29
1.17
1.03
1
1.06
1.24
1.24
1.24
1.2
1.52
1.23
1.61
晚白垩—始新世岩体
0.92
1.17
0.91
0.86
1.03
1
1.01
0.83
1.06
0.74
1.05
0.75
0.94
1.47
1.05
0.94
年波组
1.48
1.83
0.62
2.07
1.15
2.17
1.35
2.35
0.98
1.68
4.04
1.66
0.72
0.6
1.11
0.72
拉嘎组
2.02
1.25
1.83
1.07
1.36
1.28
1.09
1
0.99
1.16
1.27
1.11
1.29
1.52
1.14
1.38
典中组
0.9
2.17
0.63
1.66
1.07
1.5
1
1.1
1.28
0.96
0.92
1.13
0.91
0.75
1.02
0.77
Statistic characteristic geochemistry exploration data from Pujie area

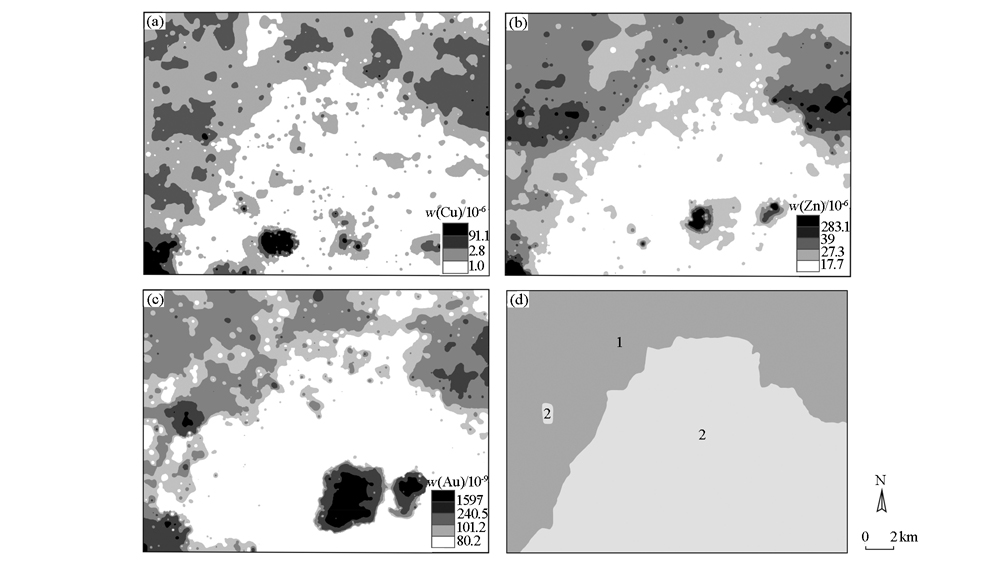

Geochemistry contour map and background division from Pujie area a—geochemical contour map of Cu; b—geochemical contour map of Zn; c—geochemical contour map of Au; d—geochemical background division from Pujie area; 1—subzone of Carboniferous-Permian sedimentary strata;2—subzone of Paleogene volcanic strata

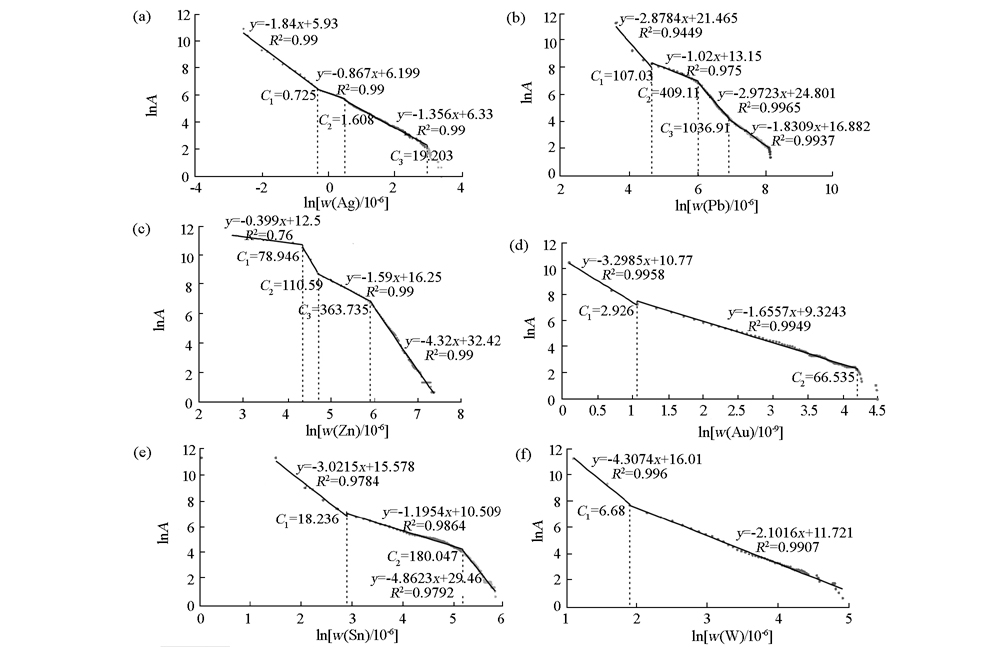

Concentration-area double logarithmic plot and section lines fitting patterns of Ag(a),Pb(b),Zn(c),Au(d),Sn(e),W(f) in whole-area from Pujie area

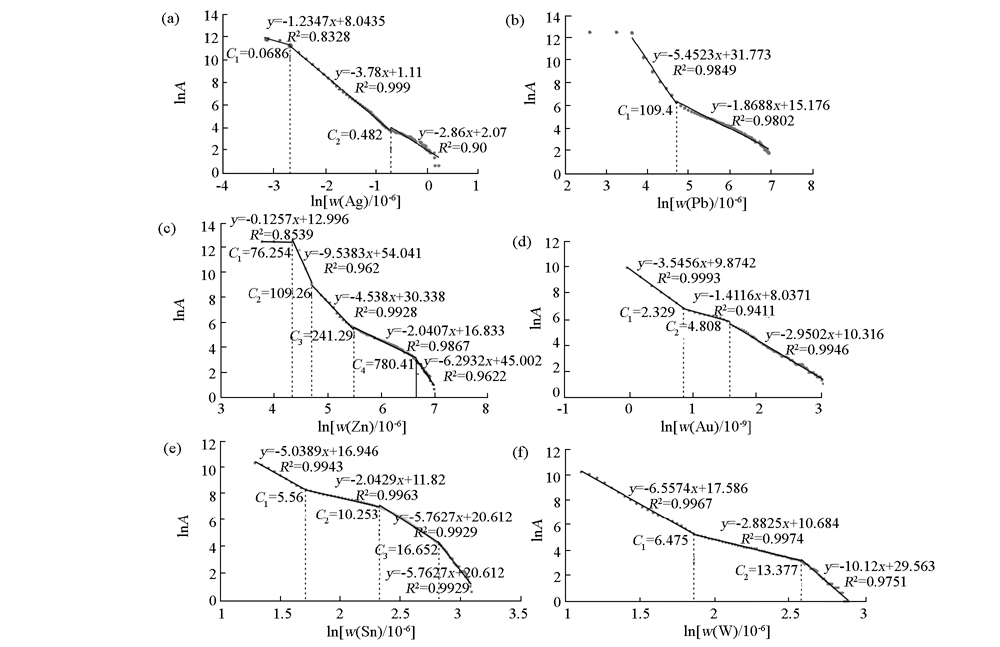

Concentration-area double logarithmic plot and section lines fitting patterns of Ag(a),Pb(b),Zn(c),Au(d),Sn(e),W(f) in subzone-1 from Pujie area

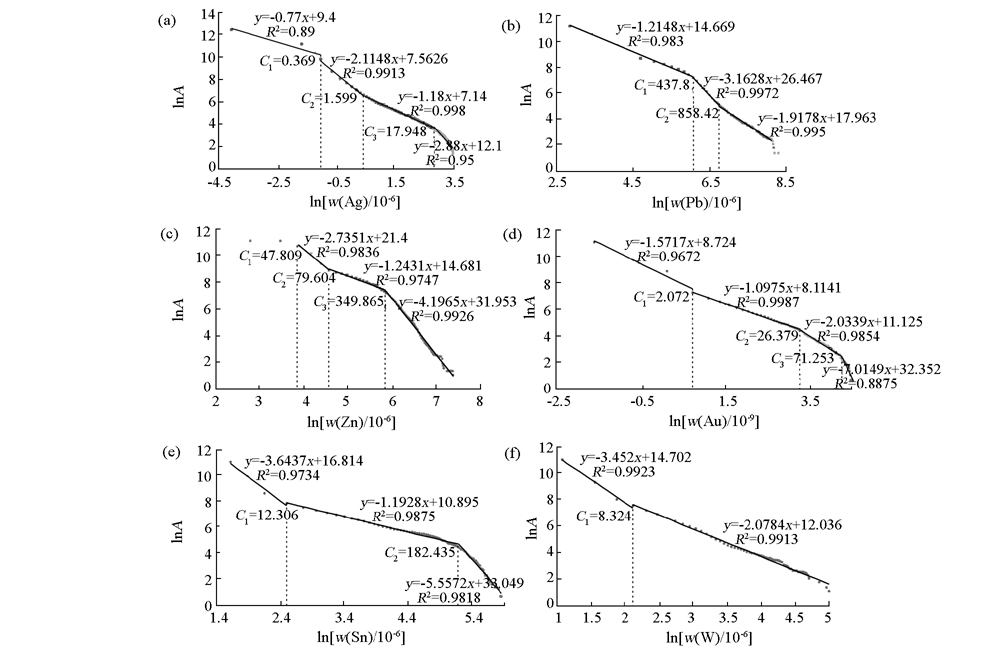

Concentration-area double logarithmic plot and section lines fitting patterns of Ag(a),Pb(b),Zn(c),Au(d),Sn(e),W(f) in subzone-2 from Pujie area
