低阻页岩电阻率主控因素研究

doi:10.11720/wtyht.2022.1123

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (7367 KB) HTML (0 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The Longmaxi Formation is one of the major exploration horizons of shale in China at present. The gas-bearing sediments in the Lower Paleozoic Longmaxi Formation in the Yangtze area, South Sichuan are characterized by low resistivity. Therefore, it is difficult to distinguish the gas-bearing sediments from aquifers only using logging response. Given this, this study investigated the genetic mechanisms of low-resistivity gas-bearing sediments in the study area in depth using existing data of conventional logging, core drilling, and production-related dynamic conditions, as well as a large number of core analyses and experiments, including casting thin sections, QEMSCAN, and X whole-rock diffraction. According to the study results, three major controlling factors in the low-resistivity gas-bearing sediments of the Lower Paleozoic Longmaxi Formation in the Yangtze region, South Sichuan include the additional conductivity of clay minerals, the complete graphitization of over-mature organic matter, and the distribution pattern of organic matter laminae. The practical application results indicate that the low-resistivity gas-bearing sediments in the study area were formed due to the organic matter laminae developing and the partial graphitization of organic matter. That is, the low resistivity of the shale gas reservoirs tends to be caused by the mutual superimposition and effects of multiple factors. Therefore, it is necessary to analyze the geological, logging, and core data according to various zones and horizons and employ the correlation between upper and lower horizons and between adjacent wells to determine the major controlling factors of the low resistivity of the shale gas reservoirs.

Key words： shale gas low-resistivity formation logging evaluation influencing factors

Received: 12 March 2021 Published: 25 February 2022

ZTFLH:

P631

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Rui-Kang CUI
	Jian-Meng SUN
	Xing-Jun LIU
	Xiao-Feng WEN

Cite this article:

Rui-Kang CUI,Jian-Meng SUN,Xing-Jun LIU, et al. Major controlling factors of low-resistance shale gas reservoirs[J]. Geophysical and Geochemical Exploration, 2022, 46(1): 150-159.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2022.1123 OR https://www.wutanyuhuatan.com/EN/Y2022/V46/I1/150

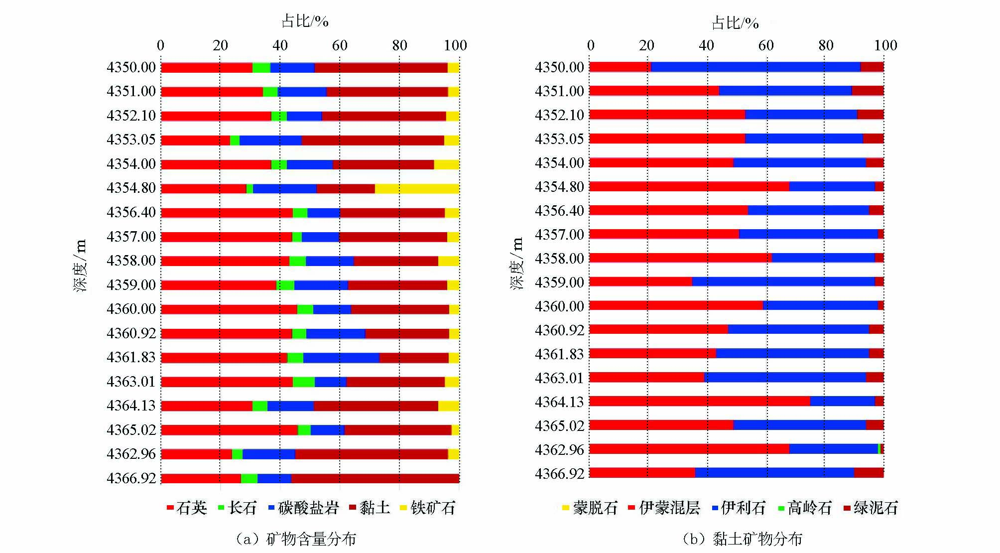

Mineral content distribution and clay mineral distribution map of the study area

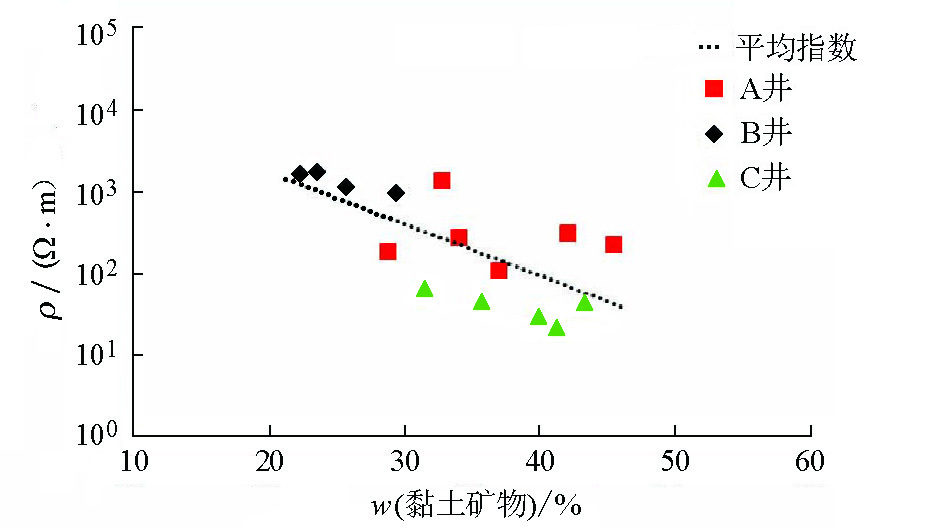

Clay minerals and resistivity diagram

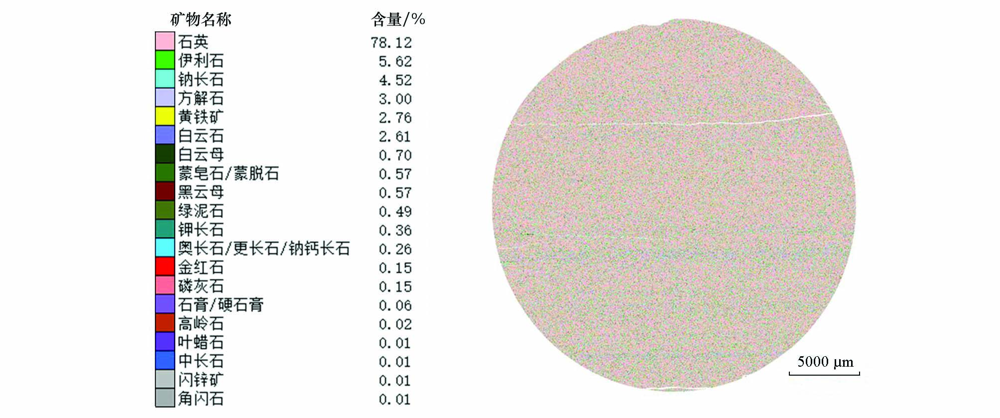

Mineral quantitative analysis diagram

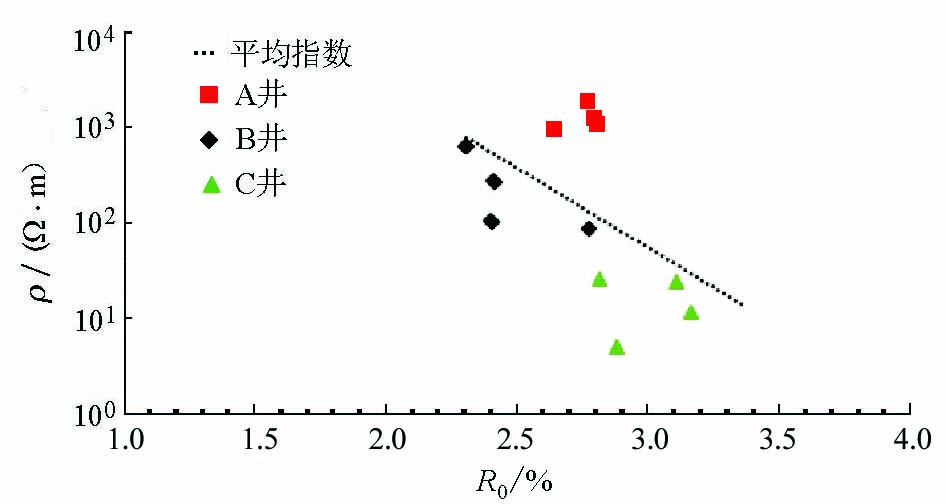

Statistical relationship between resistivity and R_O

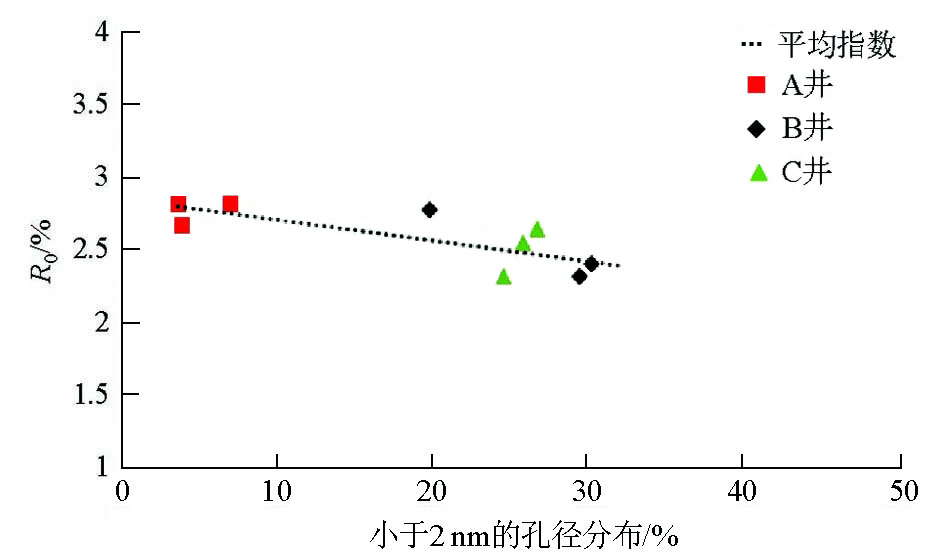

Statistical relationship between R_O and aperture distribution

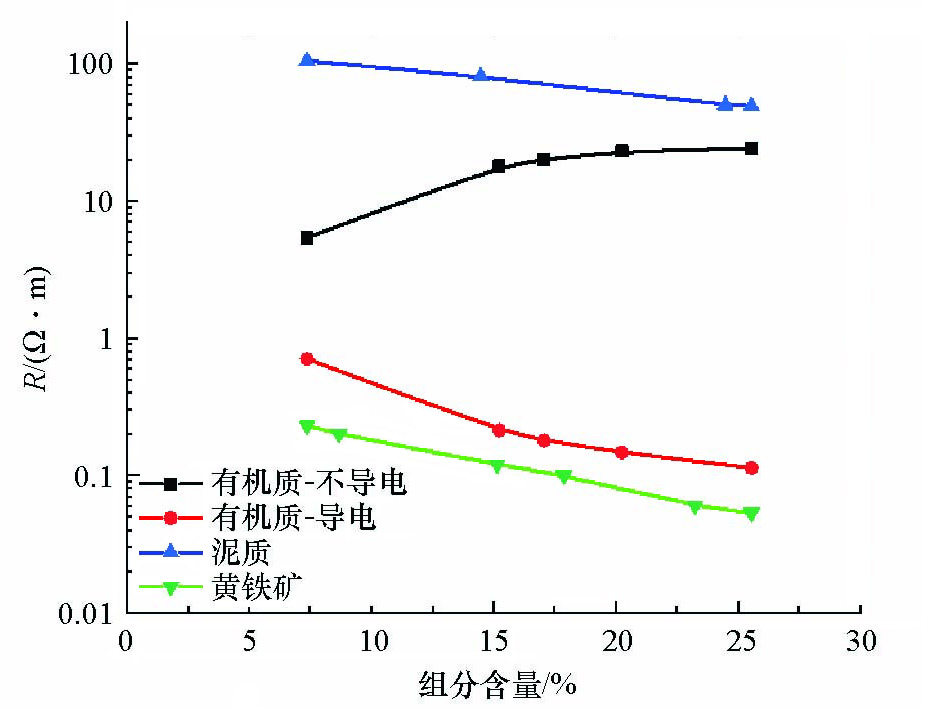

Influence of various rock components on resistivity

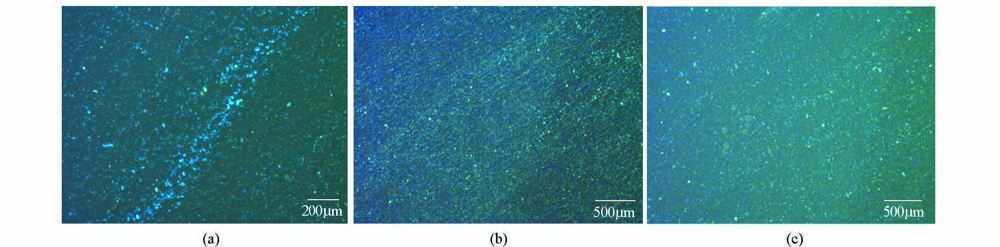

Distribution characteristics of organic lamination under fluorescence microscope
a—a gray-black siliceous mudstone of the Longmaxi Formation with a sampling depth of 3 084.09 m, a resistivity of 0.1 Ω·m, a high content of bright clay minerals (zeolite), bedding joints, and obvious organic lamination; b—black shale of Longmaxi Formation with a sampling depth of 3 931.72 m and a measured resistivity of 10 Ω·m. Due to the disordered distribution of organic matter and clay minerals, the lamina is discontinuous; c—black shale of Longmaxi Formation with sampling depth of 4 039.3 m, measured resistivity of 15.42 Ω·m, low organic matter content and scattered laminae

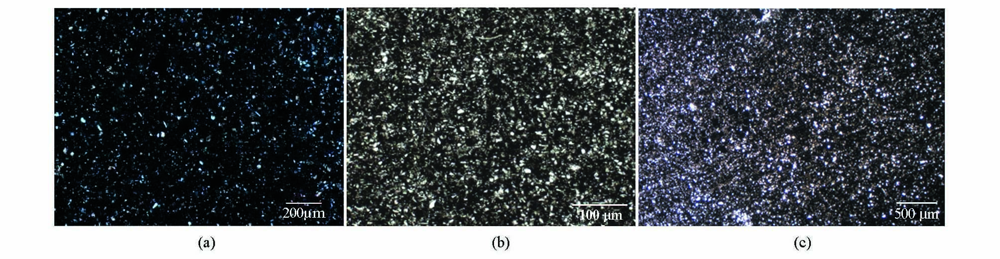

Characteristics of organic lamination under polarizing microscope
a—a gray-black siliceous mudstone of the Longmaxi Formation with a sampling depth of 3 084.09 m and a measured resistivity of 0.1 Ω·m. Multiple laminas stack each other to form an organic-rich layer with no obvious interface; b—black shale of Longmaxi Formation with a sampling depth of 3 931.72 m and a measured resistivity of 10 Ω·m. Some laminar organic matter is distributed in blocks, and multiple laminates stack each other to form organic matter bearing layers with no obvious interface; c—black shale of Longmaxi Formation with a sampling depth of 4 039.3 m and a measured resistivity of 15.42 Ω·m. The organic-rich laminae and organic-containing laminae stack each other to form graded layers

Mineral composition of shale thin sections

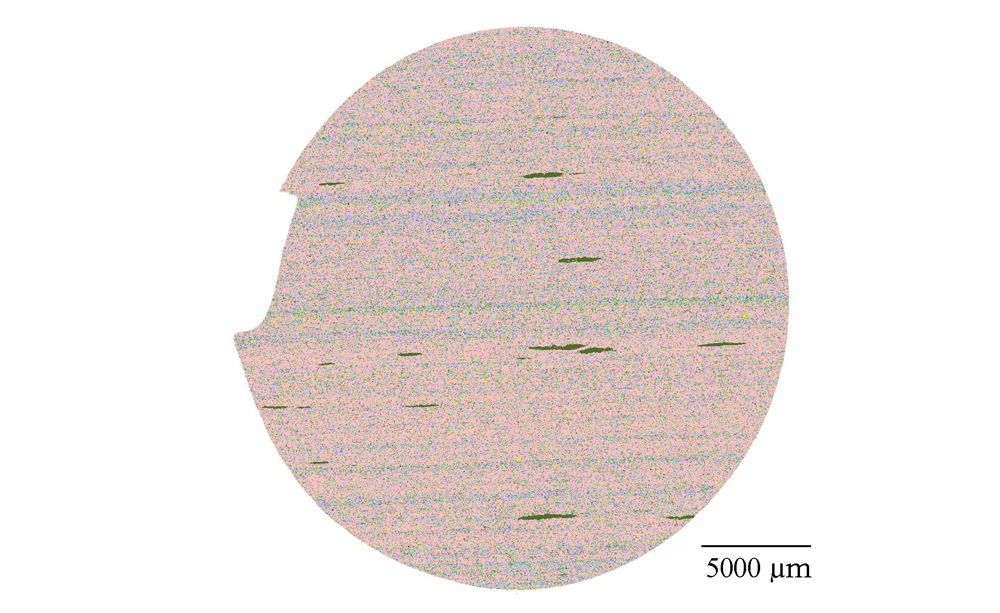

QEMSCAN Shale Sections

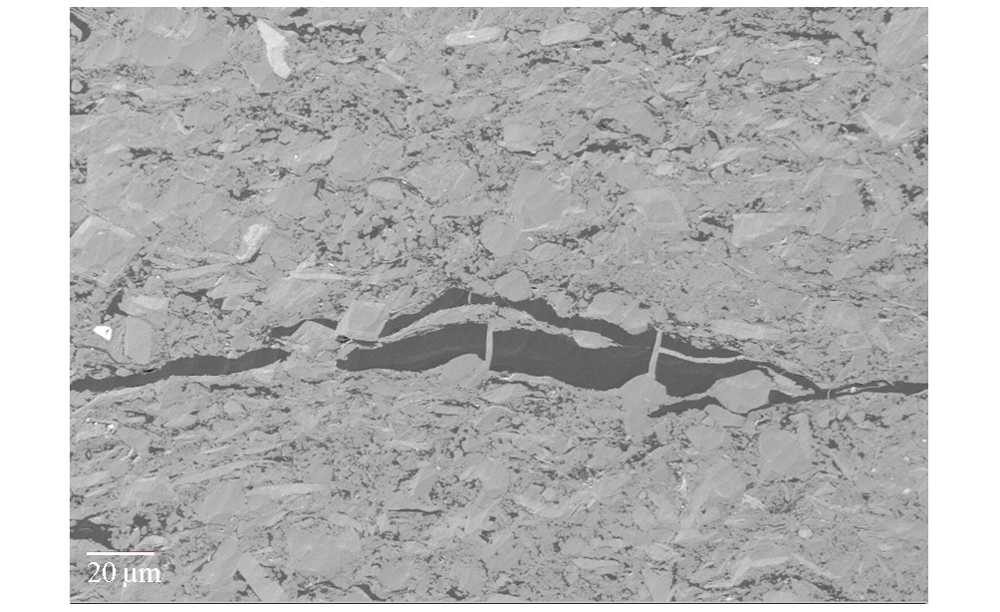

Clay laminae filled with organic matter

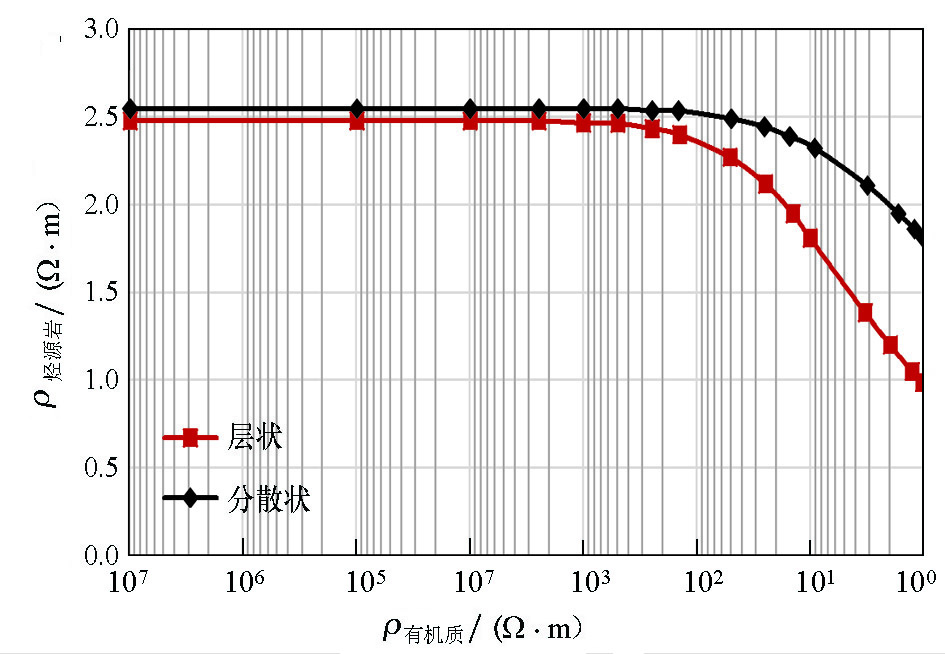

Relation between the resistivity of source rocks rich in organic matter and the resistivity of organic matter

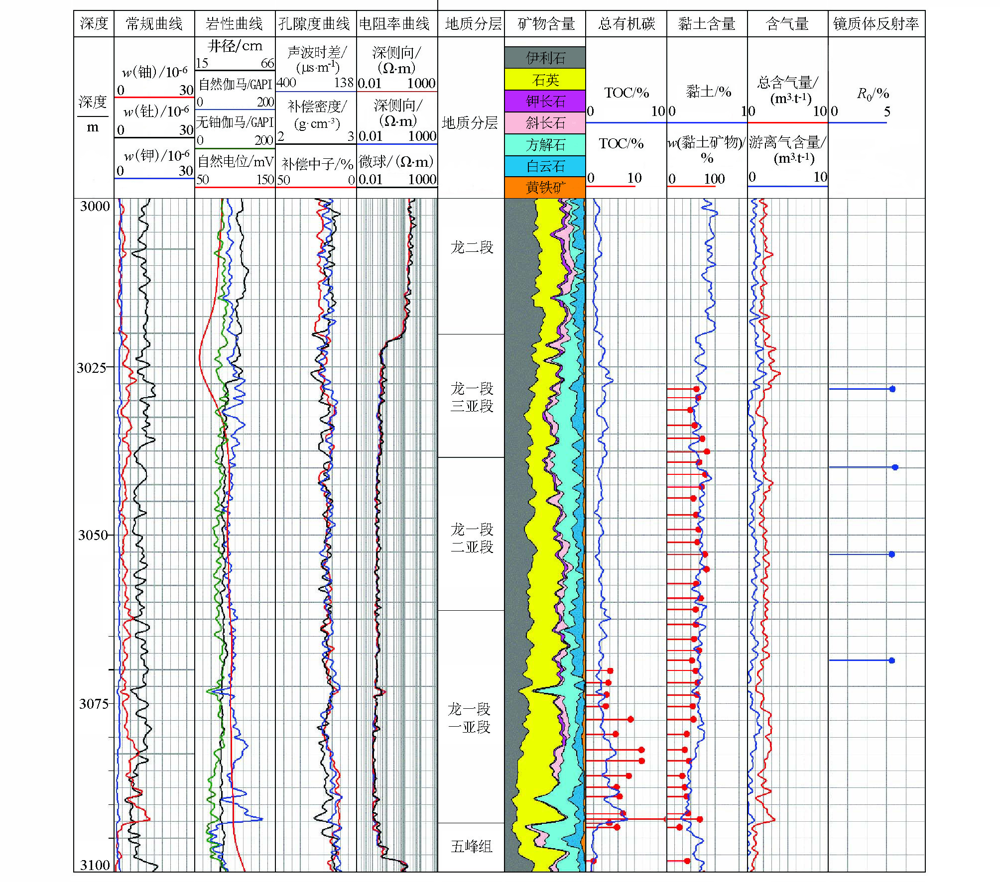

Logging interpretation results of Well A
