基于速度移动窗的最小熵法在GPR逆时偏移中的应用

doi:10.11720/wtyht.2023.1556

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (6342 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

Velocity is a key parameter determining the migration imaging resolution of ground penetrating radars (GPR).The method combining minimum image entropy and migration usually estimates the medium velocity by calculating the entropy curves using the overall migration profile as a fixed window.Therefore,such a method is not applicable to non-uniformly distributed media.Moreover,for this method,a too-high or too-low test velocity will make the convergence position of hyperbolic diffracted waves go beyond the fixed window,thus reducing the estimation accuracy.This study proposed a minimum entropy method based on a velocity-controlled moving window,in which the calculation window in the migration profile is accurately controlled by the test velocity.Then,this method was combined with inverse time migration to estimate the optimal migration velocity.By automatically adjusting the position of the calculation window using the trial velocity,this method keeps the convergence position of hyperbolic diffracted waves at the center of the calculation window.In this manner,stable and accurate entropy curves can be obtained.By comparing the calculation results with those of the minimum entropy method based on a fixed window,this study verified the correctness and effectiveness of the minimum entropy method based on a velocity-controlled moving window for a typical hyperbolic diffracted wave.As revealed by numerical experiments and the tests of measured data,compared with the minimum entropy method based on a fixed window,the minimum entropy method based on a velocity-controlled moving window can keep the convergence position of hyperbolic diffracted waves accurately at the center of the calculation window,yielding more stable entropy curves,lower computational complexity,higher estimation accuracy of the migration velocity,and better imaging performance of reverse time migration.

Key words： ground-penetrating radar (GPR) velocity-controlled moving window minimum entropy method reverse time migration

Received: 24 November 2022 Published: 27 October 2023

ZTFLH:

P631

Corresponding Authors: WANG Hong-Hua E-mail: 1076571663@qq.com;wanghonghua5@163.com

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Yu-He XI
	Hong-Hua WANG
	Yu-Cheng WANG
	Qi-Ming WU

Cite this article:

Yu-He XI,Hong-Hua WANG,Yu-Cheng WANG, et al. Application of the minimum entropy method based on a velocity-controlled moving window to the reverse time migration of ground-penetrating radars[J]. Geophysical and Geochemical Exploration, 2023, 47(5): 1250-1260.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2023.1556 OR https://www.wutanyuhuatan.com/EN/Y2023/V47/I5/1250

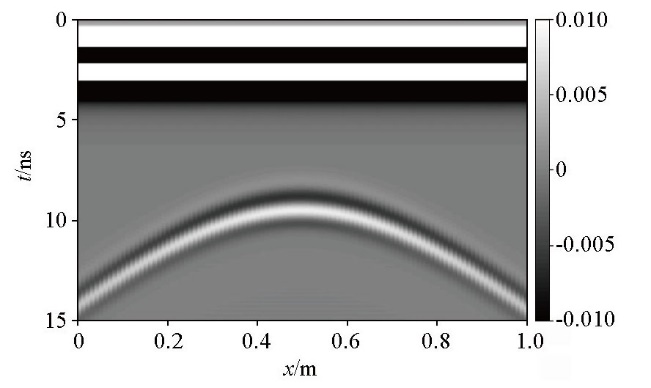

GPR 2D section with a hyperbola

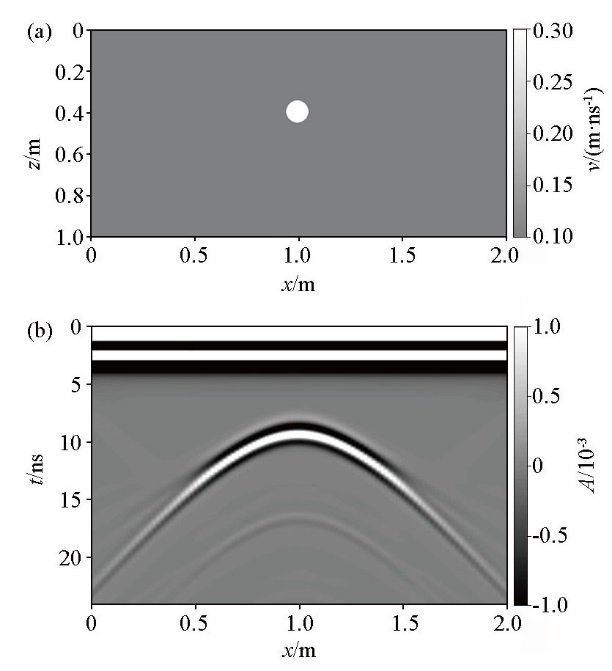

Velocity model of homogeneous medium(a) and its forward simulation profile(b)

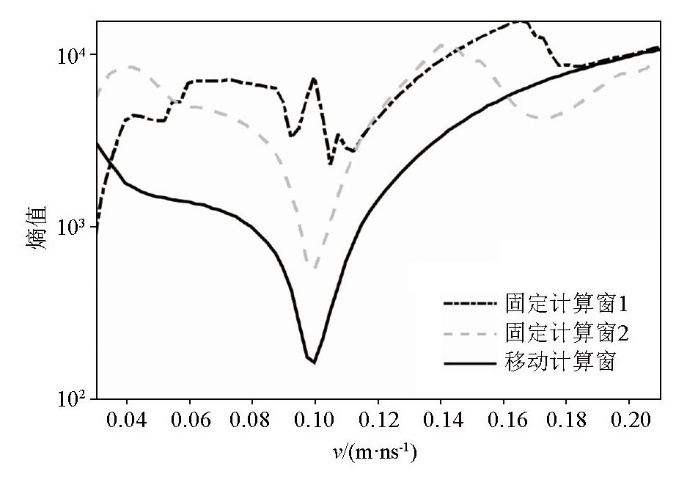

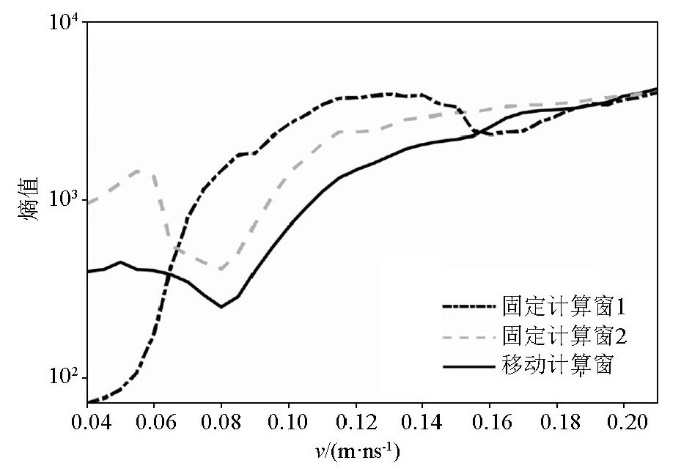

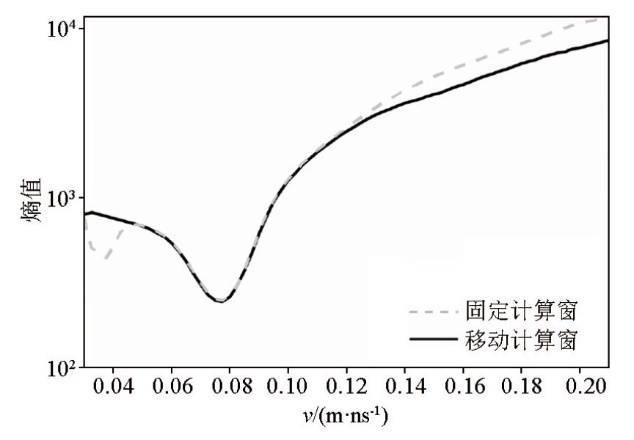

Entropy curve calculated with different windows

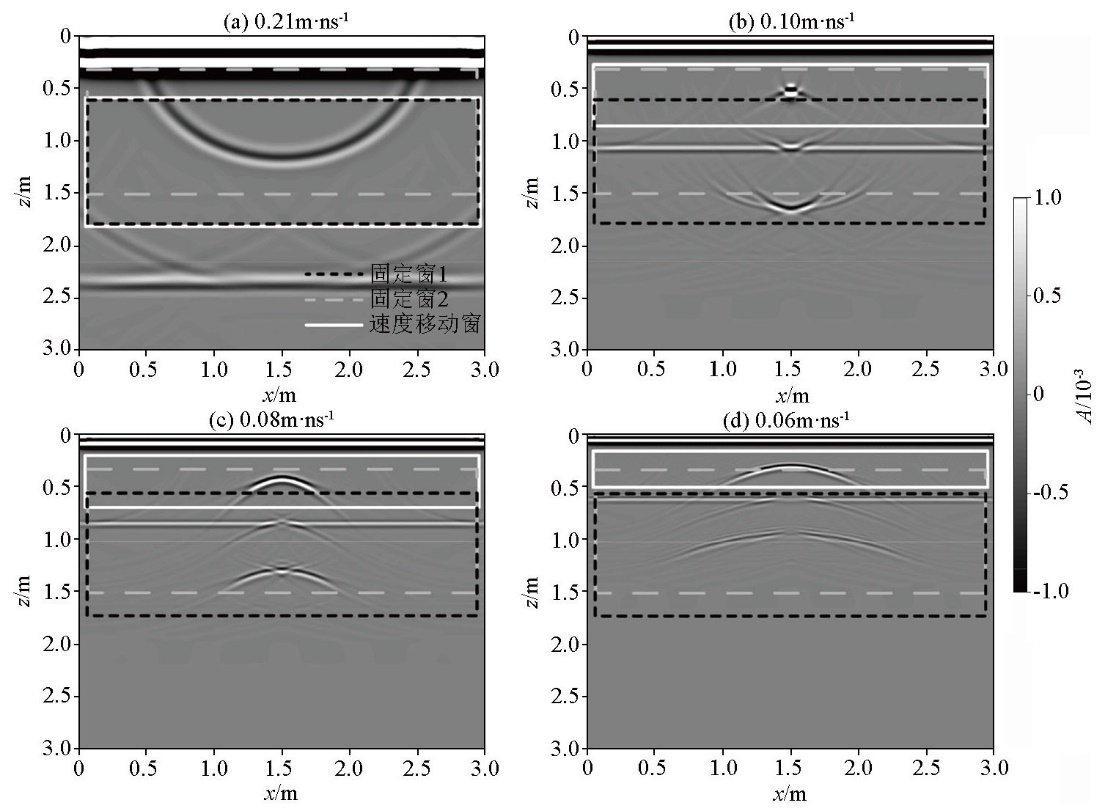

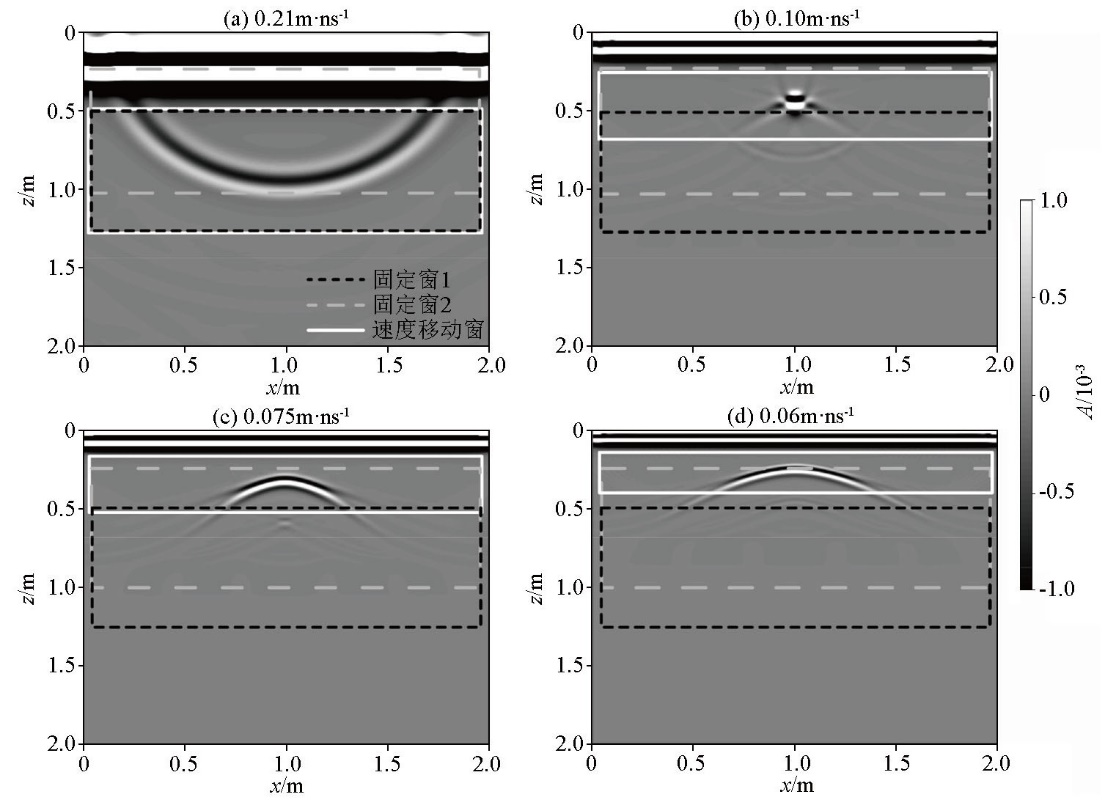

Reverse time migration profile of the uniform cavity model with different test velocities

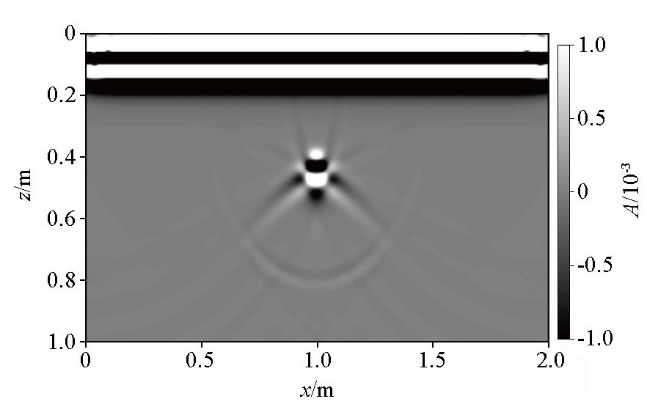

The reverse time migration profile calculated with the best migration velocity of 0.1 m/ns

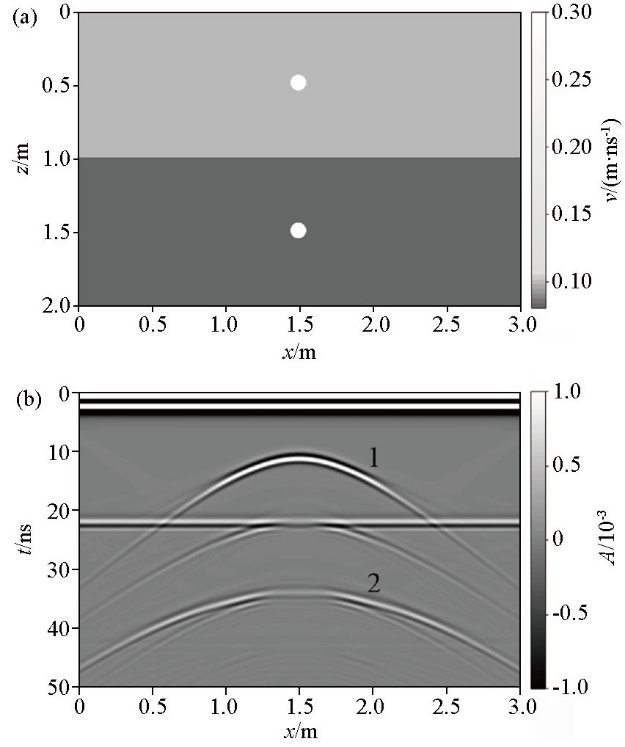

Velocity model of layered media(a) and its forward simulation profile(b)

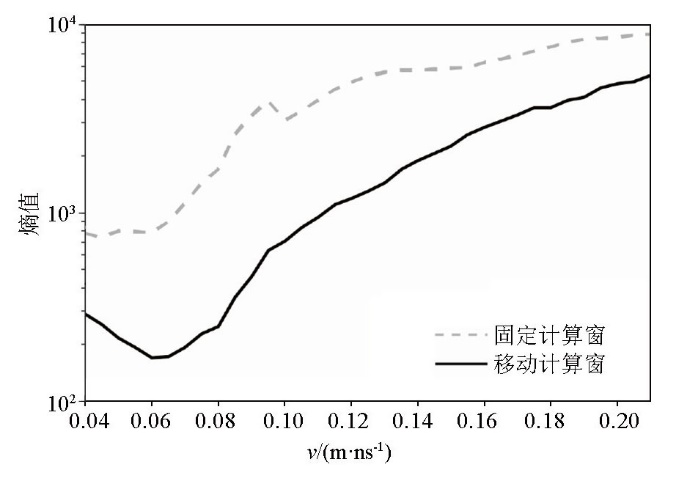

Calculate entropy of diffraction 1 in different windows

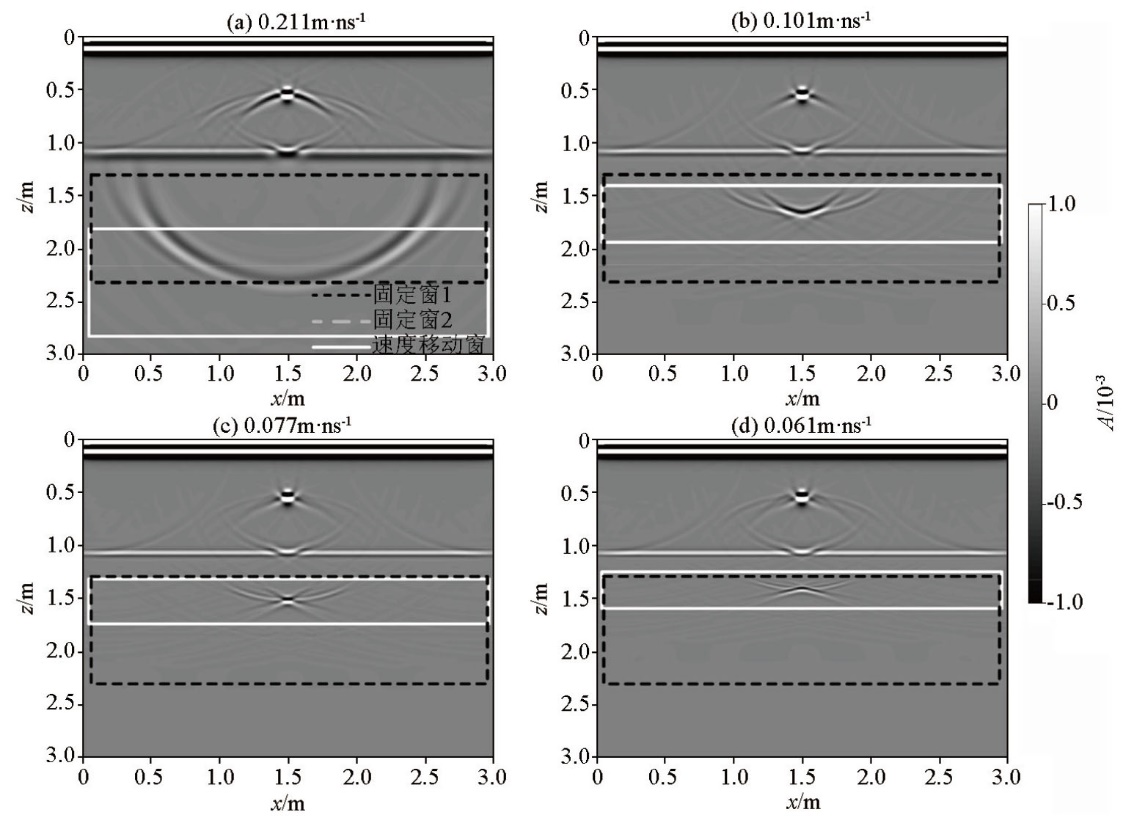

Reverse time migration profiles of different test velocities in the calculation of diffraction 1

Calculate entropy of diffraction 2 in different windows

Reverse time migration profiles of different test velocities in the calculation of diffraction 2

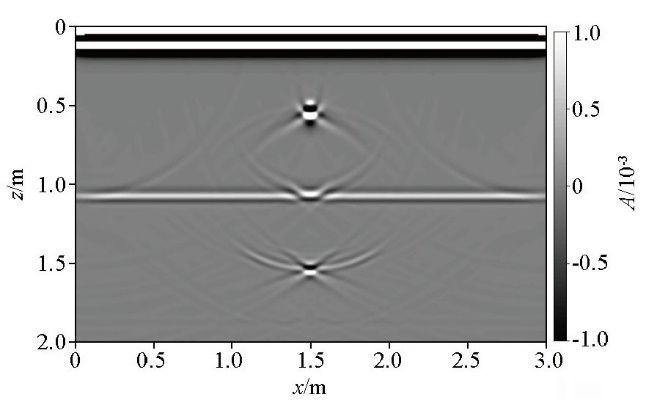

The reverse time migration profile calculated with the best migration velocity

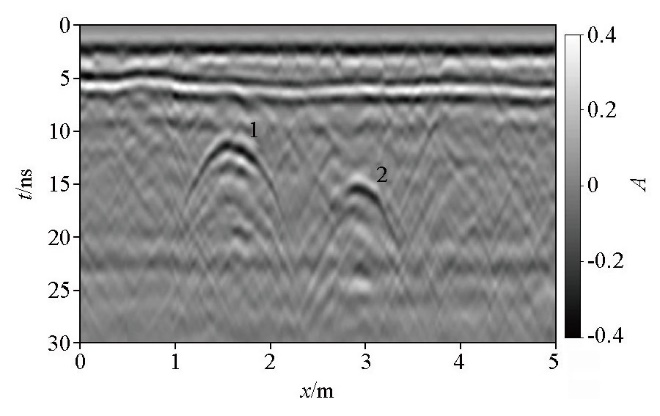

Measured GPR 2D profile

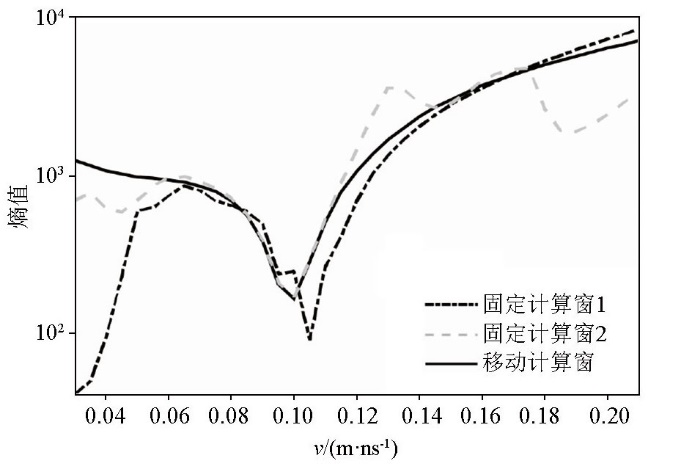

Calculate entropy of diffraction 1 in different windows

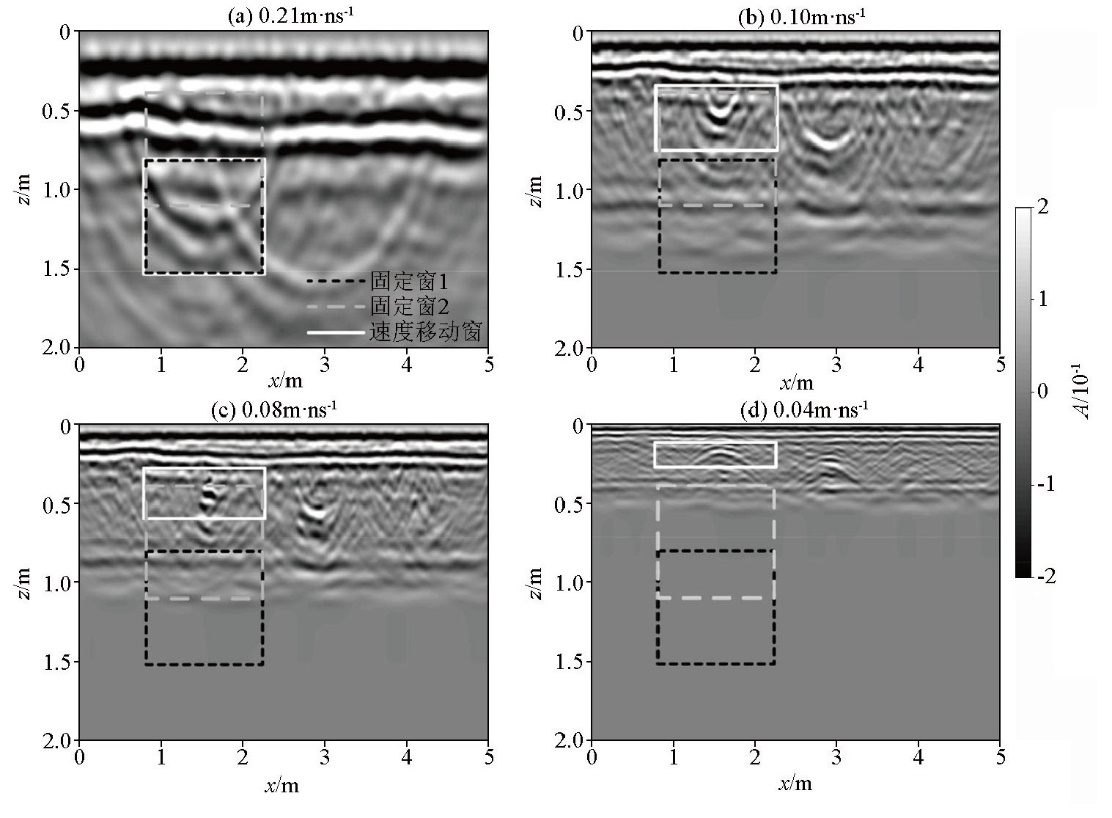

Reverse time migration profiles of different test velocities in the calculation of diffraction 1

Calculate entropy of diffraction 2 in different windows

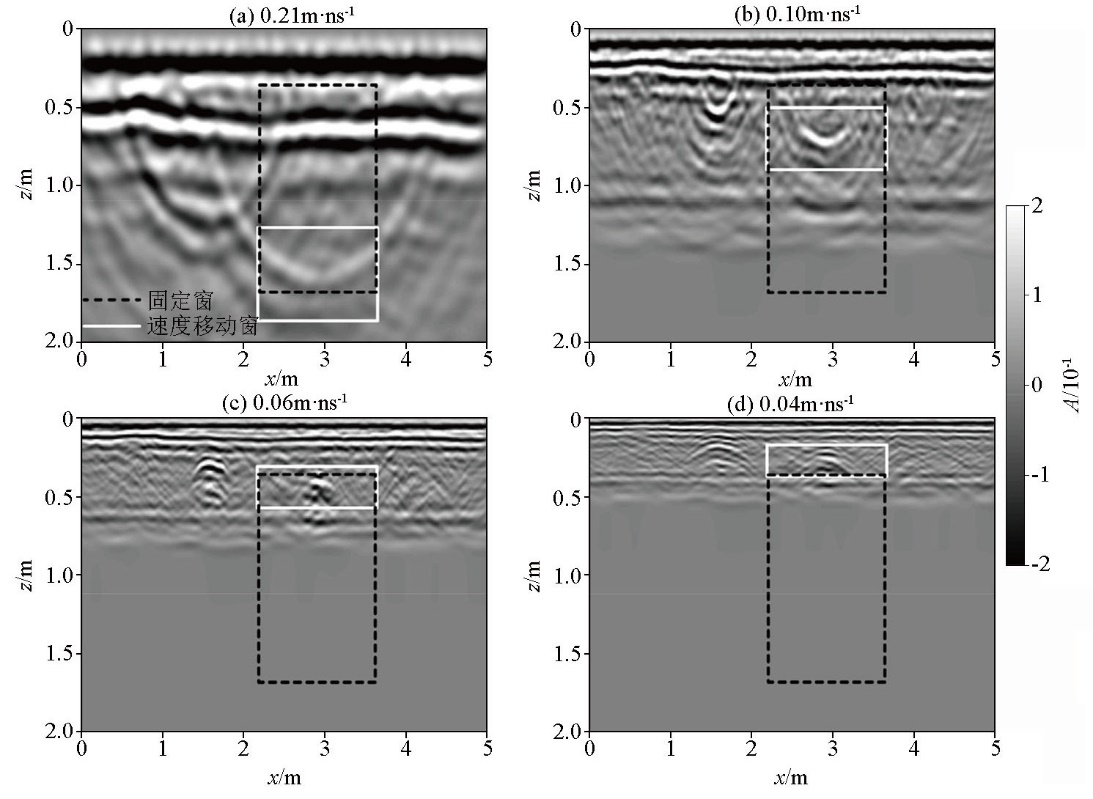

Reverse time migration profiles of different test velocities in the calculation of diffraction 2

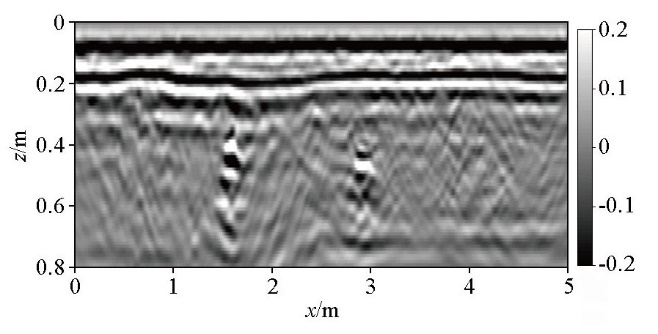

The reverse time migration profile calculated with the best migration velocity
