Adaptive prestack inversion method based on quadratic encoder-decoder network |
SHAN Bo1,2( ), XING Yu-Xin1,2( ), ZHANG Fan-Chang3, LI Zhi-Wei1,2, CHEN Mo1,2 |
1. Oil & Gas Resources Survey, China Geological Survey, Beijing 100083, China 2. Key Laboratory of Unconventional Oil and Gas, China Geological Survey, Beijing 100083, China 3. School of Geosciences, China University of Petroleum (East China), Qingdao 266580, China |
|
|
Abstract AVO inversion, based on the Zoeppritz equation, extracts various hidden petrophysical parameters from pre-stack seismic data. In seismic data, angle information is recorded in the form of offset values, and converting between offset values and angles is prone to generate errors. In addition, using the same approximate formula for different acreage types may lead to reduced applicability due to varying actual geological conditions. The exact Zoeppritz equation will lead to increased computational demands due to its high complexity. Therefore, this study developed an adaptive prestack inversion method based on the quadratic Encoder-Decoder network. This inversion method used the high feature and relationship extraction abilities of deep learning to replace traditional relationships, thereby reducing the angle errors and adapting to varying acreage types and geological conditions. The quadratic Encoder-Decoder network used a quadratic algorithm as the optimization method, maximizing the efficiency of the standard Encoder-Decoder structure. Additionally, the Xavier initialization method was incorporated to enhance the randomness of model initialization, thus improving the robustness of the network. The results indicate that the quadratic Encoder-Decoder network, selected through orthogonal experiments, outperforms the single-decoder network in prediction and exhibits greater consistency with actual log curves. The P-wave velocity, S-wave velocity, and density profiles obtained from inversion are consistent with the geological conditions of the study area, exhibit strong lateral continuity, and can effectively achieve high-precision prestack inversion.
|
Received: 29 May 2024
Published: 26 February 2025
|
|
Corresponding Authors:
XING Yu-Xin
|
|
|
|
|

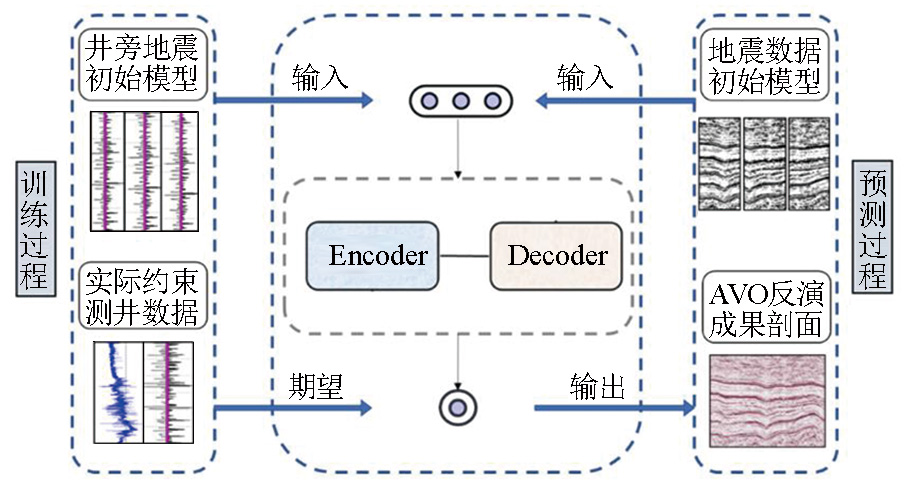

Pre-stack inversion training and prediction flow of quadratic Encoder-Decoder network
|
|

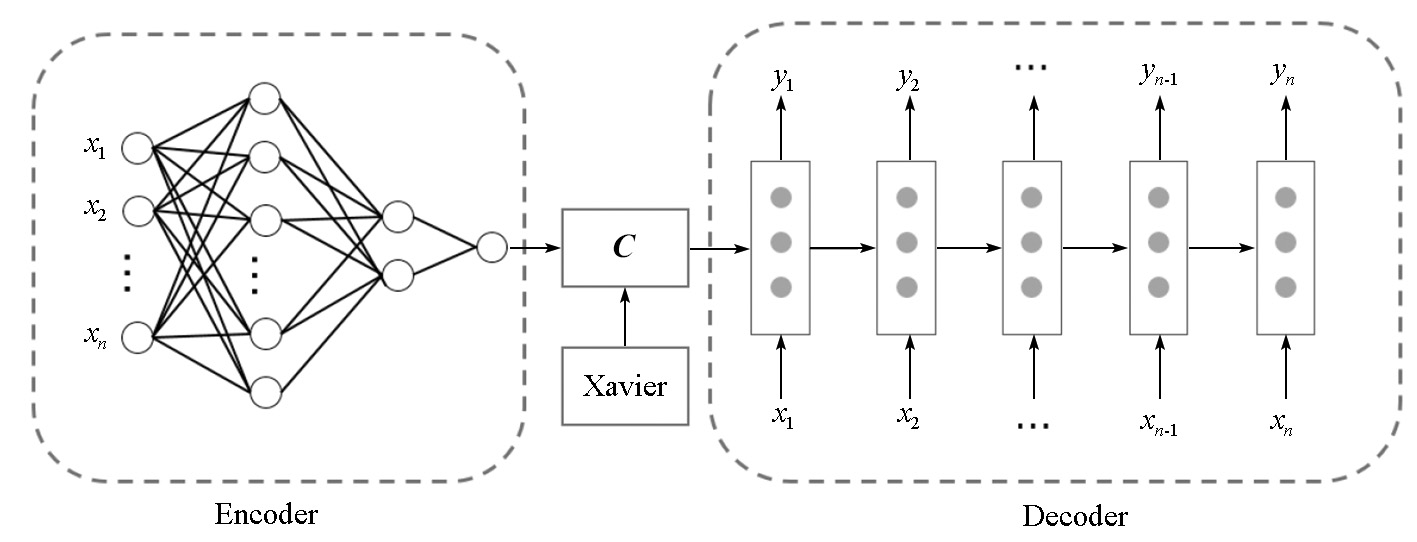

Quadratic Encoder-Decoder network structure
|
|

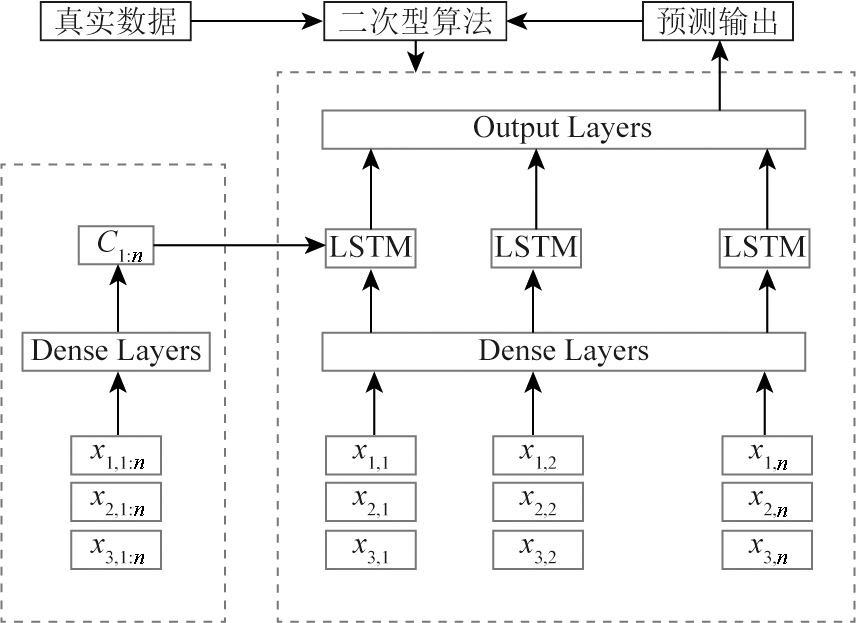

Quadratic Encoder-Decoder network training flow
|
网络类型 | 单层时间复杂度 | 全连接神经网 | O(M×N) | LSTM | O(T×h2) | CNN | O(L2×K2×Cin×Cout) | Self-Attention | O(T2×d) |
|
Time complexity of different neural networks
|
|

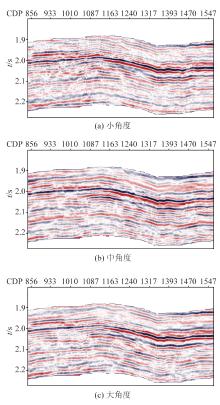

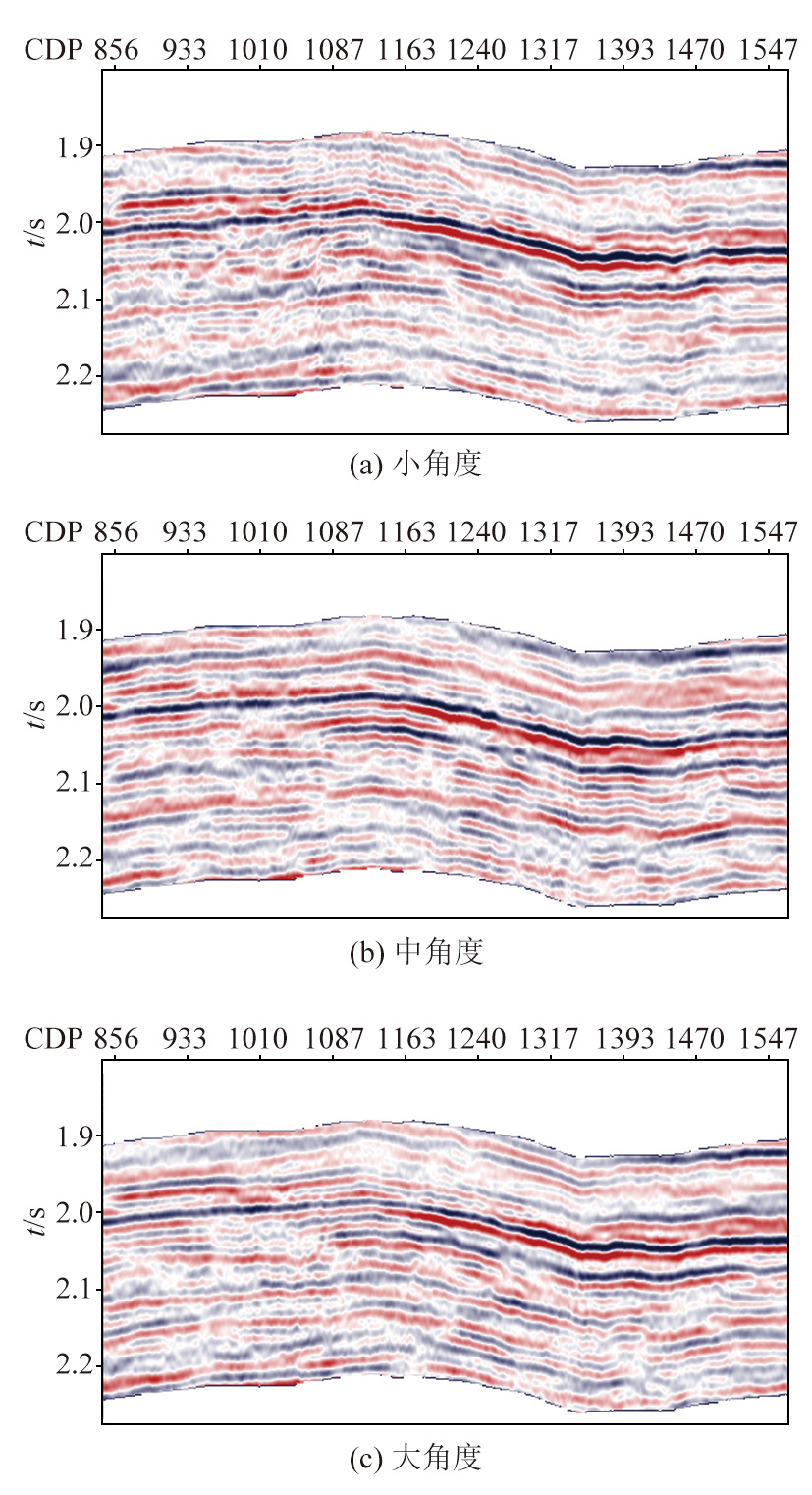

Partially angle-stacked seismic profile
|
因子 | 水平 | 1 | 2 | 3 | 4 | A)Encoder参数量 | 0.2 | 0.3 | 0.4 | 0.6 | B)Decoder层数 | 1 | 2 | 3 | 4 | C)Decoder维度 | 64 | 128 | 256 | 512 | D)优化算法 | Adam | 二次型 | | | E)Xavier初始化 | 是 | 否 | | |
|
Quadratic Encoder-Decoder network inversion factors table
|
| 因子 | A | B | C | D | E | 较优水平 | A3 | B2 | C3 | D2 | E1 | 因子主次 | 4 | 3 | 1 | 2 | 5 |
|
Analysis of experimental results of quadratic Encoder-Decoder network inversion
|
|

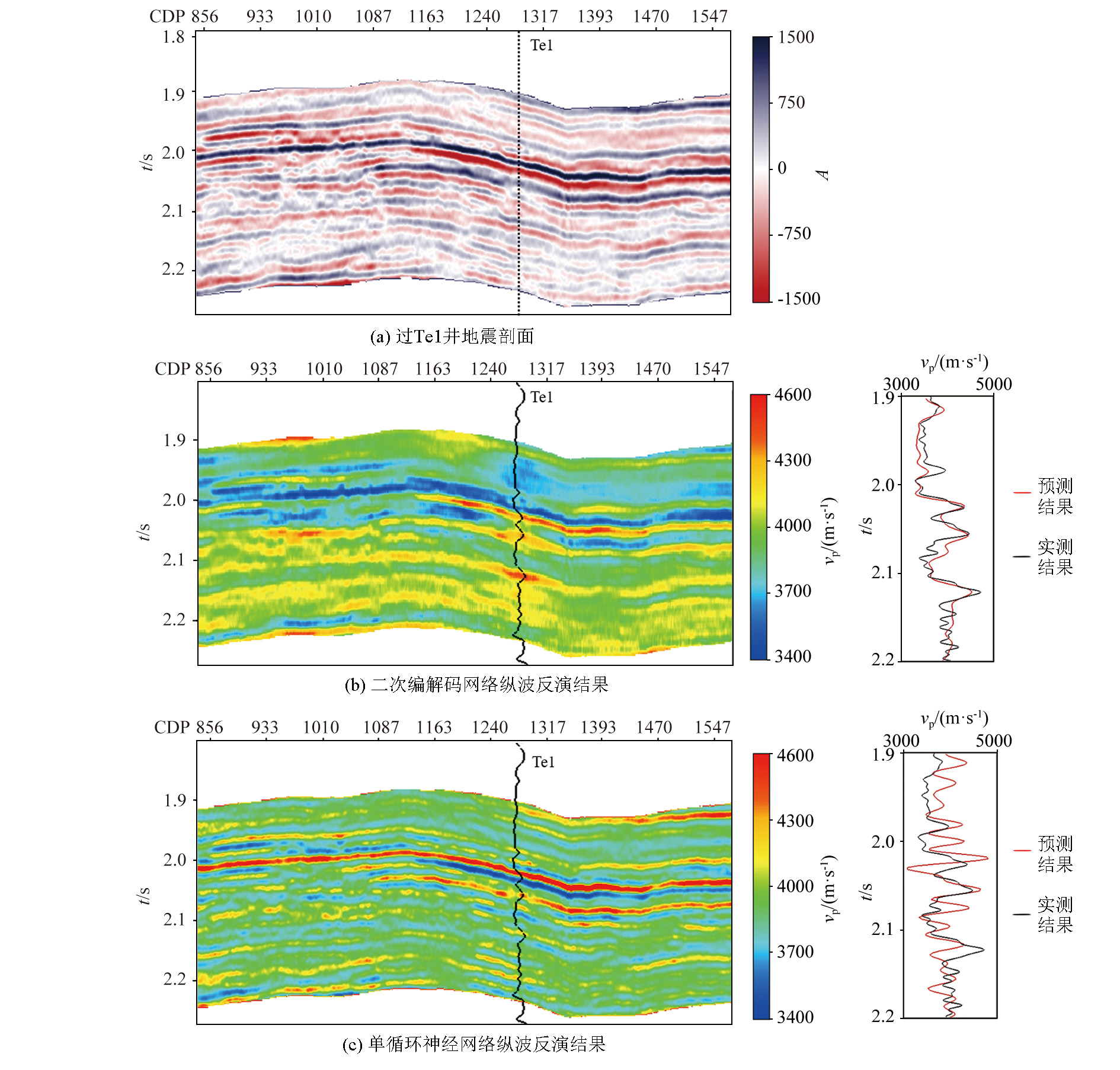

Prediction profile and prediction curve of quadratic Encoder-Decoder network and RNN through well Te1
|
方法 | 相对误差/% | 相关系数 | 训练时长/s | 二次编解码网络 | 4.12 | 0.932 | 5.17 | 单解码循环神经网络 | 9.28 | 0.845 | 4.86 |
|
Inversion accuracy and efficiency of different networks
|
|

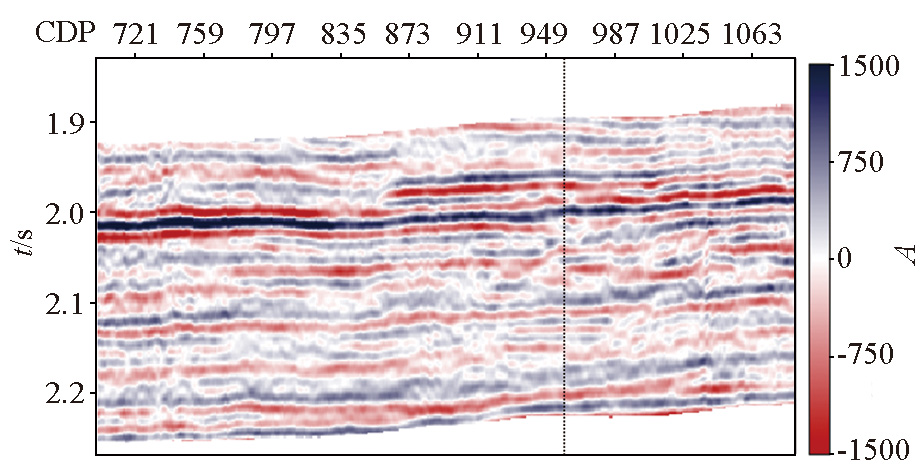

Original seismic profile through Te2 well
|
|

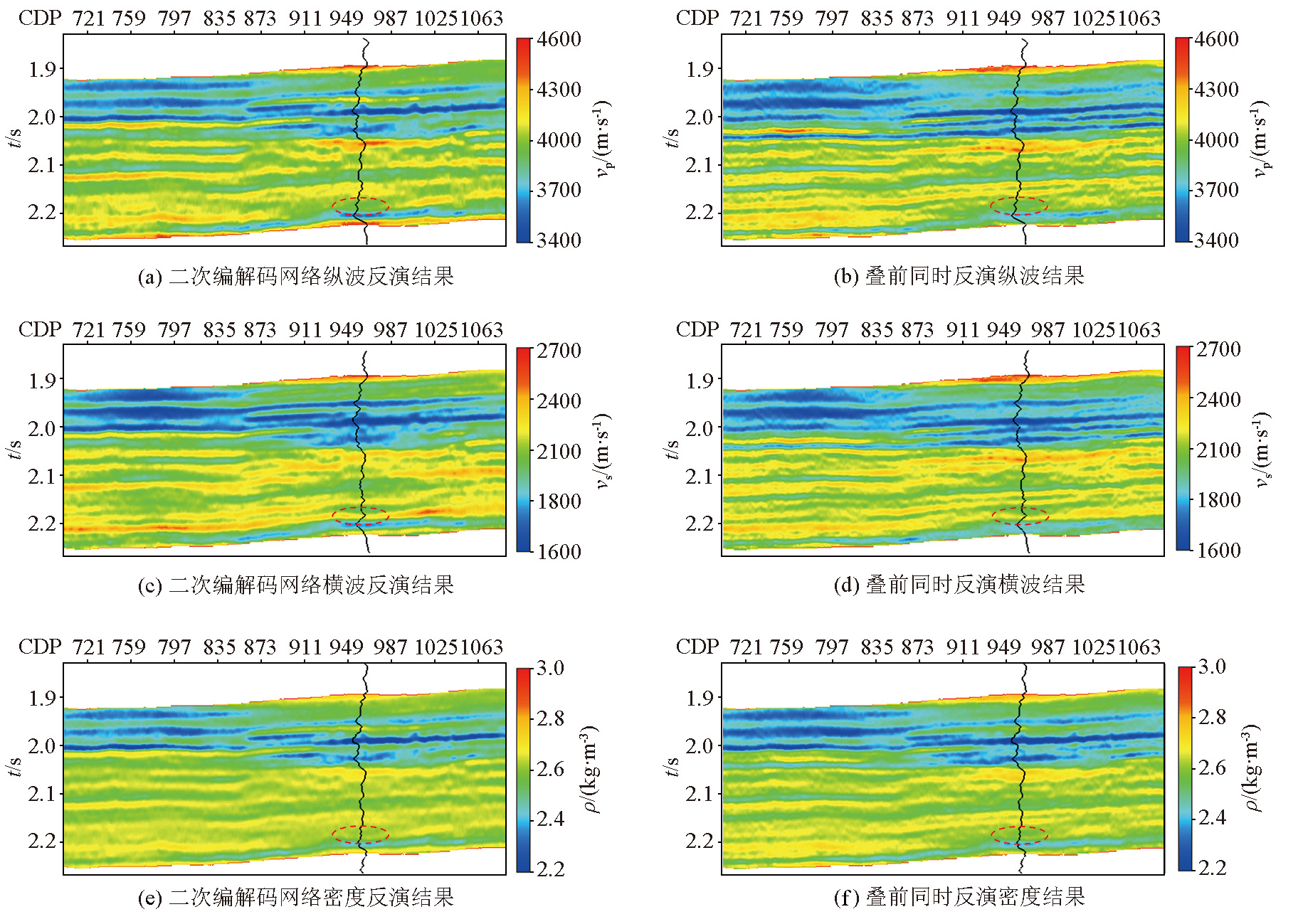

Results of quadratic Encoder-Decoder network and conventional prestack inversion through Te2 well
|
方法 | 纵波速度 /(m·s-1) | 横波速度 /(m·s-1) | 密度 /(kg·m-3) | 二次编解码网络 | 0.872 | 0.870 | 0.863 | 常规同时反演方法 | 0.883 | 0.879 | 0.871 |
|
Correlation coefficients of inversion results by different methods
|
