国土资源遥感  2018, Vol. 30 Issue (1): 30-36    DOI: 10.6046/gtzyyg.2018.01.05
  本期目录 | 过刊浏览 | 高级检索 |
基于像斑异质度的矢量图与遥感影像变化检测
李亮1(), 王蕾1, 王凯2, 李胜1
1.四川省第三测绘工程院,成都 610500
2.长江勘测规划设计有限责任公司工程移民规划研究院,武汉 430010
A change detection method for vector map and remote sensing imagery based on object heterogeneity
Liang LI1(), Lei WANG1, Kai WANG2, Sheng LI1
1. The Third Academy of Engineering of Surveying and Mapping, Chengdu 610500, China
2. Planning and Research Institute of Resettlement, Changjiang Institute of Survey, Planning, Design and Research, Wuhan 430010, China
全文: PDF(1501 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

为实现矢量图与遥感影像的自动变化检测,提出一种基于像斑异质度的矢量图与遥感影像变化检测方法。以旧时期矢量图为约束,对新时期遥感影像采用标记分水岭算法进行影像分割获取像斑; 提取兼顾光谱特征与纹理特征的像斑直方图作为像斑的特征,利用直方图相交距离构建像斑特征距离; 利用新时期像斑与旧时期同类别像斑特征距离的平均值计算像斑的异质度,采用最大熵法自动获取各地物类别的异质度阈值; 通过比较像斑异质度与矢量图所在时期对应类别的异质度阈值,实现像斑的变化/未变化判别。对QuickBird遥感影像的实验验证了所提方法的有效性,变化检测正确率达到了95%。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
李亮
王蕾
王凯
李胜
关键词 像斑像斑异质度影像分割直方图相交距离最大熵
Abstract

In order to realize the automatic change detection with vector map and remote sensing imagery, a change detection method based on the object heterogeneity for vector map and remote sensing imagery is proposed in the paper. Image segmentation under the constraint of vector map was employed to get image objects using marker-based watershed algorithm. The features of the object were extracted by histogram which describes both gray feature and texture feature. The histogram intersection distance was adopted to measure the feature distance. The object heterogeneity was built by the average of the distance between the object and the other objects with the same class in old period. Change/nochange label of the objects can be determined by comparison the object heterogeneity with the heterogeneity threshold of the class which was calculated by Maximum Entropy Principle automatically. Experiments on QuickBird remote sensing images verified the effectiveness of the proposed method ,and the correct rate of the change detection is up to 95%.

Key wordsobject    object heterogeneity    image segmentation    histogram intersection distance    maximum entropy
收稿日期: 2016-07-24      出版日期: 2018-02-08
:  TP751.1
基金资助:四川省测绘地理信息局2017年科技计划项目“基于高分遥感影像的典型地理国情要素提取关键技术研究”(编号: J2017ZC06)和数字制图与国土信息应用工程国家测绘地理信息局重点实验室开放基金资助项目“基于遥感影像的矢量图更新关键技术研究”(编号: DM2016SC04)共同资助
作者简介:

第一作者: 李 亮(1987-),男,博士,工程师,主要从事遥感影像的智能化解译研究。Email:liliang1987wuda@163.com

引用本文:
李亮, 王蕾, 王凯, 李胜. 基于像斑异质度的矢量图与遥感影像变化检测[J]. 国土资源遥感, 2018, 30(1): 30-36.
Liang LI, Lei WANG, Kai WANG, Sheng LI. A change detection method for vector map and remote sensing imagery based on object heterogeneity. Remote Sensing for Land & Resources, 2018, 30(1): 30-36.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2018.01.05      或      https://www.gtzyyg.com/CN/Y2018/V30/I1/30

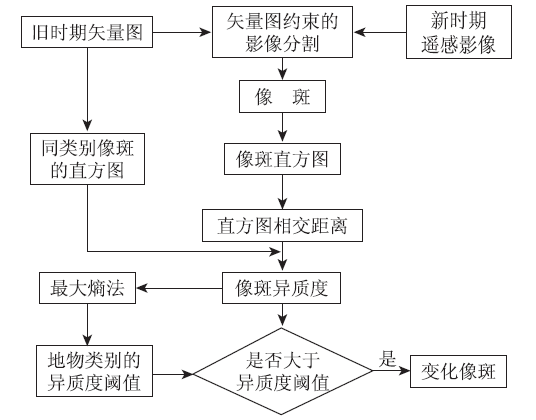

Fig.1  本文方法流程图

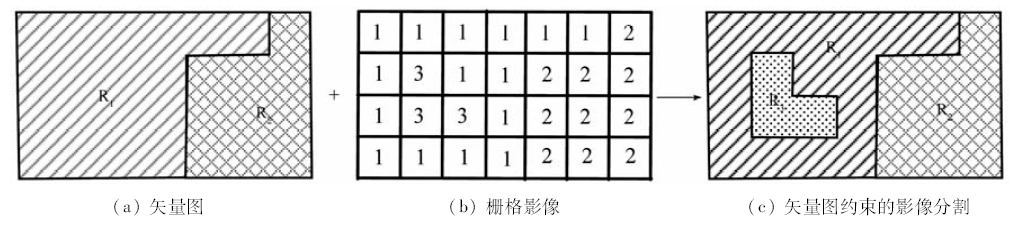

Fig.2  矢量图约束的影像分割示意图

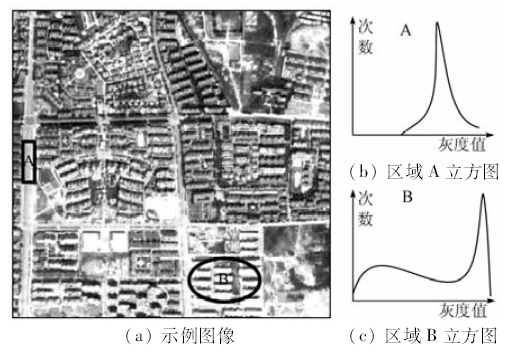

Fig.3  像斑直方图特征示意图

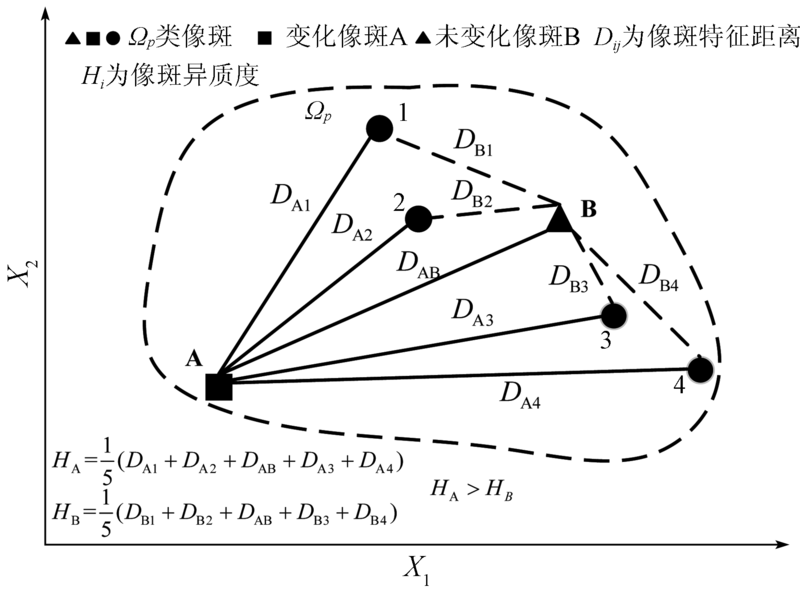

Fig.4  像斑类别异质度示意图

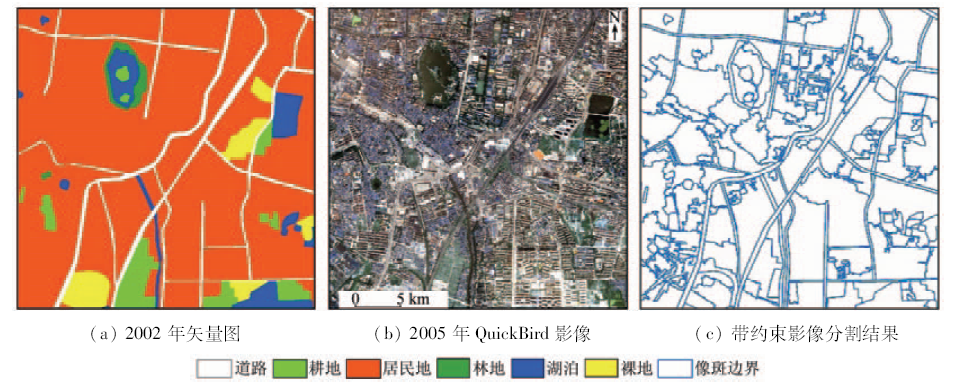

Fig.5  实验数据

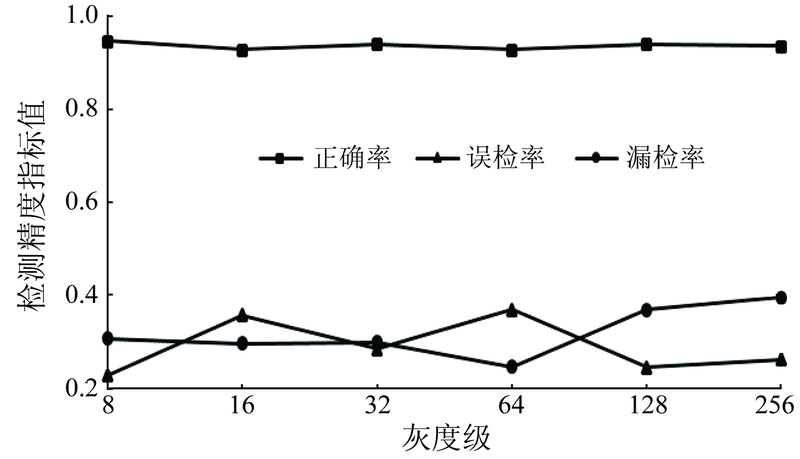

Fig.6  变化检测精度与灰度级关系

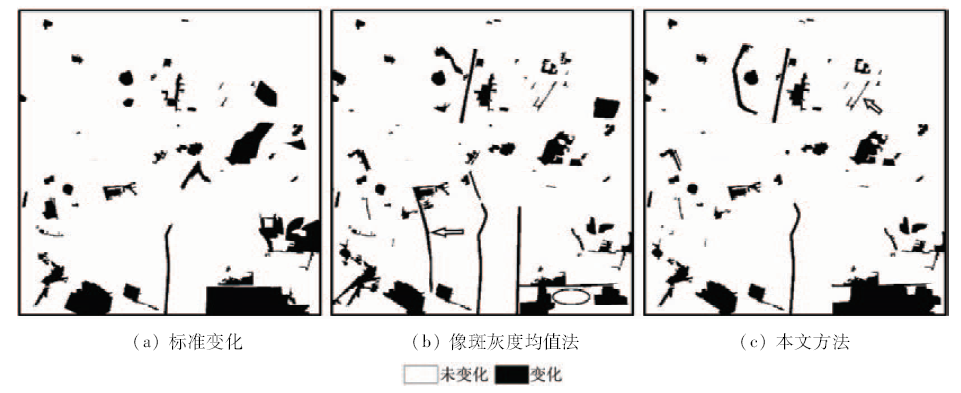

Fig.7  不同方法变化检测结果对比
变化检测方法 正确率 误检率 漏检率
像斑灰度均值法 92 39 45
本文方法 95 23 31
Tab.1  2种方法变化检测精度对比
项目 检测未变化
像元/个
检测变化
像元/个
像元合计/个
实际未变化像元/个 1 736 367 42 604 1 778 971
实际变化像元/个 63 778 143 885 207 663
合计像元/个 1 800 145 186 489 1 986 634
正确率/% 95
误检率/% 23
漏检率/% 31
Tab.2  本文方法变化检测结果的混淆矩阵
[1] 黄维,黄进良,王立辉,等.基于PCA的变化向量分析法遥感影像变化检测[J].国土资源遥感,2016,28(1):22-27.doi:10.6046/gtzyyg.2016.01.04.
Huang W,Huang J L,Wang L H,et al.Remote sensing image change detection based on change vector analysis of PCA component[J].Remote Sensing for Land and Resources,2016,28(1):22-27.doi:10.6046/gtzyyg.2016.01.04.
[2] Xu M,Cao C X,Zhang H,et al.Change detection of an earthquake-induced barrier lake based on remote sensing image classification[J].International Journal of Remote Sensing,2010,31(13):3521-3534.
[3] 赵敏,陈卫平,王海燕.基于遥感影像变化检测技术的地形图更新[J]. 测绘通报, 2013(4):65-67.
Zhao M,Chen W P,Wang H Y.Updating of topographic maps based on change detection for remote sensing image[J]. Bulletin of Surveying and Mapping, 2013(4):65-67.
[4] Mas J F.Monitoring land-cover changes:A comparison of change detection techniques[J].International Journal of Remote Sensing,1999,20(1):139-152.
[5] Lu D,Mausel P,Brondízio E,et al.Change detection techniques[J].International Journal of Remote Sensing,2004,25(12):2365-2401.
[6] 李德仁. 利用遥感影像进行变化检测[J].武汉大学学报(信息科学版),2003,28(s1):7-12.
Li D R.Change detection from remote sensing images[J].Geomatics and Information Science of Wuhan University,2003,28(s1):7-12.
[7] Walter V.Object-based classification of remote sensing data for change detection[J].ISPRS Journal of Photogrammetry and Remote Sensing,2004,58(3/4):225-238.
[8] 张继贤,杨贵军.单一时相遥感数据土地利用与覆盖变化自动检测方法[J].遥感学报,2005,9(3):294-299.
Zhang J X,Yang G J.Automatic land use and land cover change detection with one temporary remote sensing image[J].Journal of Remote Sensing,2005,9(3):294-299.
[9] 谢仁伟,牛铮,孙睿,等.基于多波段统计检验的土地利用变化检测[J].国土资源遥感,2009,21(2):66-70.doi:10.6046/gtzyyg.2009.02.14.
Xie R W,Niu Z,Sun R,et al.The detection of land use change based on the statistic test with multi-band image[J].Remote Sensing for Land and Resources,2009,21(2):66-70.doi:10.6046/gtzyyg.2009.02.14.
[10] Meyer F.Color image segmentation[C]//Proceedings of the international conference on image processing and its applications.Maastricht, Netherlands:IEEE,1992:303-306.
[11] 巫兆聪,胡忠文,张谦,等.结合光谱、纹理与形状结构信息的遥感影像分割方法[J].测绘学报,2013,42(1):44-50.
Wu Z C,Hu Z W,Zhang Q,et al.On combining spectral, textural and shape features for remote sensing image segmentation[J].Acta Geodaetica et Cartographica Sinica,2013,42(1):44-50.
[12] Wang A P,Wang S G,Lucieer A.Segmentation of multispectral high-resolution satellite imagery based on integrated feature distributions[J].International Journal of Remote Sensing,2010,31(6):1471-1483.
[13] 李亮,张云,李胜,等.融合空间关系的遥感图像分类[J].国土资源遥感,2017, 29(3):10-16. doi:10.6046/gtzyyg.2017.03.02.
Li L,Zhang Y,Li S,et al.Classification of remote sensing images based on the fusion of spatial relationship[J].Remote Sensing for Land and Resources,2017,29(3):10-16. doi:10.6046/gtzyyg.2017.03.02.
[14] Ojala T,Pietikäinen M.Unsupervised texture segmentation using feature distributions[J].Pattern Recognition,1999,32(3):477-486.
[15] 尤红建,傅琨.基于分布模型差异的SAR变化检测[J].武汉大学学报(信息科学版),2008,33(5):454-456.
You H J,Fu K.SAR change detection based on cluster distribution divergence[J].Geomatics and Information Science of Wuhan University,2008,33(5):454-456.
[16] Swain M J,Ballard D H.Color indexing[J].International Journal of Computer Vision,1991,7(1):11-32.
[17] Chen K M,Chen S Y.Color texture segmentation using feature distributions[J].Pattern Recognition Letters,2002,23(7):755-771.
[18] Otsu N.A threshold selection method from gray-level histograms[J].Automatica,1975,11:23-27.
[19] Sahoo P,Wilkins C,Yeager J.Threshold selection using Renyi’s entropy[J].Pattern Recognition,1997,30(1):71-84.
[20] 李亮,舒宁,王凯,等.融合多特征的遥感影像变化检测方法[J].测绘学报,2014,43(9):945-953.
Li L, Shu N, Wang K, et al.Change detection method for remote sensing images based on multi-features fusion[J]. Acta Geodaetica et Cartographica Sinica,2014,43(9):945-953.
