基于最大值合成和最大类间方差法莱州湾滨海滩涂变化研究

doi:10.6046/zrzyyg.2022182

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(3141 KB)

HTML
输出: BibTeX | EndNote (RIS)

摘要

滨海滩涂是一种重要的滨海湿地类型,在维护生物多样性、影响全球气候和环境变化等方面具有重要的生态价值。由于滨海滩涂只在最低潮时期短暂全部呈现,先前的遥感解译结果中,滩涂信息存在明显的漏分和误分现象。基于Google Earth Engine(GEE)平台和Landsat系列卫星数据,构建1990年、2000年、2010年和2020年4个时间段的高质量密集时间序列影像堆栈,结合最大光谱指数合成算法(maximum spectral index composite, MSIC)和最大类间方差算法(Otsu algorithm, OTSU),对我国莱州湾滨海滩涂资源进行快速、自动提取。基于面向对象分析技术和模糊逻辑分析方法(fuzzy-based segmentation parameter, FbSP)最优尺度对滨海滩涂周边土地覆被进行解译,分析滨海滩涂的时空演变规律。结果表明: 1990—2020年间莱州湾滨海滩涂呈现持续减少的趋势,2020年莱州湾滨海滩涂面积为822.38 km²,相较于1990年减少了约40%,其中,2000—2010年缩减幅度最大,为304.78 km²; 除黄河口区域滨海滩涂向海迁移,莱州湾其他区域的滨海滩涂斑块整体呈向陆迁移趋势; 人类活动是近30 a间莱州湾滩涂变化的主导因素,其中,养殖池/盐田的扩张直接侵占了414.20 km²的滨海滩涂。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	李毅
	程丽娜
	鲁莹莹
	张博淳
	于森
	贾明明

关键词 ：滨海滩涂, Landsat影像, MSIC, OTSU算法, Google Earth Engine(GEE)

Abstract：

Coastal tidal flats, as a major type of coastal wetlands, have significant ecological value in maintaining biodiversity and influencing global climate and environmental change. Since they are only exposed in their entirety at the lowest tide, the previous remote sensing interpretation results showed significant omissions and misclassifications of the tidal flats. Based on the Google Earth Engine (GEE) platform and the Landsat series satellite data, this study constructed high-quality dense time series image stacks for four time periods, i.e., 1990, 2000, 2010, and 2020. Then, these image stacks were combined with the maximum spectral index composite (MSIC) algorithm and the Otsu algorithm (OTSU) for rapid and automatic extraction of coastal tidal flats resources in Laizhou Bay of China. Furthermore, the land cover around the coastal tidal flats was delineated based on the object-oriented analysis technology and the fuzzy-based segmentation parameter (FbSP) optimal scale. Finally, the spatial and temporal evolution patterns of the coastal tidal flats were analyzed. The results are shown as follows. During 1990—2020, the coastal tidal flats in Laizhou Bay gradually decreased, with an area of 822.38 km² in 2020, a reduction of about 40% compared with that in 1990. The largest reduction was 304.78 km² during 2000—2010. The coastal tidal flats near the Yellow River estuary showed a seaward migration, while the coast tidal flat patches in other regions of Laizhou Bay showed a landward migration. Human activities were the dominant factors in the changes in tidal flats in Laizhou Bay in the past 30 years. Among them, the expansion of aquaculture ponds/salt fields directly encroached on 414.20 km² of coastal tidal flats.

Key words： coastal tidal flat Landsat imagery MSIC OTSU Google Earth Engine (GEE)

收稿日期: 2022-05-09 出版日期: 2022-12-27

ZTFLH:

TP79

基金资助:科技基础资源调查专项项目“中国主要沼泽植物种质资源数据库和信息共享平台建设”(2019FY100607);中国科学院青年创新促进会项目“中国滨海生态系统遥感”(2021227)

通讯作者: 程丽娜(1996-),女,硕士研究生,研究方向为滨海湿地遥感。Email: chengln20@mails.jlu.edu.cn。

作者简介: 李毅(2002-),男,本科生,研究方向为滨海湿地遥感。Email: liyi@iga.ac.cn。

引用本文:

李毅, 程丽娜, 鲁莹莹, 张博淳, 于森, 贾明明. 基于最大值合成和最大类间方差法莱州湾滨海滩涂变化研究[J]. 自然资源遥感, 2022, 34(4): 68-75.
LI Yi, CHENG Lina, LU Yingying, ZHANG Bochun, YU Sen, JIA Mingming. A study on the changes in coastal tidal flats in the Laizhou Bay based on MSIC and OTSU. Remote Sensing for Natural Resources, 2022, 34(4): 68-75.

链接本文:

https://www.gtzyyg.com/CN/10.6046/zrzyyg.2022182 或 https://www.gtzyyg.com/CN/Y2022/V34/I4/68

Fig.1 研究区地理位置

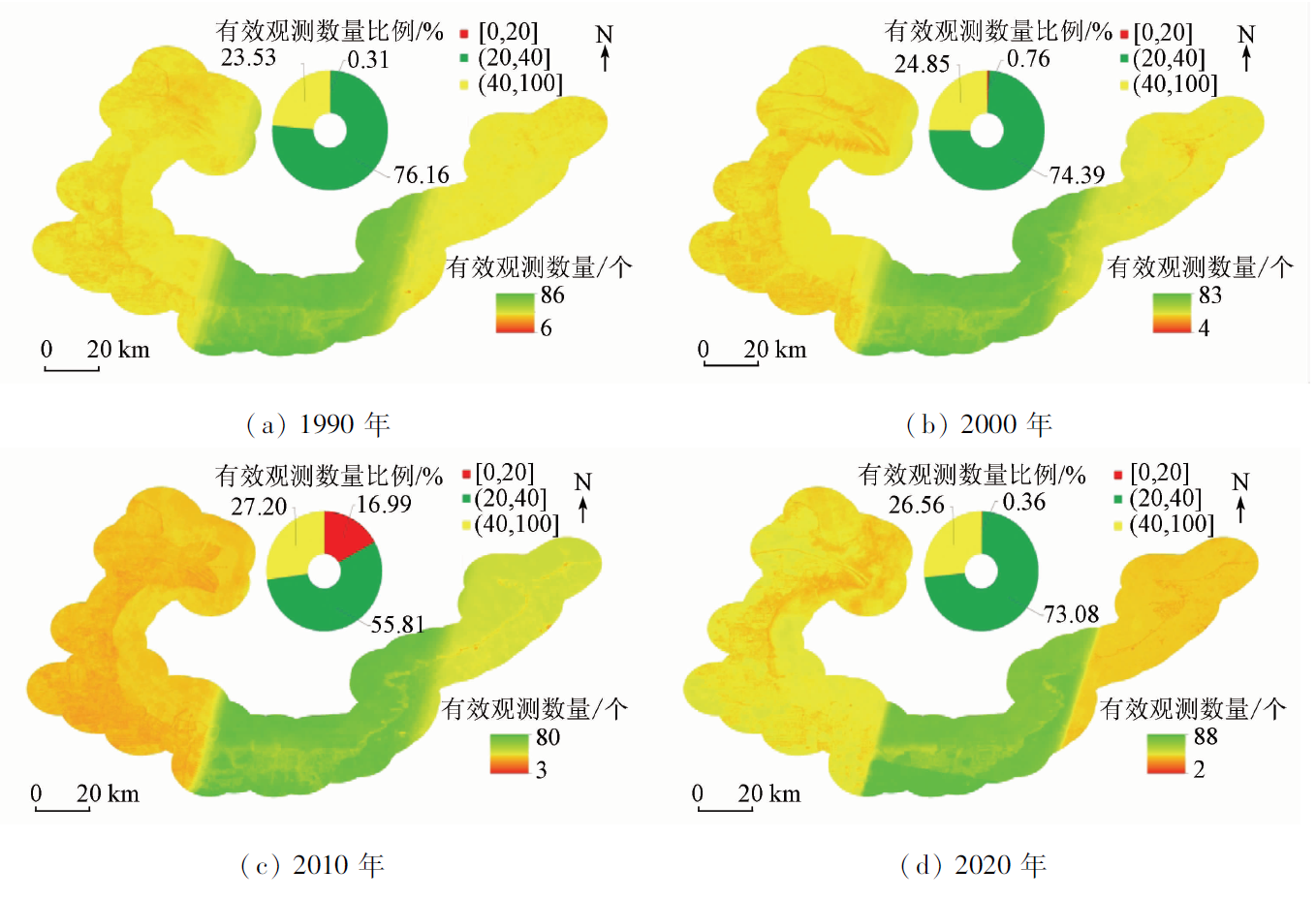

Fig.2 研究区域目标年份有效观测数量空间分布及比例

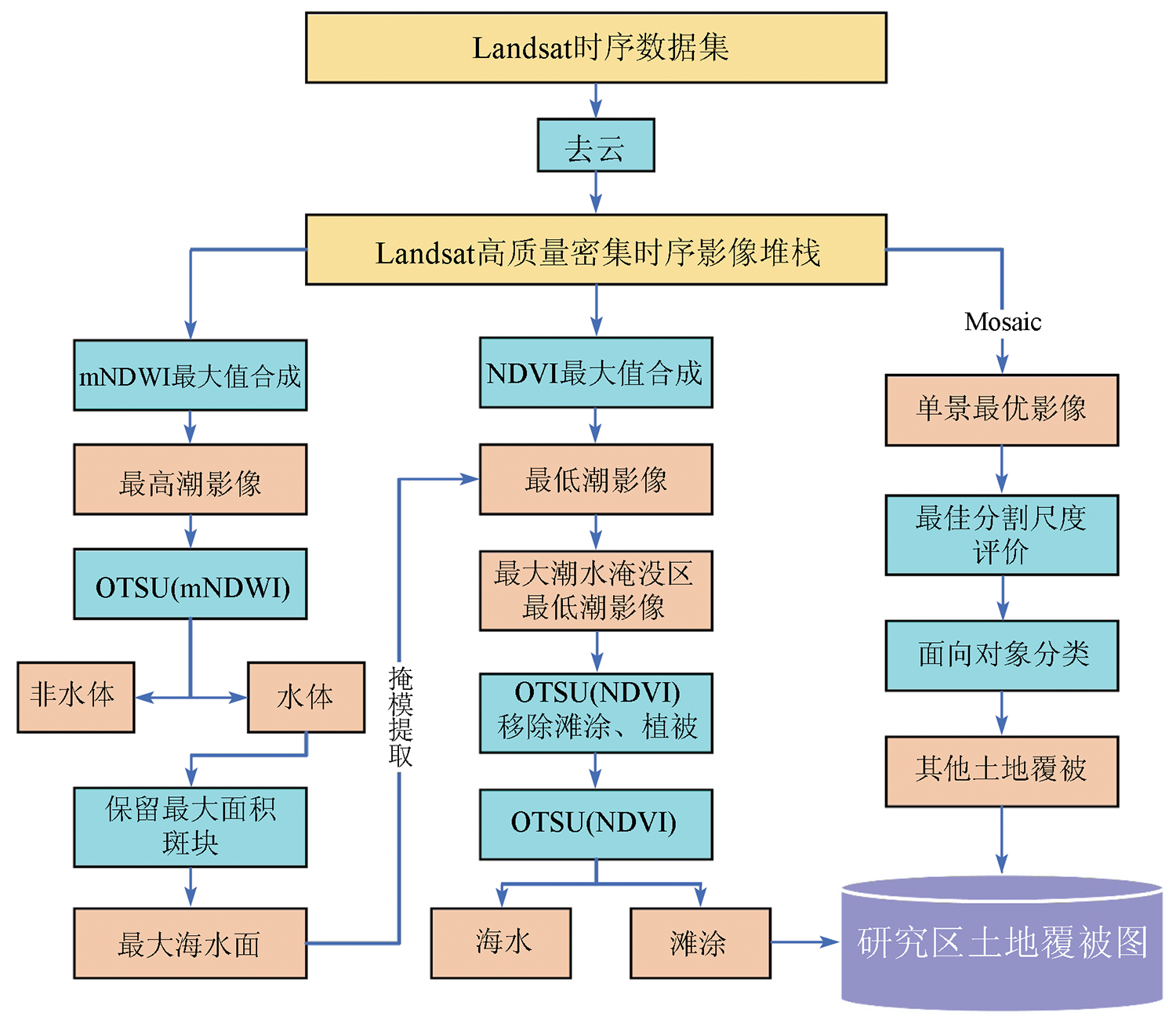

Fig.3 技术流程

Tab.1 2020年滩涂及周边地物土地覆被分类结果的混淆矩阵

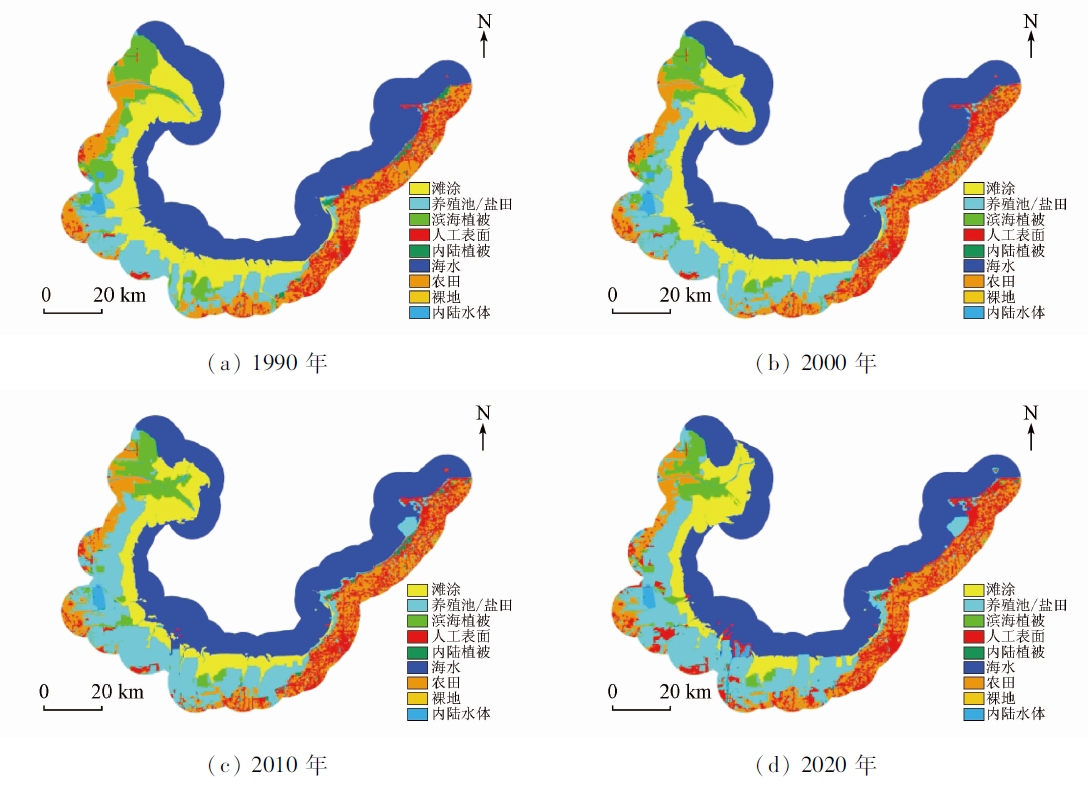

Fig.4 1990—2020年莱州湾地区潮间带土地覆被

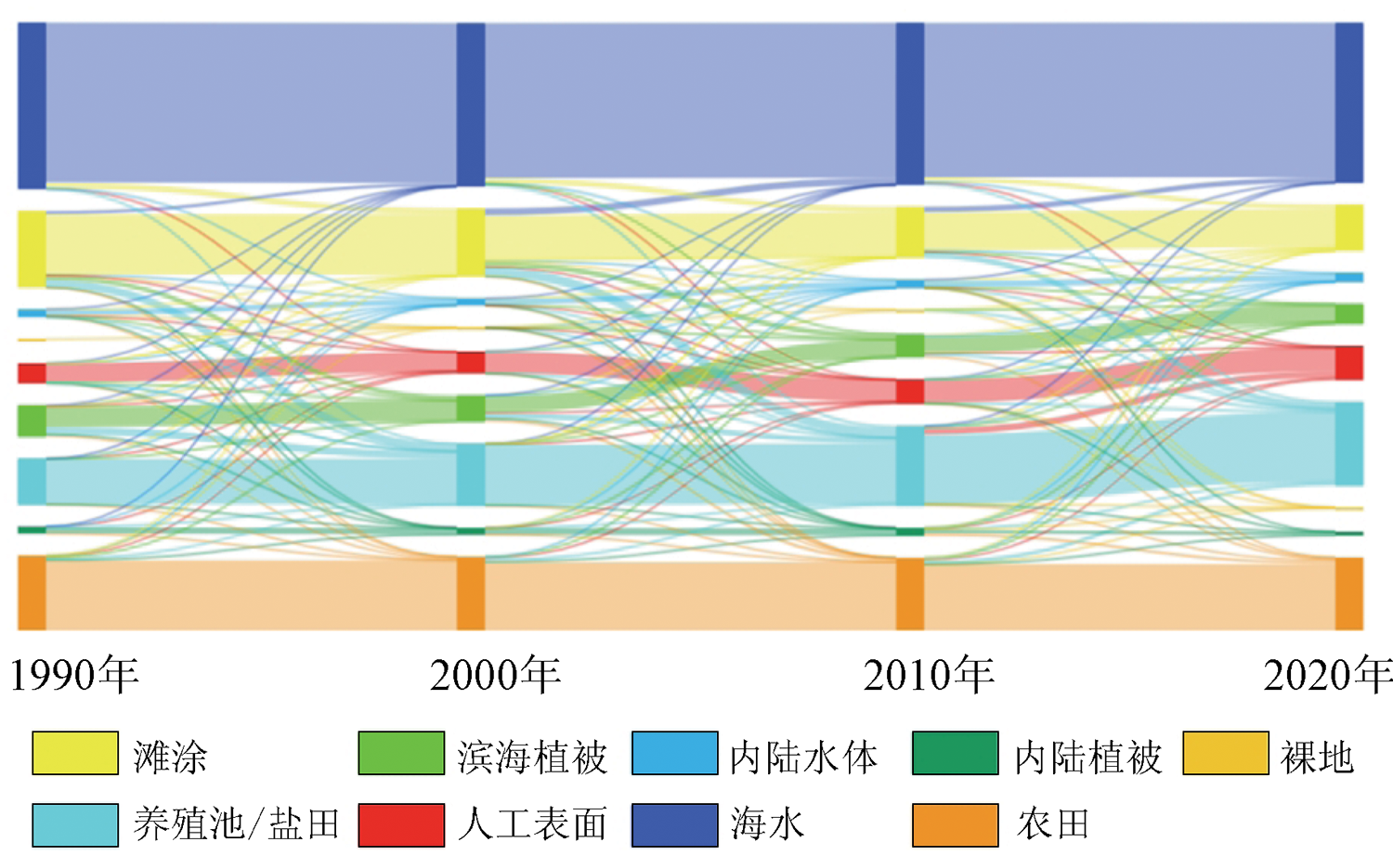

Fig.5 1990—2020年滩涂与周边地物相互转化
