自然资源遥感  2023, Vol. 35 Issue (4): 53-60    DOI: 10.6046/zrzyyg.2022280
  技术方法 本期目录 | 过刊浏览 | 高级检索 |
基于GF-2影像和随机森林算法的花岗伟晶岩提取
杜晓川1,2(), 娄德波2(), 徐林刚1, 范莹琳1,2, 张琳1, 李婉悦1,2
1.中国地质大学(北京)地球科学与资源学院,北京 100083
2.中国地质科学院矿产资源研究所,自然资源部成矿作用与资源评价重点实验室,北京 100037
Extracting granite pegmatite information based on GF-2 images and the random forest algorithm
DU Xiaochuan1,2(), LOU Debo2(), XU Lingang1, FAN Yinglin1,2, ZHANG Lin1, LI Wanyue1,2
1. School of Earth Sciences and Resources, China University of Geosciences (Beijing), Beijing 100083, China
2. MNR Key Laboratory of Metallogeny and Mineral Assessment, Institute of Mineral Resources, Chinese Academy of Geological Sciences, Beijing 100037, China
全文: PDF(3629 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

花岗伟晶岩是花岗伟晶岩型锂矿的重要载体及找矿标志,青海省天峻县扎卡东南部一带有较好的锂矿找矿潜力,但该地区具有海拔高、切割深等特点,使得实地地表调查难度较大,因此采用随机森林算法对研究区花岗伟晶岩进行遥感提取,以GF-2高空间分辨率遥感影像为数据源提取研究区域各类型地物的光谱特征、纹理特征、指数特征、地形特征、边缘特征及文中新引入的限制对比度自适应直方图均衡化(contrast limited adaptive hitogram equalization,CLAHE)特征等25个特征变量构建特征子集,对子集中的特征变量进行特征重要性评估,依据特征重要性得分进行特征优选,确定提取花岗伟晶岩的最优特征组合,最终选取16个特征变量进行随机森林分类,对分类结果进行精度评价。研究表明: ①CLAHE特征变量有利于突出地物间的色调差异,有助于分类精度的提升,其总体精度上升2.7百分点,Kappa系数上升0.035; ②基于GF-2影像和随机森林算法的分类结果的总体精度达到了93.1%,Kappa系数达到0.902,花岗伟晶岩用户精度达到94.24%,生产者精度达到 98.00%,证实方法的有效性,同时也为该地区进一步工作提供真实可靠的资料。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
杜晓川
娄德波
徐林刚
范莹琳
张琳
李婉悦
关键词 花岗伟晶岩随机森林算法CLAHE特征重要性青海省
Abstract

Granite pegmatites serve as a significant carrier and prospecting marker of granite pegmatite-type lithium deposits. The southeastern Zhaka area in Tianjun County, Qinghai Province demonstrates considerable prospecting potential for lithium deposits. Nevertheless, its high altitudes and deep cross-cutting characteristics pose challenges in surface surveys. Hence, this study extracted the granite pegmatite information within the study area from remote sensing images using the random forest algorithm. With high-spatial-resolution GF-2 remote sensing images as the primary data source, it extracted the spectral, texture, exponential, topographic, and edge features from various ground objects within the study area. These features, together with the newly introduced contrast limited adaptive histogram equalization (CLAHE) features, constituted 25 feature variables, forming a feature subset. Then, feature variables in the subset were evaluated for their feature importance, and their importance scores were used for feature selection, determining the optimal feature combination for extracting granite pegmatite information. Ultimately, 16 feature variables were chosen for random forest classification, with the accuracy of the classification results assessed. The study indicates that: ①The CLAHE feature variables emphasize the tonal variations among ground objects, thereby enhancing the classification accuracy, with the overall accuracy increased by 2.7 percentage points and the Kappa coefficient increased by 0.035; ②The classification results for granite pegmatites based on GF-2 images and the random forest algorithm exhibited overall accuracy of 93.1%, with a Kappa coefficient of 0.902, user accuracy of 94.24%, and producer accuracy of 98.00%, confirming the effectiveness of the method used in this study. Moreover, this study provides reliable data for future research in the study area.

Key wordsgranite pegmatite    random forest algorithm    CLAHE    feature importance    Qinghai Province
收稿日期: 2022-07-05      出版日期: 2023-12-21
ZTFLH:  TP79
基金资助:国家重点研发计划项目“西部伟晶岩型粘土型锂等稀有金属成矿规律与潜力评价”(2021YFC2901905);基本科研业务费项目“中国铅锌银矿床成矿规律研究”(KK2202)
通讯作者: 娄德波(1979-),男,教授级高级工程师,主要从事矿产资源评价研究。Email: llddbb_e@126.com
作者简介: 杜晓川(1995-),男,硕士研究生,资源与环境专业。Email: 1169954017@qq.com
引用本文:
杜晓川, 娄德波, 徐林刚, 范莹琳, 张琳, 李婉悦. 基于GF-2影像和随机森林算法的花岗伟晶岩提取[J]. 自然资源遥感, 2023, 35(4): 53-60.
DU Xiaochuan, LOU Debo, XU Lingang, FAN Yinglin, ZHANG Lin, LI Wanyue. Extracting granite pegmatite information based on GF-2 images and the random forest algorithm. Remote Sensing for Natural Resources, 2023, 35(4): 53-60.
链接本文:
https://www.gtzyyg.com/CN/10.6046/zrzyyg.2022280      或      https://www.gtzyyg.com/CN/Y2023/V35/I4/53
Fig.1  研究区遥感影像
波段 波段范围/μm 空间分辨率/m 幅宽/km 重访周期/d
Pan 0.45~0.90 1 45 5
Blue 0.45~0.52 4
Green 0.52~0.59
Red 0.63~0.69
NIR 0.77~0.89
Tab.1  GF-2全色多光谱相机波段参数

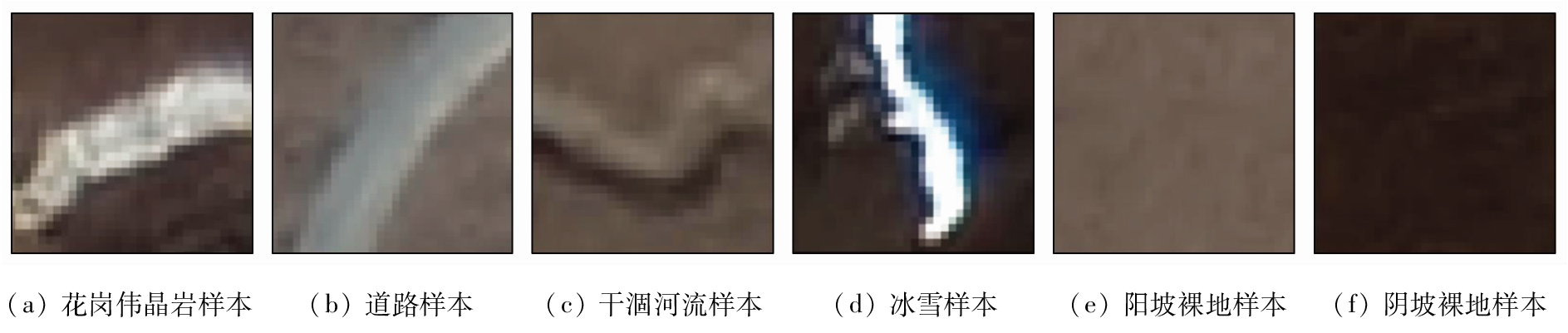

Fig.2  影像块样本
参数名 取值范围 最优值
n_estimators 1,2,3,…,1 000 150
max_features Auto,Sqrt,Log2 Auto
max_depth 1,2,3,…,200 50
min_samples_split 2,3,…,100 4
min_samples_leaf 1,2,3,…,60 1
Tab.2  最优参数组合

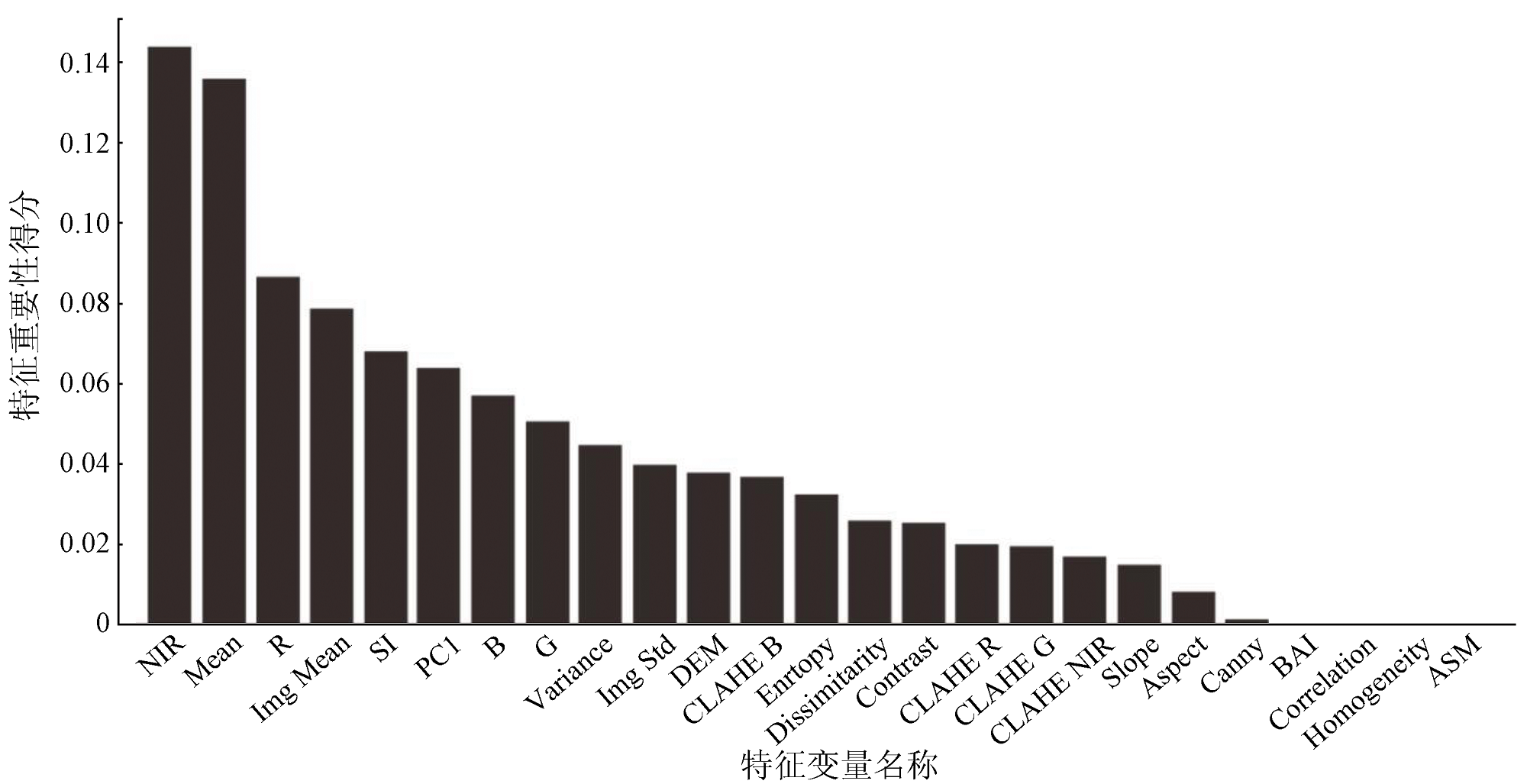

Fig.3  特征重要性排序

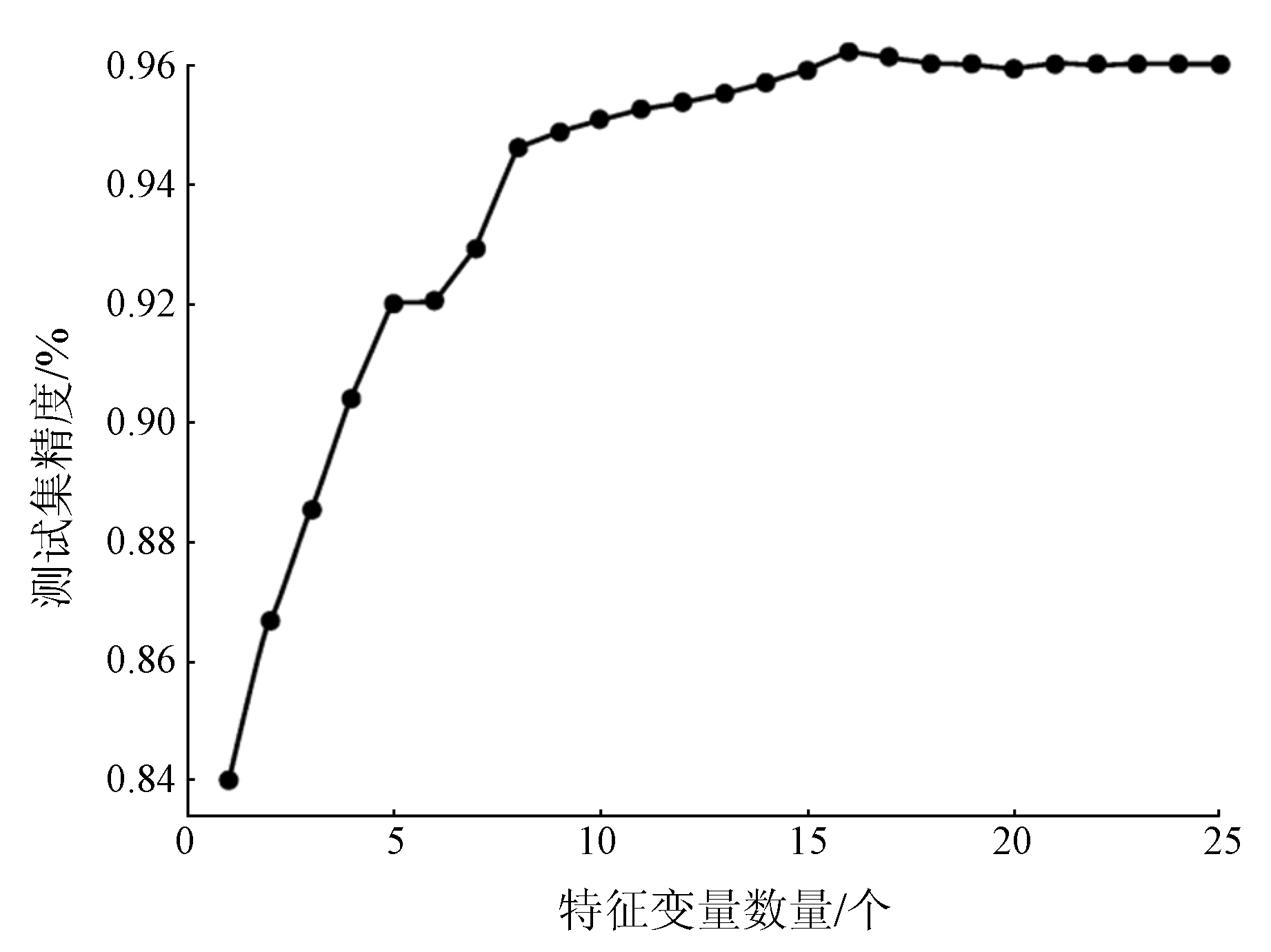

Fig.4  特征变量个数与测试集精度关系

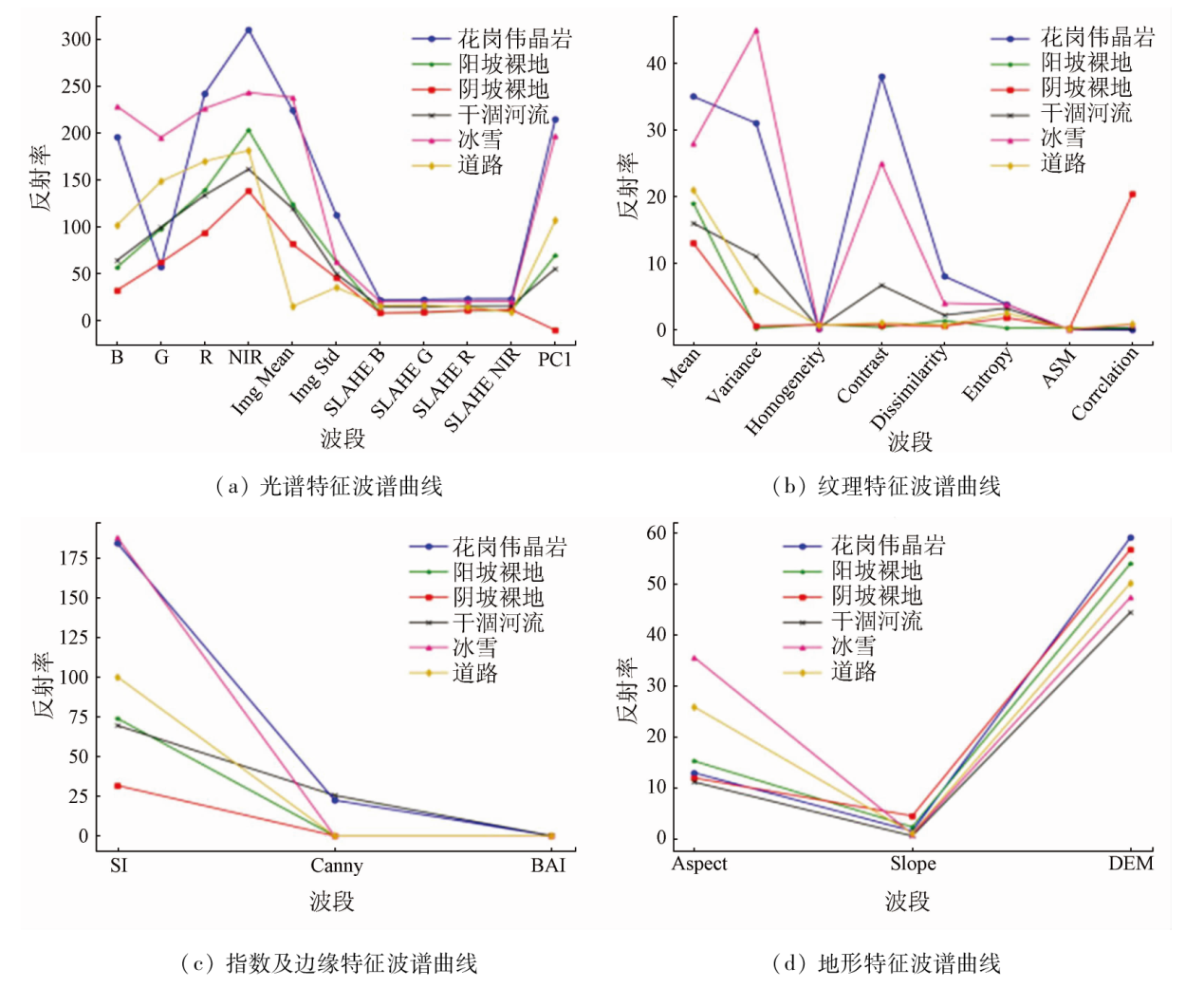

Fig.5  地物波谱曲线
Fig.6  研究区地物分类结果
地物类别 用户
精度/%
生产者
精度/%
错分
误差/%
漏分
误差/%
总体
精度/%
Kappa
系数
花岗伟晶岩 94.24 98.00 5.76 2.00 93.10 0.902
道路 94.73 81.81 5.27 18.19
冰雪 98.04 98.04 1.96 1.96
阳坡裸地 94.44 95.13 5.56 4.87
干涸河流 81.61 73.19 18.39 26.81
阴坡裸地 93.23 94.98 6.77 5.02
Tab.3  分类结果的精度统计
地物类别 用户
精度/%
生产者
精度/%
错分
误差/%
漏分
误差/%
总体
精度/%
Kappa
系数
花岗伟晶岩 93.27 97.00 6.73 3.00 90.40 0.864
道路 94.74 85.71 5.26 14.29
冰雪 98.04 98.04 1.96 1.96
阳坡裸地 90.58 93.28 9.42 6.72
干涸河流 78.16 62.39 21.84 37.61
阴坡裸地 91.08 93.38 8.92 6.62
Tab.4  14个特征的分类结果精度统计
Fig.7  干涸河流影像对比
