The determination of radioactivity concentrations in soil samples and dose assessment in parts of Guangdong Province |
Jian-Zhou YANG1,2, Jing-Jing GONG1,2, Shi-Xin TANG1,2, Shu-Qi HU1,2 |
1. Institute of Geophysical and Geochemical Exploration, CAGS, Langfang 065000, China 2. Key Laboratory for Geochemical Exploration Technology, MNR, Langfang 065000, China |
|
|
Abstract One of the main problems in the ecological researches is natural environmental radioactivity. In this study, the activity concentrations of naturally formed 238U, 232Th, 226Ra and 40K radionuclides were measured for various types of soil samples collected from Guangdong Province. Samples in 49 siteswere selected within the study area. The concentration of radionuclides of 238U is in the range from 17.9 to 209.1 Bq/kg, with the average value being 84.3 Bq/kg; that of 232Th varies from 10.6 to 263.8 Bq/kg, with average value being 103.0 Bq/kg;that of 226Ra varies from 12.0 to 206.0 Bq/kg, with average value being 77.7 Bq/kg; and that of 40K varies from 15.3 to 1557.6 Bq/kg, with average value being 463.3 Bq/kg. The gamma absorbed dose rates in air is in the range of 27.2~265.9 nGy/h, with an arithmetic mean of 126.8 nGy/h, while the annual effective dose rates (AEDR) are in the range of 33.3 to 326.1 μSv/y, with an arithmetic mean of 155.5 μSv/y. The calculated values of radium equivalent activity (Raeq) and external hazard index (Hex) for the soil samples in the study area is 260.7 (33.5~619.0) Bq/kg and 1.2(0.15~2.8), respectively. Sample sitesare assigned to regional bedrock, geomorphic landscape and soil type, respectively, resulting in three categorical variables. Random forest regression and correlation analysis show that the bedrock influences the levels of natural radioactivity in soils most seriously, followed by the soil type and then by the geomorphic landscape. The activities determined in Guangdong Province are generally higher than the average values of China and the values abroad, but are lower than the safe range of radioactive level.
|
Received: 20 May 2019
Published: 22 April 2020
|
|
|
|
|
核素 | 能量/keV | 发射几率 | 本底计数率/s-1 | 探测效率/(cps/Bq) | 最小可探测活度/(Bq/kg) | 238U | 63.3 | 0.038 | 0.1045 | 0.0250 | 15.1 | 226Ra | 351.9 | 0.389 | 0.0485 | 0.0217 | 1.3 | 232Th | 911.1 | 0.277 | 0.0175 | 0.0129 | 1.9 | 40K | 1460.8 | 0.107 | 0.0339 | 0.0102 | 8.6 |
|
Experimental parameters of HPGe γ-spectrometer
|
|

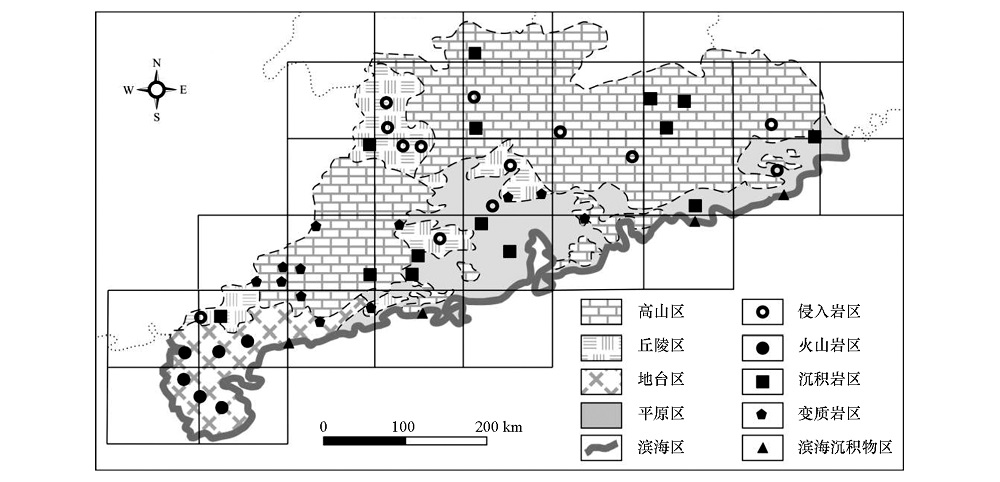

Map of sample sites,geomorphic landscape and bedrock distribution in Guangdong (Fig. modificated from reference[20])
|
测试地点 | 238U含量/(Bq/kg) | 232Th含量/(Bq/kg) | 226Ra含量/(Bq/kg) | 40K含量/(Bq/kg) | 样品数 | 范围 | 均值±标准差 | 范围 | 均值±标准差 | 范围 | 均值±标准差 | 范围 | 均值±标准差 | 广东(本次) | 49 | 17.9~209.1 | 84.3±52.9 | 10.6~263.8 | 103.0±67.5 | 12.0~206.0 | 77.7±52.4 | 15.3~1557.6 | 463.3±389.5 | 广东 | 144 | 12.4~186.8 | 71.2 | 1.0~152.7 | 57.2 | 2.4~134.6 | 50.8 | 35.8~1131.5 | 414.5 | 福建 | 143 | 13.9~136.0 | 55.2 | 19.5~260.0 | 96.3 | 18.0~201.0 | 62.0 | 24.0~627.0 | 609 | 格鲁吉亚M.区 | 22 | 14.9~59.1 | 25.4 | 17.6~54.9 | 26.9 | | | 243~784 | 464 | Rize省(土耳其) | 24 | 7.4~79.8 | 24.5 | 9.5~170.8 | 51.8 | 59.4~168.0 | 94.9 | 35.7~913.8 | 344.9 | 中国 | 7759 | 1.8~520.0 | 38.5 | 1.0~437.8 | 54.6 | 2.4~425.8 | 37.6 | 11.5~2185.2 | 584.0 | 世界 | | | 33 | | 45 | | 32 | | 412 |
|
The major activity concentration of soil samples
|
|

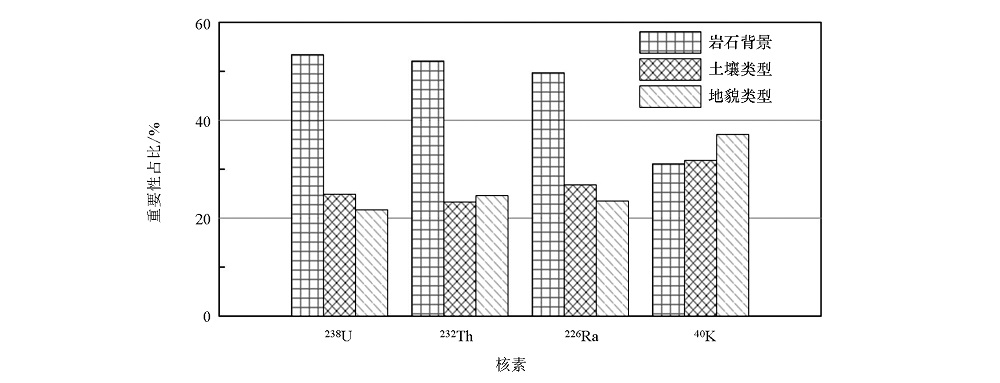

The variable importance of regional bedrock, soil type and geomorphic landscape
|
|

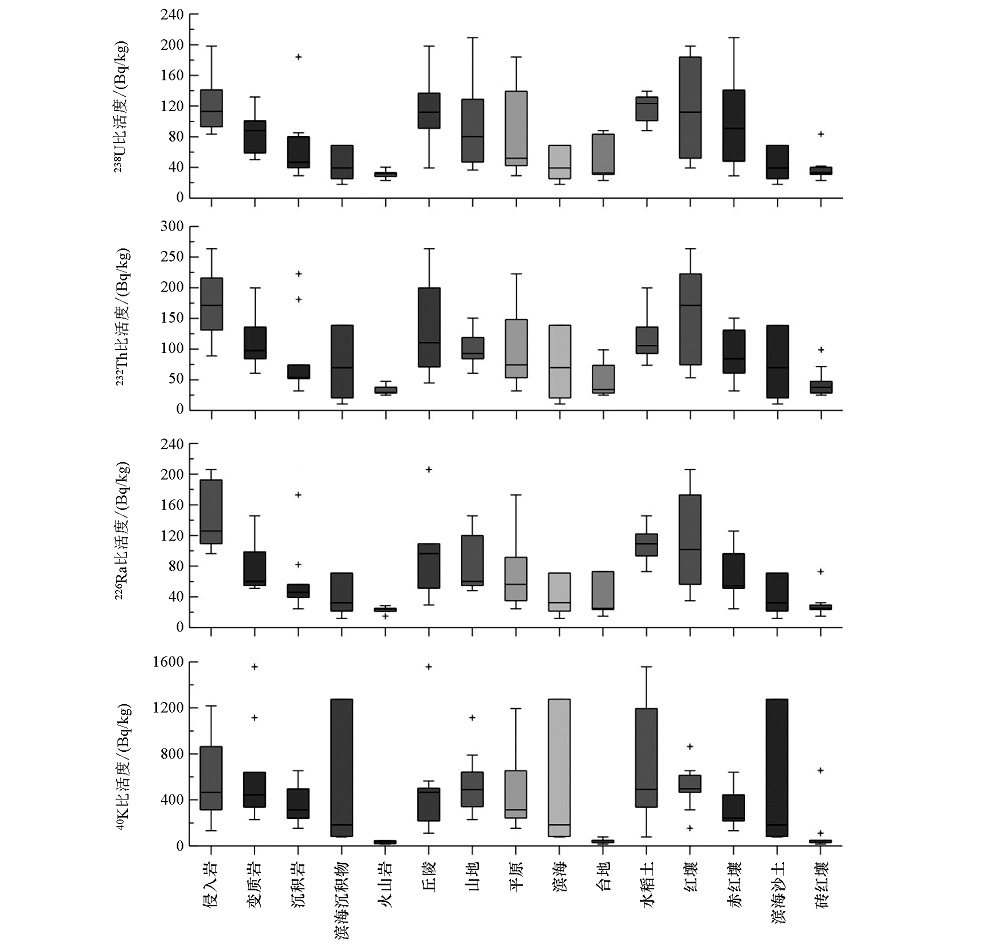

Boxplots for 238U,232Th,226Ra and 40K(Bq/kg) in samples of bedrock, geomorphic landscape and soil type, respectively
|
测试地点 | γ辐射剂量率计算值/(nGy/h) | γ辐射剂量率测量值/(nGy/h) | 范围 | 均值±标准差 | 范围 | 均值±标准差 | 广东本次试验 | 18.1~271.3 | 120.5±72.5 | 27.2~265.9 | 126.8±56.4 | 广东 | | | 17.7~193.1 | 84.8±28.5 | 长江口沉积物 | 42.4~87.9 | 66.7±11.1 | | | 全国 | 12.7~1300 | 69.9±36.0 | 11.6~523.0 | 81.5±35.2 | 土耳其Rize省 | 10.7~156.4 | 56.9±36.8 | | |
|
The calculated and measured results of γ radiation absorbed dose rate of soil samples
|
测试地点 | Raeq/(Bq/kg) | Hex | AEDR/(μSv/a) | 范围 | 均值±标准差 | 范围 | 均值±标准差 | 范围 | 均值±标准差 | 本次试验 | 33.5~619.0 | 260.7±160.9 | 0.15~2.8 | 1.2±0.7 | 33.3~326.1 | 155.5±69.2 | 长江口沉积物 | 88.5~194.0 | 141.1±24.4 | 0.25~0.55 | 0.39±0.07 | 52.0~107.8 | 81.83±13.7 | 格鲁吉亚M.区 | 59.4~168.0 | 94.9±94.9 | | | 36.0~104.0 | 36±58.2 | 土耳其Rize省 | 23.8~347.4 | 125±82.1 | 0.06~0.94 | 0.34±0.22 | 13.1~191.8 | 69.8±45.1 |
|
Radiation hazard parameters of soil samples
|
|

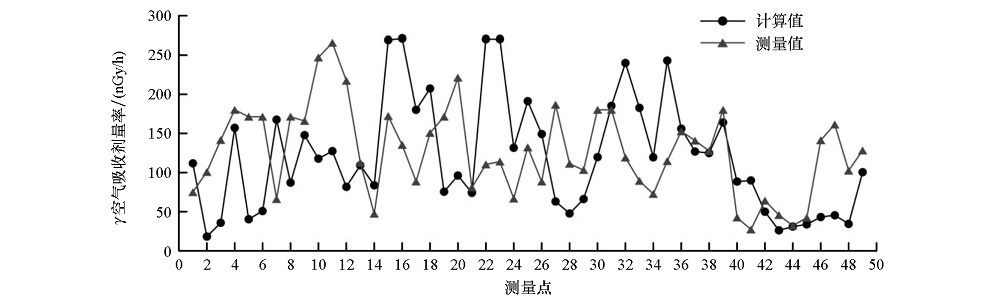

Contrast of calculated and measured results of γ radiation absorbed dose rate of soil samples
|
[1] |
Unsco. Exposures from natural sources of radiation[M]. New York: United Nations, 1988.
|
[2] |
Unscear, Annex B . Exposures of the public and workers from various sources of radiation [R]. New York: United Nations, 2008.
|
[3] |
Kekelidze N, Jakhutashvili T, Tutberidze B , et al. Radioactivity of soils in Mtskheta-Mtianeti region (Georgia)[J]. Annals of Agrarian Science, 2017,15(3):304-311.
|
[4] |
Qureshi A A, Tariq S, Din K U , et al. Evaluation of excessive lifetime cancer risk due to natural radioactivity in the rivers sediments of Northern Pakistan[M]. Elsevier, 2014.
|
[5] |
Koray A, Akkaya G, Kahraman A , et al. The investigation of radionuclide concentrations in soil and lifetime cancer risk due to gamma radioactivity in Zonguldak, Turkey[J]. Acta Physica Polonica, 2017,132(3-II):1122-1125.
|
[6] |
Ahmad N, Jaafar M S, Bakhash M , et al. An overview on measurements of natural radioactivity in Malaysia[J]. Journal of Radiation Research and Applied Sciences, 2015,8(1):136-141.
|
[7] |
赵希岳, 樊国华, 蔡志强 , 等. 放射性核素60Co在土壤中的淋溶和迁移分布[J]. 中国环境科学, 2010,30(8):1118-1122.
|
[7] |
Zhao X Y, Fan G H, Cai Z Q , et al. Leaching and vertical transference of radioactive nuclide cobalt-60 in soils[J]. China Environmental Science, 2010,30(8):1118-1122.
|
[8] |
王卫星, 杨亚新, 王雷明 , 等. 广东下庄铀矿田土壤的天然放射性研究[J]. 中国环境科学, 2005,25(1):120-123.
|
[8] |
Wang W X, Yang Y X, Wang L M , et al. Studies on natural radioactivity of soil in Xiazhuang uranium ore field, Guangdong[J]. China Environmental Science, 2005,25(1):120-123.
|
[9] |
岳玉美, 宋刚, 张志强 , 等. 广州市北部土壤天然放射性水平研究[J]. 中国环境科学, 2011,31(4):657-661.
|
[9] |
Yue Y M, Song G, Zhang Z Q , et al. Studies on natural radioactivity of soil in North of Guangzhou[J]. China Environmental Science, 2011,31(4):657-661.
|
[10] |
王启栋, 宋金明, 李学刚 , 等. 昌邑滨海湿地沉积物的放射性核素水平与环境指示意义[J]. 环境科学, 2016,37(8):3026-3033.
|
[10] |
Wang Q D, Song J M, Li X G , et al. Distribution and environmental significances of radionuclides in the sediment of the Changyi coastal wetland[J]. Environmental Science, 2016,37(8):3026-3033.
|
[11] |
杜金秋, 关道明, 姚子伟 , 等. 大连近海沉积物中放射性核素分布及环境指示[J]. 中国环境科学, 2017,37(5):1889-1895.
|
[11] |
Du J Q, Guan D M, Yao Z W , et al. Distribution and environmental significances of radionuclides in sediments of Dalian coastal area[J]. China Environmental Science, 2017,37(5):1889-1895.
|
[12] |
黄亚楠, 潘少明, 张威 , 等. 中国大陆土壤中239+240Pu的来源与背景值研究[J]. 中国环境科学, 2018,38(12):4608-4616.
|
[12] |
Huang Y N, Pan S M, Zhang W , et al. The source and reference inventory of 239+240Pu in the soil of China[J]. China Environmental Science, 2018,38(12):4608-4616.
|
[13] |
Ahmed N K, El-Arabi A G M . Natural radioactivity in farm soil and phosphate fertilizer and its environmental implications in Qena governorate, Upper Egypt[J]. Journal of Environmental Radioactivity, 2005,84(1):51-64.
|
[14] |
Ghosh D, Deb A, Bera S , et al. Measurement of natural radioactivity in chemical fertilizer and agricultural soil: evidence of high alpha activity[J]. Environmental Geochemistry & Health, 2008,30(1):79-86.
|
[15] |
曾兵 . 成都平原地-空界面天然伽玛场及其辐射环境研究[D]. 成都:成都理工大学, 2010.
|
[15] |
Zeng B . The study of gamma radiation field and its environmental on gas-ground interface in Chengdu plain[D]. Chengdu:Chengdu University of Technology, 2010.
|
[16] |
莫纯銮 . 广东省天然放射性生态环境调查评价与治理对策研究[D]. 广州:华南理工大学, 2010.
|
[16] |
Mo C L . The study on the investigation and evaluation of natural radioactivity ecological environment in Guangdong province and the countermeasure[D]. Guangzhou:South China University of Technology, 2010.
|
[17] |
广东省地质矿产局. 广东省区域地质志[M]. 北京: 地质出版社, 1988.
|
[17] |
Guangdong Geological Bureau. Regional Geology of Guangdong Province [M]. Beijing: Geological Publishing House, 1988.
|
[18] |
王南萍, 肖磊, 刘少敏 , 等. 广东珠海地表介质中238U、232Th和40K的活度水平[J]. 同位素, 2005,18(1):73-78,238.
|
[18] |
Wang N P, Xiao L, Liu S M , et al. 238U、232Th and 40K radioactivity level of soil and concrete floor in Zhuhai, Guangdong province[J]. China Journal of Isotopes, 2005,18(1):73-78,238.
|
[19] |
中国科学院华南热带生物资源综合考察队. 广东省地貌区划[R]. 中国科学院华南热带生物资源综合考察队, 1960.
|
[19] |
Comprehensive Investigation Team of Tropical Biological Resources of South China, Chinese Academy of Sciences. Landform regionalization of Guangdong Province[R]. 1960.
|
[20] |
广东省地貌数据[DB/OL].地理国情监测云平台. http://www.dsac.cn/DataProduct/Detail/20080008.
|
[20] |
Geomorphic data of Guangdong Province[DB/OL].Geographical Information Monitoring Cloud Platform. http://www.dsac.cn/DataProduct/Detail/20080008
|
[21] |
GB/T 11713-89 用半导体γ谱仪分析低比活度γ放射性样品的标准方法[S].
|
[21] |
GB/T 11713-89 Standard methods of analyzing low specific gamma radioactivity samples by semiconductor gamma spectrometers[S].
|
[22] |
HJT61-2001 环境辐射监测技术规范[S].
|
[22] |
HJT61-2001 Technical criteria for radiation environmental monitoring[S].
|
[23] |
Navas A, Gaspar L, López-Vicente M , et al. Spatial distribution of natural and artificial radionuclides at the catchment scale (South Central Pyrenees)[J]. Radiation Measurements, 2011,46(2):261-269.
|
[24] |
Somboon S, Kavasi N, Sahoo S K , et al. Radiocesium and 40K distribution of river sediments and floodplain deposits in the Fukushima exclusion zone[J]. Journal of Environmental Radioactivity, 2018,195:40-53.
|
[25] |
Liu C, Chan Y, Alam Kazmi S H , et al. Financial fraud detection model: based on random forest[J]. International Journal of Economics and Finance, 2015,7(7):178-188.
|
[26] |
Meng H D, Xiao-Qing J I, Xiao Y L , et al. Research on random forest classification algorithm based on sensitivity degree in Hadoop environment[J]. Journal of Inner Mongolia University of Science & Technology, 2016,( 3):297-301.
|
[27] |
曹龙生, 杨亚新, 张叶 , 等. 中国大陆主要省份土壤中天然放射性核素含量分布规律研究[J]. 东华理工大学学报:自然科学版, 2012,35(2):167-172.
|
[27] |
Cao L S, Yang Y X, Zhang Y , et al. Distribution pattern of radionuclides in the soil of mainland China[J]. Journal of East China Institute of Technology: Natural Science Edition, 2012,35(2):167-172.
|
[28] |
Durusoy A, Yildirim M . Determination of radioactivity concentrations in soil samples and dose assessment for Rize Province, Turkey[J]. Journal of Radiation Research and Applied Sciences, 2017,10(4):348-352.
|
[29] |
秦苏云, 戚勇, 李淑琴 , 等. 90Sr、137Cs、天然铀、226Ra和239Pu在陆地食物链中的转移系数[J]. 辐射防护, 1995,15(4):241-252.
|
[29] |
Qin S Y, Qi Y, Li S Q , et al. Study for transfer coeffecients of 90Sr, 137Cs, natural U, 226Ra and 239Pu in terrestrial foodchains[J]. Radiation Protection, 1995,15(4):241-252.
|
[30] |
Desideri D, Battisti P, Giardina I , et al. Assessment of radioactivity in Italian baby food[J]. Food Chemistry, 2019,279:408-415.
|
[31] |
Ramzaev V, Barkovsky A, Goncharova Y , et al. Radiocesium fallout in the grasslands on Sakhalin, Kunashir and Shikotan Islands due to Fukushima accident: the radioactive contamination of soil and plants in 2011[J]. Journal of Environmental Radioactivity, 2013,118:128-142.
|
[32] |
陈怀满 . 环境土壤学(第3版)[M]. 北京: 科学出版社, 2018.
|
[32] |
Chen H M. Environmental soil science [M]. Beijing: Science Press, 2018.
|
[33] |
Beretka J, Matthew P J . Natural radioactivity of Australian building materials, industrial wastes and by-products[J]. Health Physics, 1985,48(1):87.
|
[34] |
Wang J, Du J, Bi Q . Natural radioactivity assessment of surface sediments in the Yangtze Estuary[J]. Marine Pollution Bulletin, 2017,114(1):602-608.
|
