黑龙江省额尔古纳地块战略性矿产锑区域地球化学特征及远景区预测

doi:10.11720/wtyht.2023.1439

Abstract
Figure/Table
References
Related Citation (15)

Download: PDF (4012 KB) HTML (1 KB)
Export: BibTeX | EndNote (RIS)

Abstract

The Eerguna block with metallogenic geological conditions is an important metallogenic area in Heilongjiang Province. Globally, China boasts the richest resource of antimony. However, the high mining intensity in recent years imposes huge challenges to this resource advantage of China. In this context, it is necessary to ascertain the geochemical characteristics of antimony in the Eerguna block. Based on the data of the 1∶250 000 stream sediment survey in the Eerguna block, this study explored the geochemical parameters of antimony in different tectonic units and the regional geochemical anomalies of this block. The results show that the study area has median and average concentrations of antimony of 0.33×10^-6 and 0.55×10^-6, respectively. The Mohe foreland basin is rich in antimony, with median and average concentrations of antimony higher than those of the study area. Furthermore, zones with high and extremely high antimony concentrations in the study area are distributed primarily in the Mohe foreland basin. Based on the 85% cumulative percentage, this study determined 66 geochemical anomalies of antimony, among which two reach the scale of geochemical provinces. Furthermore, this study identified significant geochemical anomalies of antimony in the discovered gold, antimony, and plumbum deposits or ore occurrences (mineralization points). Based on the spatial distributions of geochemical anomalies and metallogenic geological conditions of antimony, arsenic, and gold, this study delineated three metallogenic prospect areas of antimony: the Beijicun-Sanlianshan metallogenic prospect area, the Wangsushan-Daling metallogenic prospect area, and the Baikalushan-Huzhong metallogenic prospect area. In addition, the geochemical anomalies and metallogenic prospect areas for antimony, arsenic, and gold provide important areas for searching for sulfide deposits such as gold, antimony, and plumbum ones in the study area.

Key words： antimony Eerguna block stream sediment geochemical parameter geochemical anomaly metallogenic prospect area

Received: 06 September 2022 Published: 27 October 2023

ZTFLH:

P632

	Service

	E-mail this article
	Add to my bookshelf
	Add to citation manager
	E-mail Alert
	RSS
	Articles by authors
	Tai-Ping WAN
	Li ZHANG
	Han-Liang LIU

Cite this article:

Tai-Ping WAN,Li ZHANG,Han-Liang LIU. Regional geochemical characteristics and metallogenic prospect area prediction of strategic mineral antimony in the Eerguna block, Heilongjiang Province, China[J]. Geophysical and Geochemical Exploration, 2023, 47(5): 1179-1188.

URL:

https://www.wutanyuhuatan.com/EN/10.11720/wtyht.2023.1439 OR https://www.wutanyuhuatan.com/EN/Y2023/V47/I5/1179

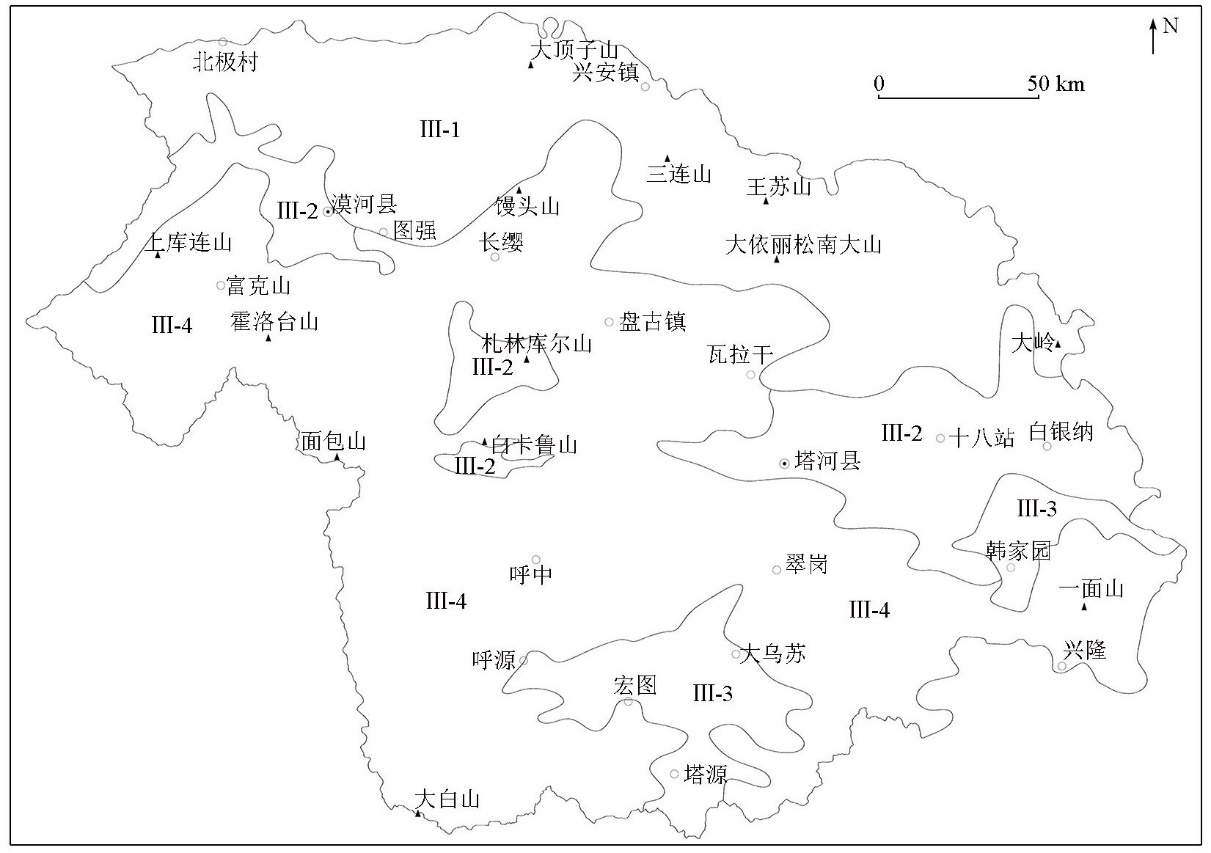

Simplified geotectonic zoning map in Erguna massif
Ⅲ-1—Mohe foreland basin;Ⅲ-2—Fukeshan-Xinghua metamorphic basement complex;Ⅲ-3—Huanyu-Xinlin ophiolitic melange; Ⅲ-4—Tahe-Cuigang magma arc

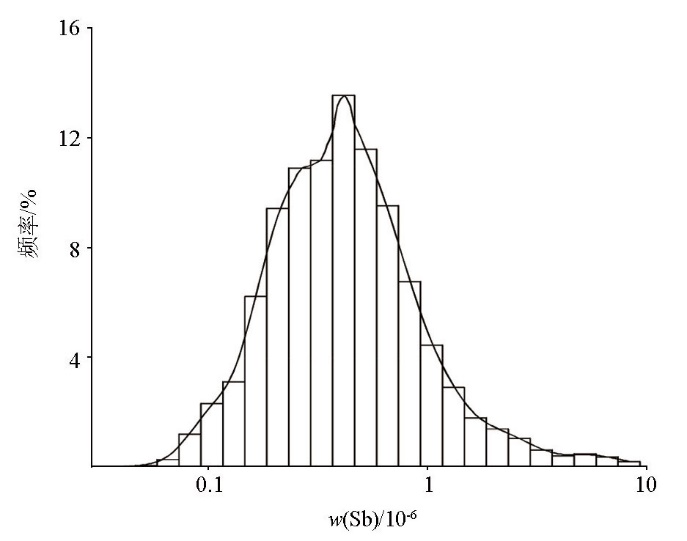

Antimony histogram of stream sediments collected from the Erguna massif

Antimony geochemical parameters of stream sediments collected from different tectonic belts across the Erguna massif

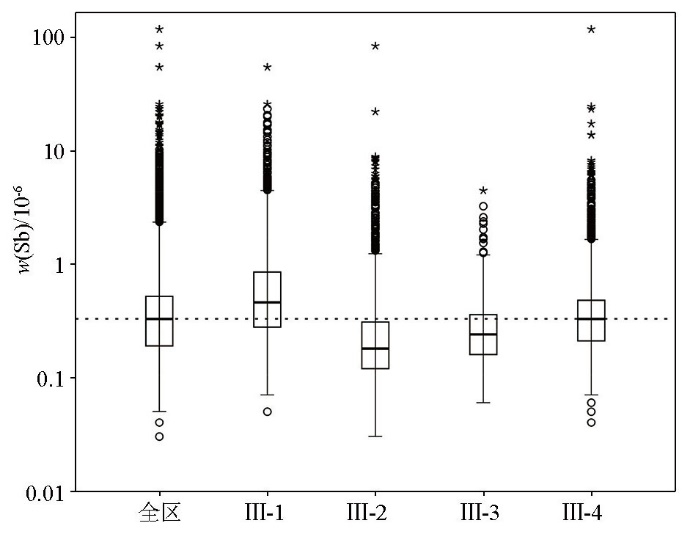

Antimony boxplots of stream sediments collected from different tectonic belts across the Erguna massif

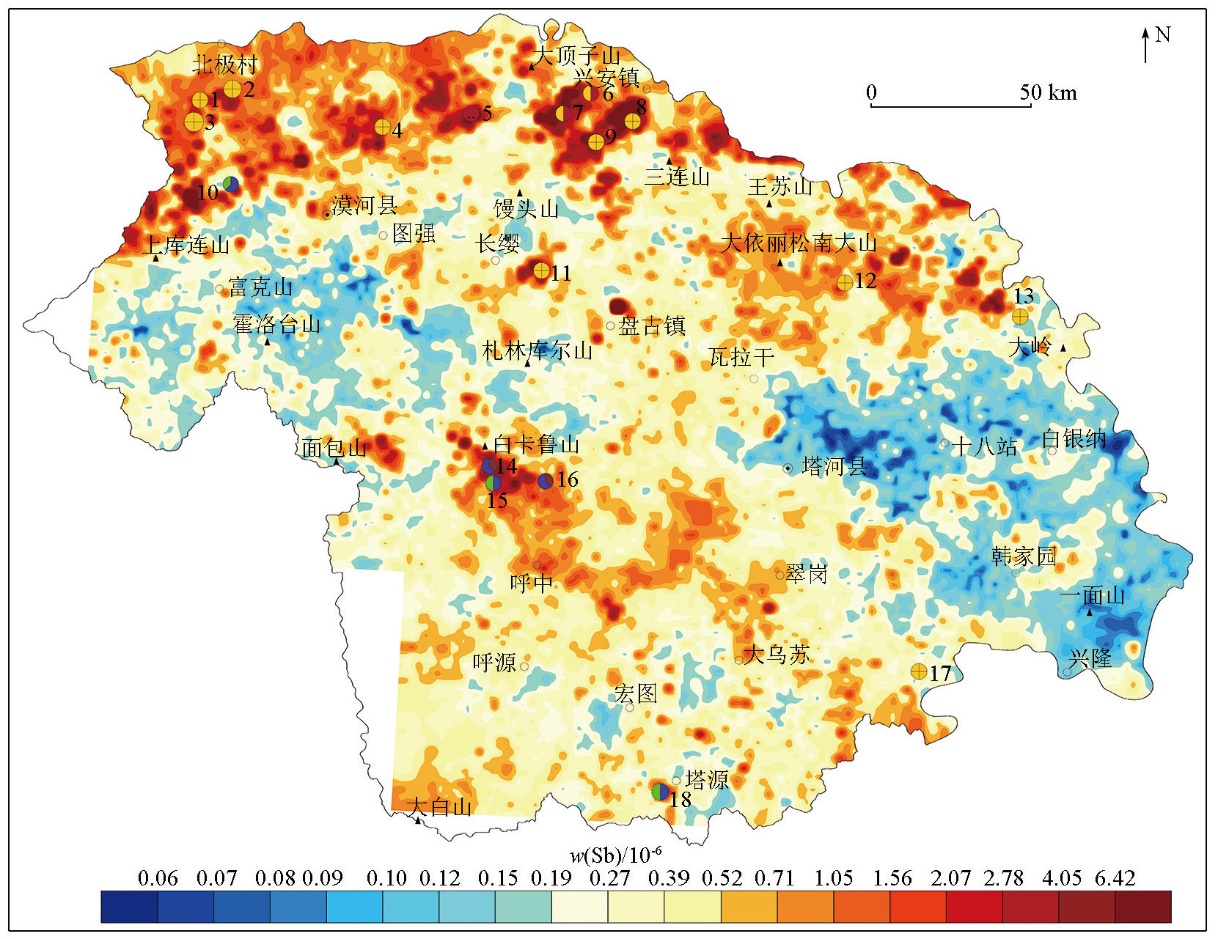

Antimony geochemical map of stream sediments collected from the Erguna massif
1—west of Laogou gold ore spot;2—Laogou small gold deposit;3—Shabaosi large gold deposit; 4—Longgouhe gold ore (mineralization) spots; 5—Shuangmuzui antimony ore (mineralization) spots; 6—Daleizishan gold-antimony ore spot; 7—Maojiadagou gold-antimony ore spot; 8—Ergenhe gold ore spot; 9—Yesuoku gold ore spot; 10—Likanhe lead-copper ore spot; 11—Madaerhe small gold deposit; 12—Ershiyizhan small gold-copper deposit; 13—Fulahan small gold deposit; 14—Huzhong lead-zinc ore spot; 15—southeast of Bowuleshan copper-lead ore spot; 16—Bishui lead-zinc deposit; 17—Heilonggou-Walahei small gold deposit; 18—Tayuanerzhixian copper-molybdenum deposit

Fig.4)
">

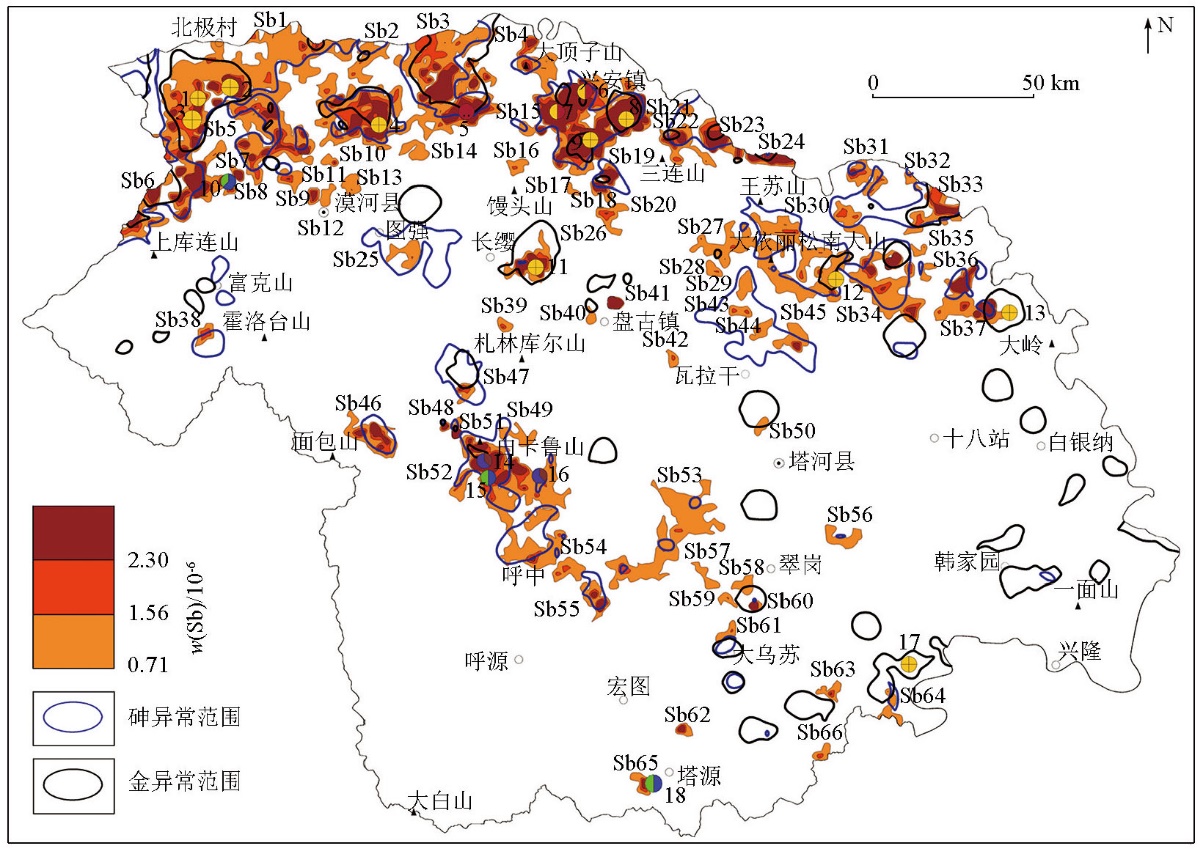

Comprehensive anomaly map of stream sediments collected from the Erguna massif(deposits and ore (mineralization) spots are the same with Fig.4)

编号	面积/ km²	样点数	极大值/ 10^-6	极小值/ 10^-6	平均值/ 10^-6	中位值/ 10^-6	总体背景/10^-6	异常下限/10^-6	离差	异常强度	异常衬度	分异系数
Sb1	1255	319	84.09	0.71	1.97	1.20	0.33	0.71	4.94	5.97	2.77	2.51
Sb2	74	19	1.93	0.72	1.03	0.90	0.33	0.71	0.34	3.12	1.45	0.33
Sb3	1072	230	17.17	0.71	2.07	1.38	0.33	0.71	1.94	6.27	2.92	0.94
Sb4	771	155	24.57	0.74	4.34	2.34	0.33	0.71	4.97	13.15	6.11	1.15
Sb5	9	3	5.53	3.44	4.41	4.25	0.33	0.71	1.05	13.36	6.21	0.24
Sb6	101	23	8.61	0.81	2.29	1.50	0.33	0.71	2.16	6.94	3.23	0.94
Sb7	14	3	6.45	1.09	3.74	3.67	0.33	0.71	2.68	11.33	5.27	0.72
Sb8	9	3	3.00	0.89	1.92	1.86	0.33	0.71	1.06	5.82	2.70	0.55
Sb9	37	10	2.57	0.72	1.24	1.03	0.33	0.71	0.63	3.76	1.75	0.51
Sb10	14	4	2.93	0.78	1.33	0.81	0.33	0.71	1.07	4.03	1.87	0.80
Sb11	17	3	4.04	2.56	3.34	3.41	0.33	0.71	0.74	10.12	4.70	0.22
Sb12	20	3	1.45	0.86	1.24	1.42	0.33	0.71	0.33	3.76	1.75	0.27
Sb13	28	5	1.63	0.94	1.16	1.00	0.33	0.71	0.30	3.52	1.63	0.26
Sb14	39	8	1.41	0.73	1.09	1.07	0.33	0.71	0.28	3.30	1.54	0.26
Sb15	27	6	5.66	0.72	1.86	1.24	0.33	0.71	1.89	5.64	2.62	1.02
Sb16	23	7	1.83	0.72	1.15	0.99	0.33	0.71	0.39	3.48	1.62	0.34
Sb17	9	3	1.09	0.94	1.01	0.99	0.33	0.71	0.08	3.06	1.42	0.08
Sb18	27	5	4.78	1.26	2.71	1.51	0.33	0.71	1.82	8.21	3.82	0.67
Sb19	30	5	8.21	1.98	4.75	4.51	0.33	0.71	2.23	14.39	6.69	0.47
Sb20	47	10	2.46	0.80	1.46	1.25	0.33	0.71	0.61	4.42	2.06	0.42
Sb21	14	3	1.91	0.77	1.31	1.25	0.33	0.71	0.57	3.97	1.85	0.44
Sb22	94	23	5.78	0.71	1.72	1.20	0.33	0.71	1.23	5.21	2.42	0.72
Sb23	88	14	8.80	0.71	3.34	2.75	0.33	0.71	2.11	10.12	4.70	0.63
Sb24	47	7	6.87	2.16	3.66	3.18	0.33	0.71	1.52	11.09	5.15	0.42
Sb25	50	12	1.68	0.75	1.05	0.98	0.33	0.71	0.29	3.18	1.48	0.28
Sb26	109	25	23.39	0.71	3.27	1.24	0.33	0.71	4.69	9.91	4.61	1.43
Sb27	464	112	2.92	0.71	1.04	0.89	0.33	0.71	0.39	3.15	1.46	0.38
Sb28	18	3	1.78	1.47	1.59	1.53	0.33	0.71	0.16	4.82	2.24	0.10
Sb29	31	7	1.10	0.84	0.97	0.93	0.33	0.71	0.10	2.94	1.37	0.10
Sb30	63	13	2.11	0.75	1.34	1.14	0.33	0.71	0.42	4.06	1.89	0.31
Sb31	76	17	4.13	0.79	1.53	1.44	0.33	0.71	0.80	4.64	2.15	0.52
Sb32	14	7	1.91	0.71	0.97	0.84	0.33	0.71	0.43	2.94	1.37	0.44
Sb33	111	23	4.24	0.73	1.80	1.57	0.33	0.71	1.00	5.45	2.54	0.56
Sb34	224	55	5.02	0.71	1.41	1.11	0.33	0.71	0.81	4.27	1.99	0.57
Sb35	13	4	1.66	0.87	1.26	1.25	0.33	0.71	0.37	3.82	1.77	0.29
Sb36	16	6	1.33	0.82	0.96	0.86	0.33	0.71	0.20	2.91	1.35	0.21
Sb37	177	40	11.90	0.74	2.69	1.23	0.33	0.71	2.88	8.15	3.79	1.07
Sb38	26	5	2.22	0.72	1.67	1.72	0.33	0.71	0.62	5.06	2.35	0.37
Sb39	16	3	2.46	0.87	1.54	1.29	0.33	0.71	0.82	4.67	2.17	0.53
Sb40	12	4	1.05	0.81	0.89	0.85	0.33	0.71	0.11	2.70	1.25	0.12
Sb41	18	3	117.66	6.01	62.75	64.58	0.33	0.71	55.85	190.15	88.38	0.89
Sb42	14	3	2.09	0.83	1.37	1.20	0.33	0.71	0.65	4.15	1.93	0.47
Sb43	21	3	2.21	1.19	1.85	2.14	0.33	0.71	0.57	5.61	2.61	0.31
Sb44	26	8	2.05	0.72	0.98	0.81	0.33	0.71	0.45	2.97	1.38	0.46
Sb45	56	12	4.17	0.71	1.33	1.18	0.33	0.71	0.94	4.03	1.87	0.71
Sb46	114	29	7.90	0.75	1.78	1.15	0.33	0.71	1.54	5.39	2.51	0.87
Sb47	24	4	3.25	1.07	1.98	1.79	0.33	0.71	0.95	6.00	2.79	0.48
Sb48	26	5	13.80	0.80	4.38	1.41	0.33	0.71	5.54	13.27	6.17	1.26
Sb49	39	11	1.40	0.80	0.94	0.89	0.33	0.71	0.17	2.85	1.32	0.18
Sb50	16	4	1.30	0.98	1.15	1.16	0.33	0.71	0.13	3.48	1.62	0.11
Sb51	631	141	13.93	0.71	1.82	1.15	0.33	0.71	1.73	5.52	2.56	0.95
Sb52	37	6	2.21	0.90	1.55	1.70	0.33	0.71	0.51	4.70	2.18	0.33
Sb53	357	85	2.99	0.71	1.09	0.96	0.33	0.71	0.37	3.30	1.54	0.34
Sb54	48	11	2.07	0.72	1.23	1.07	0.33	0.71	0.46	3.73	1.73	0.37
Sb55	57	12	6.54	0.73	2.09	1.29	0.33	0.71	1.83	6.33	2.94	0.88
Sb56	47	16	0.98	0.71	0.81	0.86	0.33	0.71	0.20	2.45	1.14	0.25
Sb57	24	7	1.23	0.76	0.94	0.93	0.33	0.71	0.18	2.85	1.32	0.19
Sb58	26	6	1.23	0.71	0.96	0.93	0.33	0.71	0.22	2.91	1.35	0.23
Sb59	14	4	1.73	0.74	1.04	0.84	0.33	0.71	0.47	3.15	1.46	0.45
Sb60	11	3	7.48	1.11	4.44	4.72	0.33	0.71	3.19	13.45	6.25	0.72
Sb61	23	6	1.80	0.72	1.03	0.92	0.33	0.71	0.41	3.12	1.45	0.40
Sb62	17	3	4.46	0.88	2.12	1.01	0.33	0.71	2.03	6.42	2.99	0.96
Sb63	24	7	2.71	0.72	1.09	0.79	0.33	0.71	0.72	3.30	1.54	0.66
Sb64	31	8	1.61	0.73	1.06	0.92	0.33	0.71	0.33	3.21	1.49	0.31
Sb65	31	6	4.33	1.14	1.98	1.58	0.33	0.71	1.20	6.00	2.79	0.61
Sb66	19	5	2.39	0.85	1.19	0.91	0.33	0.71	0.67	3.61	1.68	0.56

The statistics parameters of antimony geochemical anomalies in Erguna massif
