Research on time-frequency electromagnetic method detection of Wumishan Formation thermal reservoir in deep Xiong’an New Area
Cheng Zheng-Pu1,2(), Lian Sheng1(), Wei Qiang1, Hu Wen-Guang1, Lei Ming1, Li Shu1
1. Center for Hydrogeology and Environmental Geology, CGS, Baoding 071000,China
2. School of Earth and Space Sciences, University of Science and Technology of China, Hefei 230026, China
Download: PDF (2331 KB)   HTML (1 KB)
Export: BibTeX | EndNote (RIS)
Abstract

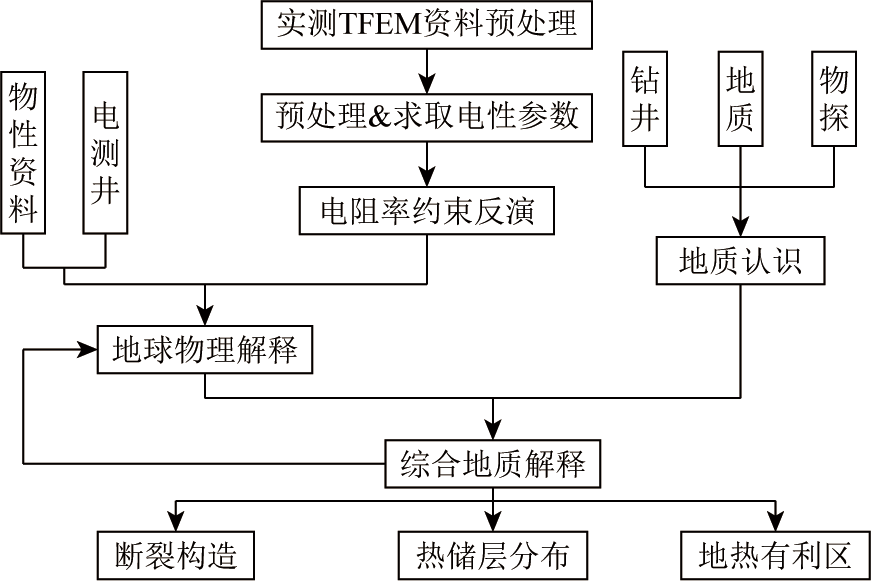

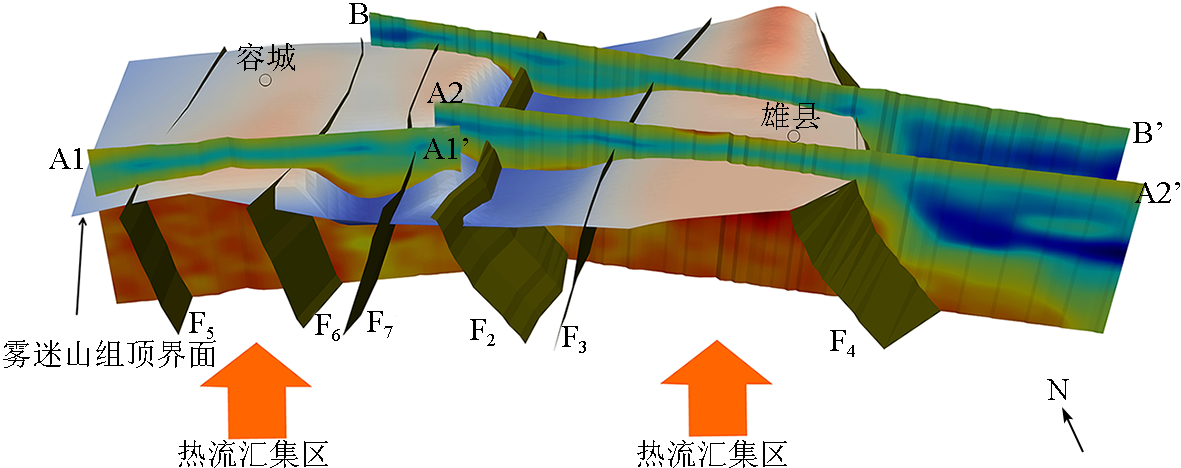

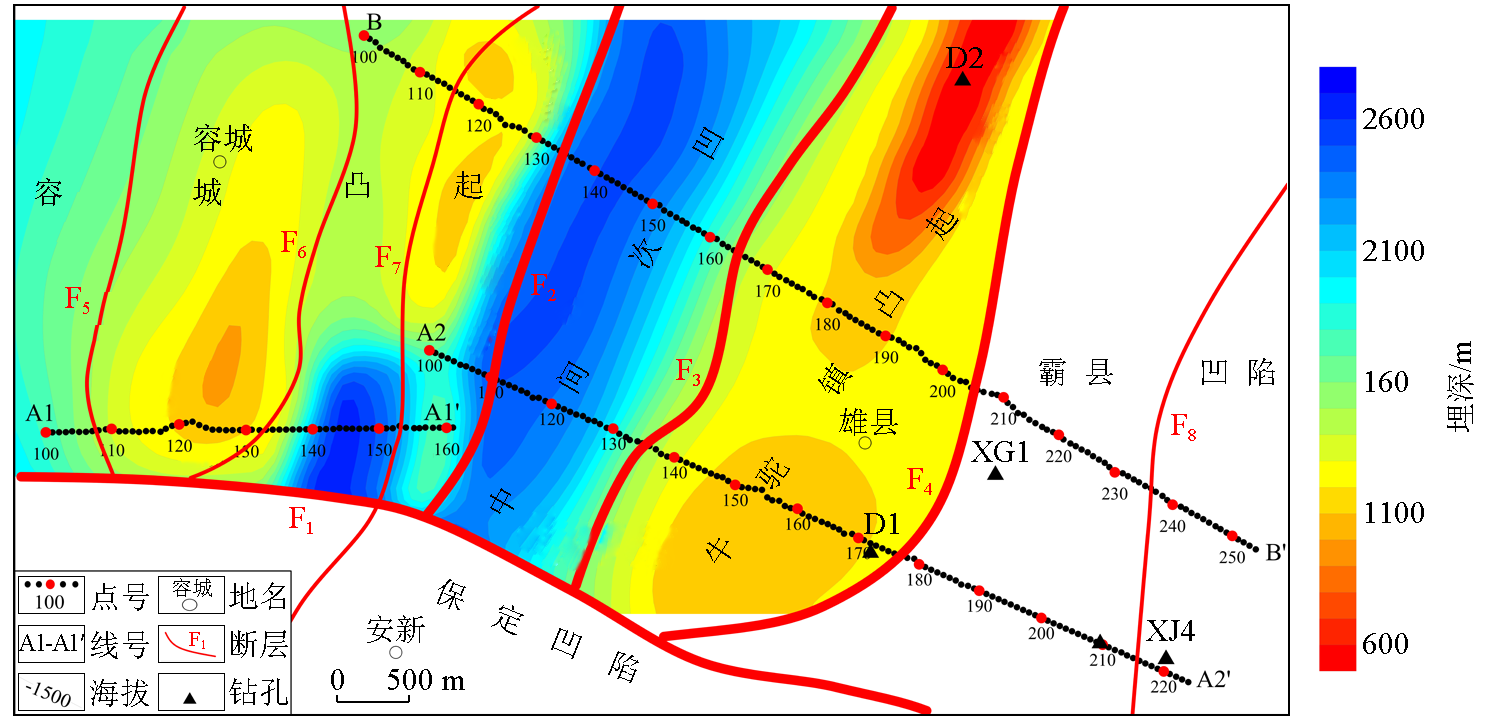

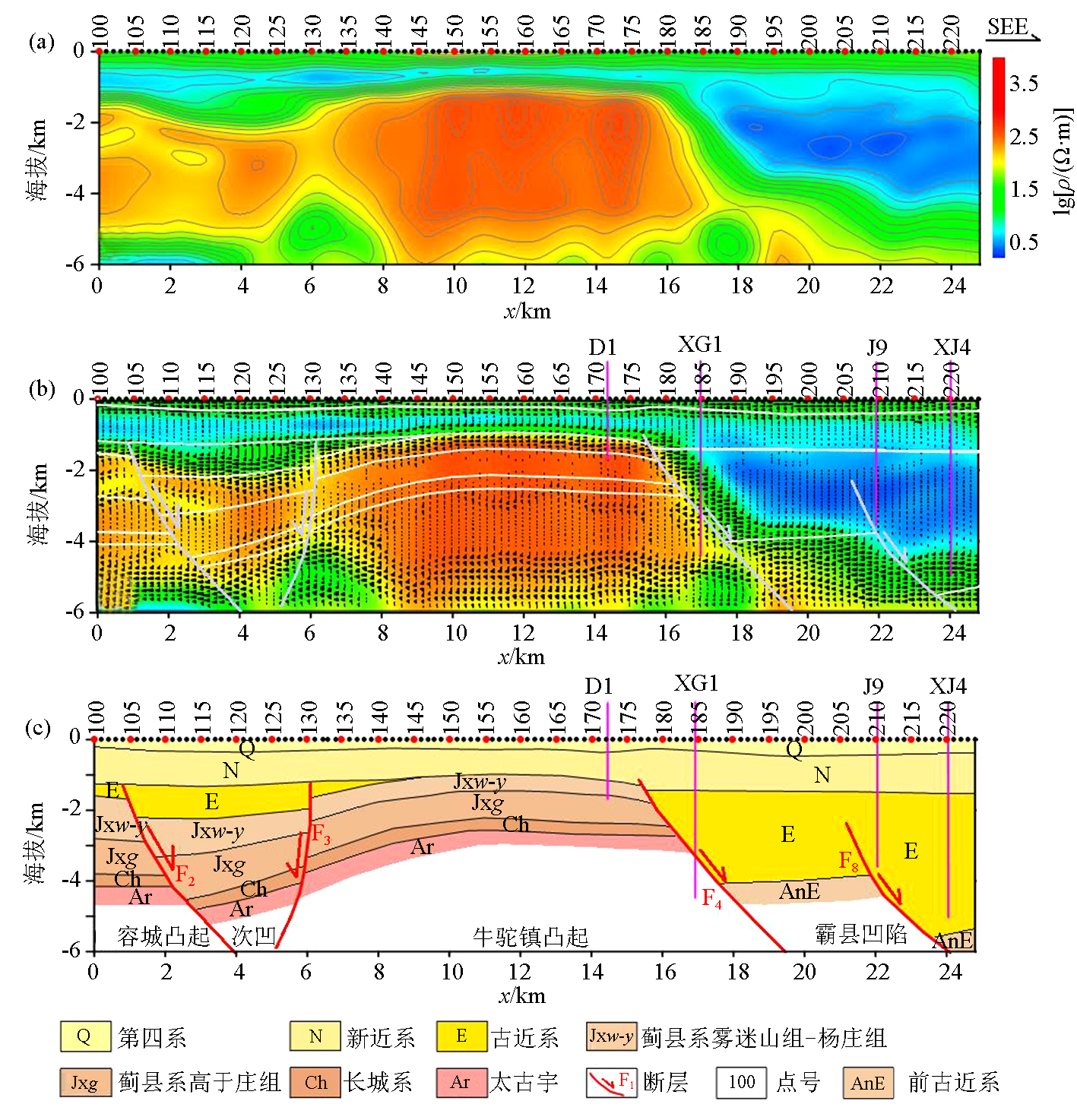

Xiong’an New Area is one of the areas with the best conditions for the development and utilization of geothermal resources in sedimentary basins of eastern China. Wumishan Formation of Jixian System is the main thermal reservoir, with buried depth of the top boundary varies greatly, which istypical carbonate type thermal reservoir. In order to find out the stratigraphic structure and concealed faults within 6 km of the starting area of Xiong’an New Area, focus on finding out the spatial distribution and structural characteristics of the main deep thermal reservoirs, and predict the favorable geothermal areas, the time-frequency electromagnetic method is applied to the geothermal resources exploration of Xiong’an New Area. Through high-standard data acquisition, refined data processing and resistivity-constrained inversion, the pseudo-seismic imaging technology and borehole data are used to calibrate the resistivity horizon, which effectively improves the reliability of interpretation results. In this work, 8concealed faults were identified, mainly NNE strike normal faults, which controlled the salient-depression pattern and stratigraphic distribution of the study area. The study area is divided into Rongcheng salient, middle sub-depression, Niutuozhen salient and Baxian depression from west to east. The thermal reservoirs of Wumishan Formation is mainly distributed in Niutuozhen salient, Rongcheng salient and middle sub-depression, with buried depth of top interface is about 600~2600m. Vsing the inversion results of the time-frequency electromagnetic method, the three-dimensional geological model of the study area is constructed, and the Niutuozhen salient area is considered to be the optimal geothermal favorable area from the aspects of heat source, channel, reservoir, caprock and fluid, especially near the footwall of F4.

Key wordstime-frequency electromagnetic method      Xiong’an New Area      deep geothermal exploration      thermal reservoir of wumishan formation      favorable geothermal area abstract
Received: 13 December 2022      Published: 23 January 2024
:  P631
