自然资源遥感  2024, Vol. 36 Issue (1): 169-178    DOI: 10.6046/zrzyyg.2022355
  技术应用 本期目录 | 过刊浏览 | 高级检索 |
基于夜光遥感数据的广西县域农村多维脱贫分析
陆妍玲1,2(), 黄娅琦1, 周俊芬3, 王杰1, 韦晶闪4()
1.桂林理工大学测绘地理信息学院,桂林 541004
2.桂林理工大学地球科学学院,桂林 541004
3.福州大学数字中国研究院(福建),福州 350001
4.桂林理工大学南宁分校土木与测绘工程系,南宁 530001
Analyzing multidimensional rural poverty alleviation at the county level in Guangxi based on remote sensing data of nighttime light
LU Yanling1,2(), HUANG Yaqi1, ZHOU Junfen3, WANG Jie1, WEI Jingshan4()
1. College of Geomatics and Geoinformation, Guilin University of Technology, Guilin 541004, China
2. College of Earth Sciences, Guilin University of Technology, Guilin 541004, China
3. The Academy of Digital China, Fuzhou University, Fuzhou 350001, China
4. Department of Civil and Surveying Engineering, Guilin University of Technology at Nanning, Nanning 530001, China
全文: PDF(21891 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

巩固脱贫攻坚成果,衔接乡村振兴战略,防止返贫是我国目前经济建设的重要任务。2022年中央农村工作会议重点强调了要“坚决守住不发生规模性返贫底线”。在多维贫困的基础上,动态客观地监测县域农村贫困程度的时空演变,对国家防返贫工作十分重要。随着遥感卫星的快速发展,高信息量和高质量的遥感数据影像逐渐丰富并被广泛应用,相比于传统的统计类数据,夜光遥感数据具有与社会经济要素高度相关、相对客观性强和时间跨度相对较长等优点。该文以DMSP/OLS和NPP/VIIRS夜光遥感数据为基础,提取夜间灯光强度指数,结合多维脱贫指数构建两者关系模型,对2010—2020年广西县域农村贫困程度进行时空演变研究,分析存在的返贫原因,为乡村振兴和脱贫攻坚提供科学参考和预防措施。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
陆妍玲
黄娅琦
周俊芬
王杰
韦晶闪
关键词 夜光遥感数据多维脱贫指数防返贫时空格局演变分析
Abstract

A vital task for the current economic construction of China is to consolidate poverty alleviation achievements, implement rural revitalization strategies, and prevent poverty relapse. The 2022 Central Rural Work Conference emphasized that China must firmly prevent any large-scale relapse into poverty. The multidimensional poverty theory underlines the significant role of the dynamic and objective monitoring of the spatio-temporal evolution of rural poverty at the county level in China’s poverty-returning prevention. Rapid progress in remote sensing satellites has enabled the gradual enrichment and extensive application of high-quality remote sensing images that contain massive information. Compared to traditional statistical data, the remote sensing data of nighttime light exhibit a high correlation with socio-economic factors, pronounced objectivity, and a relatively long time span. This study constructed a model to describe the relationship between the nighttime light intensity index extracted from the DMSP/OLS and NPP/VIIRS remote sensing data, as well as the multidimensional poverty alleviation index. Using this model, this study explored the spatio-temporal evolution of rural poverty at the county level in Guangxi from 2010 to 2020 and analyzed the existing poverty-returning causes, providing a scientific reference and preventive measures for rural revitalization and poverty alleviation.

Key wordsremote sensing data of nighttime light    multidimensional poverty alleviation index    poverty-returning prevention    spatio-temporal pattern    evolution analysis
收稿日期: 2022-08-27      出版日期: 2024-03-13
ZTFLH:  TP79
基金资助:国家自然科学基金项目“基于多维时空特征的主动地理感知理论及方法研究”(41961063)
通讯作者: 韦晶闪(1995-),女,硕士,助教,主要从事时空数据分析研究。Email: 378278211@qq.com
作者简介: 陆妍玲(1988-),女,博士,副教授,主要从事遥感影像处理研究。Email: Luyl2014@glut.edu.cn
引用本文:
陆妍玲, 黄娅琦, 周俊芬, 王杰, 韦晶闪. 基于夜光遥感数据的广西县域农村多维脱贫分析[J]. 自然资源遥感, 2024, 36(1): 169-178.
LU Yanling, HUANG Yaqi, ZHOU Junfen, WANG Jie, WEI Jingshan. Analyzing multidimensional rural poverty alleviation at the county level in Guangxi based on remote sensing data of nighttime light. Remote Sensing for Natural Resources, 2024, 36(1): 169-178.
链接本文:
https://www.gtzyyg.com/CN/10.6046/zrzyyg.2022355      或      https://www.gtzyyg.com/CN/Y2024/V36/I1/169

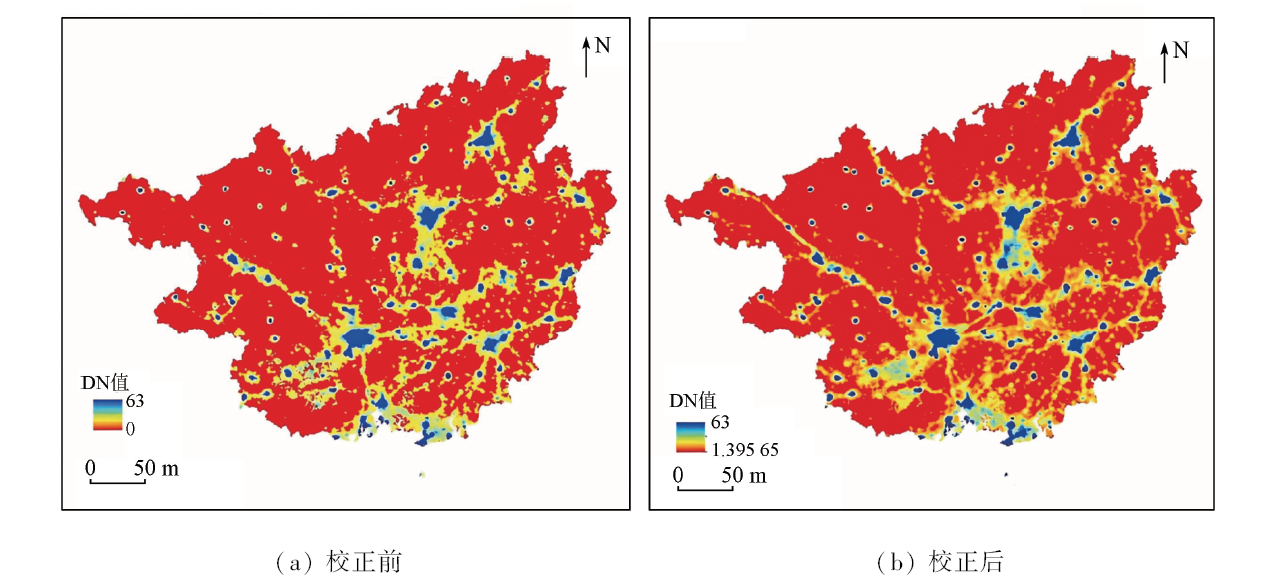

Fig.1  2012年校正前后的广西DMSP/OLS夜光遥感影像对比
维度 指标选取 指标属性 2018年权重/%
社会 年末常住人口数/万人 正向 13.27
普通中学专任教师/人 正向 12.22
医疗卫生机构技术人员/人 正向 11.99
医疗卫生机构床位数/张 正向 11.64
人均生产总值/元 正向 15.93
经济 一般公共财政预算收入/万元 正向 16.65
固定资产投资指数(不含农户) 正向 0.78
城镇居民人均可支配收入/元 正向 5.19
自然 耕地面积/hm2 正向 12.34
Tab.1  MPAI指标与权重

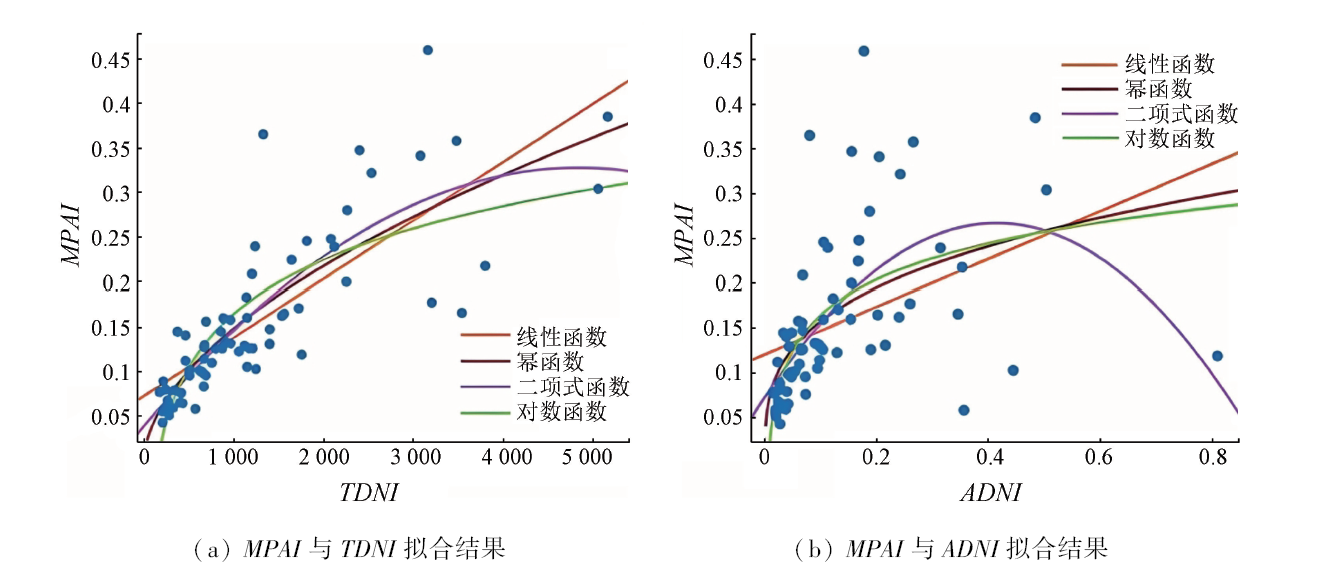

Fig.2  2018年TDNI,ADNI分别与MPAI的拟合结果
灯光指数 函数 数学模型 R2
TNDI 幂函数 y=0.002 9x0.560 7 0.747 2
多项式函数 y=-1E-08x2+0.000 1x+0.038 9 0.681 4
对数函数 y=0.199 4 lnx-0.433 8 0.637 5
线性函数 y=7E-05x+0.072 7 0.631 3
幂函数 y=0.340 4x0.381 2 0.422 7
ANDI 多项式函数 y=-1.131x2+0.936 9x+0.072 89 0.365 4
对数函数 y=0.132 9 ln(x)+0.297 0.346 3
线性函数 y=0.265 9x+0.120 5 0.166 7
Tab.2  各拟合回归模型参数对比(2018年)
Fig.3  TDNI统计分析
年份 中心点
x坐标
中心点
y坐标
长轴长
度/km
短轴长
度/km
方向角
度/(°)
2014年 108°59'33″ 23°14'08″ 1.510 7 1.909 4 40.176 5
2016年 108°59'53″ 23°16'26″ 1.527 2 1.932 7 42.109 8
2018年 109°01'14″ 23°17'11″ 1.524 2 1.960 5 44.229 3
2020年 109°01'34″ 23°17'39″ 1.493 3 1.954 8 43.801 9
Tab.3  广西县域灯光强度标准椭圆参数

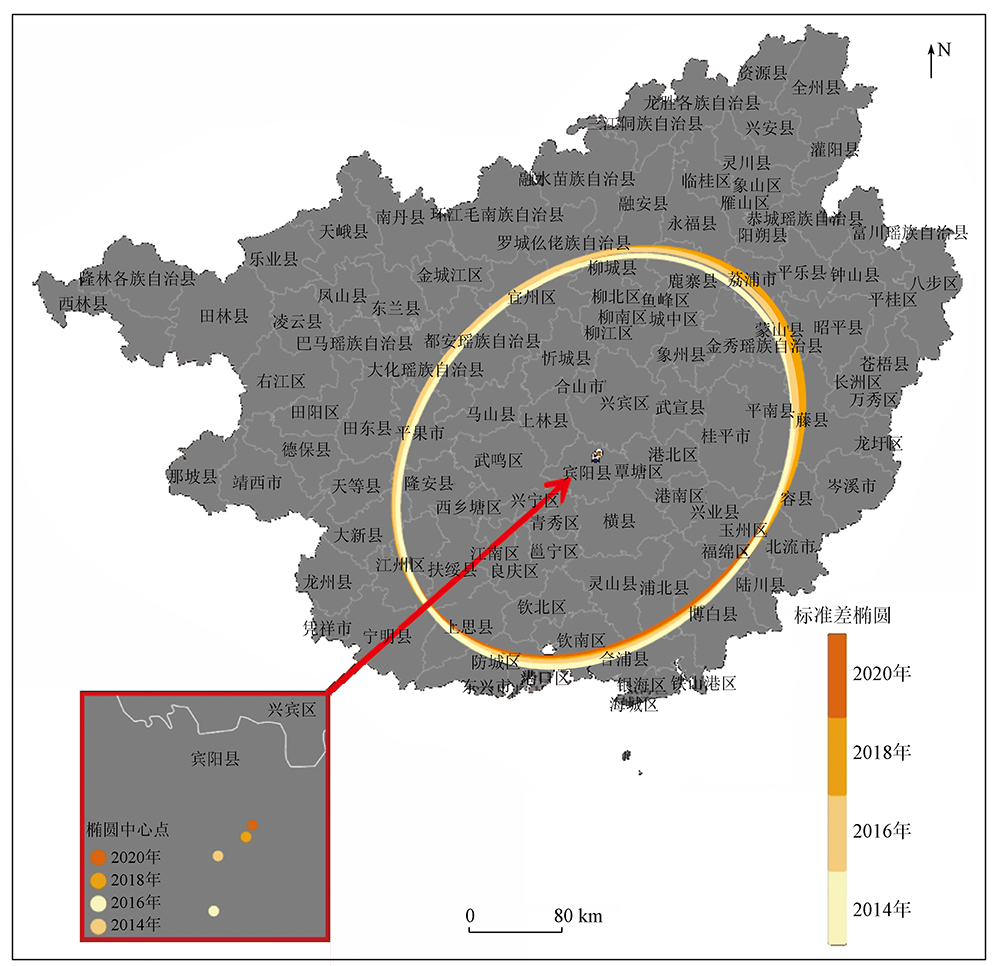

Fig.4  2014—2020年广西县域灯光强度时空格局变化轨迹

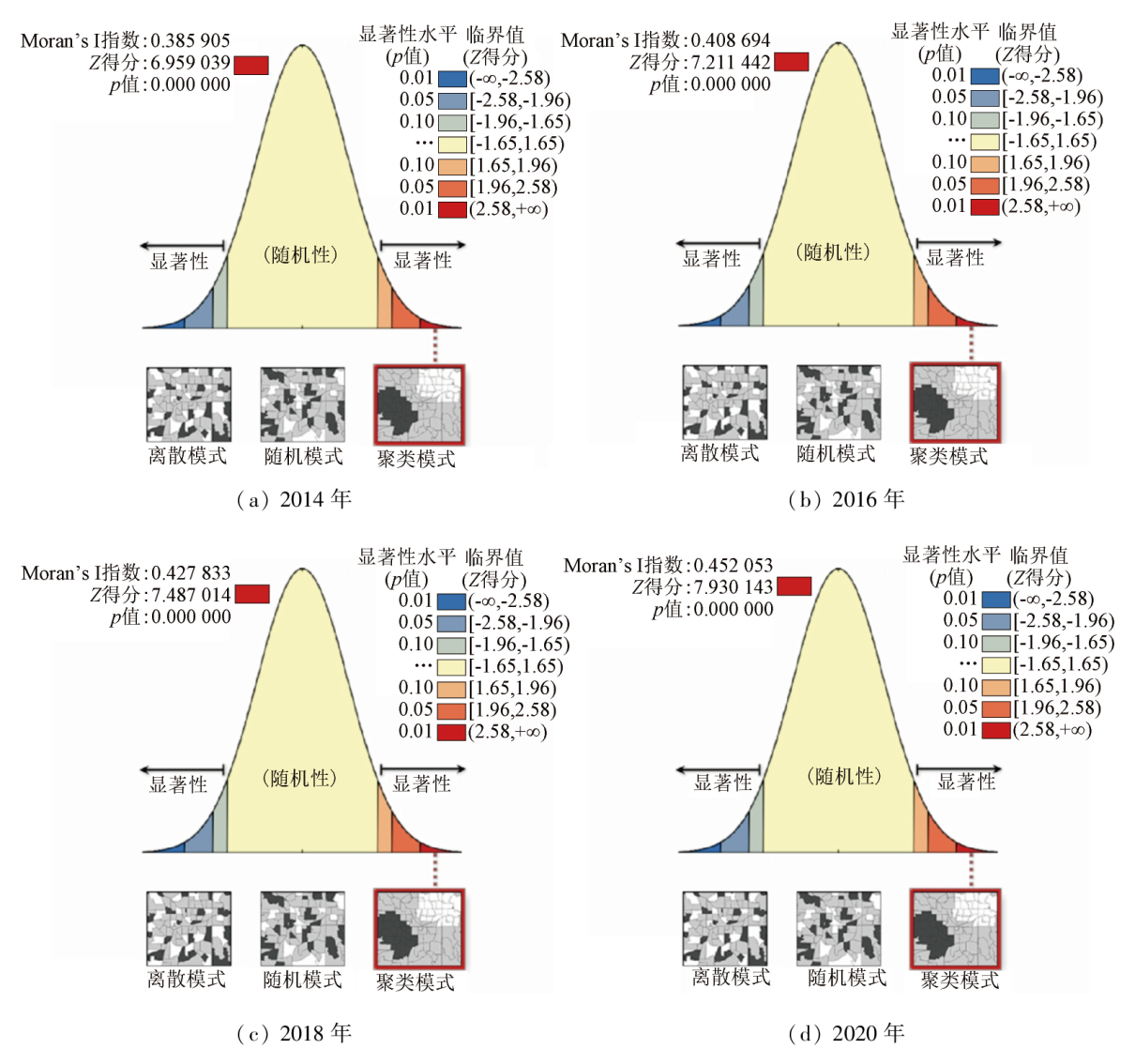

Fig.5  广西各县域Moran’s I指数分析结果
Fig.6  广西MPAI Lisa集聚图

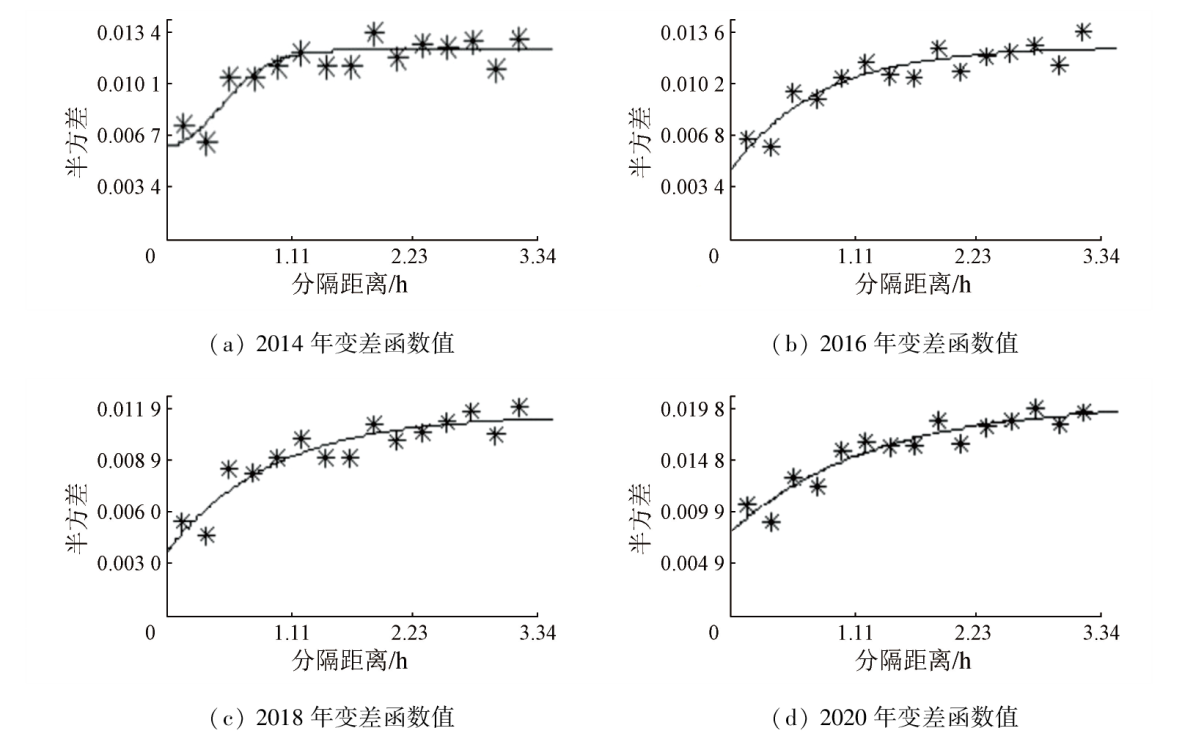

Fig.7  广西县域贫困程度变差函数拟合结果
年份 块金值
C0
基台值
(C+C0)
变程
A0
块金系数
C0/(C+C0)
R2
2014年 0.006 07 0.122 4 0.66 0.049 6 0.808
2016年 0.004 48 0.125 6 0.80 0.035 7 0.848
2018年 0.003 62 0.114 4 0.93 0.031 6 0.855
2020年 0.007 97 0.201 4 1.25 0.039 6 0.890
Tab.4  广西县域贫困程度变差函数拟合参数
年份 全方位 南-北(0°) 东北-西南(45°) 东-西(90°) 东南-西北(135°)
D R2 D R2 D R2 D R2 D R2
2014年 1.898 0.722 1.864 0.779 1.873 0.657 1.704 0.666 1.958 0.653
2016年 1.880 0.830 1.932 0.648 1.833 0.711 1.727 0.61l 1.936 0.612
2018年 1.862 0.826 1.923 0.628 1.796 0.789 1.736 0.701 1.939 0.697
2020年 1.859 0.839 1.877 0.854 1.744 0.686 1.769 0.642 1.968 0.637
Tab.5  广西县域贫困程度变差分维数
Fig.8  2014—2020年广西县域贫困时空分布
[1] 本刊编辑部. 脱贫攻坚:第一书记,“第一”担当——“全面小康·脱贫攻坚”优秀驻村第一书记特别报道专辑编前语[J]. 中国发展观察, 2020(s2):1.
The Editorial Department of This Journal. Poverty alleviation:The first secretary,“the first”responsibility——“comprehensive well-off·poverty alleviation ”excellent first secretary in the village special report album complied preamble[J]. China Development Observation, 2020 (s2):1.
[2] 习近平. 在决战决胜脱贫攻坚座谈会上的讲话[N]. 人民日报,2020-03-07(2).
Xi J P. Speech at a Symposium on fighting a decisive battle to poverty alleviation[N]. People’s Daily,2020-03-07(2).
[3] 李德仁, 李熙. 夜光遥感技术在评估经济社会发展中的应用——兼论其对“一带一路”建设质量的保障[J]. 宏观质量研究, 2015, 3(4):1-8.
Li D R, Li X. Application of night light remote sensing technology in assessing economic and social development ——Also on its guarantee for the construction quality of “the Belt and Road”[J]. Journal of Macro-quality Research, 2015, 3 (4):1-8.
[4] 余柏蒗, 王丛笑, 宫文康, 等. 夜间灯光遥感与城市问题研究:数据、方法、应用和展望[J]. 遥感学报, 2021, 25 (1):342-364.
Yu B l, Wang C X, Gong W K, et al. Nighttime light remote sensing and urban studies:Data,methods,applications,and prospects[J]. National Remote Sensing Bulletin, 2021, 25(1):342-364.
doi: 10.11834/jrs.20211018
[5] 张宝军. 2003—2013年汶川地震极重灾区夜间灯光年际变化分析[J]. 灾害学, 2018, 33(1):12-18,22.
Zhang B J. Analysis of the inter-annual variation of nighttime lights in the most affected area of Wenchuan earthquake from 2003 to 2013[J]. Journal of Catastrophology, 2018, 33 (1):12-18,22.
[6] 阮欧, 刘绥华, 陈芳, 等. 贵州省县域农村贫困度时空变化分析[J]. 中国农业资源与区划, 2022, 43(5):156-168.
Ruan O, Liu S H, Chen F, et al. Analysis on the spatial and temporal changes of county rural poverty in Guizhou Province[J]. Chinese Journal of Agricultural Resources and Regional Planning, 2022, 43(5):156-168.
[7] Sabina A, James F. Counting and multidimensional poverty measurement[J]. Journal of Public Economics, 2010, 95(7):476-487.
doi: 10.1016/j.jpubeco.2010.11.006
[8] Wang Y H, Wang B X. Multidimensional poverty measure and analysis:A case study from Hechi City,China[J]. SpringerPlus, 2016, 5(1):1-25.
doi: 10.1186/s40064-015-1659-2
[9] 刘艳华, 徐勇. 中国农村多维贫困地理识别及类型划分[J]. 地理学报, 2015, 70(6):993-1007.
doi: 10.11821/dlxb201506012
Liu Y H, Xu Y. Geographical identification and classification of multi-dimensional Poverty in rural China[J]. Acta Geographica Sinica, 2015, 70 (6):993-1007.
doi: 10.11821/dlxb201506012
[10] 方迎风, 张芬. 多维贫困测度的稳定性分析[J]. 统计与决策, 2017(24):84-89.
Fang Y F, Zhang F. Stability study on analysis of multidimensional poverty measurement[J]. Statistics & Decision, 2017 (24):84-89.
[11] 王振, 程结海, 崔明洁. 基于夜光遥感数据的区域贫困程度预测研究[J]. 矿山测量, 2018, 46(6):27-33.
Wang Z, Cheng J H, Cui M J. Prediction of regional poverty degree prediction based on night time light remote sensing data[J]. Mine Surveying, 2018, 46 (6):27-33.
[12] 胡艳兴. 基于夜间灯光数据的中国贫困空间识别研究[D]. 兰州: 西北师范大学, 2016.
Hu Y X. Research on spatial identification of poverty in China based on night time light data[D]. Lanzhou: Northwest Normal University, 2016.
