Inversion of soil salinity of an oasis in an arid area based on Landsat8 OLI images
HUANG Xiaoyu1(), WANG Xuemei1,2(), KAWUQIATI Baishan1
1. College of Geographic Science and Tourism, Xinjiang Normal University, Urumqi 830054, China 2. Xinjiang Uygur Autonomous Region Key Laboratory “Xinjiang Arid Lake Environment and Resources Laboratory”, Urumqi 830054, China

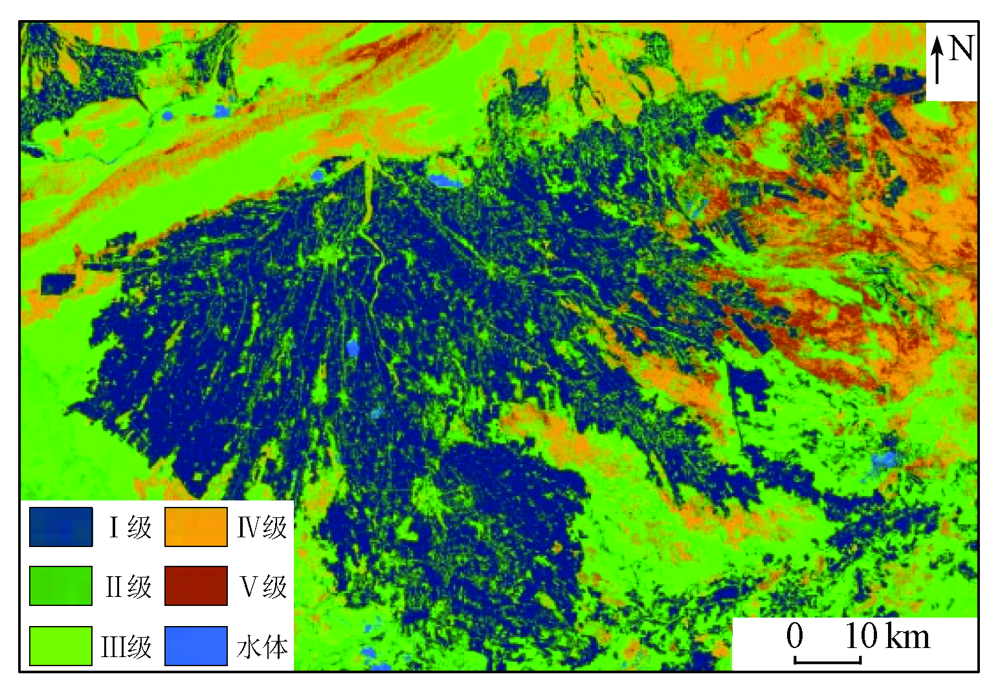

The rapid detection of soil salinity using remote sensing technology can scientifically guide the soil salinization control and the rational development of oasis agriculture. Based on 95 soil samples from the oasis of the Weigan-Kuqa River delta, this study established four soil salinity estimation models of multiple linear regression, partial least squares regression (PLSR), support vector machine regression (SVR), and random forest regression using the spectral index, band reflectance, and the measured soil salinity. Then, it conducted the remote sensing inversion for the spatial distribution pattern of the soil salinity in the study area using the optimal estimation results. The results are as follows: ① Nine spectral factors that were significantly related to soil salinity were screened using the all-subsets regression method, with correlation coefficients of all above 0.5 (P < 0.01). Among them, the correlation coefficient between salinity index SI-T and the soil salinity was the highest (0.648); ② The comparison of estimation precision show that the fitting effect of the four inversion models was in the order of random forest regression > SVR > PLSR > multiple linear regression. Among these models, the random forest model had the best fitting precision. Its training and validation sets had coefficients of determination(R2) of 0.870 and 0.766, respectively, with relative percent deviation (RPD) of 2.792 and 2.105, respectively, both of which were greater than 2. These results indicate that the random forest model had a good inversion effect and stable estimation capacity; ③ According to the inversion results of the random forest model, grade I and II zones account for 41.62% and are distributed in the cultivated land area inside the oasis; grade III, IV, and V zones account for 56.41% and are primarily distributed in the desert and the desert-oasis ecotones. Therefore, compared with conventional statistical models, the random forest modeling method can yield significantly better estimation effects in the inversion of soil salinity. This study can be used as a reference for the monitoring of soil salinization in oases in arid areas.
黄晓宇, 王雪梅, 卡吾恰提·白山. 基于Landsat8 OLI影像干旱区绿洲土壤含盐量反演[J]. 自然资源遥感, 2023, 35(1): 189-197.
HUANG Xiaoyu, WANG Xuemei, KAWUQIATI Baishan. Inversion of soil salinity of an oasis in an arid area based on Landsat8 OLI images. Remote Sensing for Natural Resources, 2023, 35(1): 189-197.
Abuelgasim A, Ammad R. Mapping soil salinity in arid and semi-arid regions using Landsat8 OLI satellite data[J]. Remote Sensing Applications: Society and Environment, 2019, 13:415-425.
doi: 10.1016/j.rsase.2018.12.010
[2]
Abdennour M A, Douaoui A, Piccini C, et al. Predictive mapping of soil electrical conductivity as a Proxy of soil salinity in south-east of Algeria[J]. Environmental and Sustainability Indicators, 2020, 8:100087.
doi: 10.1016/j.indic.2020.100087
[3]
Eswar D, Karuppusamy R, Chellamuthu S. Drivers of soil salinity and their correlation with climate change[J]. Current Opinion in Environmental Sustainability, 2021, 50:310-318.
doi: 10.1016/j.cosust.2020.10.015
[4]
Khadim F K, Su H, Xu L, et al. Soil salinity mapping in Everglades National Park using remote sensing techniques and vegetation salt tolerance[J]. Physics and Chemistry of the Earth, 2019, 110:31-50.
doi: 10.1016/j.pce.2019.01.004
[5]
Hammam A A, Mohamed E S. Mapping soil salinity in the East Nile Delta using several methodological approaches of salinity assessment[J]. The Egyptian Journal of Remote Sensing and Space Science, 2020, 23(2):125-131.
doi: 10.1016/j.ejrs.2018.11.002
[6]
王遵亲, 祝寿泉, 俞仁培, 等. 中国盐渍土[M]. 北京: 科学出版社, 1993:7-78.
Wang Z Q, Zhu S Q, Yu R P, et al. Chinese saline soil[M]. Beijing: Science Press, 1993:7-78.
Zhou L, He C C, Lyu A F, et al. Research on quick dynamic monitoring of soil salinization in Qaidam Basin[J]. Science of Surveying and Mapping, 2021, 46(7):99-106,114.
Zhang R Q, Qiao Y X, Xue J N. Spatial relationship analysis between the soil salinization and land use intensity in Yinchuan Plain[J]. Journal of Geo-Information Science, 2015, 17(5):598-606.
Zhang S M, Zhao G X, Wang Z R, et al. Remote sensing inversion and dynamic monitoring of soil salt in coastal saline area[J]. Journal of Agricultural Resources and Environment, 2018, 35(4):349-358.
Zhou X H, Zhang F, Zhang H W, et al. A study of soil salinity inversion based on multispectral remote sensing index in Ebinur Lake wetland nature reserve[J]. Spectroscopy and Spectral Analysis, 2019, 39(4):1229-1235.
Zhang T R, Zhao G X, Gao M X, et al. Soil salinity estimation based on near-ground multispectral imagery in typical area of the Yellow River Delta[J]. Spectroscopy and Spectral Analysis, 2016, 36(1):248-253.
Xi X, Zhao G X, Gao P, et al. Inversion of soil salinity in coastal winter wheat growing area based on sentinel satellite and unmanned aerial vehicle multi-spectrum:A case study in Kenli District of the Yellow River Delta[J]. Scientia Agricultura Sinica, 2020, 53(24):5005-5016.
Chen H Y, Zhao G X, Chen J C, et al. Remote sensing inversion of saline soil salinity based on modified vegetation index in estuary area of Yellow River[J]. Transactions of the Chinese Society of Agricultural Engineering, 2015, 31(5):107-114.
[14]
Fathizad H, Ardakani M A H, Sodaiezadeh H, et al. Investigation of the spatial and temporal variation of soil salinity using random forests in the central desert of Iran[J]. Geoderma, 2020, 365:114233.
doi: 10.1016/j.geoderma.2020.114233
He B Z, Ding J L, Liu B H, et al. Spatiotemporal variation of soil salinization in Weigan-Kuqa River delta oasis[J]. Scientia Silvae Sinicae, 2019, 55(9):185-196.
[16]
Allbed A, Kumar L. Soil salinity mapping and monitoring in arid and semi-arid regions using remote sensing technology:A review[J]. Advances in Remote Sensing, 2013, 2:373-385.
doi: 10.4236/ars.2013.24040
[17]
Wang J Z, Ding J L, Yu D L, et al. Machine learning-based detection of soil salinity in an arid desert region,Northwest China:A comparison between Landsat8 OLI and Sentinel-2 MSI[J]. The Science of the Total Environment, 2020, 707(10):136092.
doi: 10.1016/j.scitotenv.2019.136092
[18]
Seifi M, Ahmadi A, Neyshabouri M R, et al. Remote and Vis-NIR spectra sensing potential for soil salinization estimation in the eastern coast of Urmia hyper saline lake,Iran[J]. Remote Sensing Applications:Society and Environment, 2020, 20:100398.
doi: 10.1016/j.rsase.2020.100398
[19]
Liu Y, Zhang F, Wang C, et al. Estimating the soil salinity over partially vegetated surfaces from multispectral remote sensing image using non-negative matrix factorization[J]. Geoderma, 2019, 354:113887.
doi: 10.1016/j.geoderma.2019.113887
Qiao M, Zhou S B, Lu L, et al. Causes and spatial-temporal changes of soil salinization in Weigan River basin,Xinjiang[J]. Progress in Geography, 2012, 31(7):904-910.
Zhang Z T, Du Y Y, Lao C C, et al. Inversion model of soil salt content in different depths based on Radar remote sensing[J]. Transactions of the Chinese Society for Agricultural Machinery, 2020, 51(10):243-251.
Su W, Ding J L, Yang A X. Quantitative inversion of soil salinity in Weigan-Kuqa River oasis based on GF-1 image[J]. China Rural Water and Hydropower, 2017(2):9-13.
Li Y L, Zhao G X, Chang C Y, et al. Soil salinity retrieval model based on OLI and HSI image fusion[J]. Transactions of the Chinese Society of Agricultural Engineering, 2017, 33(21):173-180.
Yang L B, Chen C B, Zheng H W, et al. Retrieval of soil salinity content based on random forests regression optimized by bayesian optimization algorithm and genetic algorithm[J]. Journal of Geo-Information Science, 2021, 23(9):1662-1674.
Feng J, Ding J L, Wei W Y. A study of soil salinization in Weigan and Kuqa Rivers oasis based on Albedo-MSAVI feature space[J]. China Rural Water and Hydropower, 2018(2):147-152.
