Remote Sensing for Natural Resources    2021, Vol. 33 Issue (4) : 105-110     DOI: 10.6046/zrzyyg.2020353
|
Information extraction methods of coastal wetland based on GF-3 fully polarimetric SAR data
HE Chenlinqiu1,2(), CHENG Bo1(), CHEN Jinfen1,2, ZHANG Xiaoping1,2
1. Aerospace Information Research Institute, Chinese Academy of Sciences, Beijing 100094, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
Download: PDF(2837 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

The study on the information extraction methods of coastal wetlands is highly significant for accurately grasping the distribution status of coastal wetlands and for protecting and managing the rare resources in coastal wetlands. To improve the information extraction precision of surface features in coastal wetland conservation areas, this paper screens the polarimetric decomposition features using the separability index and classifies fully polarimetric SAR images using the random forest method. The details are as follows. Based on the domestic GF-3 fully polarimetric radar images of the Liaohe River Estuary National Nature Reserve in Liaoning Province, five polarimetric target decomposition methods were used to extract polarimetric features, the separable index was adopted to optimize feature selection, and finally the random forest method was utilized to conduct the classification and accuracy assessment of surface features in the study area. The experiment results show that the classification accuracy of surface features in wetlands based on optimized polarimetric features was up to 75.47%. Meanwhile, the optimized polarimetric feature parameters can effectively avoid information redundancy and improve the information extraction accuracy of surface features in coastal wetland conservation areas.
Keywords coastal wetland      GF-3      selection of polarimetric features
ZTFLH:  TP751
Corresponding Authors: CHENG Bo     E-mail: heclq@radi.ac.cn;chengbo@radi.ac.cn
Issue Date: 23 December 2021
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Chenlinqiu HE
Bo CHENG
Jinfen CHEN
Xiaoping ZHANG
Cite this article:
Chenlinqiu HE,Bo CHENG,Jinfen CHEN, et al. Information extraction methods of coastal wetland based on GF-3 fully polarimetric SAR data[J]. Remote Sensing for Natural Resources, 2021, 33(4): 105-110.
URL:
https://www.gtzyyg.com/EN/10.6046/zrzyyg.2020353     OR     https://www.gtzyyg.com/EN/Y2021/V33/I4/105

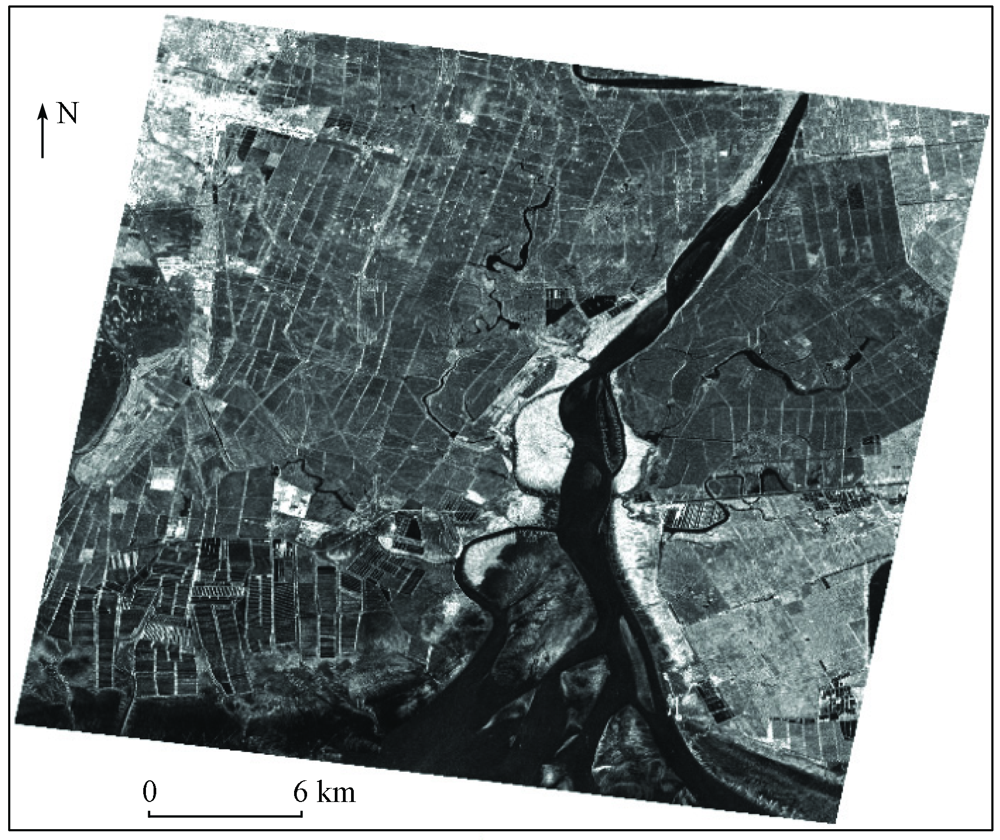

Fig.1  Pre-processed full-pol SAR image from GF-3 satellite (HH polarization)

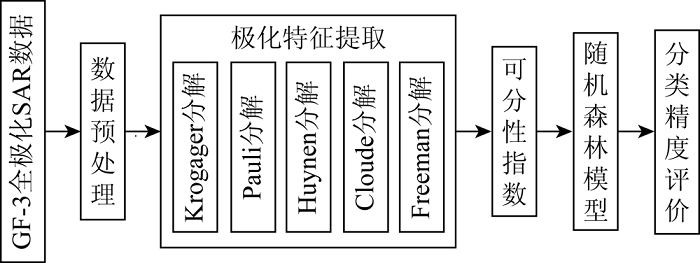

Fig.2  Flow chart of research methods
一级分类 二级分类 主要特征
天然湿地 芦苇沼泽 以芦苇为主要覆盖植被的沼泽化草甸
翅碱蓬滩涂 以翅碱蓬为主要覆盖植被的沿海滩涂
淤泥质海滩 滨海光滩和河漫滩
自然水域 天然的浅海水域和河流
人工湿地 水稻田 以水稻种植为主的蓄水农田
养殖池塘 鱼虾蟹贝养殖区
非湿地 建筑用地 居民地和工业用地
Tab.1  Remote sensing classification system of the research area

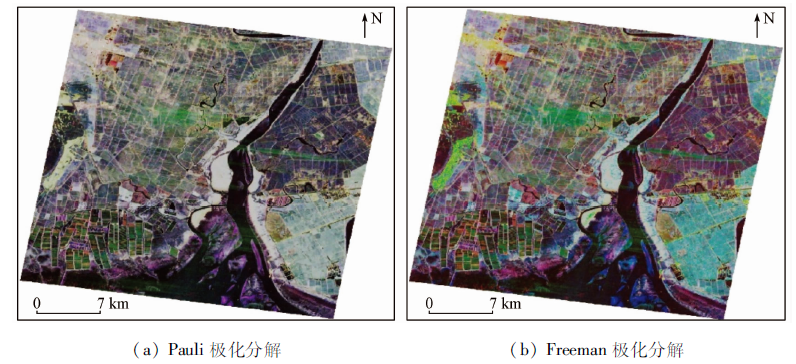

Fig.3  False color images of polarization decomposition features
目标分解方法 极化参数
Krogager 球分量 K s 螺旋体分量 K h 二面角分量 K d
Pauli[12] 奇次散射 P a 偶次散射 P b 二面角散射 P c
Huynen[11] 目标对称因子 A 0 目标非对称性因子 B 0-B 目标非规则性因子 B 0+B
Cloude[13,14,15,16] 散射熵H 平均散射角 α - 反熵A
Freeman[17,18,19] 单次散射Odd 二次散射Dbl 体散射Vol
Tab.2  Polarization decomposition features

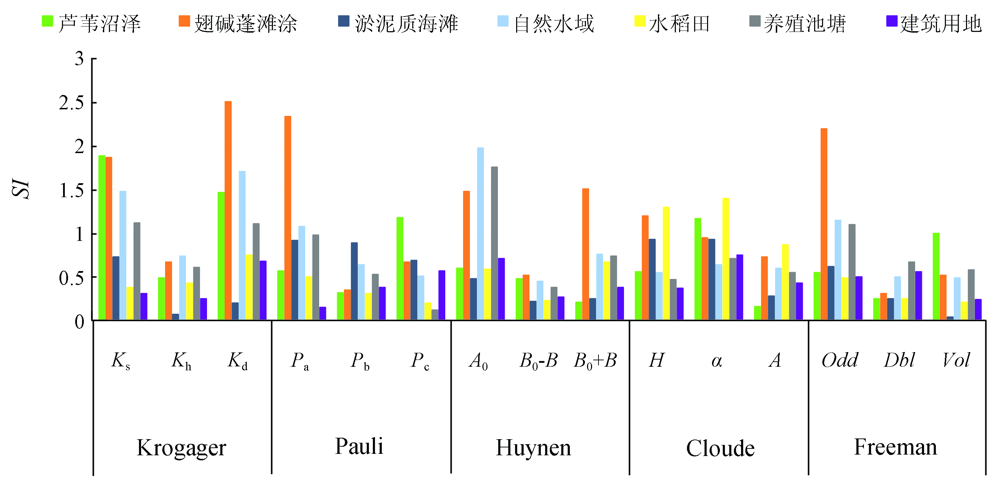

Fig.4  Columnar chart of SI of different objects in the research area

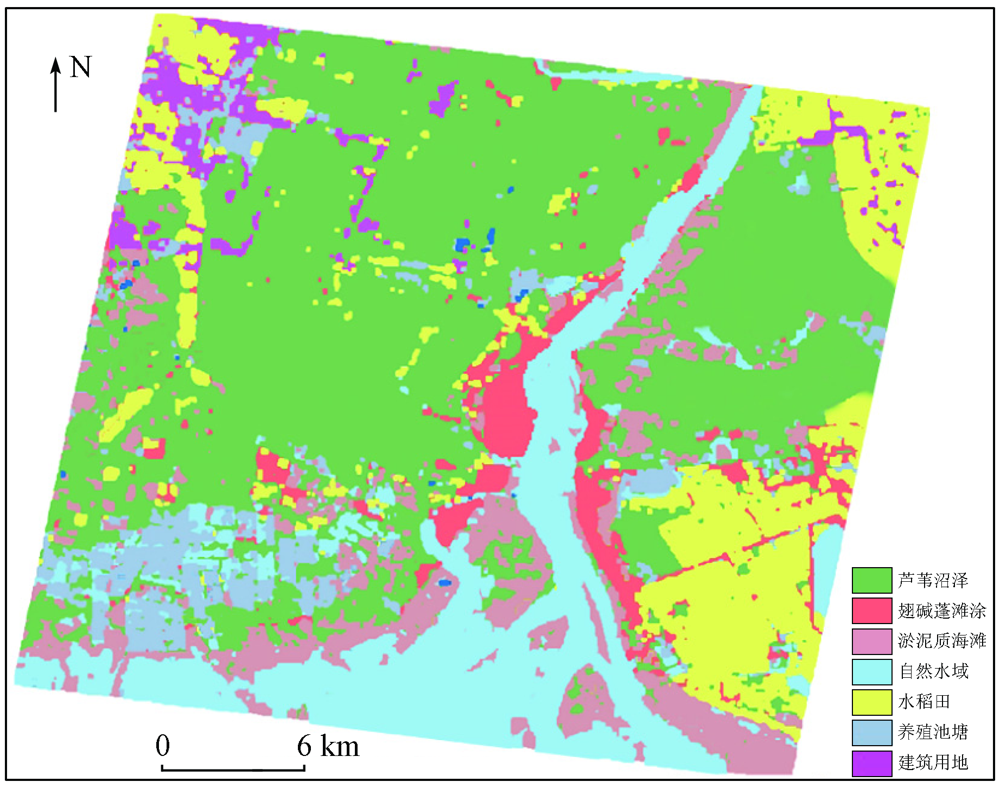

Fig.5  Classification result
类别 芦苇沼泽 翅碱蓬滩涂 淤泥质海滩 自然水域 水稻田 养殖池塘 建筑用地 合计 用户精度/%
芦苇沼泽 20 178 952 843 344 1 285 355 257 24 214 83.33
翅碱蓬滩涂 1 057 9 105 1 087 102 606 83 107 12 147 74.96
淤泥质海滩 583 992 10 423 690 522 627 15 13 852 75.25
自然水域 160 601 861 15 948 87 1 984 63 19 704 80.94
水稻田 2 359 989 1 405 397 10 685 81 632 16 548 64.57
养殖池塘 703 382 540 1 452 118 5 749 259 9 203 62.47
建筑用地 344 30 13 8 246 136 2 833 3 610 78.47
合计 25 384 13 051 15 172 18 941 13 549 9 015 3 066 99 278
生产精度/% 79.49 69.76 68.70 84.20 78.86 63.77 92.40
总体精度=75.47% Kappa=0.70
Tab.3  The confusion matrix of the classification result
