Analysis of the groundwater storage variations and their driving factors in the three eastern coastal urban agglomerations of China
LIN Xuemin1,2(), LI Weifeng2(), WANG Hong3, MING Dongping1, HAN Lijian2
1. School of Information Engineering and Technology, China University of Geosciences (Beijing), Beijing 100083, China 2. Research Center for Eco-Environmental Sciences, Chinese Academy of Sciences, Beijing 100085, China 3. Information Center of Ministry of Natural Resources, Beijing 100036, China

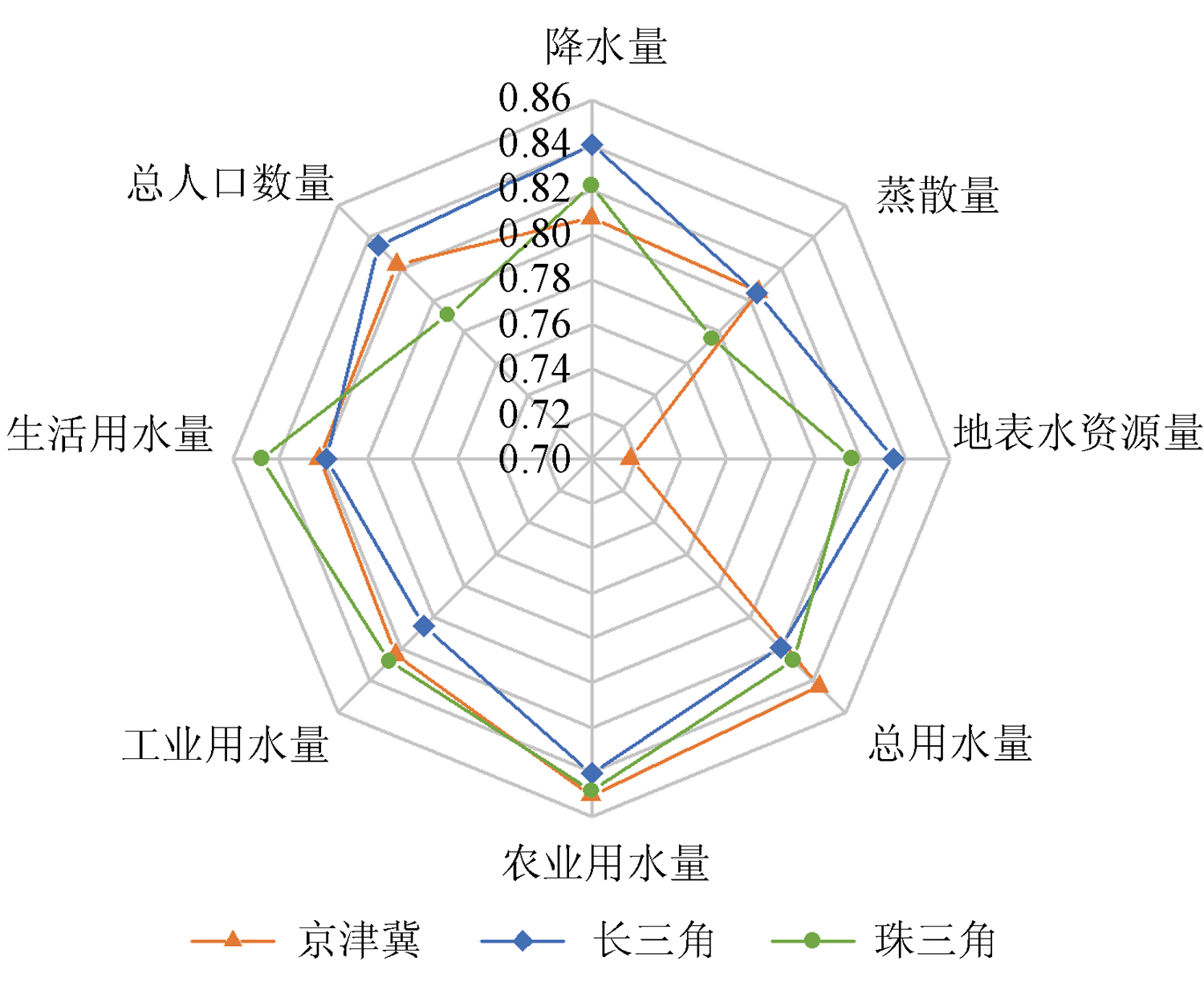

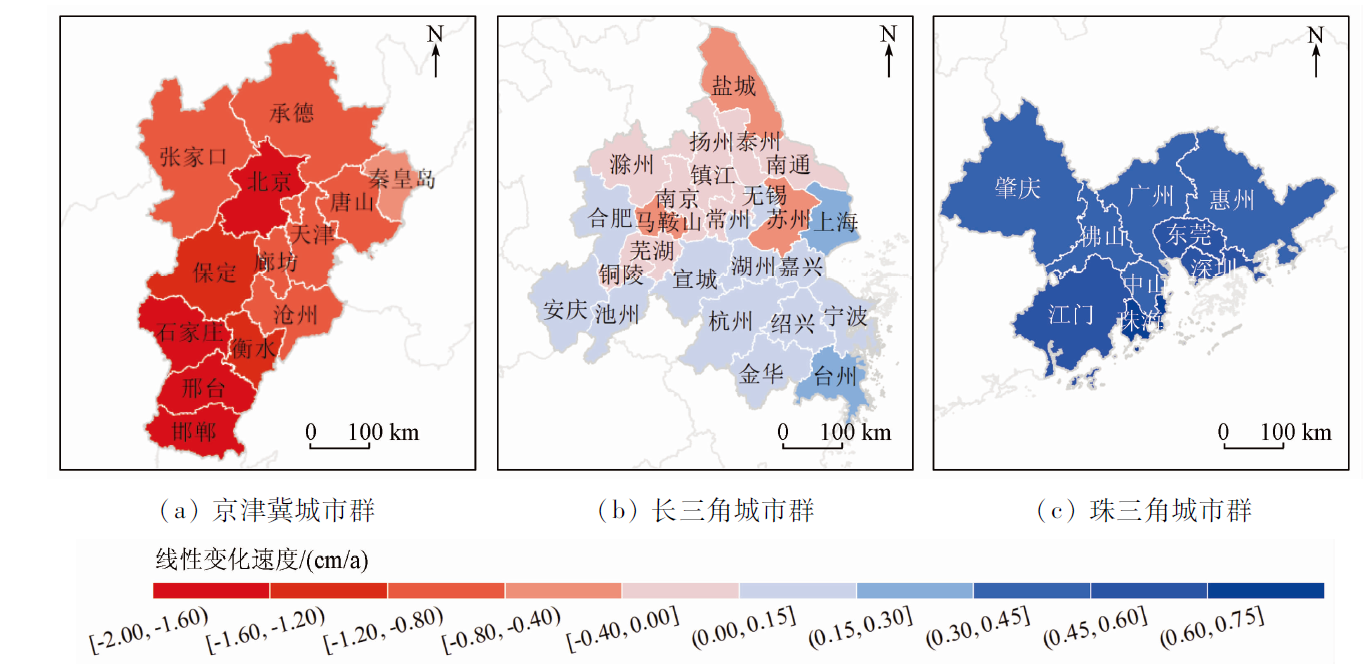

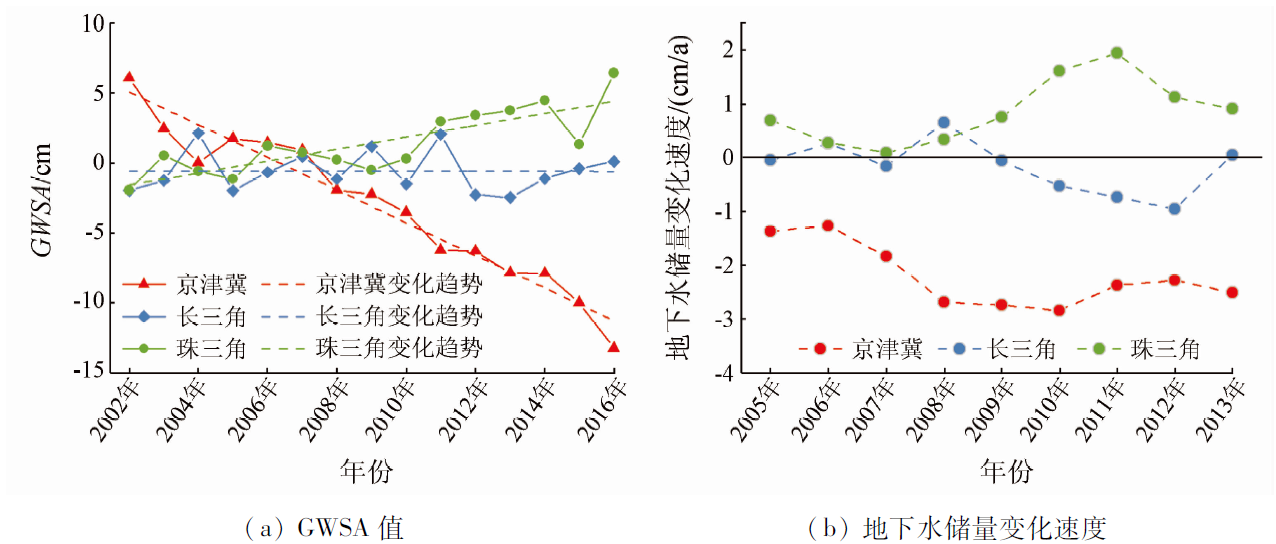

A series of geological disasters caused by groundwater overexploitation has severely restricted the sustainable development of the three eastern coastal urban agglomerations in China: Beijing-Tianjin-Hebei (BTH), Yangtze River Delta (YRD), and Pearl River Delta (PRD). To reveal the spatial-temporal dynamic variations and their driving factors of groundwater storage (GWS) in the three urban agglomerations, this study quantitatively inverted the GWS variations in the three urban agglomerations during 2002—2016 using the Gravity Recovery and Climate Experiment (GRACE) satellite data. Then, attribution analysis was made using the gray relational analysis method. The results are as follows. The GWS kept decreasing at a linear rate of 1.17 cm/a in BTH, was relatively stable with slight fluctuation in YRD, and continued to increase at a linear rate of 0.43 cm/a in PRD. The GWS variations in the three urban agglomerations were all dominated by anthropogenic factors. The BTH was significantly affected by agricultural water consumption; the YRD was affected by agricultural water consumption, precipitation, surface water availability, and population; the PRD was significantly affected by both agricultural and domestic water consumption. According to the comparative analysis of the GWS variations and their driving factors among the three urban agglomerations, the development of urban agglomerations promoted industrial restructuring and upgrades the secondary and tertiary industries, with water utilization efficiency and structure improved, thus playing a positive role in groundwater protection. Considering the natural resource capacity and development patterns of the eastern coastal urban agglomerations, the key to GWS protection and restoration is to scientifically plan agricultural development and further optimize industrial structure so as to improve water utilization efficiency and prevent surface water pollution.
林雪敏, 李伟峰, 王红, 明冬萍, 韩立建. 我国东部沿海三大城市群地下水储量变化与驱动因素分析[J]. 自然资源遥感, 2022, 34(4): 262-271.
LIN Xuemin, LI Weifeng, WANG Hong, MING Dongping, HAN Lijian. Analysis of the groundwater storage variations and their driving factors in the three eastern coastal urban agglomerations of China. Remote Sensing for Natural Resources, 2022, 34(4): 262-271.
Jakeman A J, Barreteau O, Hunt R J, et al. Integrated groundwater management:An overview of concepts and challenges[M]// JakemanA J, BarreteauO, HuntR J, et al. Integrated groundwater management:Concepts,approaches and challenges. Cham: Springer International Publishing, 2016:3-20.
[2]
Jin S, Feng G. Large-scale variations of global groundwater from satellite gravimetry and hydrological models,2002—2012[J]. Global and Planetary Change, 2013, 106:20-30.
doi: 10.1016/j.gloplacha.2013.02.008
[3]
Ye S, Xue Y, Wu J, et al. Progression and mitigation of land subsidence in China[J]. Hydrogeology Journal, 2016, 24(3):685-693.
doi: 10.1007/s10040-015-1356-9
[4]
Dong S, Samsonov S, Yin H, et al. Time-series analysis of subsidence associated with rapid urbanization in Shanghai,China measured with SBAS InSAR method[J]. Environmental Earth Sciences, 2014, 72(3):677-691.
doi: 10.1007/s12665-013-2990-y
[5]
Brunori C, Bignami C, Albano M, et al. Land subsidence,ground fissures and buried faults:InSAR monitoring of Ciudad Guzmán(Jalisco,Mexico)[J]. Remote Sensing, 2015, 7(7):8610-8630.
doi: 10.3390/rs70708610
Guo K Y, Yu J, Fang Z, et al. Investigation and evaluation of groundwater resources and geological hazards in the Yangtze River Delta Region[C]// “Tenth Five-Year Plan” Important Geological Science and Technology Achievements and Major Prospecting Achievements Exchange Meeting Material II: “Tenth Five-Year Plan ” Geological Industry Award-Winning Achievements Data Compilation. Beijing:[s.n.], 2006:142-143.
Yu Y P, Lin H, Wang H Q. Using time series InSAR technology to monitor land subsidence in Guanghua Basin[J]. Bulletin of Surveying and Mapping, 2015(1):157-159.
[8]
Conway B D. Land subsidence and earth fissures in south-central and southern Arizona,USA[J]. Hydrogeology Journal, 2016, 24(3):649-655.
doi: 10.1007/s10040-015-1329-z
Gao M S, Luo Y M. Change of groundwater resource and prevention and control of seawater intrusion in coastal zone[J]. Bulletin of Chinese Academy of Sciences, 2016, 31(10):1197-1203.
[10]
Chen J, Famigliett J S, Scanlon B R, et al. Groundwater storage changes:Present status from GRACE observations[J]. Surveys in Geophysics, 2016, 37(2):397-417.
doi: 10.1007/s10712-015-9332-4
[11]
Yin W, Hu L, Zhang M, et al. Statistical downscaling of GRACE-derived groundwater storage using ET data in the North China Plain[J]. Journal of Geophysical Research:Atmospheres, 2018, 123(11):5973-5987.
doi: 10.1029/2017JD027468
[12]
Long D, Yang W, Scanlon B R, et al. South-to-North Water Diversion stabilizing Beijing’s groundwater levels[J]. Nature Communications, 2020, 11(1):3665.
doi: 10.1038/s41467-020-17428-6
pmid: 32694568
[13]
Frappart F, Ramillien G. Monitoring groundwater storage changes using the gravity recovery and climate experiment(GRACE) satellite mission:A review[J]. Remote Sensing, 2018, 10(6):829.
doi: 10.3390/rs10060829
[14]
Gong H, Pan Y, Zheng L, et al. Long-term groundwater storage changes and land subsidence development in the North China Plain(1971—2015)[J]. Hydrogeology Journal, 2018, 26(5):1417-1427.
doi: 10.1007/s10040-018-1768-4
[15]
Kalhor K, Emaminejad N. Sustainable development in cities:Studying the relationship between groundwater level and urbanization using remote sensing data[J]. Groundwater for Sustainable Develo-pment, 2019, 9:100243.
[16]
Gao F, Wang H, Liu C. Long-term assessment of groundwater resources carrying capacity using GRACE data and Budyko model[J]. Journal of Hydrology, 2020, 588:125042.
doi: 10.1016/j.jhydrol.2020.125042
[17]
Hua S, Jing H, Yao Y, et al. Can groundwater be protected from the pressure of China’s urban growth?[J]. Environment International, 2020, 143:105911.
doi: 10.1016/j.envint.2020.105911
[18]
Yar P. Urban development and its impact on the depletion of groundwater aquifers in Mardan City,Pakistan[J]. Groundwater for Sustainable Development, 2020, 11:100426.
doi: 10.1016/j.gsd.2020.100426
[19]
Nath B, Ni-Meister W, Choudhury R. Impact of urbanization on land use and land cover change in Guwahati City,India and its implication on declining groundwater level[J]. Groundwater for Sustainable Development, 2021, 12:100500.
doi: 10.1016/j.gsd.2020.100500
[20]
Odeh T, Mohammad A H, Hussein H, et al. Over-pumping of groundwater in Irbid governorate,northern Jordan:A conceptual model to analyze the effects of urbanization and agricultural activities on groundwater levels and salinity[J]. Environmental Earth Sciences, 2019, 78(1):40.
doi: 10.1007/s12665-018-8031-0
Chen H C. Analysis and suggestions on the current situation of groundwater development and utilization in the Pearl River Delta[J]. Groundwater, 2011, 33(2):38-40.
[23]
Long D, Yang Y, Wada Y, et al. Deriving scaling factors using a global hydrological model to restore GRACE total water storage changes for China’s Yangtze River Basin[J]. Remote Sensing of Environment, 2015, 168:177-193.
doi: 10.1016/j.rse.2015.07.003
Zhao Y F, Luo Z X, Yu Y J, et al. Spatio-temporal changes of groundwater level and its driving factors in a typical region of Beijing-Tianjin-Hebei region,China[J]. Journal of Natural Resources, 2020, 35(6):1301-1313.
doi: 10.31497/zrzyxb.20200604
Liu Y, Li L J. The relationship between industrial structure and water consumption structure in Beijing-Tianjin-Hebei region[J]. South-to-North Water Transfers and Water Science and Technology, 2019, 17(2):1-9.
[26]
Huang Z, Tang Q, Lo M H, et al. The influence of groundwater representation on hydrological simulation and its assessment using satellite-based water storage variation[J]. Hydrological Processes, 2019, 33(8):1218-1230.
doi: 10.1002/hyp.13393
[27]
Long D, Longuevergne L, Scanlon B R. Uncertainty in evapotranspiration from land surface modeling,remote sensing,and GRACE satellites[J]. Water Resources Research, 2014, 50(2):1131-1151.
doi: 10.1002/2013WR014581
Zhou L, Wu J J, Lyu A F, et al. Drought evolution of different land cover regions in North China[J]. Geographical Research, 2012, 31(4):597-607.
doi: 10.11821/yj2012040003
Pei Y X, Guo M. The fundamental principle and application of sliding average method[J]. Gun Launch and Control Journal, 2001, 22(1):21-23.
[30]
Wang Z, Li J, Liu J, et al. Is the photovoltaic poverty alleviation project the best way for the poor to escape poverty?A DEA and GRA analysis of different projects in rural China[J]. Energy Policy, 2020, 137:111105.
doi: 10.1016/j.enpol.2019.111105
[31]
Chen X, Jiang J, Lei T, et al. GRACE satellite monitoring and driving factors analysis of groundwater storage under high-intensity coal mining conditions:A case study of Ordos,northern Shaanxi and Shanxi,China[J]. Hydrogeology Journal, 2020, 28(2):673-686.
doi: 10.1007/s10040-019-02101-0
[32]
Reddy J J, Varaprasad B J S, Reddy P V. Multi-objective optimization of erosion parameters of erodible soils using Taguchi-based gray relation analysis[J]. Arabian Journal of Geosciences, 2021, 14(17):1723.
doi: 10.1007/s12517-021-08192-y
[33]
Mo H. Comprehensive evaluation of flood and flood in the Yellow River Basin based on gray correlation analysis[J]. Journal of Geoscience and Environment Protection, 2021, 9:13-24.
doi: 10.4236/gep.2021.91002
Huo S Y, Jin M G. Effects of precipitation and irrigation on vertical groundwater recharge[J]. Hydrogeology and Engineering Geology, 2015, 42(5):6-13,21.
[35]
柯志庭. 广花盆地地下水位动态与降雨入渗补给研究[D]. 广州: 中山大学, 2013.
Ke Z T. Research on groundwater level dynamics and rainfall infiltration replenishment in Guanghua Basin[D]. Guangzhou: Sun Yat-sen University, 2013.
Wang Y H, Guo S J. Pilot projects for controlling of groundwater over exploitation in Hebei Province by recharging water to aquifers near rivers and lakes[J]. China Water Resources, 2020(13):35-36.
Wei T Q. Focus on goals and tasks,adhere to comprehensive measures,and make every effort to promote comprehensive treatment of groundwater overexploitation[J]. Hebei Water Resources, 2020(11):6-7.
