A method for hyperspectral inversion of element contents for soil-quality evaluation of cultivated land
YI Zifang1,2(), ZHOU Leilei1,2, LUO Jianlan1, CAO Li2()
1. Hunan Geophysical and Geochemical Institute, Changsha 410116, China 2. Key Laboratory of Natural Resources Monitoring and Supervision in Southern Hilly Region, Ministry of Natural Resources, Changsha 410119, China

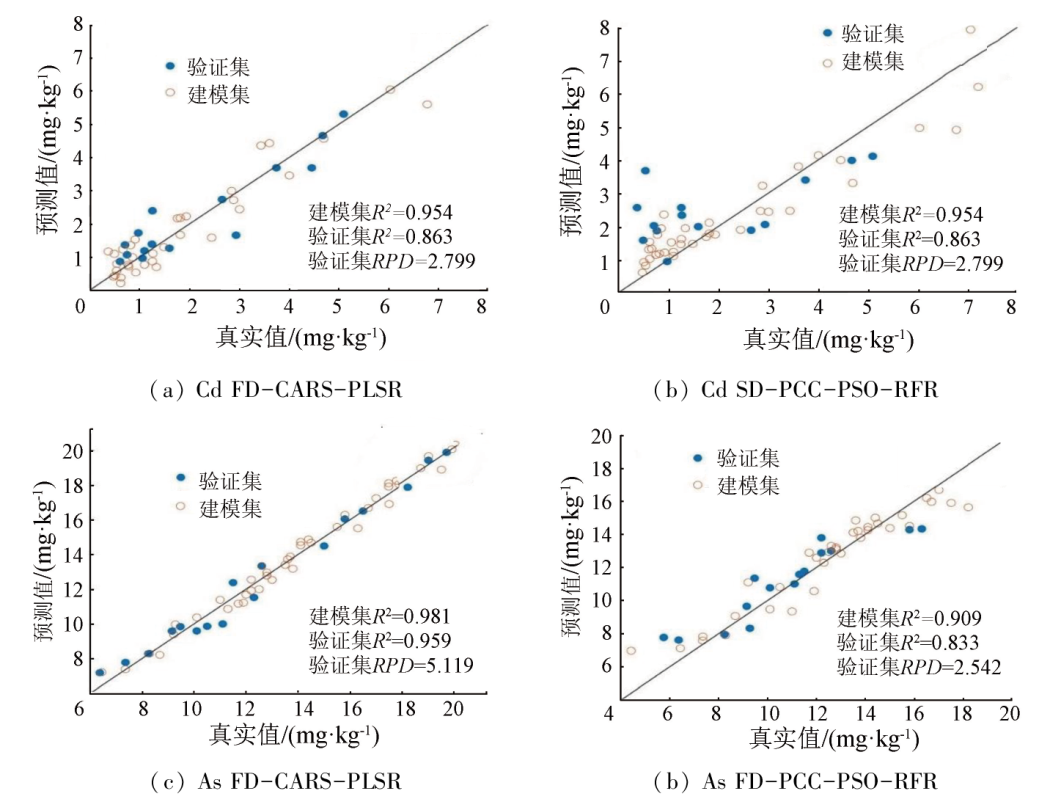

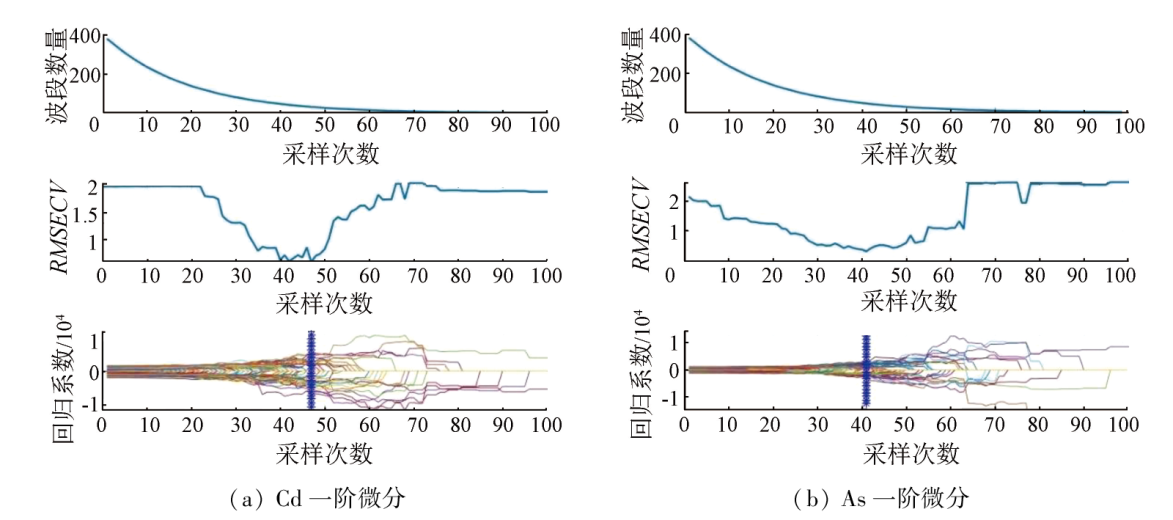

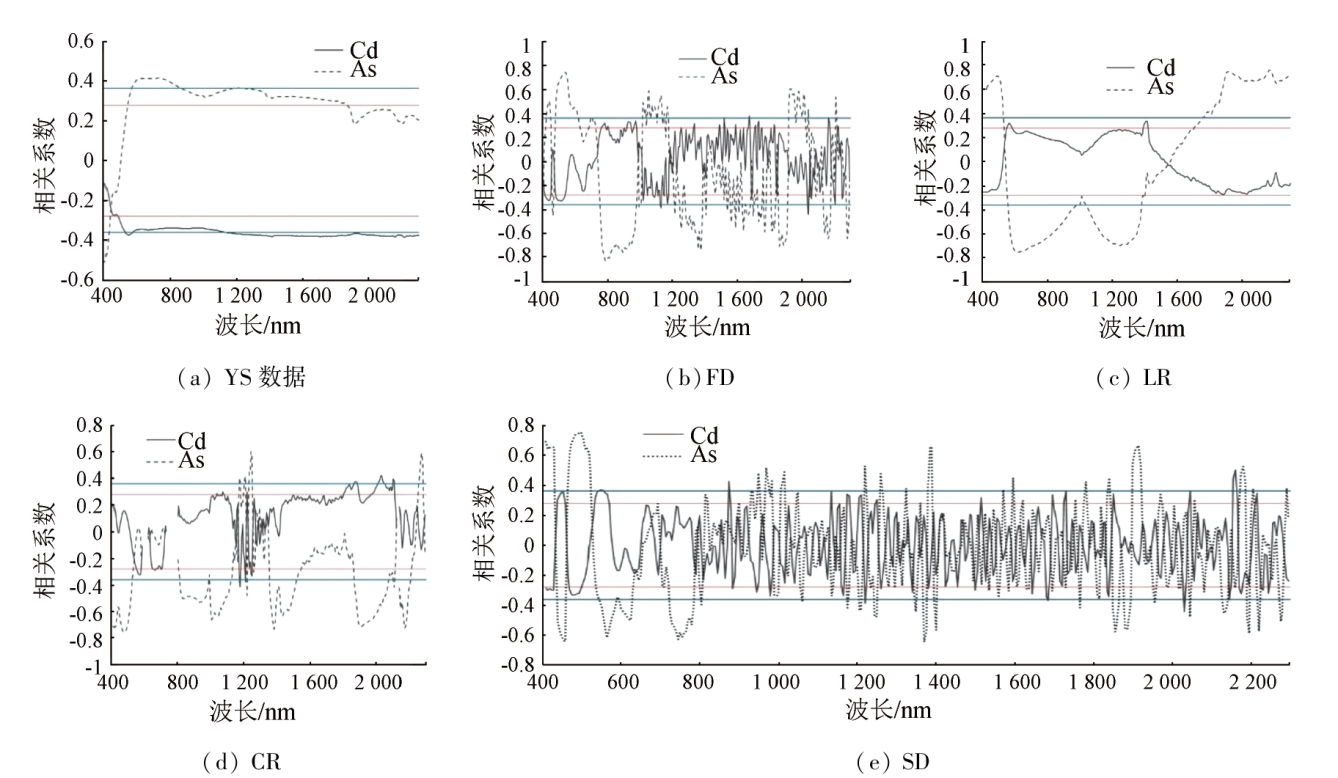

To explore the feasibility and accuracy of the method of utilizing hyperspectral data to estimate the contents of elements Cd and As for soil quality elevation of cultivated land, this study delves into the extraction of characteristic bands of the spectra of both elements and the modeling of quantitative hyperspectral inversion. The characteristic bands of spectra were extracted using multiple methods derived from the combination of four spectral transformations and two feature selection methods, with the former comprising first-order /second-order differential (FD/SD), reciprocal logarithm (LR), and continuum removal (CR) and the latter consisting of the competitive adaptive reweighted sampling (CARS) method and the Pearson correlation coefficient (PCC) analysis. Based on this, the element content inversion was conducted using the partial least squares regression (PLSR) and the particle swarm optimization optimized random forest regression (PSO-RFR), followed by the verification of inversion accuracy. The results indicate that the FD-CARS-PLSR inversion model exhibited the best prediction effect for both elements, with maximum determination coefficients R2 of 0.863 and 0.959 and relative percent differences (RPDs) of 2.799 and 5.119 for Cd and As, respectively. The FD and SD spectral transformations combined with the CARS method can improve the accuracy of the PLSR inversion model. The results of this study can provide a reference for the rapid estimation of the contents of Cd and As in soil.
易孜芳, 周磊磊, 骆检兰, 曹里. 高光谱反演耕地土壤质量评价元素含量方法研究[J]. 自然资源遥感, 2024, 36(3): 225-232.
YI Zifang, ZHOU Leilei, LUO Jianlan, CAO Li. A method for hyperspectral inversion of element contents for soil-quality evaluation of cultivated land. Remote Sensing for Natural Resources, 2024, 36(3): 225-232.
Zhang D H, Zhao Y J, Lu D H, et al. Application and realization of hyperspectral information extraction of heavy metals in soil[J]. Chinese Journal of Soil Science, 2018, 49(1):31-37.
Yu T, Jiang T Y, Liu X, et al. Research progress in current status of soil heavy metal pollution and analysis technology[J]. Geology in China, 2021, 48(2):460-476.
He J L, Zhang S Y, Zha Y, et al. Review of retrieving soil heavy metal content by hyperspectral remote sensing[J]. Remote Sensing Technology and Application, 2015, 30(3):407-412.
Zhang J J, Zhou W H, Zou M M, et al. Research status,principle and prospect of hyperspectral remote sensing monitoring of heavy metal pollution in large areas[J]. Jiangsu Agricultural Sciences, 2018, 46(12):9-13.
Liu Y P, Luo Q, Cheng H F. Application and development of hyperspectral remote sensing technology to determine the heavy metal content in soil[J]. Journal of Agro-Environment Science, 2020, 39(12):2699-2709.
Yang X Y, Bao N S, Cao Y, et al. Estimation and mapping of soil nutrient in farmland based on UAV imaging spectrometry[J]. Geography and Geo-Information Science, 2021, 37(5):38-45.
Lei Y B, Liu N, Guo Y K, et al. Inversion of soil Cd content with GWR model under hyper-spectral combined transformation[J]. Engineering of Surveying and Mapping, 2018, 27(11):71-76.
Chu X L, Yuan H F, Lu W Z. Progress and application of spectral data pretreatment and wavelength selection methods in NIR analytical technique[J]. Progress in Chemistry, 2004, 16(4):528-542.
Song X Z, Tang G, Zhang L D, et al. Research advance of variable selection algorithms in near infrared spectroscopy analysis[J]. Spectroscopy and Spectral Analysis, 2017, 37(4):1048-1052.
Yuan Z R, Wei L F, Zhang Y X, et al. Hyperspectral inversion and analysis of heavy metal arsenic content in farmland soil based on optimizing CARS combined with PSO-SVM algorithm[J]. Spectroscopy and Spectral Analysis, 2020, 40(2):567-573.
Chen Y P, Zhang S W, Luo M, et al. Empirical model optimization of hyperspectral inversion of heavy metal content in reclamation area[J]. Transactions of the Chinese Society for Agricultural Machinery, 2019, 50(1):170-179.
Jin Z, Lyu J S. Comparison of the accuracy of spatial prediction for heavy metals in regional soils based on machine learning models[J]. Geographical Research, 2022, 41(6):1731-1747.
Tu Y L, Zou B, Jiang X L, et al. Hyperspectral remote sensing based modeling of Cu content in mining soil[J]. Spectroscopy and Spectral Analysis, 2018, 38(2):575-581.
[14]
Li H D, Liang Y Z, Xu Q S, et al. Key wavelengths screening using competitive adaptive reweighted sampling method for multivariate calibration[J]. Analytica Chimica Acta, 2009, 648(1):77-84.
doi: 10.1016/j.aca.2009.06.046
pmid: 19616692
[15]
Tan K, Wang H M, Zhang Q Q, et al. An improved estimation model for soil heavy metal(loid) concentration retrieval in mining areas using reflectance spectroscopy[J]. Journal of Soils and Sediments, 2018, 18(5):2008-2022.
Fan X X, Yang C X, Yang Q L, et al. Prediction model of Panax notoginseng leaf area growth based on particle swarm-optimization random forest algorithm and meteorological data[J]. Chinese Traditional and Herbal Drugs, 2022, 53(10):3103-3110.
Wei D P, Zheng G H. Estimation of soil total phosphorus content in coastal areas based on hyperspectral reflectance[J]. Spectroscopy and Spectral Analysis, 2022, 42(2):517-523.
[19]
Malley D F, Williams P C. Use of near-infrared reflectance spectroscopy in prediction of heavy metals in freshwater sediment by their association with organic matter[J]. Environmental Science & Technology, 1997, 31(12):3461-3467.
Li G W, Gao X H, Xiao N W, et al. Estimation soil organic matter contents with hyperspectra based on sCARS and RF algorithms[J]. Chinese Journal of Luminescence, 2019, 40(8):1030-1039.
