20世纪80年代以来盐城滨海湿地互花米草扩张时空轨迹及对景观格局的影响

doi:10.6046/zrzyyg.2023325

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(3525 KB)

HTML
输出: BibTeX | EndNote (RIS)

摘要

该文以盐城国家级珍禽自然保护区核心区为案例区,以1983—2021年12期遥感影像为数据源,将景观生态学方法和GIS技术相结合,探究研究区互花米草时空轨迹及其对景观格局的影响,结果如下: ①1983—2021年,互花米草扩张明显,面积增加了12.365倍; 依次经历了初始扩张阶段、加速增长阶段、停滞增长阶段,即将进入治理消除阶段; 互花米草面积与时间线性关系显著。②互花米草时空轨迹呈现3组团特征,1983年、1988年、1992年和1997年为西部组团,以向东南方向移动为主; 2000年、2002年、2006年和2009年为东部组团,以向东北方向移动为主,这2个组团都表现出向海的趋势; 2011年、2014年、2017年和2021年为中部组团,方向上虽表现出无序性,但有明显向陆的趋势。③互花米草扩张对区域景观结构变化的累积贡献率为43.352%,与互花米草面积扩张阶段一致,又表现出“低→高→低”的3个阶段。互花米草面积与区域景观格局指数显著相关; 互花米草景观格局与区域景观格局相关明显,类型尺度的最大斑块指数(largest patch index, LPI)、总边缘长度(total edge, TE)、边缘密度(edge density, ED)、面积加权平均分维度(fractal dimension index of area-weighted mean, FRAC_AM)与区域景观格局指数在0.01水平下显著相关; 互花米草面积与栖息地生境质量呈显著负相关。结果表明,互花米草扩张对景观格局与功能影响深刻,互花米草治理必须因地制宜。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	徐雅
	张华兵

关键词 ：互花米草, 时空轨迹, 景观格局, 景观变化贡献率, 盐城滨海湿地

Abstract：

This study investigated the core area of the Jiangsu Yancheng Wetland National Reserve of Rare Birds based on 12 remote sensing images from 1983 to 2021 as data sources. Specifically, this study explored the spatiotemporal trajectory of Spartina alterniflora expansion and its impact on landscape patterns by combining landscape ecology methods with geographical information system (GIS) technology. The results show that from 1983 to 2021, Spartina alterniflora expanded significantly, leading to a 12.365 fold area increase. It experienced initial expansion, accelerated growth, and stagnation stages, which would be succeeded by the control and elimination stage. Its distribution area manifested a significant linear relationship with time. Its spatiotemporal trajectory was characterized by the migration of the western, eastern, and central clusters. In 1983, 1988, 1992, and 1997, the western clusters migrated primarily toward the southeast. In 2000, 2002, 2006, and 2009, the eastern clusters migrated principally toward the northeast. Both the western and eastern clusters showed a seaward trend. In 2011, 2014, 2017, and 2021, the central clusters displayed a significant landward trend despite disorderly migration. Spartina alterniflora expansion resulted in a cumulative contribution rate of 43.352% to regional landscape structure changes. Its contribution was consistent with its expansion stages, showing a low-high-low pattern. The area of Spartina alterniflora was significantly correlated with the regional landscape pattern index. The landscape pattern of Spartina alterniflora was significantly correlated with the regional landscape pattern, with significant correlations between type-scale indices, including largest patch index (LPI), total edge (TE), edge density (ED), and fractal dimension index of area-weighted mean (FRAC_ AM), and the regional landscape pattern index at the significance level of 0.01. However, the area of Spartina alterniflora was significantly negatively correlated with habitat quality. Overall, the results of this study suggest that the expansion of Spartina alterniflora profoundly affects landscape patterns and functions, warranting control according to local conditions.

Key words： Spartina alterniflora spatiotemporal trajectory landscape pattern rate of contribution to landscape change Yancheng coastal wetland

收稿日期: 2023-10-31 出版日期: 2025-05-09

ZTFLH:	TP79
	K903

基金资助:国家自然科学基金项目“人工围堰和互花米草扩张下海滨湿地景观生境质量演变机制研究”(41771199);江苏省高校哲学社会科学研究项目“苏北农业农村现代化发展现状、障碍识别及实现路径研究”(2021SJA1892);盐城市基础研究计划项目“基于生态网络的盐城滨海湿地生态安全格局构建”(YCBK202233)

通讯作者: 张华兵(1979-),男,博士,教授,主要从事湿地景观生态研究。Email: jszhbing@163.com。

作者简介: 徐雅(1988-),女,硕士,实验师,主要从事湿地生态研究。Email: xeniayy@126.com。

引用本文:

徐雅, 张华兵. 20世纪80年代以来盐城滨海湿地互花米草扩张时空轨迹及对景观格局的影响[J]. 自然资源遥感, 2025, 37(2): 246-255.
XU Ya, ZHANG Huabing. Spatiotemporal trajectory of Spartina alterniflora expansion and its impact on landscape patterns in the Yancheng coastal wetland since the 1980s. Remote Sensing for Natural Resources, 2025, 37(2): 246-255.

链接本文:

https://www.gtzyyg.com/CN/10.6046/zrzyyg.2023325 或 https://www.gtzyyg.com/CN/Y2025/V37/I2/246

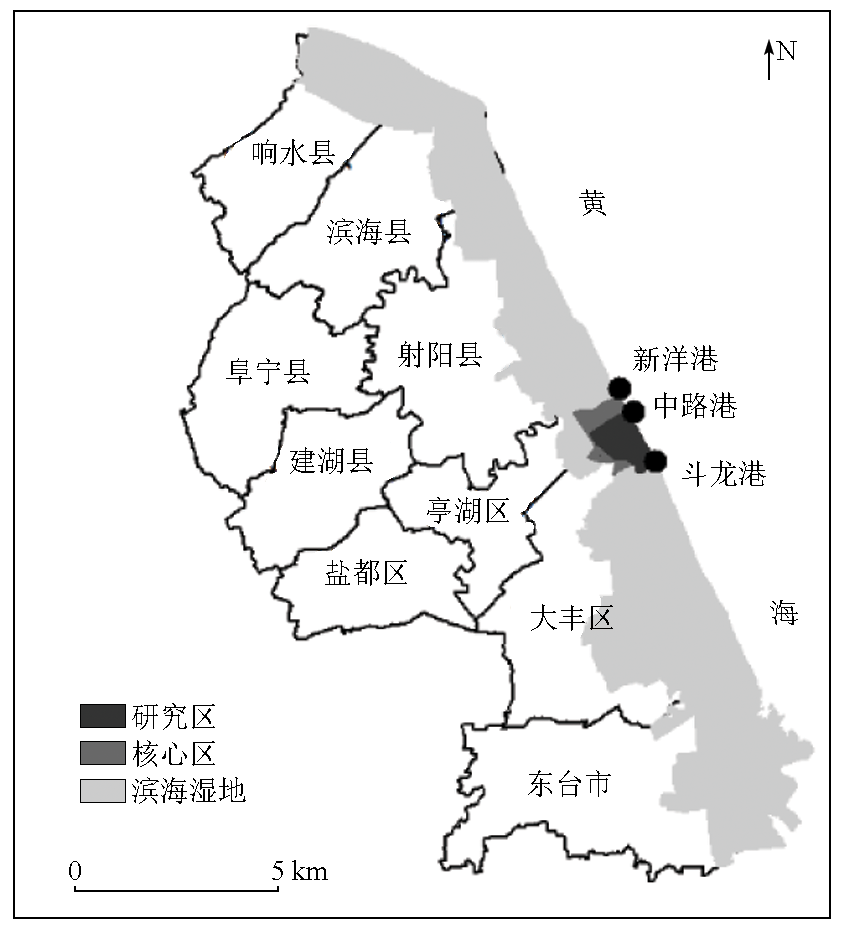

Fig.1 研究区位置

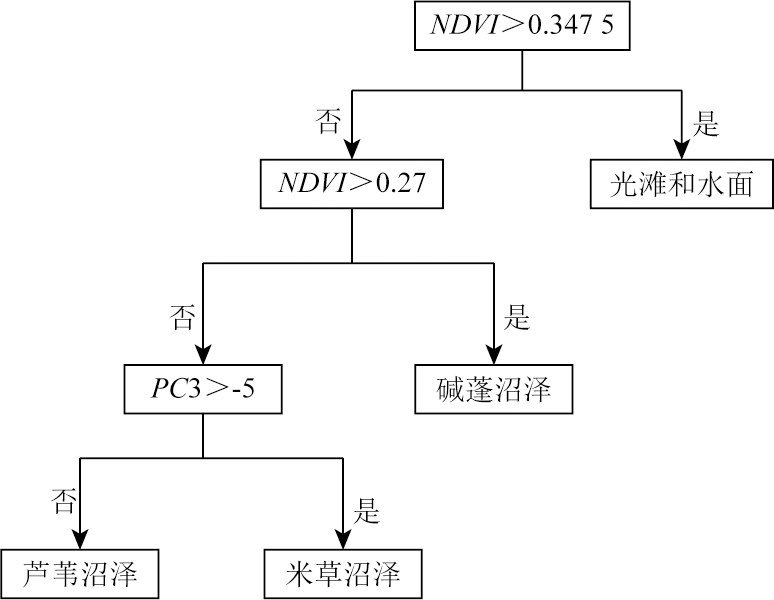

Fig.2 决策树分类

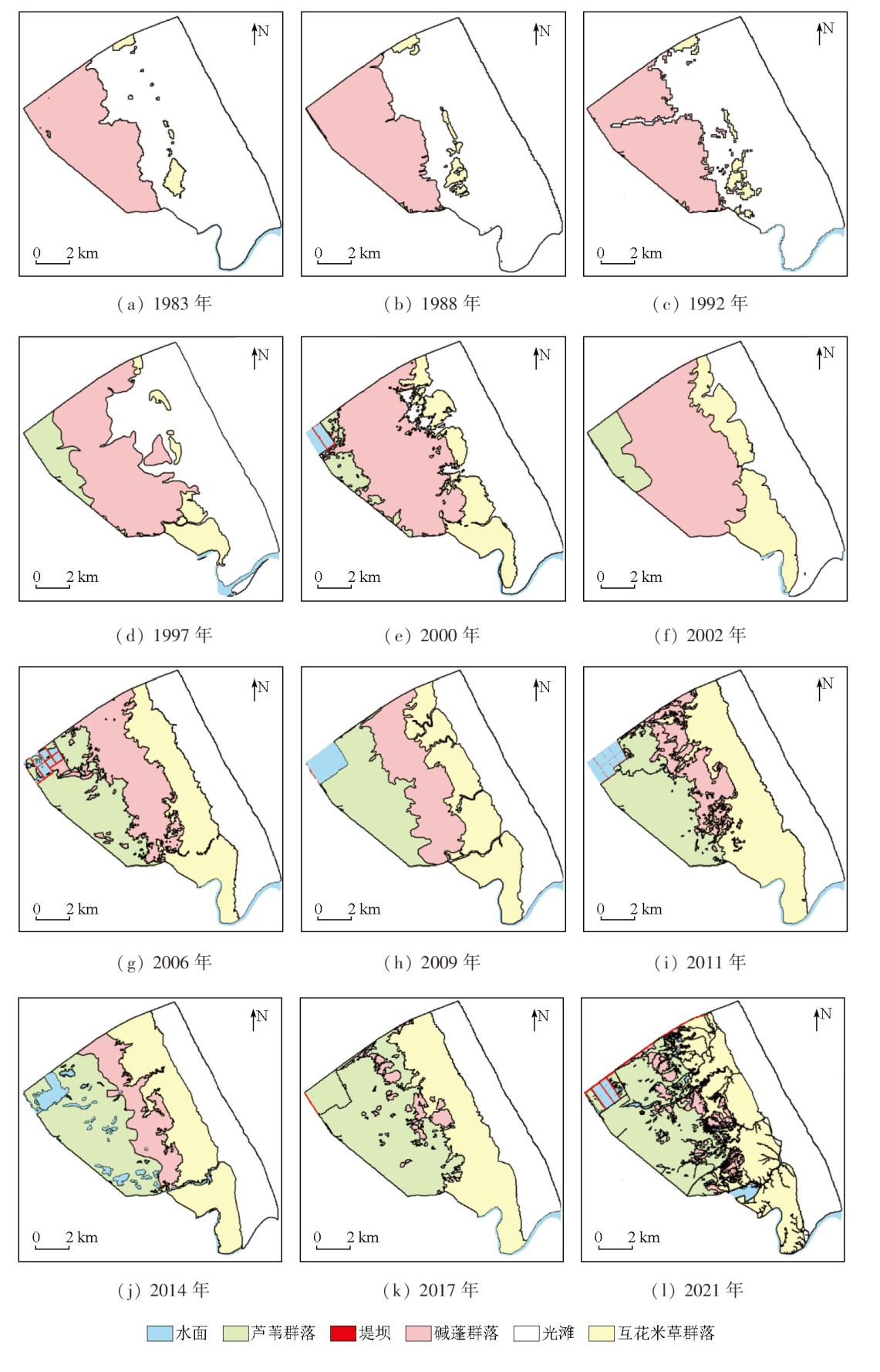

Fig.3 研究区景观变化

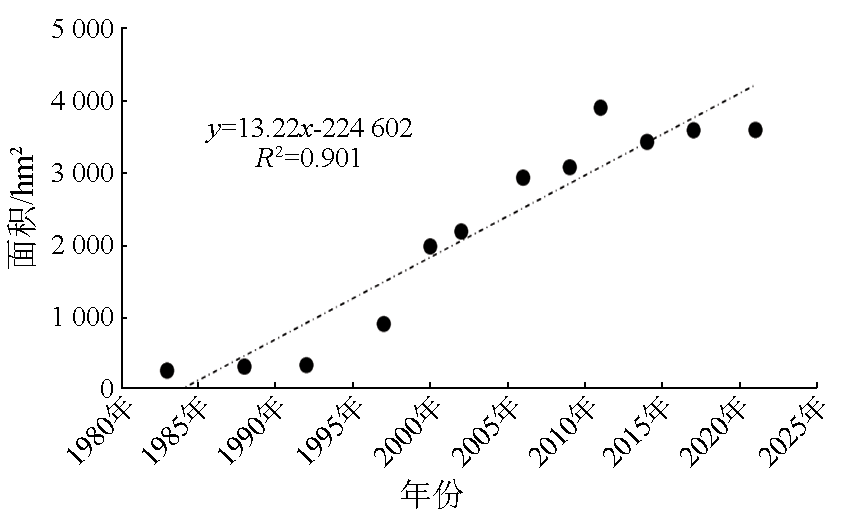

Fig.4 互花米草面积与时间的线性关系

Tab.1 互花米草景观格局指数变化

$r$	LPI	TE	ED	AI	FRAC_AM	LSI
互花米草	0.982^**①	0.834^**	0.836^**	0.821^**	0.814^**	0.145

Tab.2 互花米草面积与其景观格局的相关性

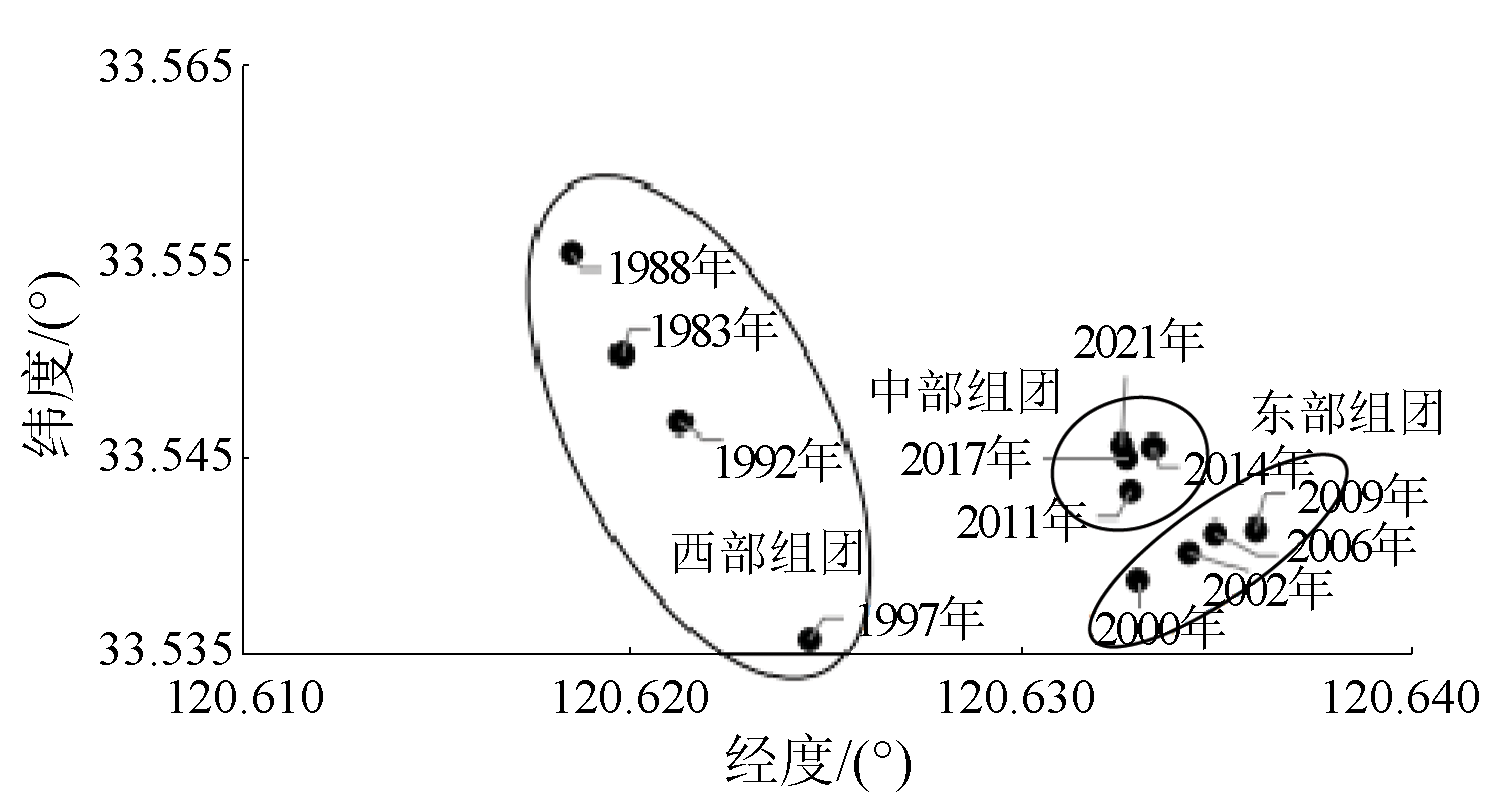

Fig.5 互花米草时空轨迹

Tab.3 互花米草扩张对景观结构变化的贡献率

$r$	LPI	TE	ED	AI	FRAC_AM	LSI	SHDI
互花米草	-0.914^**①	0.741^**	0.742^**	-0.706^*	0.709^**	0.741^**	0.915^**

Tab.4 互花米草面积与区域景观格局的相关性

Tab.5 互花米草景观格局与区域景观格局的相关性

[1]	张丹华, 胡远满, 刘淼. 基于Maxent生态位模型的互花米草在我国沿海的潜在分布[J]. 应用生态学报, 2019, 30(7):2329-2337. doi: 10.13287/j.1001-9332.201907.014
	Zhang D H, Hu Y M, Liu M. Potential distribution of Spartinal alterniflora in China coastal areas based on Maxent niche model[J]. Chinese Journal of Applied Ecology, 2019, 30(7):2329-2337.
[2]	陈正勇, 王国祥, 刘金娥, 等. 苏北潮滩群落交错带互花米草斑块与土著种竞争关系研究[J]. 生态环境学报, 2011, 20(10):1436-1442. doi: 10.16258/j.cnki.1674-5906(2011)10-1436-07
	Chen Z Y, Wang G X, Liu J E, et al. Relative competitive ability of Spartina alterniflora patches to native species in tidal zone ecotone of North Jiangsu[J]. Ecology and Environmental Sciences, 2011, 20(10):1436-1442.
[3]	袁红伟, 李守中, 郑怀舟, 等. 外来种互花米草对中国海滨湿地生态系统的影响评价及对策[J]. 海洋通报, 2009, 28(6):122-128.
	Yuan H W, Li S Z, Zheng H Z, et al. Evaluation of the influences of foreign Spartina alterniflora on ecosystem of Chinese coastal wetland and its countermeasures[J]. Marine Science Bulletin, 2009, 28(6):122-128.
[4]	Liu M, Mao D, Wang Z, et al. Rapid invasion of Spartina alterniflora in the coastal zone of mainland China:New observations from landsat OLI images[J]. Remote Sensing, 2018, 10(12):1933.
[5]	Zhu X, Meng L, Zhang Y, et al. Tidal and meteorological influences on the growth of invasive Spartina alterniflora:Evidence from UAV remote sensing[J]. Remote Sensing, 2019, 11(10):1208.
[6]	沈鸿坤, 赵博义, 陈铭洋, 等. 1995—2019年广西山口红树林国家级自然保护区互花米草和红树林面积变化[J]. 应用生态学报, 2022, 33(2):397-404. doi: 10.13287/j.1001-9332.202202.015
	Shen H K, Zhao B Y, Chen M Y, et al. Changes of the area of Spartina alterniflora and mangroves in Guangxi Shankou Mangrove National Nature Reserve from 1995 to 2019[J]. Chinese Journal of Applied Ecology, 2022, 33(2):397-404.
[7]	岳英洁, 朱玉玲, 毕永坤, 等. 基于无人机遥感监测的互花米草破碎斑块分布特征研究[J]. 海洋湖沼通报, 2022, 44(4):73-81.
	Yue Y J, Zhu Y L, Bi Y K, et al. Study on the distribution characteristics of Spartina alterniflora broken patchs based on UAV remote sensing monitoring[J]. Transactions of Oceanology and Limnology, 2022, 44(4):73-81.
[8]	Zhang R S, Shen Y M, Lu L Y, et al. Formation of Spartina alterniflora salt marshes on the coast of Jiangsu Province,China[J]. Ecological Engineering, 2004, 23(2):95-105.
[9]	张华兵, 甄艳, 吴菲儿, 等. 滨海湿地生境质量演变与互花米草扩张的关系——以江苏盐城国家级珍禽自然保护区为例[J]. 资源科学, 2020, 42(5):1004-1014. doi: 10.18402/resci.2020.05.17
	Zhang H B, Zhen Y, Wu F E, et al. Relationship between habitat quality change and the expansion of Spartina alterniflora in the coastal area:Taking Yancheng National Nature Reserve in Jiangsu Province as an example[J]. Resources Science, 2020, 42(5):1004-1014.
[10]	刘春悦, 张树清, 江红星, 等. 江苏盐城滨海湿地外来种互花米草的时空动态及景观格局[J]. 应用生态学报, 2009, 20(4):901-908.
	Liu C Y, Zhang S Q, Jiang H X, et al. Spatiotemporal dynamics and landscape pattern of alien species Spartina alterniflora in Yancheng coastal wetlands of Jiangsu Province,China[J]. Chinese Journal of Applied Ecology, 2009, 20(4):901-908.
[11]	刘永学, 张忍顺, 李满春. 江苏沿海互花米草盐沼动态变化及影响因素研究[J]. 海洋地质动态, 2004, 20(2):18-21,51.
	Liu Y X, Zhang R S, Li M C. Approach on the dynamic change and influence factors of Spartina alterniflora loisel saltmarsh along the coast of the Jiangsu Province[J]. Marine Geology Letters, 2004, 20(2):18-21,51.
[12]	郝敬锋, 刘红玉, 李玉凤, 等. 基于转移矩阵模型的江苏海滨湿地资源时空演变特征及驱动机制分析[J]. 自然资源学报, 2010, 25(11):1918-1929.
	Hao J F, Liu H Y, Li Y F, et al. Spatio-temporal variation and driving forces of the coastal wetland resources based on the transition matrix in Jiangsu Province[J]. Journal of Natural Resources, 2010, 25(11):1918-1929.
[13]	方仁建, 沈永明, 吴德力. 江苏盐城不同沉积岸段湿地景观格局及其时空演变[J]. 生态学杂志, 2014, 33(4):1096-1103.
	Fang R J, Shen Y M, Wu D L. Landscape pattern change in different sedimentary coastal areas of Yancheng,Jiangsu[J]. Chinese Journal of Ecology, 2014, 33(4):1096-1103.
[14]	王聪, 刘红玉. 江苏淤泥质潮滩湿地互花米草扩张对湿地景观的影响[J]. 资源科学, 2014, 36(11):2413-2422.
	Wang C, Liu H Y. The impact ofSpartina alterniflora expansion on vegetation landscapes in the Yancheng tidal flat wetland[J]. Resources Science, 2014, 36(11):2413-2422.
[15]	张华兵, 刘红玉, 侯明行. 人工管理和自然驱动下盐城海滨湿地互花米草沼泽演变及空间差异[J]. 生态学报, 2013, 33(15):4767-4775.
	Zhang H B, Liu H Y, Hou M H. Spatiotemporal characteristics of Spartina alterniflora marsh change in the coastal wetlands of Yancheng caused by natural processes and human activities[J]. Acta Ecologica Sinica, 2013, 33(15):4767-4775.
[16]	张华兵, 刘红玉, 侯明行, 等. 海滨湿地景观过程模型与模拟研究——以江苏盐城保护区核心区为例[J]. 自然资源学报, 2014, 29(7):1105-1115. doi: 10.11849/zrzyxb.2014.07.002
	Zhang H B, Liu H Y, Hou M H, et al. Building model based on processes and simulating landscape change in the coastal wetlands—a case study of the core area in Yancheng natural reserve[J]. Journal of Natural Resources, 2014, 29(7):1105-1115.
[17]	王娟, 张华兵, 刘玉卿, 等. 盐城滨海湿地植物群落种间格局与竞争的关系研究[J]. 生态学报, 2020, 40(24):8966-8973.
	Wang J, Zhang H B, Liu Y Q, et al. Interspecific pattern and competitive relationship of plant community in Yancheng coastal wetland[J]. Acta Ecologica Sinica, 2020, 40(24):8966-8973.
[18]	张学勤, 王国祥, 王艳红, 等. 江苏盐城沿海滩涂淤蚀及湿地植被消长变化[J]. 海洋科学, 2006, 30(6):35-39,45.
	Zhang X Q, Wang G X, Wang Y H, et al. The changes of erosion or progradation of tidal flat and retreat or extension of wetland vegetation of the Yancheng coast,Jiangsu[J]. Marine Sciences, 2006, 30(6):35-39,45.
[19]	侯明行, 刘红玉, 张华兵, 等. 地形因子对盐城滨海湿地景观分布与演变的影响[J]. 生态学报, 2013, 33(12):3765-3773.
	Hou M H, Liu H Y, Zhang H B, et al. Influences of topographic features on the distribution and evolution of landscape in the coastal wetland of Yancheng[J]. Acta Ecologica Sinica, 2013, 33(12):3765-3773.
[20]	宗影, 阳佳伶, 刘红玉, 等. 互花米草入侵对盐城淤泥质潮滩湿地潮沟系统影响研究[J]. 海洋科学进展, 2023, 41(1):109-122.
	Zong Y, Yang J L, Liu H Y, et al. Study on the impact of Spartina alterniflora invasion on tidal creek system in the coastal wetland of Yancheng[J]. Advances in Marine Science, 2023, 41(1):109-122.
[21]	Tang L, Gao Y, Wang C H, et al. A plant invader declines through its modification to habitats:A case study of a 16-year chronosequence of Spartina alterniflora invasion in a salt marsh[J]. Ecological Engineering, 2012, 49:181-185.
[22]	Wang J, Liu H, Li Y, et al. Effects of Spartina alterniflora invasion on quality of the red-crowned crane (Grus japonensis) wintering habitat[J]. Environmental Science and Pollution Research International, 2019, 26(21):21546-21555. doi: 10.1007/s11356-019-05408-3 pmid: 31127519
[23]	Wang L, Yuan J, Wang Y, et al. Effects of exotic Spartina alterniflora invasion on soil phosphorus and carbon pools and associated soil microbial community composition in coastal wetlands[J]. ACS Omega, 2021, 6(8):5730-5738. doi: 10.1021/acsomega.0c06161 pmid: 33681612
[24]	张燕, 孙勇, 鲁长虎, 等. 盐城国家级珍禽自然保护区互花米草入侵后三种生境中越冬鸟类群落格局[J]. 湿地科学, 2017, 15(3):433-441.
	Zhang Y, Sun Y, Lu C H, et al. Pattern of wintering bird community in three habitats after invasion of Spartina alterniflora in Yancheng national nature reserve[J]. Wetland Science, 2017, 15(3):433-441.
[25]	汪钰明, 高新贻, 谢世君, 等. 互花米草入侵对红树林底栖甲壳动物和鱼类功能群及生态位的影响[J]. 应用生态学报, 2022, 33(11):3016-3026. doi: 10.13287/j.1001-9332.202211.030
	Wang Y M, Gao X Y, Xie S J, et al. Effects of Spartina alterniflora invasion on the functional groups and niche of benthic crustaceans and fishes in mangrove wetland[J]. Chinese Journal of Applied Ecology, 2022, 33(11):3016-3026.
[26]	曾庆淞, 陈钰, 郑毅, 等. 互花米草入侵对河口湿地土壤环境中铁氧化菌群落结构及多样性影响[J]. 环境科学学报, 2022, 42(5):425-434.
	Zeng Q S, Chen Y, Zheng Y, et al. Effects of Spartina alterniflora invasion on soil iron-oxidizing bacteria community structure and diversity in estuarine wetland[J]. Acta Scientiae Circumstantiae, 2022, 42(5):425-434.
[27]	刘志君, 崔丽娟, 李伟, 等. 互花米草入侵对盐城滨海湿地nirS型反硝化细菌多样性及群落结构的影响[J]. 生态环境学报, 2022, 31(4):704-714. doi: 10.16258/j.cnki.1674-5906.2022.04.008
	Liu Z J, Cui L J, Li W, et al. Effects of Spartina alterniflora invasion on the diversity and community structure of nirS-type denitrifying bacteria in Yancheng coastal wetlands[J]. Ecology and Environmental Sciences, 2022, 31(4):704-714.
[28]	王欢欢, 王银华, 庞金玲, 等. 互花米草入侵背景下增氮对滨海湿地土壤可培养细菌和真菌群落组成及多样性的影响[J]. 南开大学学报(自然科学版), 2022, 55(5):96-105.
	Wang H H, Wang Y H, Pang J L, et al. Effects of nitrogen input increase on composition and diversity of culturable soil bacterial and fungal communities under Spartina alterniflora invasion in coastal wetland[J]. Acta Scientiarum Naturalium Universitatis Nankaiensis, 2022, 55(5):96-105.
[29]	布乃顺, 胡悦, 杨骁, 等. 互花米草入侵对长江河口湿地土壤理化性质的影响[J]. 长江流域资源与环境, 2017, 26(1):100-109.
	Bu N S, Hu Y, Yang X, et al. Effects of Spartina alterniflora invasion on soil physical and chemical properties in wetlands of the Yangtze River Estuary[J]. Resources and Environment in the Yangtze Basin, 2017, 26(1):100-109.
[30]	陈秋宇, 杨仁敏, 朱长明. 基于VIS-NIR光谱的互花米草入侵湿地土壤有机碳预测研究[J]. 土壤学报, 2021, 58(3):694-703.
	Chen Q Y, Yang R M, Zhu C M. VIS-NIR spectroscopy-based prediction of soil organic carbon in coastal wetland invaded by Spartina alterniflora[J]. Acta Pedologica Sinica, 2021, 58(3):694-703.
[31]	黑杰, 胥佳忆, 王亚非, 等. 互花米草入侵对闽江河口湿地土壤碳、氮、磷及CH₄和CO₂排放的影响[J]. 环境科学学报, 2022, 42(11):416-426.
	Hei J, Xu J Y, Wang Y F, et al. Effects of Spartina alterniflora invasion on soil carbon,nitrogen,phosphorus,and CH₄, CO₂ emissions in Minjiang River estuarine wetland[J]. Acta Scientiae Circumstantiae, 2022, 42(11):416-426.
[32]	刘展航, 张树岩, 侯玉平, 等. 互花米草入侵对黄河口湿地土壤碳氮磷及其生态化学计量特征的影响[J]. 生态环境学报, 2022, 31(7):1360-1369. doi: 10.16258/j.cnki.1674-5906.2022.07.008
	Liu Z H, Zhang S Y, Hou Y P, et al. Effects of Spartina alterniflora invasion on soil carbon,nitrogen,phosphorus and their ecostoichiometric characteristics in the Yellow River Estuary wetlands[J]. Ecology and Environmental Sciences, 2022, 31(7):1360-1369.
[33]	厉彦哲, 孙志高, 毛立, 等. 闽江河口互花米草不同入侵年限湿地土壤磷赋存形态[J]. 应用生态学报, 2022, 33(4):1003-1011. doi: 10.13287/j.1001-9332.202204.006
	Li Y Z, Sun Z G, Mao L, et al. Phosphorus forms in marsh soils with different years of Spartina alterniflora invasion in the Minjiang River Estuary,China[J]. Chinese Journal of Applied Ecology, 2022, 33(4):1003-1011.
[34]	张治梅, 樊彦国, 矫志军, 等. 土壤盐渍化对滨海湿地生态环境质量的影响——以黄河三角洲为例[J]. 自然资源遥感, 2023, 35(4):226-235.doi:10.6046/zrzyyg.2022284.
	Zhang Z M, Fan Y G, Jiao Z J, et al. Impact of soil salinization on the eco-environment quality of coastal wetlands: A case study of Yellow River Delta[J]. Remote Sensing for Natural Resources, 2023, 35(4):226-235.doi:10.6046/zrzyyg.2022284.
[35]	钦佩. 互花米草与人体健康关系研究进展[J]. 中国野生植物资源, 2019, 38(5):70-73.
	Qin P. Research progress on the relationship between Spartina alterniflora and human health[J]. Chinese Wild Plant Resources, 2019, 38(5):70-73.
