Remote Sensing for Land & Resources    2018, Vol. 30 Issue (1) : 233-237     DOI: 10.6046/gtzyyg.2018.01.32
Orginal Article |
GIS based research on the spatial distribution of population density in illegal buildings in Shenzhen City
Rui LIU1,2(), Xu JIANG1,2, Jing ZHAO1,2, Yunfan LI3
1. Harbin Institute of Technology Shenzhen Graduate School, Shenzhen 518055, China
2. Center for Assessment and Development of Real Estate, Shenzhen 518040, China
3. Yangze River Scientific Research Institute, Wuhan 430010, China
Download: PDF(1090 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

To study the spatial distribution of population density in illegal buildings in Shenzhen, the authors used GIS technologies such as spatial autocorrelation analysis method and regression analysis method. Spatial autocorrelation analysis method was used to study the spatial distribution pattern of the population density in illegal buildings in Shenzhen. Both monocentric population density models and multi-centric population density models were fitted by regression analysis method. The study results show that the spatial clustering pattern of the population density is existent according to the global Moran' s I index, and the area joining the Futian, Luohu and Longhua district is the hot spot area according to the Local Moran’s I and Getis-Ord Gi* index. The fitting results show that, among all the population density models, the quadratic exponential model can best describe population density distribution in illegal buildings of Shenzhen, while the overall fitting results of multi-centric models are at low level, which shows that the multiple centers fail to form the population in illegal buildings. The quadratic exponential model can not only obtain the best result from statistical point of view but also verify that it fits the crator theory well with rent data of illegal buildings.
Keywords population density      spatial distribution      model fitting      illegal buildings      Shenzhen
:  TP79
Issue Date: 08 February 2018
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Rui LIU
Xu JIANG
Jing ZHAO
Yunfan LI
Cite this article:
Rui LIU,Xu JIANG,Jing ZHAO, et al. GIS based research on the spatial distribution of population density in illegal buildings in Shenzhen City[J]. Remote Sensing for Land & Resources, 2018, 30(1): 233-237.
URL:
https://www.gtzyyg.com/EN/10.6046/gtzyyg.2018.01.32     OR     https://www.gtzyyg.com/EN/Y2018/V30/I1/233

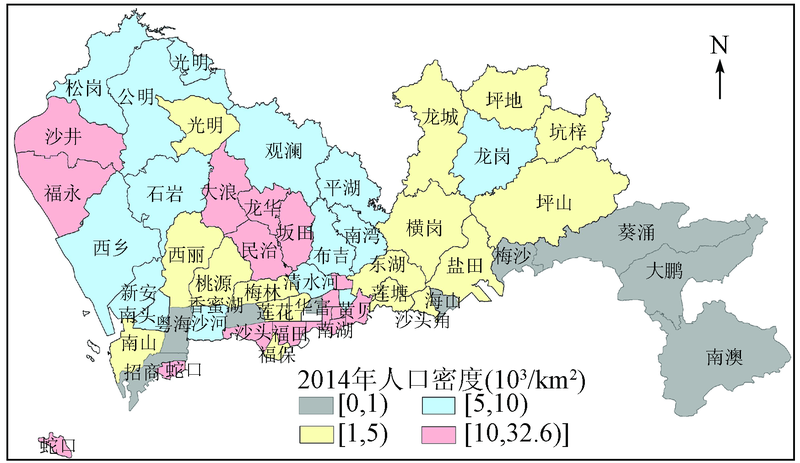

Fig.1  Distribution map of street district population density in illegal buildings,2014

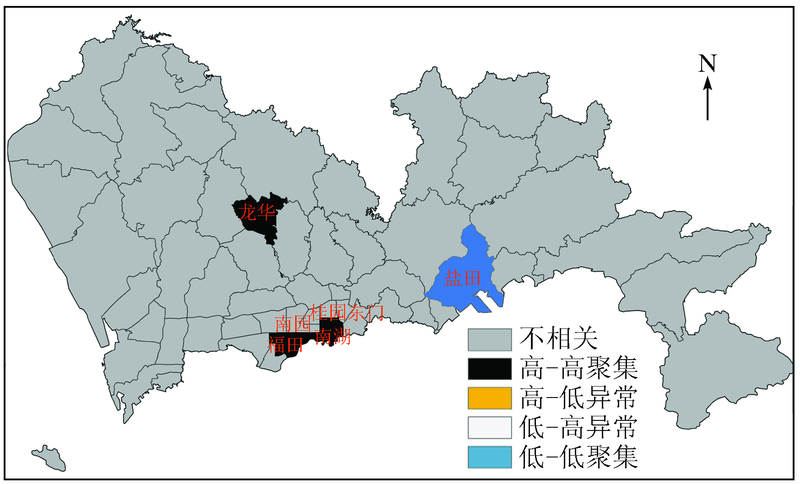

Fig.2  Image of the local Moran’s I index result

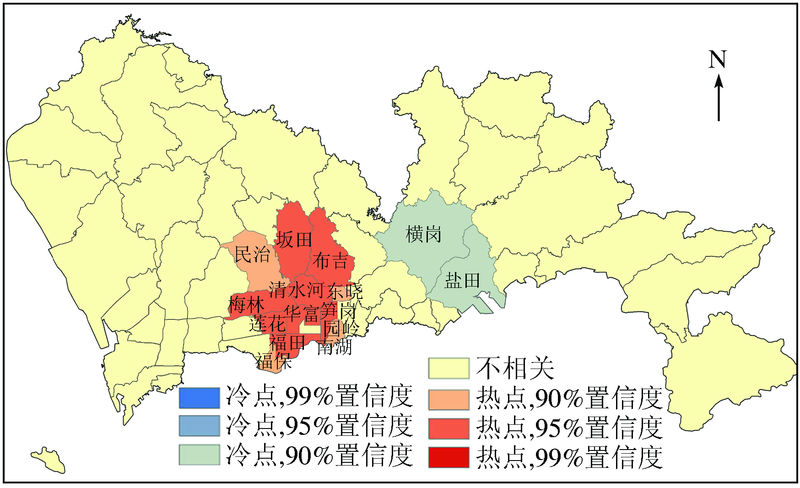

Fig.3  Image of the Getis-Ord Gi* index result
圈层
序号		 圈层
距离/km		 圈层内
面积/km2		 圈层内违建
人口数		 违建人口
密度/(人·km-2)
1 [0,5) 51.438 490 848 9 542.517
2 [5,10) 120.590 985 884 8 175.504
3 [10,15) 197.698 1 258 138 6 363.939
4 [15,20) 273.947 1 695 969 6 190.865
5 [20,25) 291.785 1 509 135 5 172.079
6 [25,30) 273.569 1 049 723 3 837.142
7 [30,35) 274.479 1 633 601 5 951.643
8 [35,40) 247.741 1 199 962 4 843.615
9 [40,45) 119.997 43 979 366.501
10 [45,50) 78.897 2 239 28.379
11 [50,55] 32.745 288 8.795
Tab.1  Matrix about population density in illegal buildings and distance in Shenzhen
序号 模型名称 公式 结果 R2
1 负指数模型 D(r)=D0e-br D(r)=59 729.73e-0.120 9r 0.631 4
2 正态密度模型 D(r)=D0e-br2 D(r)=19 447.84e-0.002 179r2 0.803 7
3 二次指数模型 D(r)=D0ebr-cr2 D(r)=2 037.784e0.190 882r-0.005 197r2 0.886 1
4 加幂指数模型 D(r)=D0e-brσ D(r)=8 615.662 37e-0.000 361 865r2.090 357 0.829 3
5 对数正态分布 D(r)=D0e-b(lnr)2 D(r)=127 744.2e-0.408 3(lnr)2 0.463 0
6 线性模型 D(r)=a+br D(r)=10 052.65-182.12r 0.849 0
7 对数模型 D(r)=a+blnr D(r)=16 888.9 -3 843lnr 0.752 0
8 反函数模型 D(r)=a+br-1 D(r)=2 098.1+45 368.4r-1 0.520 7
9 负幂指数模型 D(r)=Kr-a D(r)=16 200 889r*2.164 9 0.369 3
10 Gamma模型 D(r)=Kr-ae-br D(r)=33.8143 4r3.890 68e-0.286 79r 0.759 6
Tab.2  Model fitting results of monocentric population density in illegal buildings
Fig.4  Contours of population density in illegal buildings in Shenzhen, 2014
序号 模型名称 公式 结果 R2
1 Heikkila模型1 D=aiebiri D=7 763.278e-0.061 79ri 0.174 8
2 Heikkila模型2 D=AΠi=1nebiri D=13 360.26e-0.125 68r1e0.107 71r2e-0.196 02r3e0.147 44r4 0.245 3
3 Heikkila模型3 D=∑i=1naiebiri D=15 600.127 3e-0.752 601r1+7 586.696 44e-0.018 953r2 0.472 1
4 王法辉模型 D=Aeb1r1eb2r2 D=5 158.288e-0.155 28r1e0.086 03r2 0.217 5
Tab.3  Model fitting results of multi-centric population density in illegal buildings
圈层
序号		 圈层
距离/km		 租赁面积
总和/hm2		 租金总额/
万元		 租金/
(元·m-2)
1 [0,5) 14.22 734.96 51.67
2 [5,10) 19.65 632.55 32.19
3 [10,15) 66.18 615.51 9.30
4 [15,20) 95.02 775.68 8.16
5 [20,25) 150.83 1 072.03 7.11
6 [25,30) 48.94 359.12 7.34
7 [30,35) 136.35 967.71 7.10
8 [35,40) 85.44 670.59 7.85
9 [40,45) 6.13 64.91 10.60
10 [45,50) 0.18 1.09 6.13
11 [50,55] 0 0 0
Tab.4  Rent information of illegal buildings inside different zones in Shenzhen
[1] 李成名,印洁,王继周,等.人口地理信息系统[M].北京:科学出版社,2005.
[1] Li C M,Yin J,Wang J Z,et al.Population Geographic Information System[M].Beijing:Science Press,2005.
[2] 冯健. 杭州市人口密度空间分布及其演化的模型研究[J].地理研究,2002,21(5):635-646.
[2] Feng J.Modeling the spatial distribution of urban population density and its evolution in Hangzhou[J].Geographical Research,2002,21(5):635-646.
[3] 曹伟超,陶和平,谭理,等.基于多源空间数据的山区人口分布模拟[J].国土资源遥感,2012,24(2):61-67.doi:10.6046/gtzyyg.2012.02.12.
[3] Cao W C,Tao H P,Tan L,et al.Simulation of mountain population distribution based on multi-source spatial data[J].Remote Sensing for Land and Resources,2012,24(2):61-67.doi:10.6046/gtzyyg.2012.02.12.
[4] 黄祖宏,高向东,朱晓林.上海市外籍人口空间分布历史变迁研究[J].南方人口,2013,28(3):54-64.
[4] Huang Z H,Gao X D,Zhu X L.A historical study of the spatial distribution of foreigners living in Shanghai[J].South China Population,2013,28(3):54-64.
[5] 吴文钰,高向东.中国城市人口密度分布模型研究进展及展望[J].地理科学进展,2010,29(8):968-974.
[5] Wu W Y,Gao X D.Population density functions of Chinese cities:A review[J].Progress in Geography,2010,29(8):968-974.
[6] 朱瑜馨,张锦宗,聂芹.山东省人口密度分布模式的GIS空间分析[J].国土资源遥感,2011,23(4):147-150.doi:10.6046/gtzyyg.2011.04.27.
[6] Zhu Y X,Zhang J Z,Nie Q.A study of the population spatial distribution model based on spatial statistics in Shandong Province[J].Remote Sensing for Land and Resources,2011,23(4):147-150.doi:10.6046/gtzyyg.2011.04.27.
[7] 刘峰,马金辉,宋艳华,等.基于空间统计分析与GIS的人口空间分布模式研究——以甘肃省天水市为例[J].地理与地理信息科学,2004,20(6):18-21.
[7] Liu F,Ma J H,Song Y H,et al.Study on the patterns of spatial population distribution based on the integration of spatial statistical analysis and GIS:A case study of Tianshui City in Gansu Province[J].Geography and Geo-Information Science,2004,20(6):18-21.
[8] 徐建华. 计量地理学[M].北京:高等教育出版社,2006.
[8] Xu J H.Quantitative Geography[M].Beijing:Higher Education Press,2006.
[9] Clark C.Urban population densities[J].Journal of the Royal Statistical Society,1951,114:490-496.
[10] 韩杰,李丁,崔理想,等.基于GIS的兰州市人口空间结构研究[J].干旱区资源与环境,2015,29(2):27-32.
[10] Han J,Li D,Cui L X,et al.The research on the spatial structure of population based on GIS[J].Journal of Arid Land Resources and Environment,2015,29(2):27-32.
[11] Wang F H.Quantitative Methods and Applications in GIS[M].Boca Raton,FL:CRC Press,2006.
[12] 陈红娟,彭立芹,冯文钊.基于GIS的城市人口密度分布方向性研究——以石家庄市为例[J].地域研究与开发,2010,29(5):132-137.
[12] Chen H J,Peng L Q,Feng W Z.A GIS-based study on the directional property of urban population density distribution:A case study with Shijiazhuang as working example[J].Areal Research and Development,2010,29(5):132-137.
[13] 张岸,齐清文.基于GIS的城市内部人口空间结构研究——以深圳市为例[J].地理科学进展,2007,26(1):95-105.
[13] Zhang A,Qi Q W.GIS based analysis on spatial structure urban internal population:A case study in Shenzhen City[J].Progress in Geography,2007,26(1):95-105.
[14] 王申博,沈荣浩.改进的Leslie模型在流动人口较大城市的应用——以深圳为例[J]. 管理观察, 2013(23):89-90.
[14] Wang S B,Shen R H.Application of improved Leslie model in large floating population city:A case study in Shenzhen City[J]. Management Observer, 2013(23):89-90.
