Remote Sensing for Natural Resources    2025, Vol. 37 Issue (4) : 48-57     DOI: 10.6046/zrzyyg.2024110
|
Landslide identification based on an improved YOLOv7 model: A case study of the Baige area
LIU Haoran1,2(), YAN Tianxiao1,2, ZHU Yueqin2(), WANG Yanping1, CHEN Zuyi1, YANG Zhaoying3, ZHU Haomeng4
1. Institute of Disaster Prevention Science and Technology, Langfang 065201, China
2. National Institute of Natural Disaster Prevention, Ministry of Emergency Management of China, Beijing 100085, China
3. China Aero Geophysical Survey and Remote Sensing Center, Beijing 100083, China
4. Zhejiang Institute of Geosciences, Hangzhou 310000, China
Download: PDF(6008 KB)   HTML
Export: BibTeX | EndNote | Reference Manager | ProCite | RefWorks
Abstract

Landslide identification has always been a research topic in the study of geological disasters, playing a significant role in emergency rescue and command. To address the limitations in landslide identification, such as missed/false detection, and low identification accuracy, this study proposed an improved YOLOv7 model that enables simultaneous object detection and image segmentation for landslides. The improved model optimized its core network by integrating data, adding the convolutional block attention module (CBAM), and changing the intersection over union (IoU) loss function. Its effectiveness was verified using the landslide dataset of Bijie City, Guizhou Province, and the 0.2 m high-resolution digital orthophoto map (DOM) of historical landslides in Sichuan Province. The results indicate that the improved model performed well in landslide detection and segmentation, achieving more efficient and accurate landslide identification compared to the conventional YOLOv7 model, and other prevailing models like Fast RCNN and Mask RCNN. Taking the Baige area in Sichuan Province as an example, this model can effectively enhance the automation level of landslide disaster information acquisition while improving accuracy.
Keywords object detection      image segmentation      YOLOv7      landslide identification      remote sensing image
ZTFLH:  TP79
Issue Date: 03 September 2025
Service
E-mail this article
E-mail Alert
RSS
Articles by authors
Haoran LIU
Tianxiao YAN
Yueqin ZHU
Yanping WANG
Zuyi CHEN
Zhaoying YANG
Haomeng ZHU
Cite this article:
Haoran LIU,Tianxiao YAN,Yueqin ZHU, et al. Landslide identification based on an improved YOLOv7 model: A case study of the Baige area[J]. Remote Sensing for Natural Resources, 2025, 37(4): 48-57.
URL:
https://www.gtzyyg.com/EN/10.6046/zrzyyg.2024110     OR     https://www.gtzyyg.com/EN/Y2025/V37/I4/48

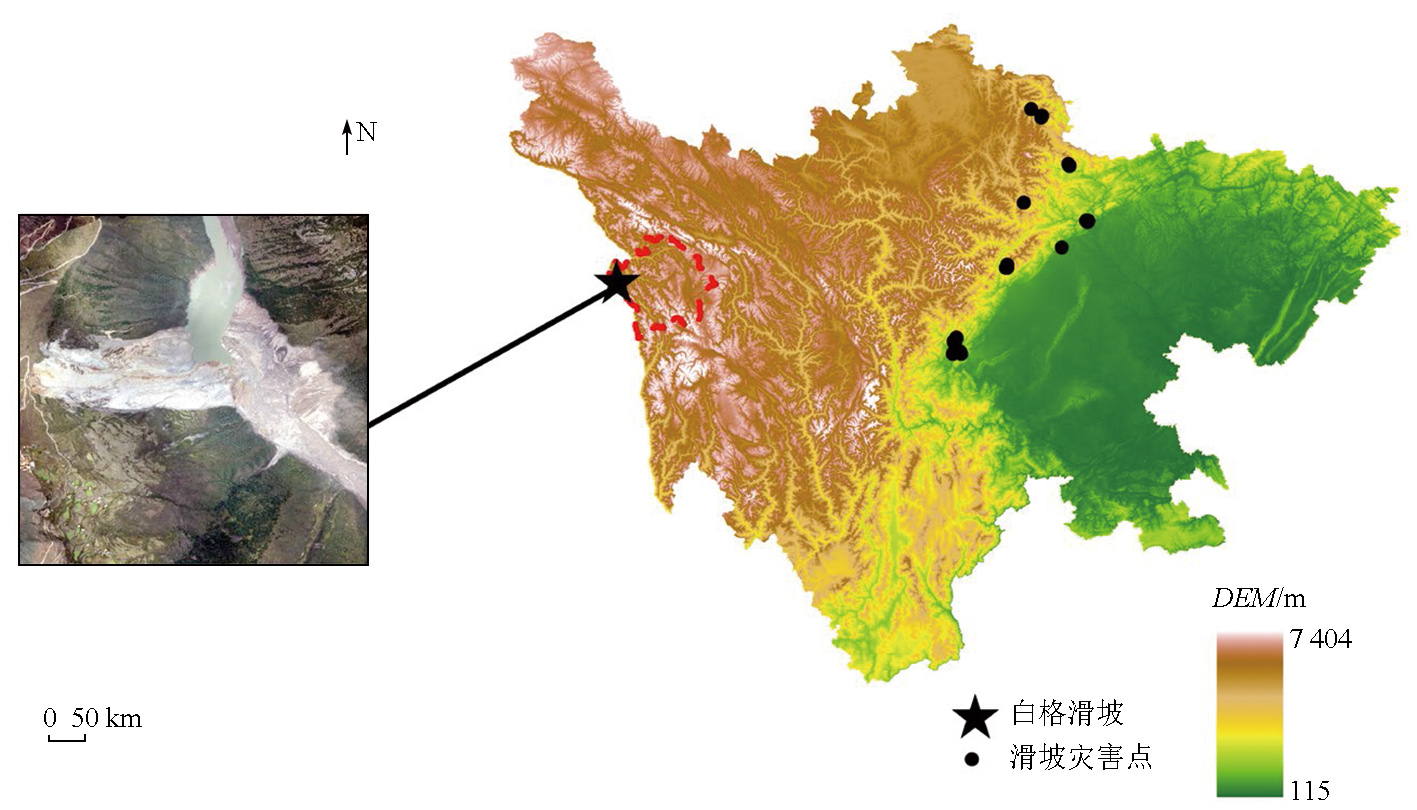

Fig.1  Distribution map of landslide disasters in Baige area, Sichuan Province and surrounding areas

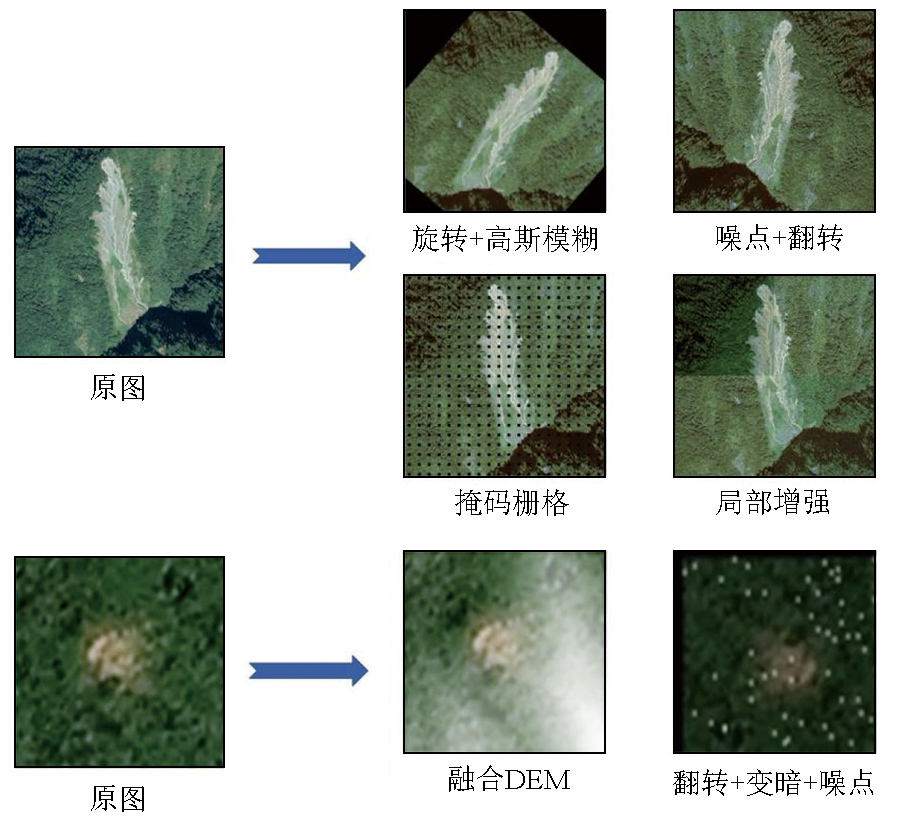

Fig.2  Sample data expansion effect
Fig.3  YOLOv7 network structure diagram
Fig.4  Schematic diagram of MPDIoU

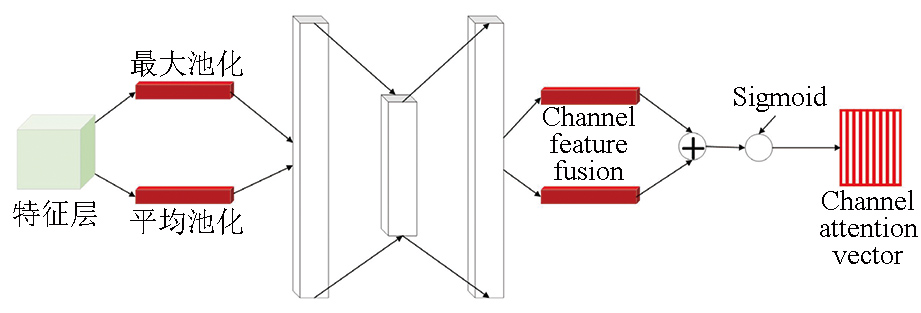

Fig.5  Channel attention module network architecture

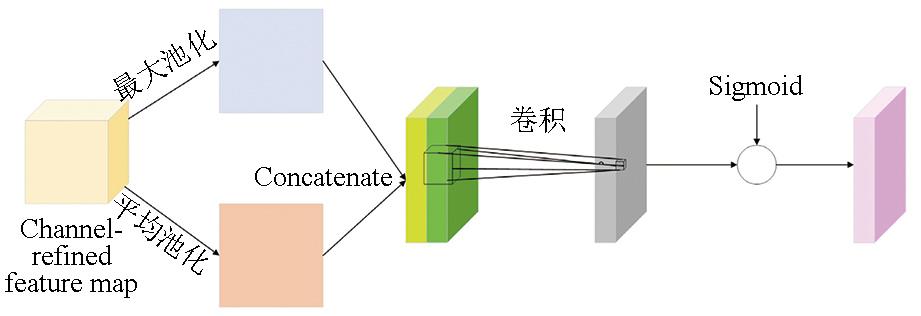

Fig.6  Spatial attention module network architecture

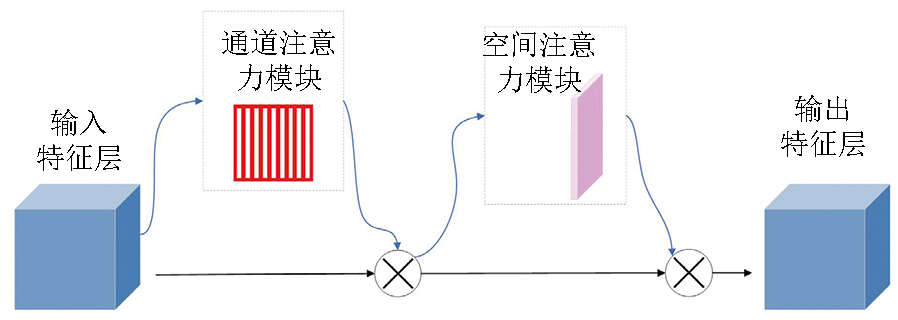

Fig.7  CBAM network architecture
模块 改进策略 精确率/% 召回率/% mAP@0.5/%
MPDIoU CBAM DEM
YOLOv7-segment 35.2 83.2 73.4 75.9
YOLOv7-segment-A √ 36.3 84.7 74.5 78.2
YOLOv7-segment-B √ 36.9 85.1 75.6 79.5
YOLOv7-segment-C √ 35.2 86.3 76.1 78.2
本文方法 √ √ √ 37.9 89.4 79.8 83.5
Tab.1  Various improved ablation experiments

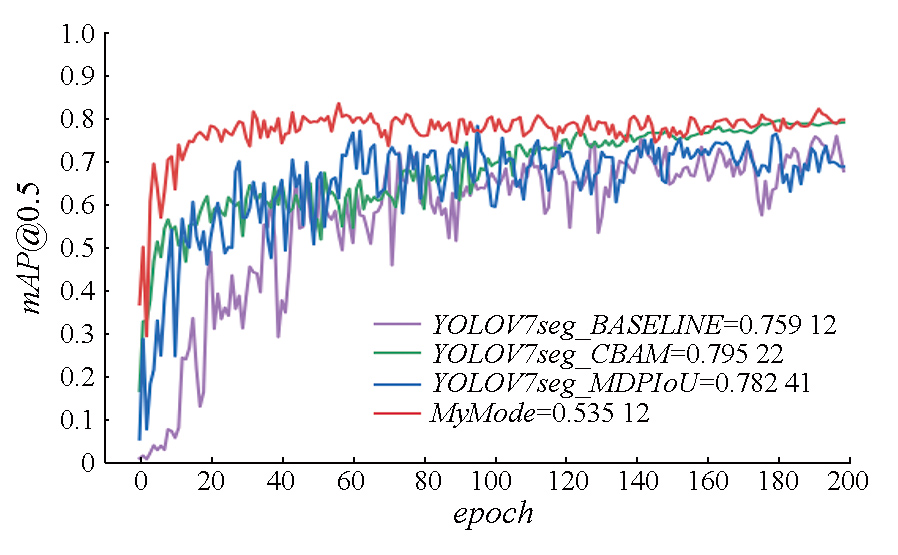

Fig.8  Chart of mAP@0.5 curve comparison of each mode
算法模型 mAP@0.5/% 参数量/MB GFLOPs/GB
Mask R-CNN 75.4 45.8 66.55
YOLOv5L-seg 75.9 46.56 109.60
Faster-RCNN 70.6 41.00 241.40
YOLACT 68.7 47.70 126.80
YOLOv7-seg 79.8 38.27 143.20
本文算法 83.5 37.89 141.50
Tab.2  Comparison of different algorithms

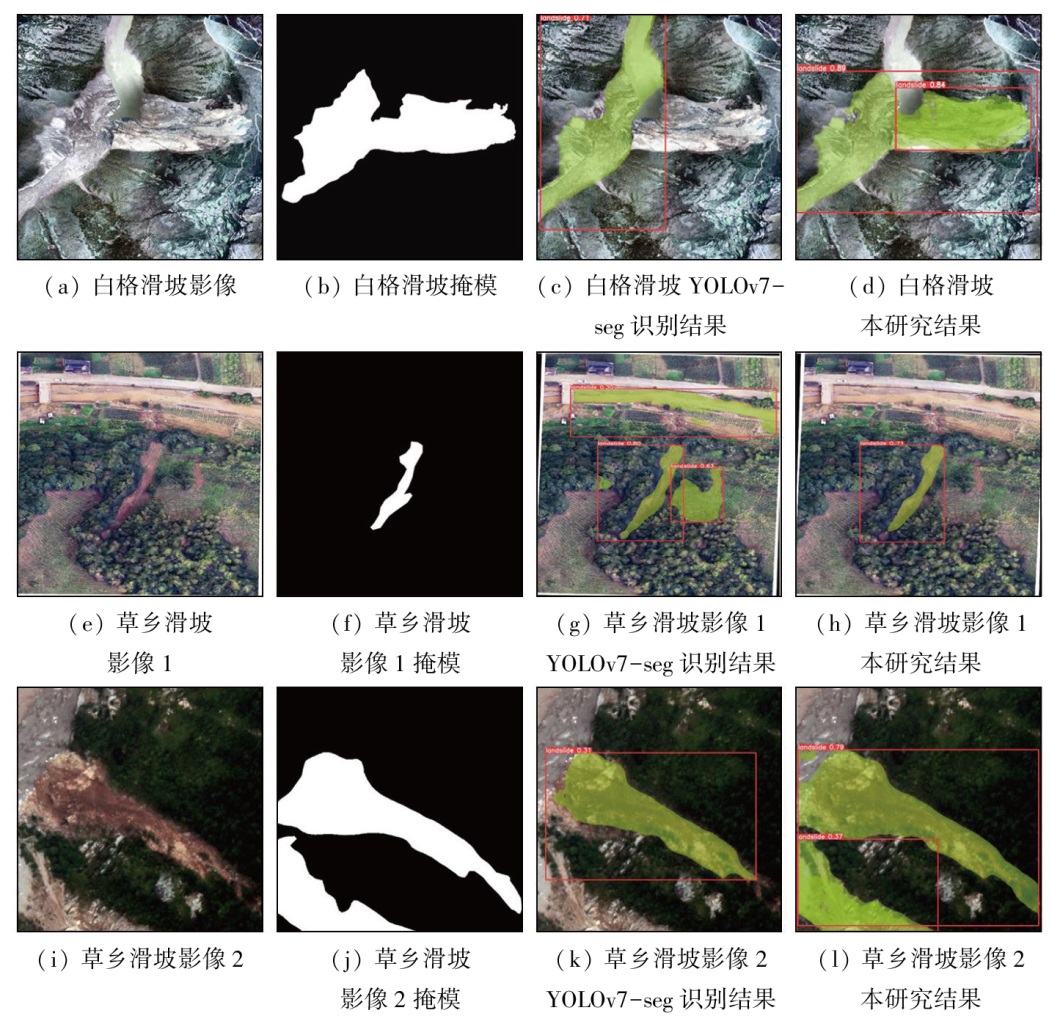

Fig.9  Comparison effect before and after algorithm improvement

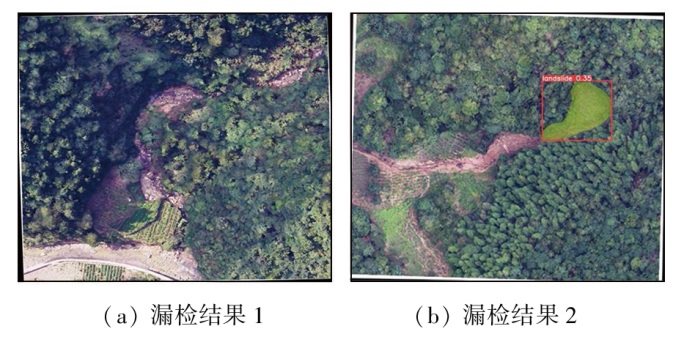

Fig.10  Missing images

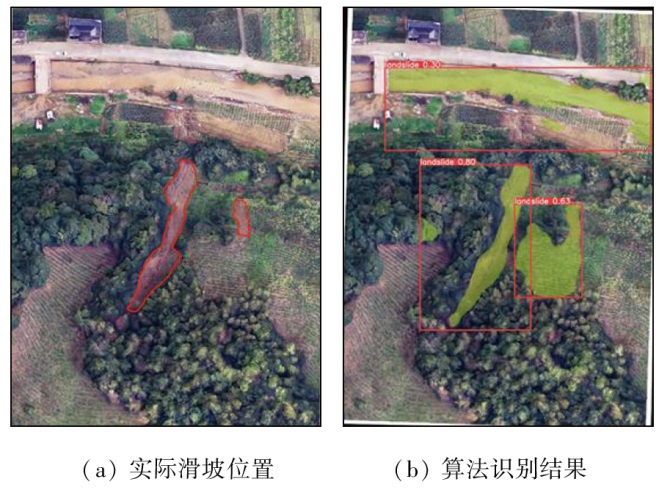

Fig.11  Misdetected images
