基于多源高分辨率数据的遗址空间考古精细识别研究
舒慧勤1,2(), 方俊永1(), 鲁鹏3, 顾万发4, 王潇1, 张晓红1, 刘学1, 丁兰坡4
1.中国科学院空天信息创新研究院,北京 100094
2.中国科学院大学,北京 100049
3.河南省科学院地理研究所,郑州 450052
4.郑州市文物考古研究院,郑州 450000
Research on fine recognition of site spatial archaeology based on multisource high-resolution data
SHU Huiqin1,2(), FANG Junyong1(), LU Peng3, GU Wanfa4, WANG Xiao1, ZHANG Xiaohong1, LIU Xue1, DING Lanpo4
1. Areospace Information Research Institute, China Academy of Sciences, Beijing 100094, China
2. University of Chinese Academy of Sciences, Beijing 100049, China
3. Institute of Geographical Sciences, Henan Academy of Sciences, Zhengzhou 450052, China
4. Zhengzhou Institute of Cultural Relics and Archaeology,Zhengzhou 450000, China
全文: PDF(8369 KB)   HTML
输出: BibTeX | EndNote (RIS)
摘要

河南省郑州市的平陶城是东周重要城邑,具有重要的历史价值。由于传统考古调查具有耗时长、投入大、工作量大等问题,平陶故城的聚落布局、遗迹分布等仍不清晰。研究选取Corona和Google Earth历史影像、无人机热红外和高光谱影像,对比分析不同载荷、不同时相、不同尺度影像上的色调和纹理特征,提取平陶城城址的考古异常区域,发现了疑似城墙、城门、角台、长方形房基等遗迹,并根据识别结果初步重建遗址空间结构。研究结果表明,Corona影像有助于识别遗址早期面貌,Google Earth历史影像可以在微小的疑似遗迹特征检测和提取方面提供帮助,航空热红外影像可以揭示在地面或光学影像上不明显的埋藏的考古特征,航空高光谱影像经过最小噪声分离变换有助于探测微弱信息。研究证明综合利用多源高分辨率数据可对遗址遗迹分布、空间结构进行调查、预测和重建,为进一步考古研究和遗址保护提供参考。

服务
把本文推荐给朋友
加入引用管理器
E-mail Alert
RSS
作者相关文章
舒慧勤
方俊永
鲁鹏
顾万发
王潇
张晓红
刘学
丁兰坡
关键词 遥感考古遗址识别无人机热红外高光谱CoronaGoogle Earth
Abstract

The ancient city of Pingtao, Zhengzhou City, Henan Province, was an important city in the Eastern Zhou Dynasty and has important historical value. Due to the problems of time-consuming, heavy investment and heavy workload in traditional archaeological investigations, the settlement layout and relic distribution of the old city of Pingtao are still unclear. In this study, the authors selected Corona, Google Earth historical images and aerial thermal infrared images, comparatively analyzed the tonal and texture features on images of different loads, phases and scales, and extracted the archaeological anomalous areas of the Pingtao City site and Dianjuntai site. Suspected ruins such as city walls, gates, corner platforms and rectangular building foundations were discovered, and the spatial structure of the ruins was initially reconstructed based on the identification results. The results of the study show that Corona imagery helps to identify the early appearance of the site, Google Earth historical imagery provides assistance for the detection and extraction of tiny suspected relic features, and aerial thermal infrared imagery can reveal such archeological features as indistinct burial on the ground or optical image. The research proves that the comprehensive utilization of multi-source high-score data can investigate, predict and reconstruct the distribution and spatial structure of the relics, thus providing a reference for further archaeological research and site protection.

Key wordsremote sensing archaeology    site identification    aviation thermal infrared    hyperspectral    Corona    Google Earth
收稿日期: 2020-09-16      出版日期: 2021-07-21
ZTFLH:  TP79
基金资助:国家十三五重点研发计划“重大自然灾害监测预警与防范-天地联合田野考古调查关键技术”(2020YFC1521900);国家自然科学基金项目“郑州地区新石器-青铜时代环壕沉积模式研究”(41971016);国家自然科学基金项目“河南贾鲁河上游地区全新世早中期环境与聚落形态演变关系研究”(41671014);国家社会科学基金项目“2013—2018年度河南巩义双槐树遗址考古资料整理与综合研究”(19ZDA227);郑州环境考古研究项目“河南省数字环境考古特聘研究员项目”(200501002)
通讯作者: 方俊永
作者简介: 舒慧勤(1993-),女,硕士研究生,主要从事低空遥感应用及遥感考古研究。Email: shuhq521@gmail.com
引用本文:
舒慧勤, 方俊永, 鲁鹏, 顾万发, 王潇, 张晓红, 刘学, 丁兰坡. 基于多源高分辨率数据的遗址空间考古精细识别研究[J]. 国土资源遥感, 2021, 33(2): 162-171.
SHU Huiqin, FANG Junyong, LU Peng, GU Wanfa, WANG Xiao, ZHANG Xiaohong, LIU Xue, DING Lanpo. Research on fine recognition of site spatial archaeology based on multisource high-resolution data. Remote Sensing for Land & Resources, 2021, 33(2): 162-171.
链接本文:
https://www.gtzyyg.com/CN/10.6046/gtzyyg.2020293      或      https://www.gtzyyg.com/CN/Y2021/V33/I2/162
Fig.1  研究区地理位置示意图
成像时间 数据源 空间分
辨率/m
波段
数据来源 备注
1962-04-18 Corona KH-4 3.04 1 美国地质调查局 立体像对
1963-09-25 Corona KH-4A 2.74 1 美国地质调查局
1966-06-06 Corona KH-7 0.61 1 美国地质调查局
1968-08-17 Corona KH-4B 1.82 1 美国地质调查局 立体像对
1968-11-16 Corona KH-4B 1.82 1 美国地质调查局 立体像对
2003-06-12 QuickBird02 0.64 3 Google Earth历史影像
2011-05-27 WorldView-2 0.5 3 Google Earth历史影像
2014-05-29 GF-1 0.46 3 Google Earth历史影像
2015-01-03 WorldView-2 0.55 3 Google Earth历史影像
2015-04-13 WorldView-3 0.38 3 Google Earth历史影像
2016-12-08 WorldView-2 0.52 3 Google Earth历史影像
2017-11-20 WorldView-2 0.5 3 Google Earth历史影像
2019-03-23 GF-1 0.48 3 Google Earth历史影像
2019-12-19 Pleiades 0.5 3 Google Earth历史影像
Tab.1  多源高分辨率遥感影像信息
参数 数值
翼展/mm 2 500
轴距/mm 1 000
最大起飞质量/kg 5
最大任务载重/kg 3
空载悬停时间/min 40
最大爬升速度/(m·s-1) 4
最大下降速度/(m·s-1) 3
地面站控制距离/m 10 000
工作最大海拔/m 5 000
Tab.2  无人机主要参数

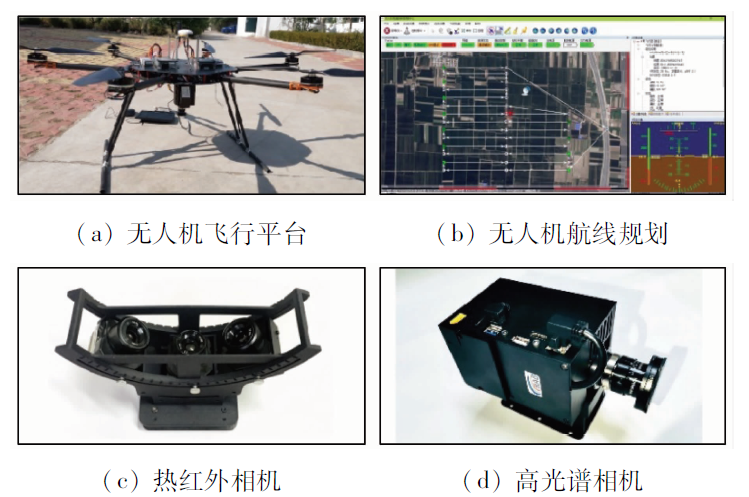

Fig.2  无人机遥感系统
Fig.3  古道路遗迹遥感解译标志

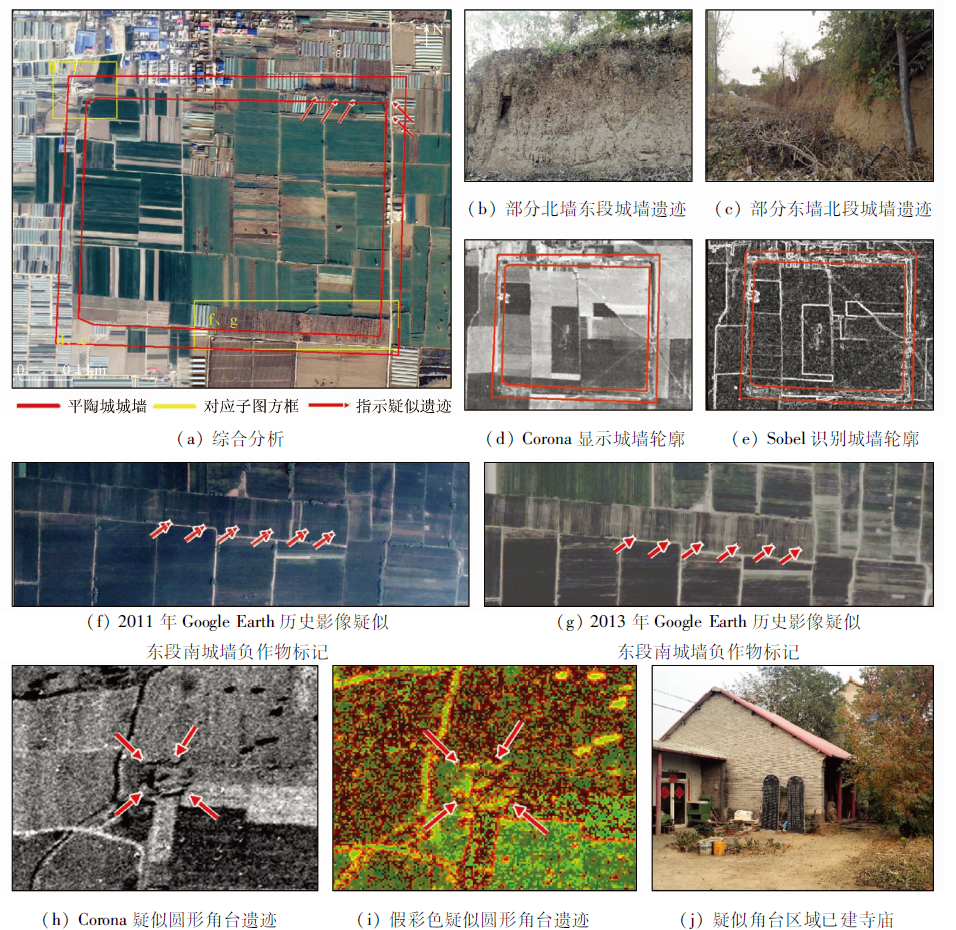

Fig.4  平陶城城墙和疑似角台遗迹遥感影像分析
Fig.5  平陶城城址疑似城门大致位置

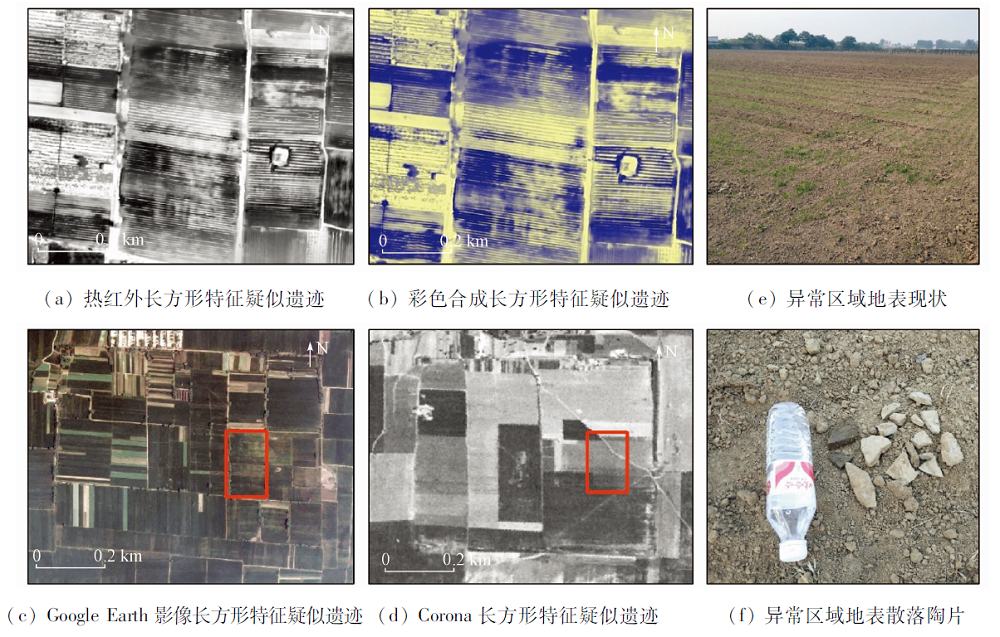

Fig.6  平陶城城址长方形遗迹影像分析

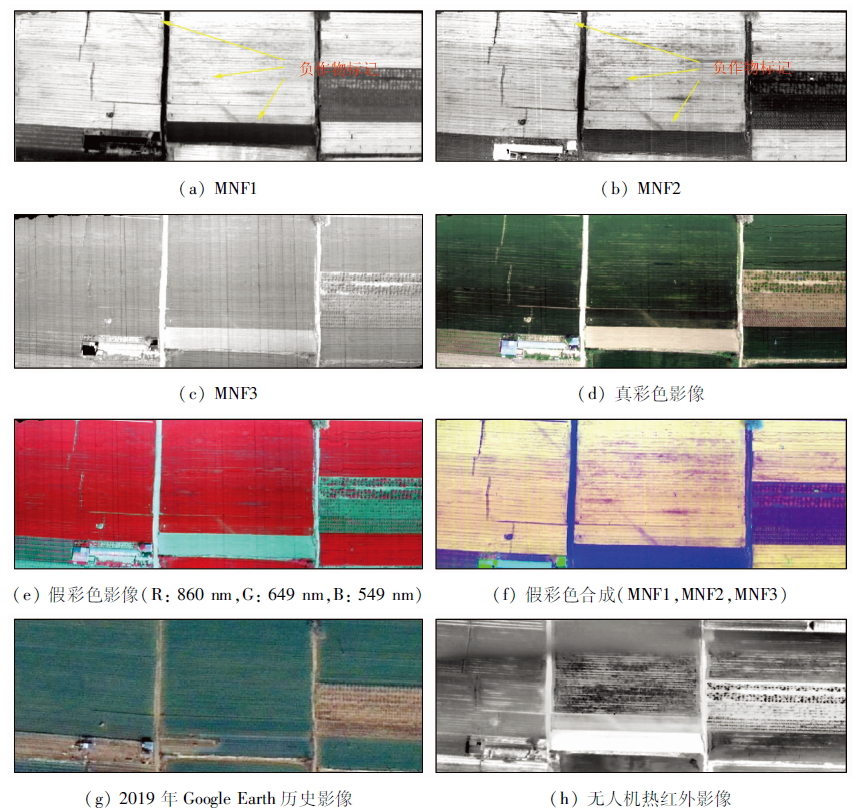

Fig.7  高光谱影像古道路遗迹识别
