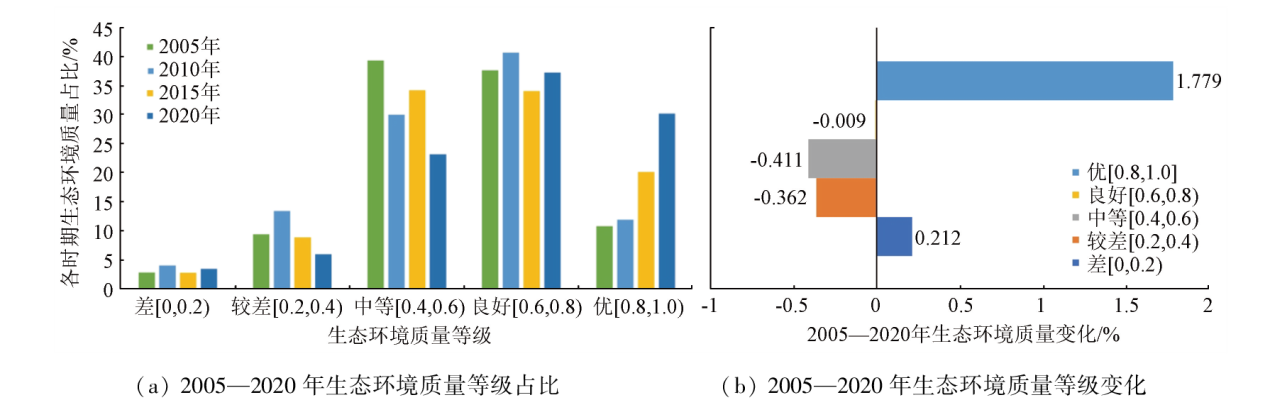

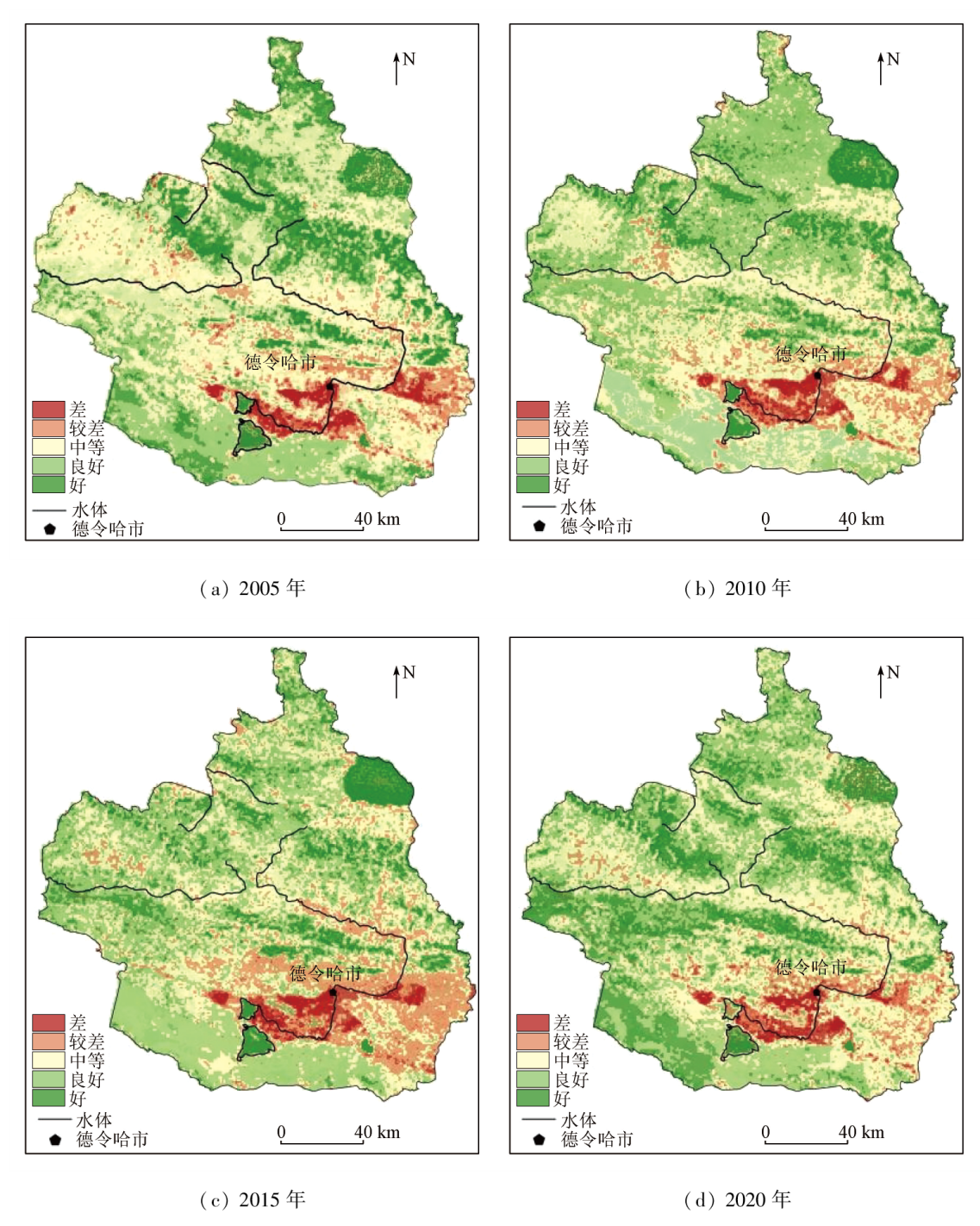

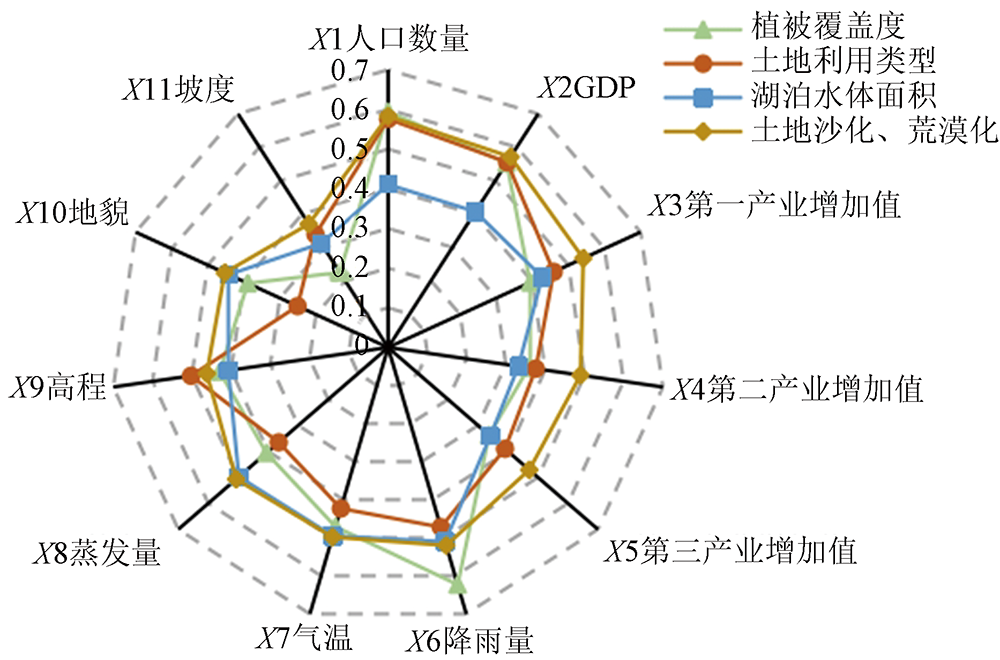

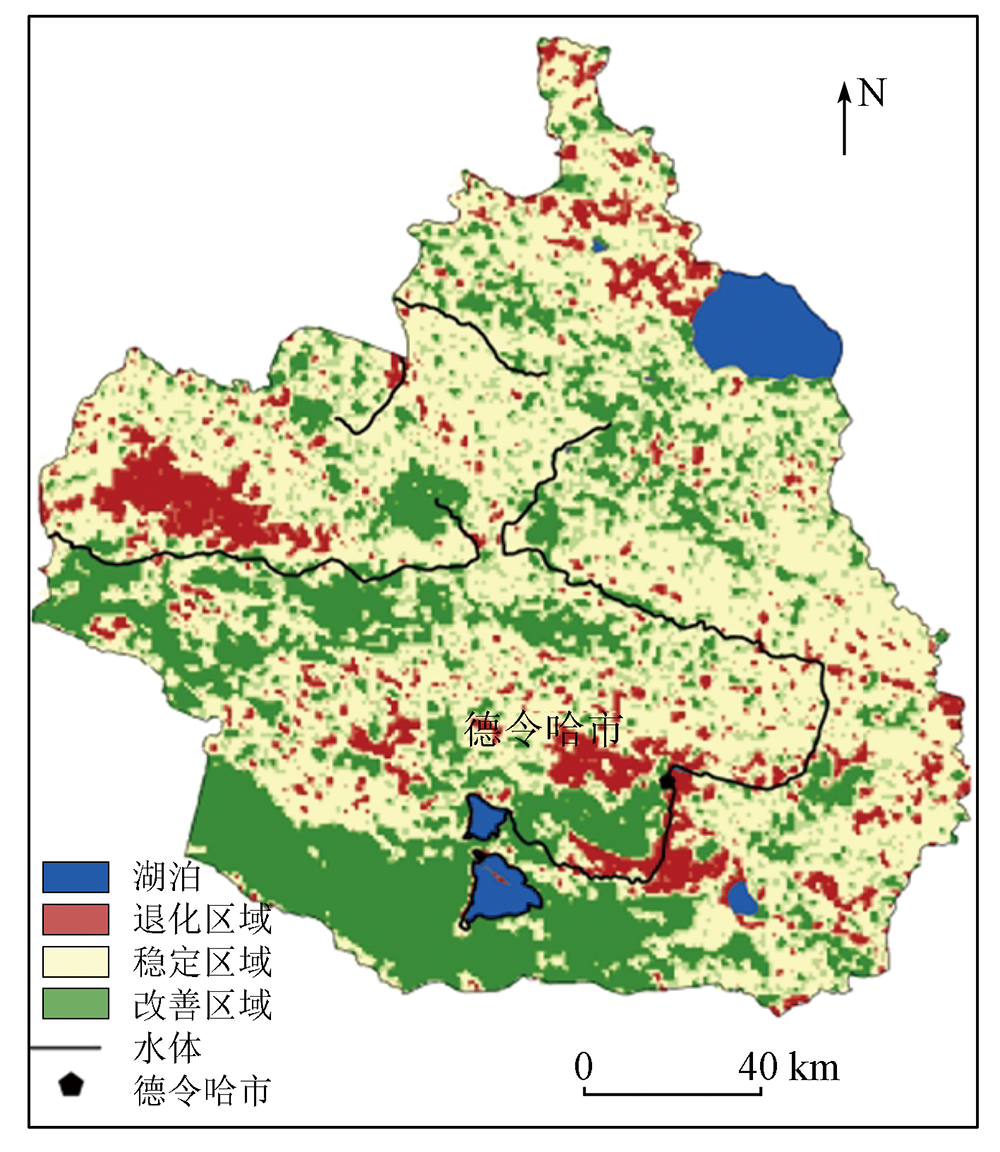

为揭示巴音河流域生态环境的综合演化特征,指导当地或类似地区土地利用和生态环境优化管理,选取2005—2020年12景遥感影像数据,基于研究区生态环境问题,引入地理探测器定量探究关键因子,结合生态系统服务和权衡的综合评估模型(integrated valuation of ecosystem services and trade-offs,InVEST),综合运用统计分析、叠加分析、层次分析等方法建立生态环境质量评价模型,揭示流域生态环境的综合演化特征。结果表明: 影响流域生态环境质量演化的关键因子为人口数量、国内生产总值、高程和降雨量,流域生态环境质量综合评价值从0.455增至0.533,整体呈上升趋势。研究区内生态环境质量地域差异明显,14.9%的区域呈现退化状态,主要分布于巴音河流域附近及德令哈市区周边区域; 33.6%的区域呈改善状态,分布于巴音河流域中下游湖泊以南区域。研究表明巴音河流域在未来生态环境保护与规划中应更注意城镇化过程中农业及其他生态用地与建设用地的平衡,科学地进行空间格局规划,实现经济与生态的协调发展。
This study aims to provide a guide for the optimal management of land use and ecological environment in the Bayin River basin or similar areas by revealing the comprehensive evolution characteristics of the ecological environment in the Bayin River basin. Based on the 12 scenes of remote sensing image data from 2005 to 2020, this study quantitatively explored the critical factors influencing the ecological environment in the study area using a geographical detector. By combining the model for integrated valuation of ecosystem services and trade-offs (InVEST), this study established an ecological environment quality assessment model through statistical analysis, overlay analysis, and analytic hierarchy process, revealing the comprehensive evolutionary characteristics of the ecological environment in the basin. The results show that: ① The critical factors influencing the ecological environment quality in the basin included population size, GDP, elevation, and rainfall. The comprehensive assessment value of the ecological environmental quality in the basin increased from 0.455 to 0.533, suggesting an overall upward trend; ② The ecological environmental quality in the basin exhibited significant regional differences. Specifically, 14.9% of the basin manifested degraded ecological environmental quality, primarily distributed in the vicinity of the Bayin River basin and the surrounding area of Delingha City. In contrast, 33.6% displayed improved ecological environmental quality, spreading in areas to the south of lakes in the middle and lower reaches of the Bayin River basin. This study indicates that the future ecological environment protection and planning in the Bayin River basin should focus on the balance between agricultural land and other ecological and construction land during urbanization, thereby achieving coordinated development of economy and ecology through scientific planning of spatial framework.
Yang Z K, Tian J, Li W Y, et al. Spatio-temporal pattern and evolution trend of ecological environment quality in the Yellow River Basin[J]. Acta Ecologica Sinica, 2021, 41(19):7627-7636.
Xia S Y, Yang Y. Spatio-temporal differentiation of carbon budget and carbon compensation zoning in Beijing-Tianjin-Hebei Urban Agglomeration based on the Plan for Major Function-oriented Zones[J]. Acta Geographica Sinica, 2022, 77(3):679-696.
doi: 10.11821/dlxb202203013
Gao Q, Miao Y, Song J P. Research progress on the sustainable development of Qinghai-Tibet Plateau[J]. Geographical Research, 2021, 40(1):1-17.
doi: 10.11821/dlyj020200614
Gao Z Z, Huang Y J, Wei H X, et al. Remote sensing monitoring of water erosion desertification and spatio-temporal differentiation of its influencing factors in the Yunnan-Guizhou Plateau in recent 30 years[J]. Bulletin of Surveying and Mapping, 2021(10):117-122.
doi: 10.13474/j.cnki.11-2246.2021.317
Chen Y L, Jiao J Y, Tian H W, et al. Spatial correlation analysis between vegetation NDVI and natural environmental factors based on geographical detector on the Loess Plateau[J]. Acta Ecologica Sinica, 2022, 42(9):3569-3580.
Ren Y Q, Liu H L, Tang L X, et al. A study on dynamic changes of desertification in south edge of Junggar Basin based on NDVI-albedo features[J]. Bulletin of Soil and Water Conservation, 2014, 34(2):267-271,325.
Gao Y T, Yu Y, Sun L X, et al. Land coverage change and driving forces of an oasis in the southern margin of Tarim Basin[J]. Arid Zone Research, 2021, 38(4):1172-1183.
Peng L, Deng W, Huang P, et al. Evaluation of multiple ecosystem services landscape index and identification of ecosystem services bundles in Sichuan Basin[J]. Acta Ecologica Sinica, 2021, 41(23):9328-9340.
Li X, Cui X, He X F, et al. Analyses of spatial and temporal characteristics of water conservation function in Qaidam Basin[J]. Pratacultural Science, 2022, 39(4):660-671.
Wen L, Song J, Zhang H C, et al. Dynamics of ecosystem service value in Ulan buh Desert from 1990 to 2018[J]. Journal of Arid Land Resources and Environment, 2020, 34(12):57-64.
Chang T Y, Zhang Z W, Qiao X N, et al. Land use transformation and its eco-environment effects of ecological-production-living spaces in Yellow River Basin[J]. Bulletin of Soil and Water Conservation, 2021, 41(4):268-275.
Jiang X, Zhou X, Xiao Y, et al. Ecological space zoning based on lake ecosystem health maintenance:Taking the Hongfeng Lake Basin as example[J]. Acta Ecologica Sinica, 2021, 41(7):2571-2581.
Tian J R, Dai T T, Xu Y N, et al. Extraction of vegetation parameters in different stages of ecological restoration on abandoned mine area based on T-LiDAR[J]. Journal of Ecology and Rural Environment, 2018, 34(8):686-691.
Zhao X Q, Gu Z X, Gao X Y. Land use and land-cover change and it's impact on ecosystem services values in a region with large-area artificial gardens[J]. Resources and Environment in the Yangtze Basin, 2016, 25(1):88-97.
Wen G C, Sun S K, Li X, et al. Diagnosis of eco-environmental quality in the keluke lake basin,China[J]. Chinese Journal of Applied Ecology, 2021, 32(8):2906-2914.
Cai W B, Han B L, Lu F, et al. Comprehensive evaluation of the eco-environment in the four global bay areas[J]. Acta Ecologica Sinica, 2020, 40(23):8392-8402.
Shan W, Jin X B, Meng X S, et al. Dynamical monitoring of ecological environment quality of land consolidation based on multi-source remote sensing data[J]. Transactions of the Chinese Society of Agricultural Engineering, 2019, 35(1):234-242.
Wang J, Zhao M D, Li J B, et al. Dynamic monitoring and driving forces of eco-environmental quality in the qinba mountains based on MODIS time-series data[J]. Mountain Research, 2021, 39(6):830-841.
Wang S H, Huang L, Xu X L, et al. Spatio-temporal variation characteristics of ecological space and its ecological carrying status in mega-urban agglomerations[J]. Acta Geographica Sinica, 2022, 77(1):164-181.
doi: 10.11821/dlxb202201012
Wang Q, Zhang Y, Yang Y F. Research of evaluation index system of resources and environment carrying capacity in Xiong’an new area[J]. Environmental Science & Technology, 2020, 43(5):203-212.
Zhang P, Xu H L, Du Q, et al. Discussion on ecological condition change of Khotan River Basin in 1990—2010[J]. Research of Soil and Water Conservation, 2016, 23(4):174-178,184.
Bao Y B, Liu K, Li T, et al. Effects of land use change on habitat based on in VEST model-Taking Yellow River wetland nature reserve in Shaanxi Province as an example[J]. Arid Zone Research, 2015, 32(3):622-629.
Zhao X J, Wang J, Su J D, et al. Assessment of habitat quality and degradation degree based on InVEST model and Moran index in Gansu Province,China[J]. Transactions of the Chinese Society of Agricultural Engineering, 2020, 36(18):301-308.
Huang M Y, Yue W Z, Fang B, et al. Scale response characteristics and geographic exploration mechanism of spatial differentiation of ecosystem service values in Dabie Mountain area,central China from 1970 to 2015[J]. Acta Geographica Sinica, 2019, 74(9):1904-1920.
[27]
Su Y, Li T, Cheng S, et al. Spatial distribution exploration and driving factor identification for soil salinisation based on geodetector models in coastal area[J]. Ecological Engineering, 2020, 156:105961.
doi: 10.1016/j.ecoleng.2020.105961
Li X P, Wang C P, Zou S B, et al. Evaluation on ecological resilience in water conservation area in the upper Yellow River based on AHP:A case study of the Gannan and Linxia region[J]. Journal of Desert Research, 2022, 42(6):85-93.
Wen G C, Wang W K, Duan L, et al. Analysis on variation characteristics of precipitation for recent 60 years in Delingha weather station of Bayin River Basin[J]. Journal of Water Resources and Water Engineering, 2018, 29(1):18-24.
Wen G C, Li X, Wu B J, et al. An automatic method for delineating lake surfaces in Qaidam Basin using Landsat images[J]. Arid Zone Research, 2022, 39(3):774-786.
Duan H T, Wu F Q, Yang Y F, et al. Land use change and driving force analysis of bayin river basin in the past 10 years[J]. Research of Soil and Water Conservation, 2020, 27(2):172-177.
An M, Li W J, Wu H L, et al. The evolution and influencing factors of the spatial-temporal pattern of ecological environment quality in the Three Gorges Reservoir area[J]. Resources and Environment in the Yangtze Basin, 2022, 31(12):2743-2755.
Ren X J, Gai A H, Song J R. Change characteristics of land use/cover in Delhi city of Qinghai Province from 1999 to 2009[J]. Bulletin of Soil and Water Conservation, 2014, 34(5):248-253.
Song J R, Gai A H, Ren X J. Study on construction land extension of Delhi city based on GIS and RS[J]. Research of Soil and Water Conservation, 2015, 22(5):176-180.
