2001—2020年间河南省郑州市生态环境质量时空变化及驱动因素分析

doi:10.6046/zrzyyg.2023203

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(4342 KB)

HTML
输出: BibTeX | EndNote (RIS)

摘要

生态环境质量是地区发展水平的重要组成部分,客观定量地对其进行长时序动态监测与分析,可为城市可持续发展和生态环境建设提供科学依据。基于Landsat遥感影像,通过主成分分析法构建遥感生态指数(remote sensing ecological index,RSEI)作为评价指标,运用Sen+Mann-Kendall趋势分析、Hurst指数、地理探测器探究河南省郑州市2001—2020年生态环境质量时空变化特征以及各驱动因子影响程度。研究表明: ①2001—2020年间郑州市整体生态环境质量处于中等水平,生态环境指数呈先下降再上升再下降趋势,空间分布表现为东部平原低、西南山地丘陵高。除2010年受高温影响生态环境质量恶化面积大幅增加外,区域总体生态环境质量以不变和轻微改善为主。②2001—2020年间郑州市生态环境质量变化趋势显著,上升趋势区域占比56.34%,下降趋势区域占比42.26%。结合Hurst指数,东部生态环境质量下降趋势区域未来变化以持续性特征为主,西南部生态环境质量上升趋势区域未来变化以反持续性特征为主。③驱动力分析表明,2001—2020年间土地利用类型和人口密度是影响郑州市生态环境质量变化的主要因子,其解释力强度明显高于其他因素。高程和年均降水等自然因素影响力逐渐减弱,而反映城市化水平的夜间灯光指数影响力逐渐增强。研究可为郑州市生态环境评价与保护工作提供科学依据。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	奥勇
	汪雅
	王晓峰
	吴京盛
	张亦恒
	李雪娇

关键词 ：生态环境质量, 遥感生态指数, Sen+Mann-Kendall, Hurst指数, 地理探测器

Abstract：

Ecological quality is an important indicator of a regional development level. Objective, quantitative dynamic monitoring and analysis of long-term ecological quality can provide a scientific basis for urban sustainable development and ecological construction. Based on Landsat remote sensing images, this study constructed the remote sensing ecological index (RSEI) as an evaluation index using principal component analysis. Accordingly, this study explored the spatiotemporal change characteristics of ecological quality in Zhengzhou from 2001 to 2020, as well as the extent of influence of various driving factors, using the Sen+Mann-Kendall trend analysis, the Hurst index, and geographical detectors. The results indicate that from 2001 to 2020, Zhengzhou maintained moderate ecological quality overall. The RSEI showed downward, upward, and then downward trends sequentially. Spatially, the eastern plains showed lower ecological quality, whereas the southwestern mountainous and hilly areas exhibited higher ecological quality. The regional ecological quality remained unchanged predominantly or saw slight improvements over these years except for 2010, when the area of zones with ecological quality deteriorating significantly increased due to high temperature. From 2001 to 2020, the ecological quality in Zhengzhou exhibited significant trends, with 56.34% of areas showing an upward trend and 42.26% exhibiting a downward trend. These results, along with the Hurst index, reveal that the downward trend in ecological quality in the eastern part is primarily characterized by sustainable changes in the future, while the upward trend in ecological quality in the southwestern partition is primarily characterized by anti-sustainable changes in the future. Driving force analysis indicates that over the 20 years, primary factors influencing changes in ecological quality in Zhengzhou included land use type and population density, whose explanatory power is significantly stronger than other factors. The impact of natural factors, such as elevation and average annual precipitation, has gradually diminished, while the influence of the night light index, which reflects the urbanization level, has progressively increased. The results of this study will provide a scientific basis for the evaluation and preservation of ecosystems in Zhengzhou.

Key words： ecological quality remote sensing ecological index Sen-Mann-Kendall Hurst index geodetector

收稿日期: 2023-07-11 出版日期: 2025-02-17

ZTFLH:	X821
	TP79

基金资助:陕西省土地整治重点实验室开放基金项目“污损土地遥感调查与评估研究”(2018-JC08);自然资源部“退化及未利用土地整治工程重点实验室”开放基金项目“土壤重金属污染快速识别技术”(SXDJ2019-8)

作者简介: 奥勇(1965- ),男,博士,副教授,主要从事生态遥感方面研究。Email: aoyong@chd.edu.cn。

引用本文:

奥勇, 汪雅, 王晓峰, 吴京盛, 张亦恒, 李雪娇. 2001—2020年间河南省郑州市生态环境质量时空变化及驱动因素分析[J]. 自然资源遥感, 2025, 37(1): 102-112.
AO Yong, WANG Ya, WANG Xiaofeng, WU Jingsheng, ZHANG Yiheng, LI Xuejiao. Spatiotemporal changes of ecological quality and their driving factors in Zhengzhou City over the last 20 years. Remote Sensing for Natural Resources, 2025, 37(1): 102-112.

链接本文:

https://www.gtzyyg.com/CN/10.6046/zrzyyg.2023203 或 https://www.gtzyyg.com/CN/Y2025/V37/I1/102

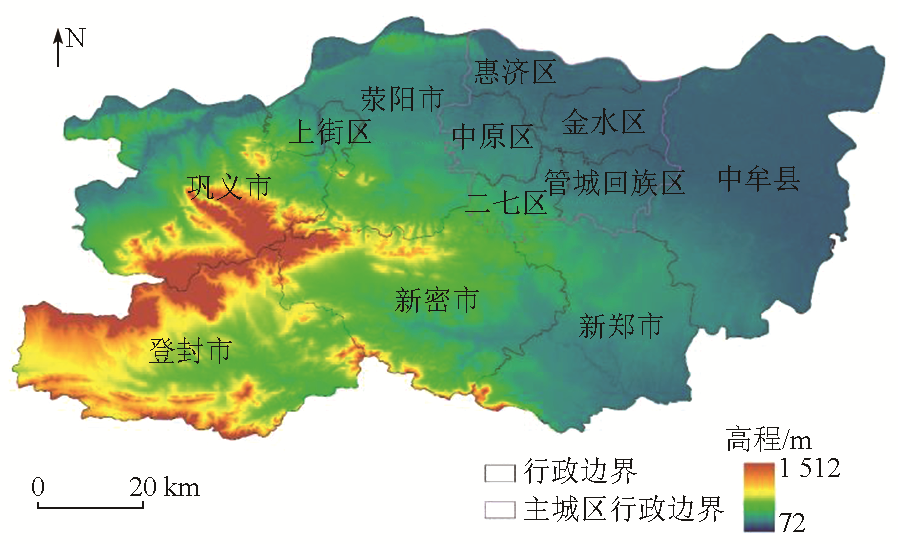

Fig.1 研究区域概况示意图

指标	计算公式	说明
绿度(NDVI)	$N D V I = (ρ N I R - ρ R) / (ρ N I R + ρ R)$	$ρ N I R$ 为近红外波段反射率; $ρ R$ 为红光波段反射率
湿度(Wet)	$W e t T M = 0.031 ? 5 ρ B + 0.202 ? 1 ρ G + 0.310 ? 2 ρ R + 0.159 ? 4 ρ N I R - 0.680 ? 6 ρ S W I R 1 - 0.610 ? 9 ρ S W I R 2$ $W e t O L I = 0.151 ? 1 ρ B + 0.197 ? 3 ρ G + 0.328 ? 3 ρ R + 0.340 ? 7 ρ N I R - 0.711 ? 7 ρ S W I R 1 - 0.455 ? 9 ρ S W I R 2$	$ρ B$ , $ρ G$ , $ρ R$ , $ρ N I R$ , $ρ S W I R 1$ 和 $ρ S W I R 2$ 分别为TM与OLI数据的蓝、绿、红、近红外、短波红外1和短波红外2波段的反射率数据
热度(LST)	$L S T = K 2 / l n (K 1 / T + 1)$ $L λ = [ε T + (1 - ε) L ↓] τ + L ↑$ $T = [L λ - L ↑ - τ (1 - ε) L ↓] / τ ε$	$L λ$ 为热红外辐射亮度值; $T$ 为黑体热辐射亮度; $ε$ 为地表比辐射率; $τ$ 为大气透过率; $L ↑$ 为大气上行辐射亮度; $L ↓$ 为大气下行辐射亮度; $K 1$ , $K 2$ 为传感器定标参数
干度(NDBSI)	$N D B S I = (S I + I B I) / 2$ $S I = [(ρ S W I R 1 + ρ R) - (ρ N I R + ρ B)] / [(ρ S W I R 1 + ρ R) + (ρ N I R + ρ B)]$ $I B I = 2 ρ S W I R 1 ρ S W I R 1 + ρ R - ρ N I R ρ N I R + ρ R + ρ G ρ G + ρ S W I R 1 /$ $2 ρ S W I R 1 ρ S W I R 1 + ρ R + ρ N I R ρ N I R + ρ R + ρ G ρ G + ρ S W I R 1$	$S I$ 为裸土指数; $I B I$ 为建筑指数; $ρ B$ , $ρ G$ , $ρ R$ , $ρ N I R$ , $ρ S W I R 1$ 分别为TM与OLI数据的蓝、绿、红、近红外和短波红外1波段的反射率数据

Tab.1 指标计算公式

$q$ 值范围	交互作用类型
$q (X 1 ? X 2) m i n [q (X 1), q (X 2)]$	非线性减弱
$m i n [q (X 1), q (X 2)] q (X 1 ? X 2) m a x [q (X 1), q (X 2)]$	单线性减弱
$m a x [q (X 1), q (X 2)] q (X 1 ? X 2) q (X 1) + q (X 2)$	双因子增强
$q (X 1 ? X 2) = q (X 1) + q (X 2)$	相互独立
$q (X 1 ? X 2) q (X 1) + q (X 2)$	非线性增强

Tab.2 因子交互作用类型

Tab.3 不同年份第一主成分载荷与贡献率

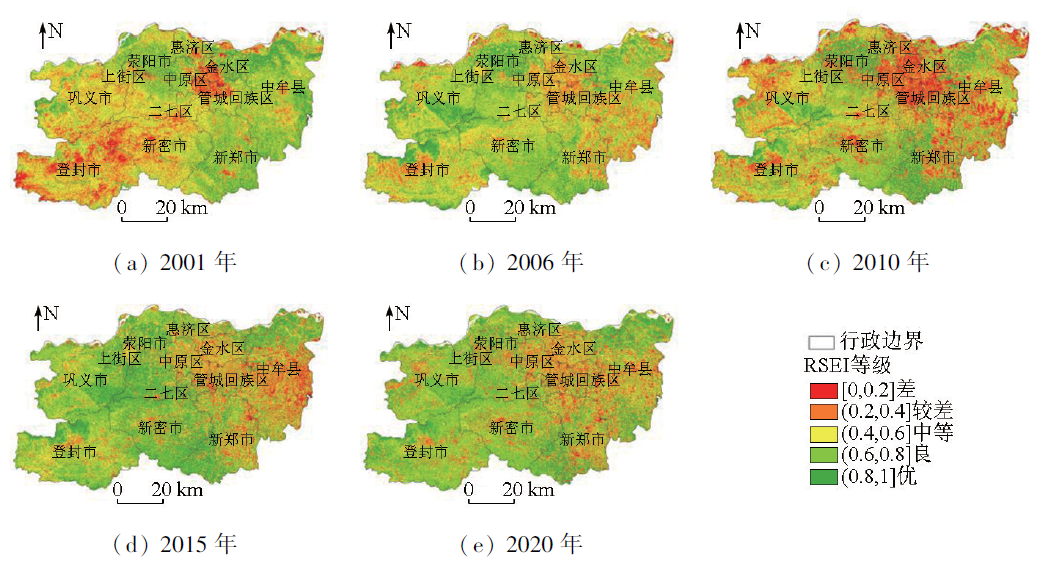

Fig.2 2001—2020年郑州市RSEI等级分布

Tab.4 2001—2020年郑州市生态环境质量等级面积与占比

Tab.5 2001—2020年郑州市生态环境质量等级变化情况

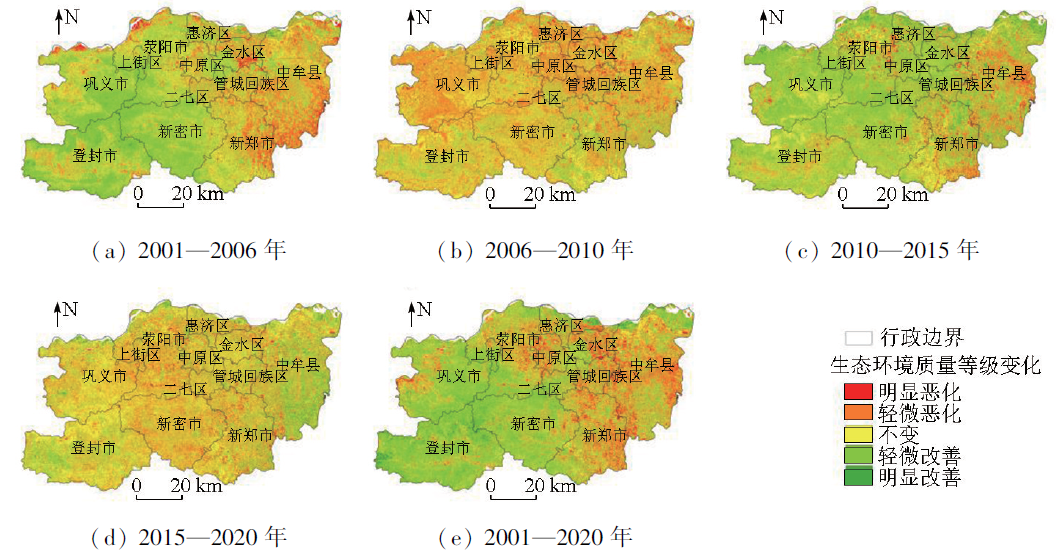

Fig.3 2001—2020年郑州市生态环境质量等级变化空间分布

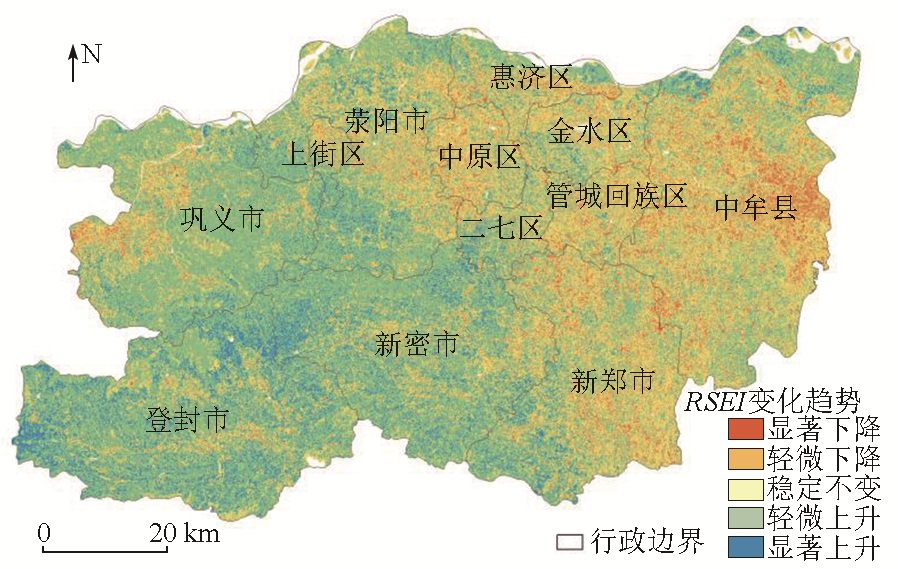

Fig.4 2001—2020年郑州市RSEI变化趋势

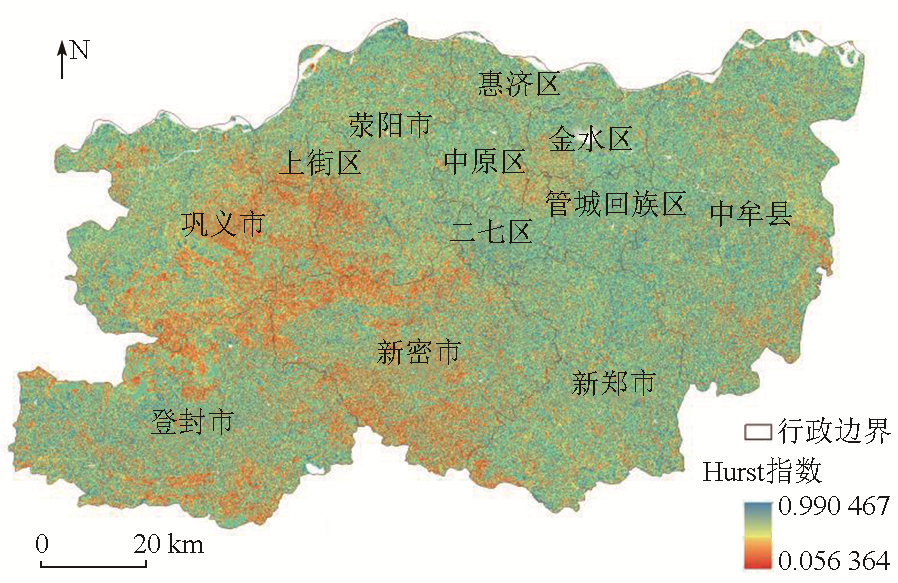

Fig.5 2001—2020年郑州市RSEI变化Hurst指数

因子类型	2001年		2006年		2010年		2015年		2020年		2000—2020年
因子类型	$q$ 值	排序	$q$ 值	排序	$q$ 值	排序	$q$ 值	排序	$q$ 值	排序	$q$ 值	排序
年均降水	0.134	5	0.132	7	0.112	6	0.103	7	0.141	4	0.124	7
年均气温	0.232	3	0.164	5	0.107	7	0.149	6	0.123	6	0.155	5
高程	0.264	1	0.181	3	0.187	3	0.164	3	0.137	5	0.186	3
坡度	0.093	8	0.073	8	0.096	8	0.033	8	0.031	8	0.065	8
土地利用类型	0.171	4	0.251	2	0.362	1	0.295	1	0.207	2	0.257	1
人口密度	0.255	2	0.256	1	0.262	2	0.217	2	0.239	1	0.246	2
GDP	0.111	7	0.176	4	0.156	5	0.126	5	0.111	7	0.136	6
夜间灯光数据	0.129	6	0.153	6	0.181	4	0.163	4	0.177	3	0.161	4

Tab.6 因子探测结果

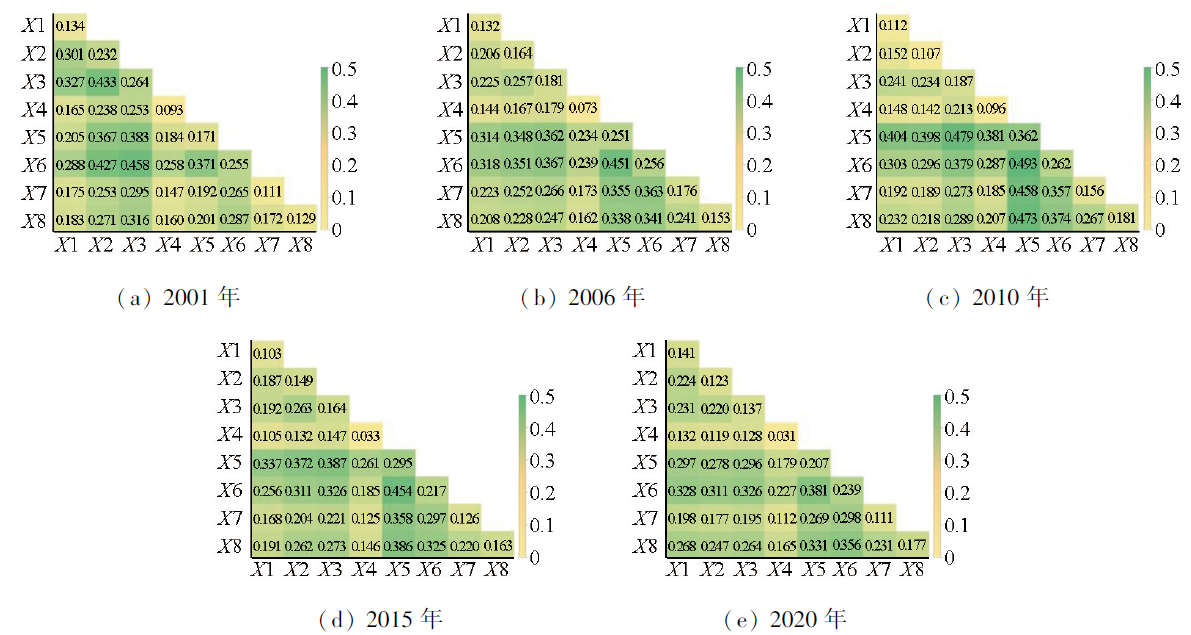

Fig.6 2001—2020郑州市RSEI驱动因子交互探测结果
X1为年平均降水; X2为年平均气温; X3为高程; X4为坡度; X5为土地利用类型; X6为人口密度; X7为GDP; X8为夜间灯光数据

[1]	熊欢欢, 梁龙武, 曾赠, 等. 中国城市PM2.5时空分布的动态比较分析[J]. 资源科学, 2017, 39(1):136-146. doi: 10.18402/resci.2017.01.14
	Xiong H H, Liang L W, Zeng Z, et al. Dynamic analysis of PM2.5 spatial-temporal characteristics in China[J]. Resources Science, 2017, 39(1):136-146.
[2]	Zeng S Y, Ma J, Yang Y J, et al. Spatial assessment of farmland soil pollution and its potential human health risks in China[J]. Science of the Total Environment, 2019,687:642-653.
[3]	罗红霞, 戴声佩, 李茂芬, 等. 海南岛植被覆盖变化驱动因子及相对作用评价[J]. 国土资源遥感, 2020, 32(1):154-161.doi:10.6046/gtzyyg.2020.01.21.
	Luo H X, Dai S P, Li M F, et al. Relative roles of climate changes and human activities in vegetation variables in Hainan Island[J]. Remote Sensing for Land and Resources, 2020, 32(1):154-161.doi:10.6046/gtzyyg.2020.01.21.
[4]	胡楠林, 任志彬, 董禹麟, 等. 中国城市群热岛效应时空演变及其影响因素分析[J]. 地理科学, 2022, 42(9):1534-1545. doi: 10.13249/j.cnki.sgs.2022.09.003
	Hu N L, Ren Z B, Dong Y L, et al. Spatio-temporal evolution of heat island effect and its driving factors in urban agglomerations of China[J]. Scientia Geographica Sinica, 2022, 42(9):1534-1545. doi: 10.13249/j.cnki.sgs.2022.09.003
[5]	中华人民共和国环境保护部. HJ 192—2015 生态环境状况评价技术规范[S]. 北京: 中国环境科学出版社, 2015.
	Ministry of Environmental Protection of the People’s Republic of China. HJ 192—2015 Technical criterion for ecosystem status evaluation[S]. Beijing: China Environmental Science Press, 2015.
[6]	Jing Y, Zhang F, He Y, et al. Assessment of spatial and temporal variation of ecological environment quality in Ebinur Lake Wetland National Nature Reserve,Xinjiang,China[J]. Ecological Indicators, 2020,110:105874.
[7]	张洁, 杨燕琼. 珠江三角洲城市群生态状况变化遥感评价[J]. 西北林学院学报, 2019, 34(1):184-191.
	Zhang J, Yang Y Q. Remote sensing evaluation on the change of ecological status of Pearl River Delta urban agglomeration[J]. Journal of Northwest Forestry University, 2019, 34(1):184-191.
[8]	张芳宁, 杨亮洁, 杨永春. 1981—2016年黄土高原植被NDVI变化及对气候和人类活动的响应[J]. 水土保持研究, 2023, 30(2):230-237.
	Zhang F N, Yang L J, Yang Y C. Change of vegetation NDVI and its response to climatic and human activities in the Loess Plateau during 1981—2016[J]. Research of Soil and Water Conservation, 2023, 30(2):230-237.
[9]	王阳, 孙然好. 区域气候背景对城市热岛效应的影响规律[J]. 生态学报, 2021, 41(11):4288-4299.
	Wang Y, Sun R H. Impacts of regional climate on urban heat islands in China[J]. Acta Ecologica Sinica, 2021, 41(11):4288-4299.
[10]	温小乐, 徐涵秋. 福州城市扩展对闽江下游水质影响的遥感分析[J]. 地理科学, 2010, 30(4):624-629.
	Wen X L, Xu H Q. Remote sensing analysis of impact of Fuzhou City expansion on water quality of lower Minjiang River,China[J]. Scientia Geographica Sinica, 2010, 30(4):624-629.
[11]	Musse M A, Barona D A, Santana Rodriguez L M.Urban environmental quality assessment using remote sensing and census data[J]. International Journal of Applied Earth Observation and Geoinformation, 2018,71:95-108.
[12]	徐涵秋. 城市遥感生态指数的创建及其应用[J]. 生态学报, 2013, 33(24):7853-7862.
	Xu H Q. A remote sensing urban ecological index and its application[J]. Acta Ecologica Sinica, 2013, 33(24):7853-7862.
[13]	Karbalaei Saleh S, Amoushahi S, Gholipour M. Spatiotemporal ecological quality assessment of metropolitan cities:A case study of central Iran[J]. Environmental Monitoring and Assessment, 2021, 193(5):305. doi: 10.1007/s10661-021-09082-2 pmid: 33900465
[14]	Airiken M, Zhang F, Chan N W, et al. Assessment of spatial and temporal ecological environment quality under land use change of urban agglomeration in the North Slope of Tianshan,China[J]. Environmental Science and Pollution Research, 2022, 29(8):12282-12299.
[15]	李世杰, 冯徽徽, 王珍, 等. 近十年洞庭湖流域生态环境状况时空动态特征及影响因素[J]. 自然资源遥感:1-10.doi:10.6046/zrzyyg.2022375.
	Li S J, Feng H H, Wang Z, et al. Spatial and temporal dynamic characteristics and influencing factors of ecological environment in Dongting Lake Basin in recent 10 years[J]. Remote sensing of natural resources:1-10.doi:10.6046/zrzyyg.2022375.
[16]	王丽春, 焦黎, 来风兵, 等. 基于遥感生态指数的新疆玛纳斯湖湿地生态变化评价[J]. 生态学报, 2019, 39(8):2963-2972.
	Wang L C, Jiao L, Lai F B, et al. Evaluation of ecological changes based on a remote sensing ecological index in a Manas Lake wetland,Xinjiang[J]. Acta Ecologica Sinica, 2019, 39(8):2963-2972.
[17]	赵管乐, 彭培好. 基于RSEI的典例干热河谷区——四川省攀枝花市生态环境变化分析[J]. 山地学报, 2021, 39(6):842-854.
	Zhao G Y, Peng P H. RSEI-based evaluation on ecological environment changes in typical dry hot valley:Panzhihua City,Sichuan,China[J]. Mountain Research, 2021, 39(6):842-854.
[18]	权文婷, 张树誉, 刘艳, 等. 基于遥感生态指数的陕西省东庄水库流域生态环境变化监测与评价[J]. 水土保持通报, 2022, 42(5):96-104,113.
	Quan W T, Zhang S Y, Liu Y, et al. Monitoring and evaluation of ecological environment changes in Dongzhuang Reservoir basin in Shaanxi Province based on remote sensing ecological index[J]. Bulletin of Soil and Water Conservation, 2022, 42(5):96-104,113.
[19]	李元应, 郑琳琳. 基于黄河流域生态环境保护视域下郑州与焦作绿色城市建设问题探究[J]. 现代园艺, 2022, 45(8):158-160.
	Li Y Y, Zheng L L. On the construction of green cities in Zhengzhou and Jiaozuo from the perspective of ecological environment protection in the Yellow River basin[J]. Contemporary Horticulture, 2022, 45(8):158-160.
[20]	尚明宇, 王富强, 马尚钰. 郑州市土地利用/覆被变化模拟预测及其水源涵养量计算评估[J]. 水利水电技术(中英文), 2023, 54(1):75-86.
	Shang M Y, Wang F Q, Ma S Y. Prediction of land use/cover change and evaluation of water conservation function in Zhengzhou City[J]. Water Resources and Hydropower Engineering, 2023, 54(1):75-86.
[21]	王佃来, 刘文萍, 黄心渊. 基于Sen+Mann-Kendall的北京植被变化趋势分析[J]. 计算机工程与应用, 2013, 49(5):13-17.
	Wang D L, Liu W P, Huang X Y. Trend analysis in vegetation cover in Beijing based on Sen+Mann-Kendall method[J]. Computer Engineering and Applications, 2013, 49(5):13-17.
[22]	李超, 李雪梅. 2000—2018年中国植被生态质量时空变化特征[J]. 长江流域资源与环境, 2021, 30(9):2154-2165.
	Li C, Li X M. Characteristics of spatio-temporal variation of ecological quality for vegetation in China from 2000—2018[J]. Resources and Environment in the Yangtze Basin, 2021, 30(9):2154-2165.
[23]	王巨. 基于时序NDVI植被变化检测与驱动因素量化方法研究——以河西地区为例[D]. 兰州: 兰州大学, 2020.
	Wang J. Methods for detecting vegetation changes and quantifying the driving factors using NDVI timeseries by taking Hexi as a case area[D]. Lanzhou: Lanzhou University, 2020.
[24]	康帅直, 穆琪, 赵永华, 等. 黄土高原神府资源开采区生态环境质量时空格局特征[J]. 生态学报, 2023, 43(7):2781-2792.
	Kang S Z, Mu Q, Zhao Y H, et al. Temporal and spatial pattern characteristics of ecological environmental quality in Shenfu mining area of Loess Plateau[J]. Acta Ecologica Sinica, 2023, 43(7):2781-2792.
[25]	孔晶晶, 昝梅, 王雪梅, 等. 新疆玛纳斯河流域植被水分利用效率时空格局及影响因素研究[J]. 水资源与水工程学报, 2022, 33(6):196-203,212.
	Kong J J, Zan M, Wang X M, et al. Spatiotemporal pattern of vegetation water use efficiency and its influencing factors in Manas River basin,Xinjiang[J]. Journal of Water Resources and Water Engineering, 2022, 33(6):196-203,212.
[26]	Wu S, Gao X, Lei J, et al. Ecological environment quality evaluation of the Sahel region in Africa based on remote sensing ecological index[J]. Journal of Arid Land, 2022, 14(1):14-33. doi: 10.1007/s40333-022-0057-1
[27]	王劲峰, 徐成东. 地理探测器:原理与展望[J]. 地理学报, 2017, 72(1):116-134. doi: 10.11821/dlxb201701010
	Wang J F, Xu C D. Geodetector:Principle and prospective[J]. Acta Geographica Sinica, 2017, 72(1):116-134.
[28]	邢昱, 赵颖, 唐敏, 等. 河南省“十三五”期间生态环境质量变化趋势[J]. 中国环境监测, 2022, 38(6):40-49.
	Xing Y, Zhao Y, Tang M, et al. Trends in eco-environmental quality in Henan Province during the 13th Five-Year Plan period[J]. Environmental Monitoring in China, 2022, 38(6):40-49.
[29]	田智慧, 尹传鑫, 王晓蕾. 鄱阳湖流域生态环境动态评估及驱动因子分析[J]. 环境科学, 2023, 44(2):816-827.
	Tian Z H, Yin C X, Wang X L. Dynamic monitoring and driving factors analysis of ecological environment quality in Poyang Lake basin[J]. Environmental Science, 2023, 44(2):816-827.
[30]	王栋华, 田义超, 张亚丽, 等. 峰丛洼地流域植被覆盖度时空演变及其归因[J]. 中国环境科学, 2022, 42(9):4274-4284.
	Wang D H, Tian Y C, Zhang Y L, et al. Spatiotemporal evolution and attribution of vegetation coverage in the peak-cluster depression basins[J]. China Environmental Science, 2022, 42(9):4274-4284.
[31]	Gao P, Kasimu A, Zhao Y, et al. Evaluation of the temporal and spatial changes of ecological quality in the Hami oasis based on RSEI[J]. Sustainability, 2020, 12(18):7716.
[32]	卢楠楠. 基于遥感的不透水面监测及其对生态环境质量的影响——以郑州开封地区为例[D]. 开封: 河南大学, 2022.
	Lu N N. Monitoring of impervious surface based on remote sensing and its impact on ecological environment quality[D]. Kaifeng: Henan University, 2022.
[33]	Guo H, Zhang B, Bai Y, et al. Ecological environment assessment based on remote sensing in Zhengzhou[J]. IOP Conference Series:Earth and Environmental Science, 2017,94:012190.
