一种基于地面激光雷达点云的树木三维建模方法

doi:10.6046/zrzyyg.2023211

摘要
图/表
参考文献
相关文章
Metrics

全文: PDF(2205 KB)

HTML
输出: BibTeX | EndNote (RIS)

摘要

为更好地获取树木三维几何结构信息,解决高精度、高还原度的树木三维重建问题,提出了一种基于地面激光雷达(terrestrial laser scanning,TLS)点云数据的树木三维建模方法。针对TLS扫描存在树叶间隙的遮挡,充分考虑叶片聚集,结合叶片和枝干的形态特征,采用Delaunay三角网和Alpha-shape算法分别对树木叶片和枝干进行模型拟合重建,有效克服了过去树木三维建模枝干结构不真实、器官建模不精细等问题,较好实现了对单棵树木叶片和细小枝干的三维重建。所提方法可为森林结构参数获取和资源经营管理等提供技术支撑,同时也能为典型树木的部件级实景三维建模提供一定的借鉴和参考作用。

	服务

	把本文推荐给朋友
	加入引用管理器
	E-mail Alert
	RSS
	作者相关文章
	万里红
	曹振宇
	田志林
	施艳丽

关键词 ：地面激光雷达, 点云, 枝叶分离, 实景三维, 树木三维建模

Abstract：

To capture information about the 3D geometric structures of trees more effectively and address the challenge of high-precision, high-fidelity tree reconstruction, this study proposed a method for 3D modeling of trees based on terrestrial LiDAR point cloud. To overcome the occlusion caused by leaf gaps in TLS, this method fully considered the aggregation of leaves, as well as the morphological characteristics of both leaves and branches. By conducting the model fitting and reconstruction of tree leaves and branches using Delaunay triangulation and Alpha-shape algorithm, respectively, the proposed method effectively addressed previous issues such as unrealistic tree structures and imprecise organ modeling, thus achieving the 3D reconstruction of individual tree leaves and small branches efficiently. This study holds great significance for determining forest structural parameters and managing resources, while also offering a valuable reference for component-level real scene 3D modeling of typical trees.

Key words： terrestrial laser scanning point cloud branch and leaf separation 3D real scene tree 3D reconstruction

收稿日期: 2023-07-14 出版日期: 2025-02-17

ZTFLH:

TP79

基金资助:四川省科技计划项目“山区重大地质灾害智能识别与动态风险评价关键技术研究”(2023YFS0434);“化工重大危险源事故监测预警及应急救援决策支撑关键技术研究与示范”(2023YFS0415)

作者简介: 万里红(1980-),男,博士研究生,正高级工程师,主要研究方向为时空大数据三维GIS。Email: wlh_666@126.com。

引用本文:

万里红, 曹振宇, 田志林, 施艳丽. 一种基于地面激光雷达点云的树木三维建模方法[J]. 自然资源遥感, 2025, 37(1): 62-67.
WAN Lihong, CAO Zhenyu, TIAN Zhilin, SHI Yanli. A method for 3D modeling of trees based on terrestrial LiDAR point cloud. Remote Sensing for Natural Resources, 2025, 37(1): 62-67.

链接本文:

https://www.gtzyyg.com/CN/10.6046/zrzyyg.2023211 或 https://www.gtzyyg.com/CN/Y2025/V37/I1/62

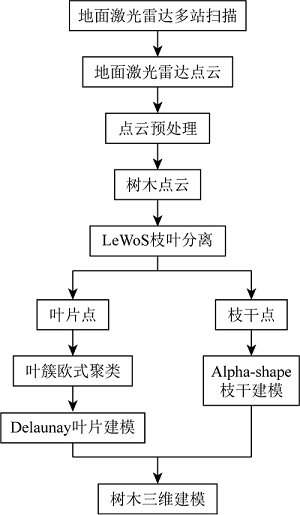

Fig.1 研究技术路线

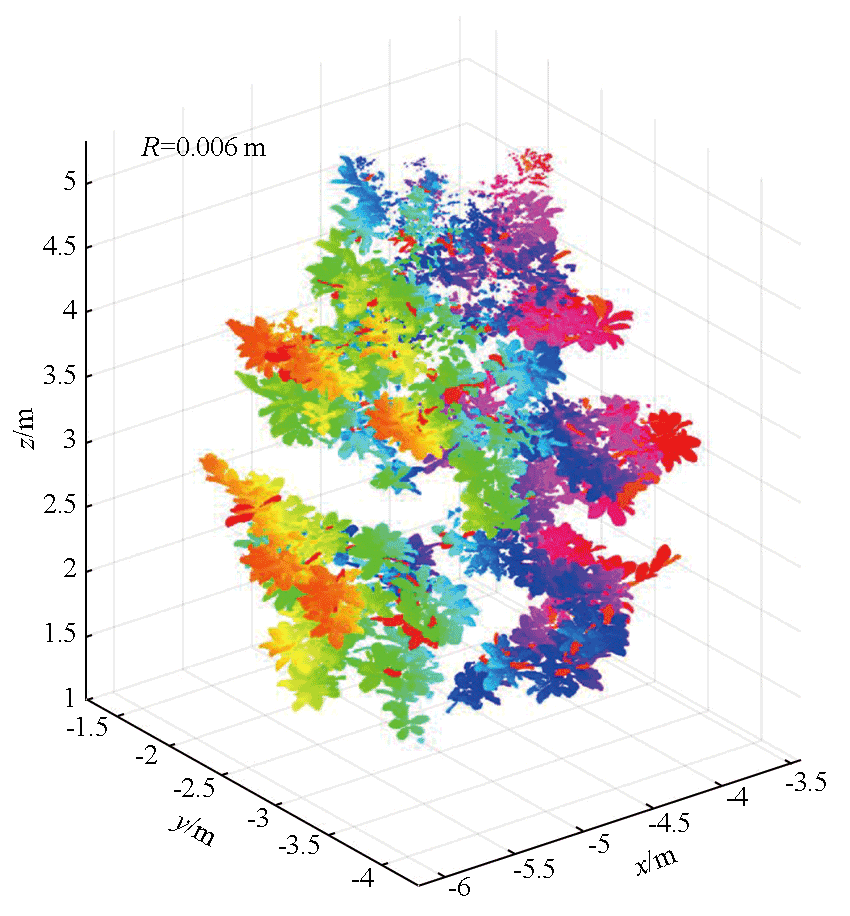

Fig.2 叶簇欧氏距离聚类结果

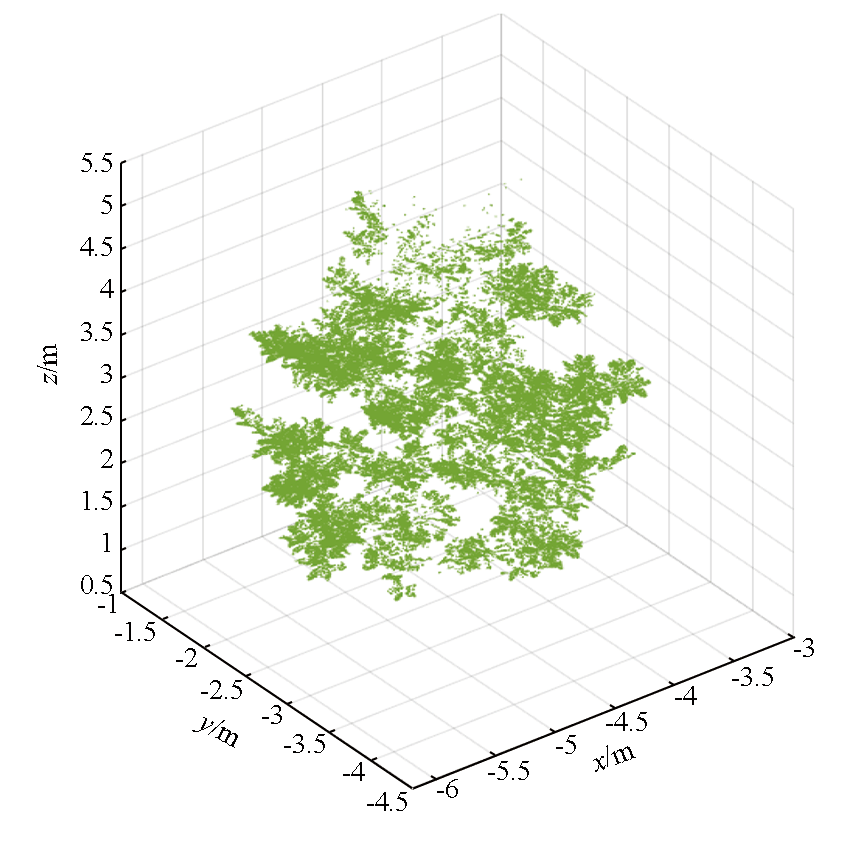

Fig.3 叶片建模结果

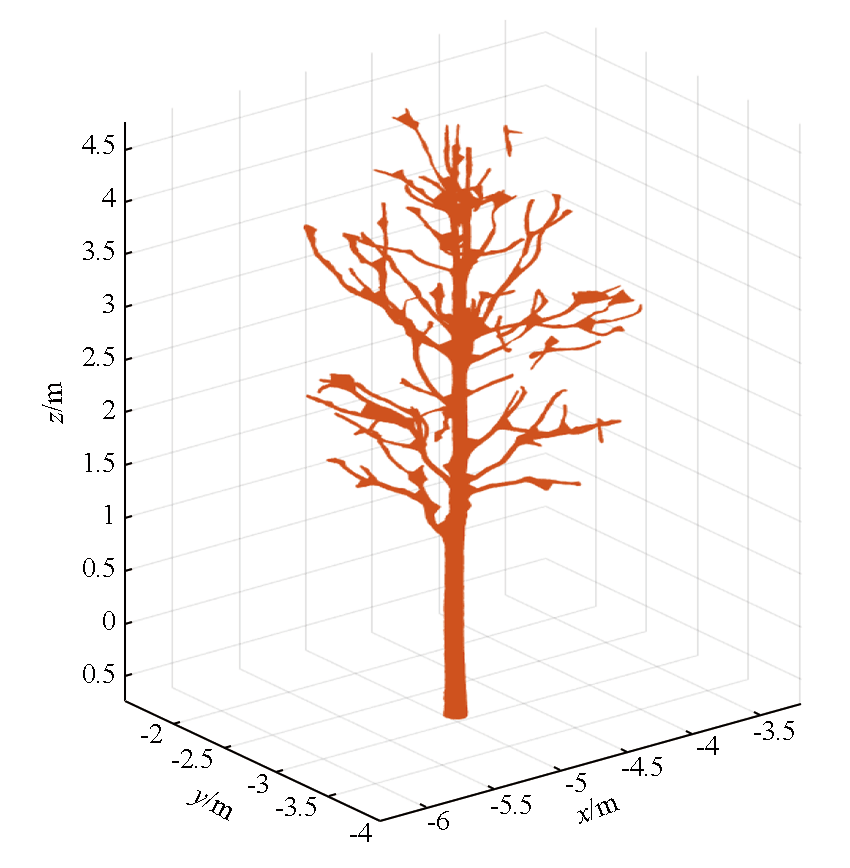

Fig.4 枝干建模结果

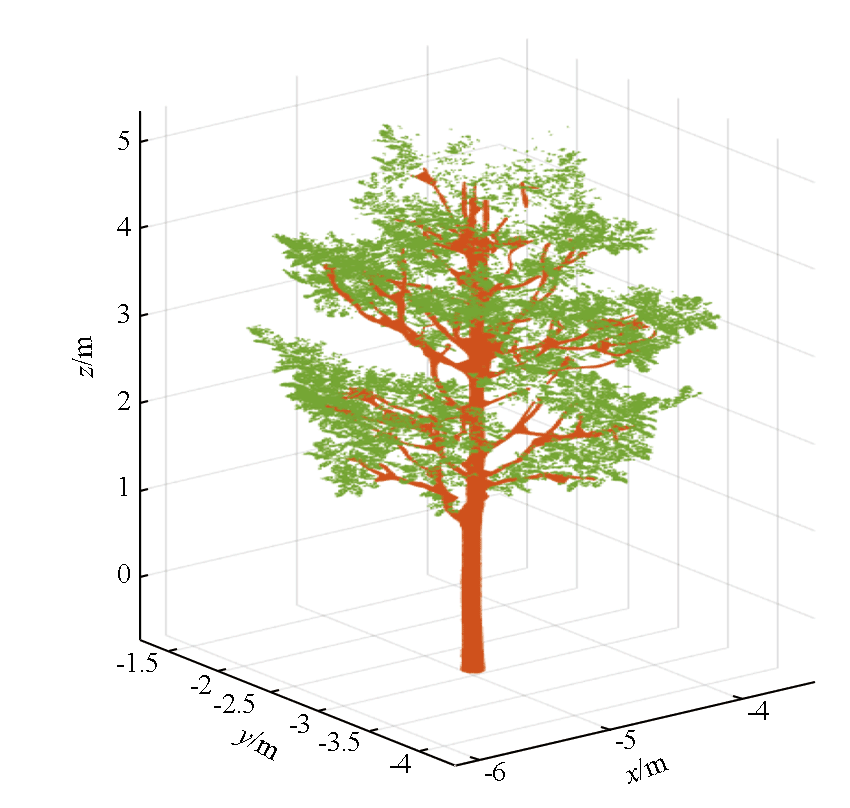

Fig.5 树木三维建模结果
